- AcePro-MS10-1
- AceProAV 1x4 DisplayPort 1.4 MST Hub Splitter
1x4 Splitter, connect up to four DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST), no driver required, Windows PCs, not Mac OS compatible
Highlights

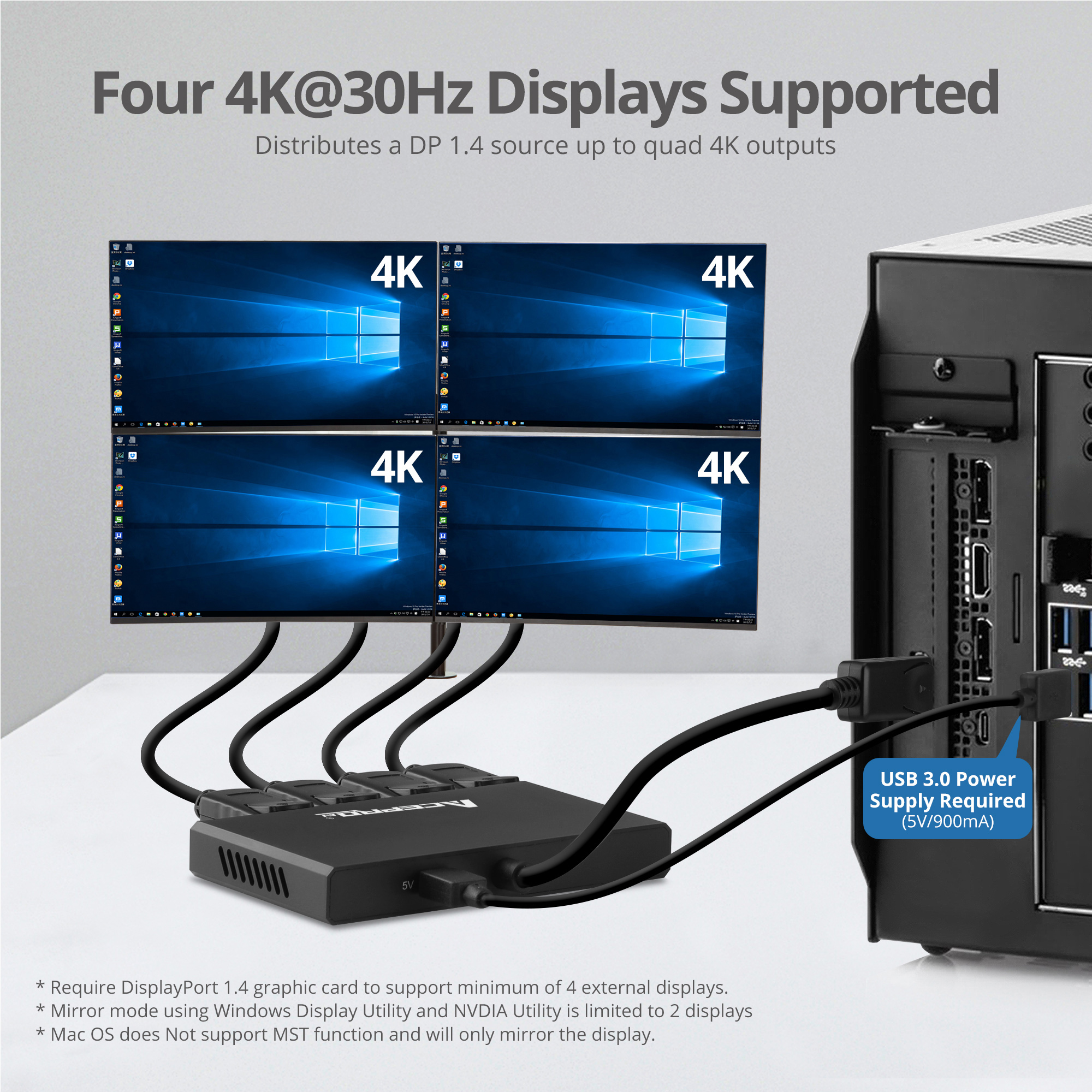

- Connect up to four DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
- Provides multiple display modes such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display. Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter

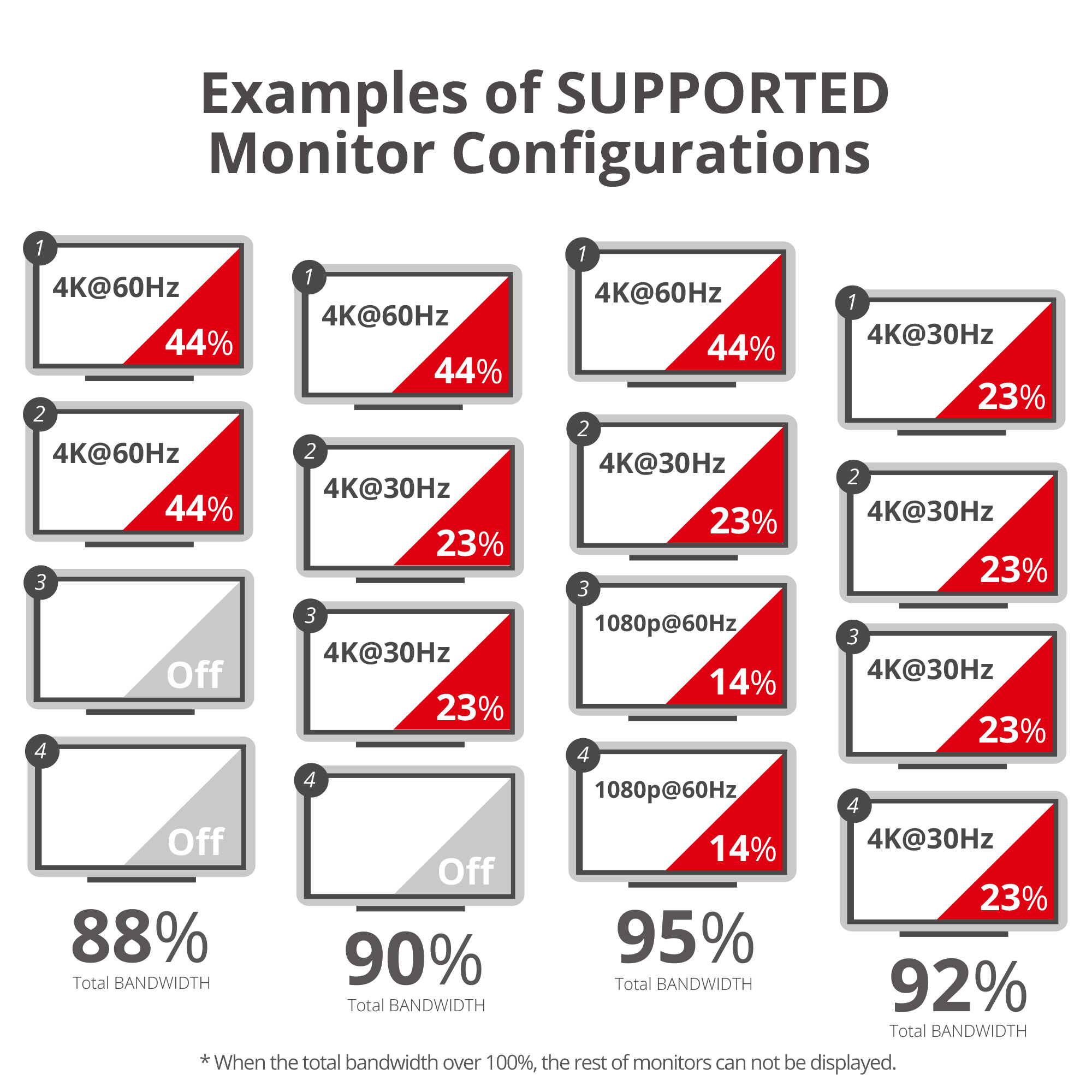

- Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less display. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, four 2K, four 1080p, 4K+2K+1080p+1080p etc. Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth of 32.4Gbps
- Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
- Supports 4K HDR and HDCP 2.2
- Plug-n-play, trouble-free set up without complicated hardware or driver installation
- High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality
Specification
- Chipset: VMM5330 + VMM5220
- Maximum resolution:
- One screen: 8K (7680 x 4320) @30Hz & 7680x4320@60Hz YUV 4:2:0 with DSC (Display Stream Compression)
- Two screen: 4K@60Hz / 5120x2880 @60Hz (DSC)
- Three screen: 4K@30Hz / 3840x2160 60Hz (DSC)
- Quad screen: 4K@30Hz / 3840x2160 60Hz (DSC)
- Compliant with DisplayPort 1.4 specifications
- Audio: 5.1-ch surround audio
- Display Modes: Mirror, Extend, Panoramic video wall*
- *Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
- Total Bandwidth (max): 32.4Gbps - Supports a maximum of one 4K@60Hz display with two 4K@30Hz displays, four 4K@30Hz displays. Other resolution permutations which are less than or equal to 4K@30 will be fine also. For example, four 2K, four 1080p, 4K + 2K + 1080p + 1080p etc. *Note: The total combined bandwidth among all connected DisplayPort displays must NOT exceed the total maximum bandwidth of 32.4Gbps
- Product:

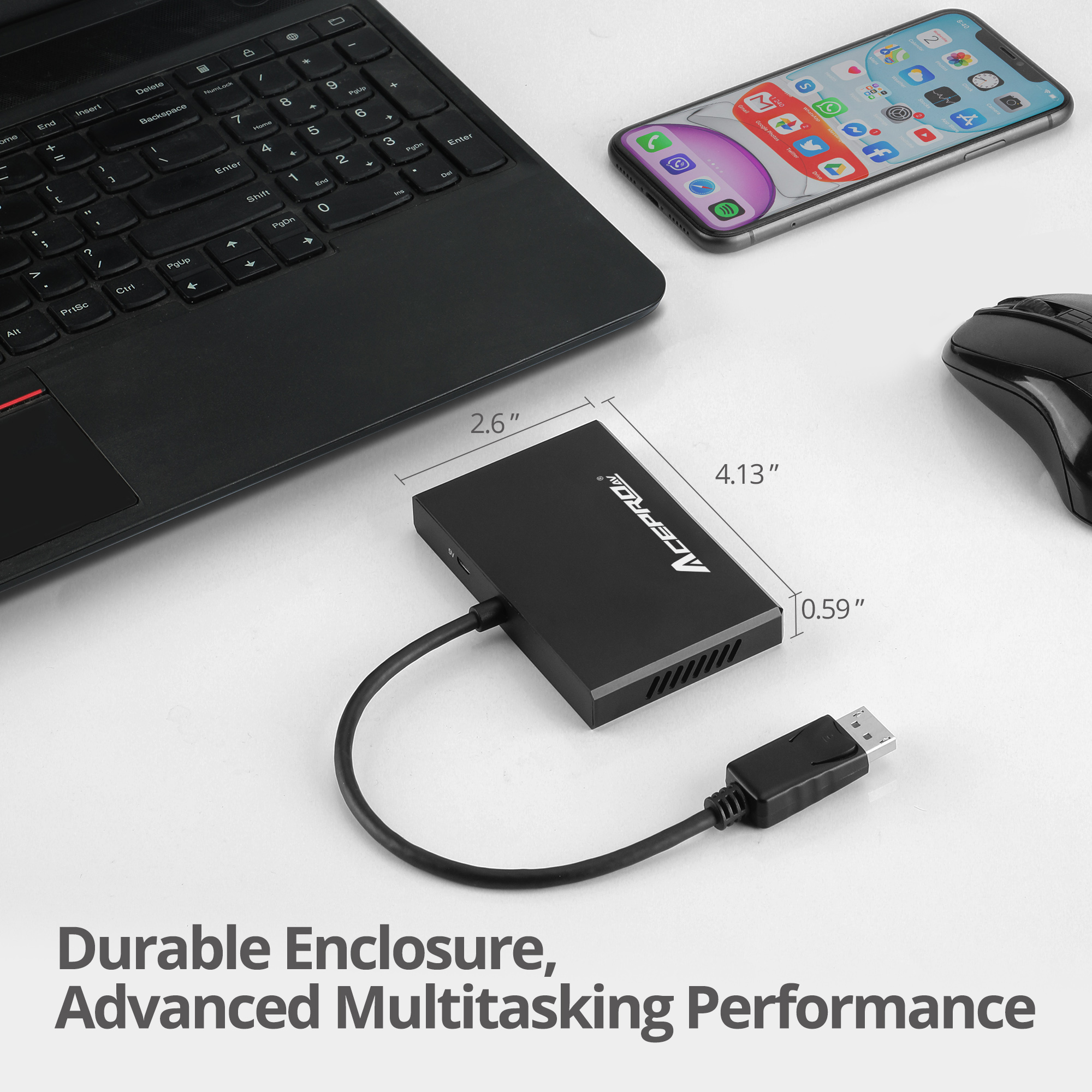

- Dimensions: 4.13" (W) x 0.59" (H) x 2.60" (D)
- Weight: 0.26 lbs
- Color: Black
- Housing: Plastic
- Connector:
- 1x 20-pin, DisplayPort, Male, Input
- 4x 20-pin, DisplayPort, Female, Output
- 1x 5-pin, Micro USB, Female, Input (for power only)
- Unit Package:
- Dimensions: 7.28" (W) x 1.18" (H) x 5.31" (D)
- Weight: 0.45 lbs
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: -4 to 158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
