• new | AcePro-MS08-1
  • AceProAV 1x3 4K DisplayPort 1.4 MST Hub Splitter

  • $0 $0

Highlights

  • Connect up to three DisplayPort displays to single DisplayPort 1.4 output with Multi-Stream Transport (MST) technology to boost your productivity
  • Provides multiple display modes such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display
  • Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
  • Total Bandwidth 32.4Gbps (max): Supports one UHD 8K (7680 x 4320)@30Hz display, two 4K@60Hz displays, three or four 4K (3840x2160)@30Hz or less displays. Other resolution combinations which are less than or equal to 4K@30Hz will work also. For example, three 2K, three 1080p, 4K+2K+1080p, etc.
  • Note: The total combined bandwidth among all connected displays must NOT exceed the total maximum bandwidth
  • Compatible with DisplayPort 1.4 with MST graphics cards with AMD Eyefinity, Intel Collage or NVIDIA Surround technology
  • Supports 4K HDR and HDCP 2.2
  • Plug-n-play, trouble-free set up without complicated hardware or driver installation
  • High quality aluminum housing decreases surrounding electro magnetic interference and provides optimal video quality

Compatibility Notes:
- Requires either AMD Eyfinity or Intel Collage or NVIDIA Surround technology graphics adapter for Video Wall mode

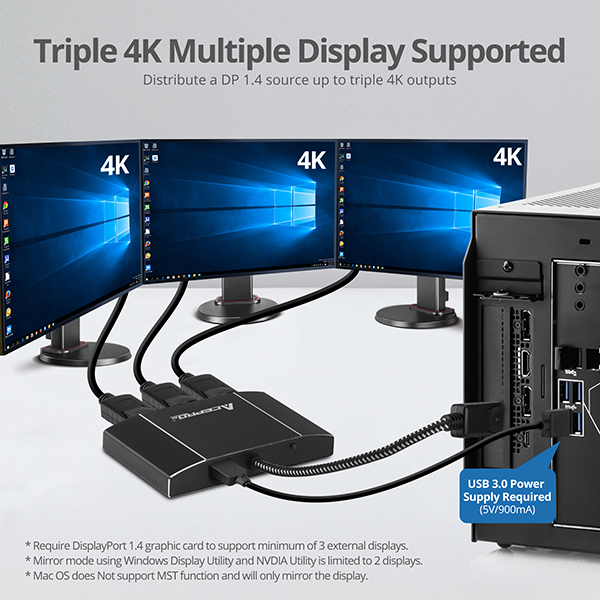

- Requires a DisplayPort 1.4 graphics card to support minimum of 3 external displays
- Mirror mode using Windows Display Uility and NVIDIA Utility is limited to 2 displays
- MacOS does NOT support MST function and will only mirror the displays

Specification

  • Chipset: VMM5330
  • Maximum resolution:
    • One screen 8K (7680 x 4320) @30Hz & 7680x4320@60Hz YUV 4:2:0 with DSC (Display Stream Compression)
    • Two screen 4K@60Hz / 5120x2880 @60Hz (DSC)
    • Three screen 4K@30Hz / 3840x2160 60Hz (DSC)
  • Compliant with DisplayPort 1.4 specifications
  • Audio: 5.1-ch surround audio
  • Display Modes: Mirror, Extend, Panoramic video wall *
  • *Note: AMD Eyefinity or NVIDIA Surround technology graphics adapter is required to support Panoramic Video Wall mode
  • Total Bandwidth 32.4Gbps : Supports a maximum of one 4K@60Hz display with two 4K@30Hz displays. Or, three 4K@30Hz displays. Other resolution permutations which are less than or equal to 4K@30 will be fine also. For example, three 2K, three 1080p, 4K+2K+1080p etc.
  • *Note: The total combined bandwidth among all connected DisplayPort displays must NOT be exceeded
  • Product:

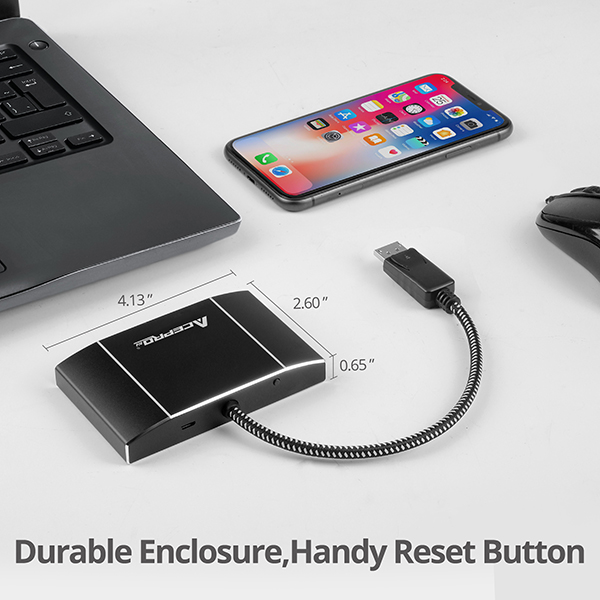

    • Dimensions: 4.14" (W) x 0.67" (H) x 2.64" (D)
    • Weight: 0.28 lbs
    • Color: Black
    • Housing: aluminum
    • Connector:
      • 1x 20-pin, DisplayPort, Male, Input
      • 3x 20-pin, DisplayPort, Female, Output
      • 1x 5-pin, Micro USB, Female, Input (for power only)
      • 1x Reset button
  • Unit package:
    • Dimensions: 7.80" (W) x 0.98" (H) x 4.72" (D)
    • Weight: 0.44 lbs
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
