• new | AcePro-CV26-1
  • 8K DisplayPort 1.4 to HDMI Adapter

  • $0 $0

Highlights

  • Easily converts an DisplayPort output into a HDMI video output allowing you to add a HDMI display

     Note: This is NOT a bi-directional adapter. Does not work for HDMI to DisplayPort 1.4 conversion

  • Compliant with DisplayPort 1.4(32.4Gbps Bandwidth), HDMI 2.1, HDR 10, HDCP 2.2/1.4
  • Supports high resolutions up to [email protected] & [email protected] with DSC function and also supports [email protected] and is backward compatible with 4K resolution without DSC
  • Compact Aluminum Design, insures superior durability and efficient heat dissipation
  • Perfect for gaming, video editing, and other tasks that require uncompromising resolution needed
  • Work with the latest Graphics Processing Units (GPU’s) which supports DSC 1.2, these are the supported GPUs NVIDIA TURING RTX : TITAN RTX , RTX 2080, RTX 2070, RTX 2060, QUADRO: RTX8000, RTX6000, RTX5000, RTX4000, RTX3000 MOBILE, Intel Eleven Based Gen: IceLake, Iris Plus Graphics, UHD Graphics, Please make absolutely sure that you’re using one of the above mentioned graphical technologies in order to obtain the Superior functionality of DisplayPort to HDMI Adapter
  • USB-Powered, Plug and play, no software required

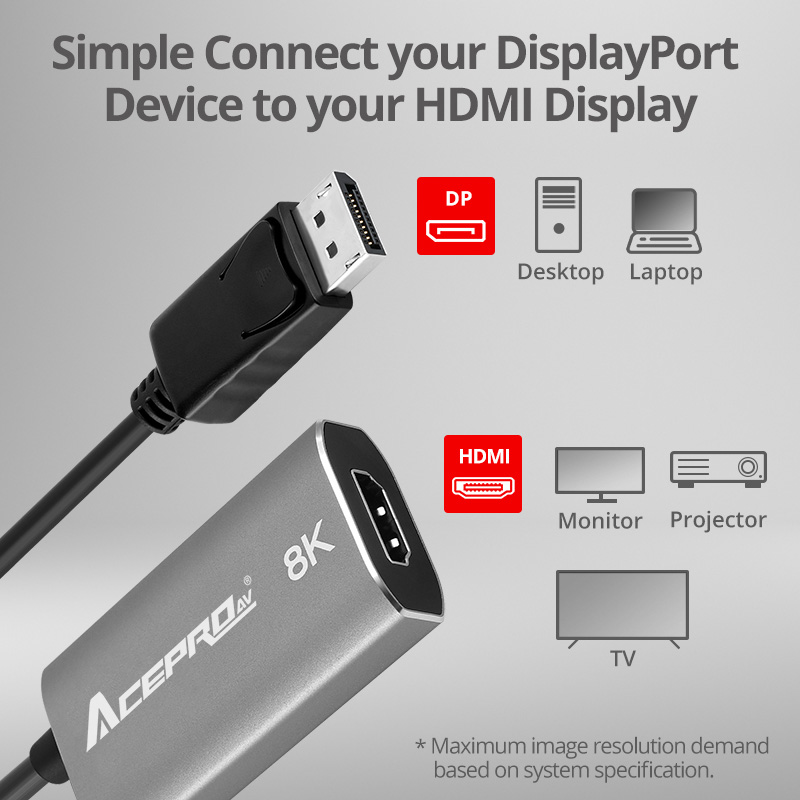

Multiple Connectivity Port

Comes with one DisplayPort 1.4 input port for source device or computer, one HDMI 2.1 video output port, and one USB-C port for power only

* Note:
- This USB-C to HDMI adapter does not support bi-directional communication



Specification

  • Chipset: RTD2173
  • Compliant with DisplayPort 1.4, HDMI 2.1, HDCP 2.2/1.4, HDR 10
  • Video resolution: 720p, 1080p, 4K30Hz, 4K60Hz,4K120Hz (w/DSC), 8K30Hz and 8K60Hz (w/DSC)
  • Audio Support: 7.1-ch PCM
  • Bandwidth: Up to 32.4Gbps
  • Product:

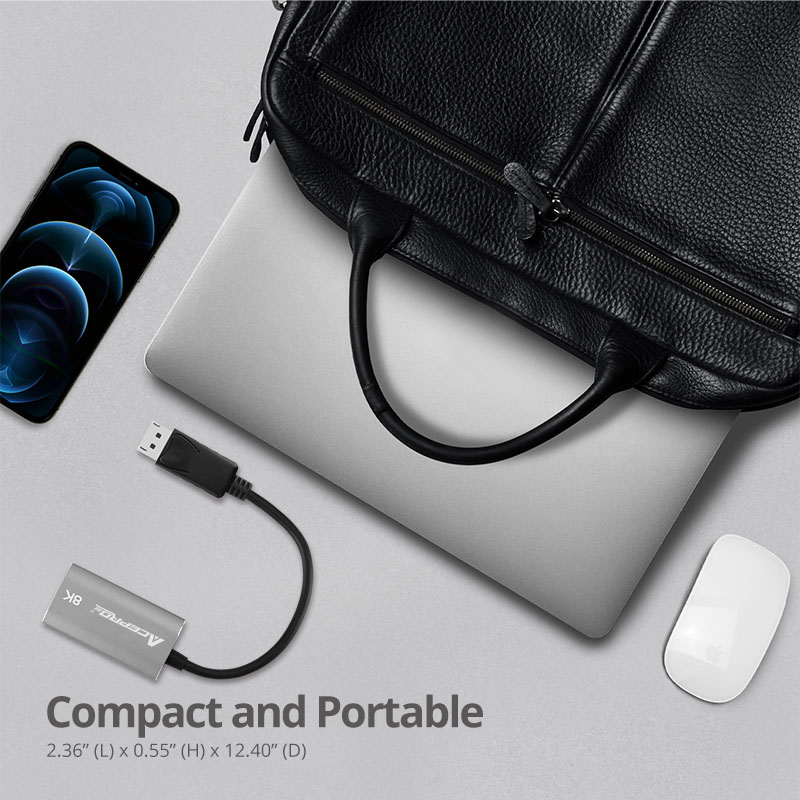

    • Dimensions: 2.36" (W) x 0.55" (H) x 1.24" (D)
    • Weight: 0.10 lbs
  • Unit Package:
    • Dimensions: 4.72" (W) x 0.55" (H) x 7.48" (D)
    • Weight: 0.17lbs
  • Cable length: SR to SR:150±10mm
  • Color: Space Grey
  • Housing: Aluminum
  • Connector:
    • 1x 20-pin, DisplayPort, Male, Input
    • 1x 19-Pin, HDMI Type-A, Female, Output
    • 1x USB-C, Female, Power input
  • Environmental conditions:
    • Operating temperature: 32 to 140 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Relative humidity: 0 to 85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
