Highlights

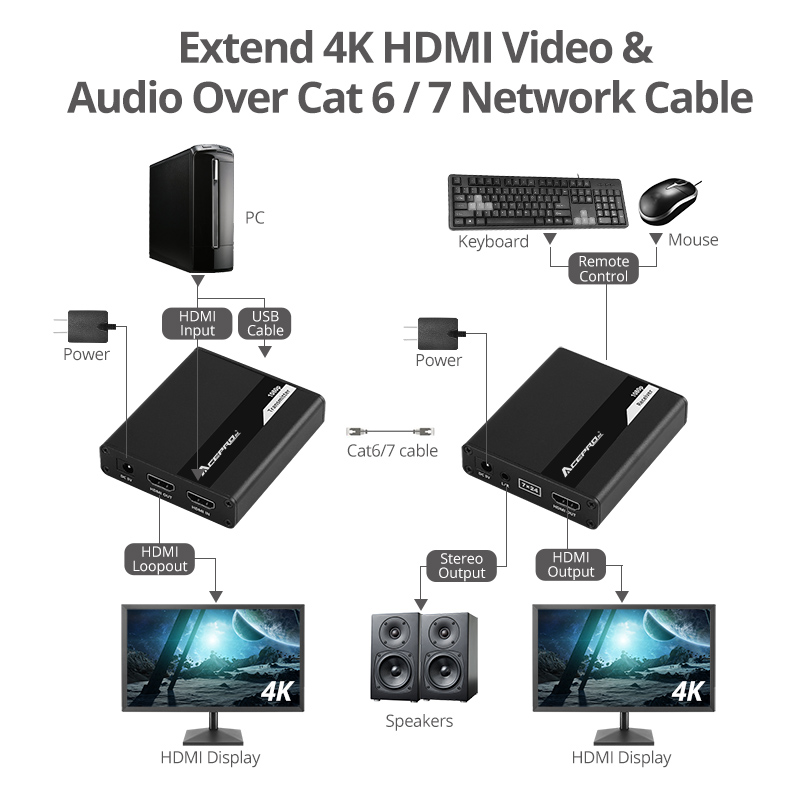

- Extends and transmits HDMI 1080p@60Hz video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly zero latency

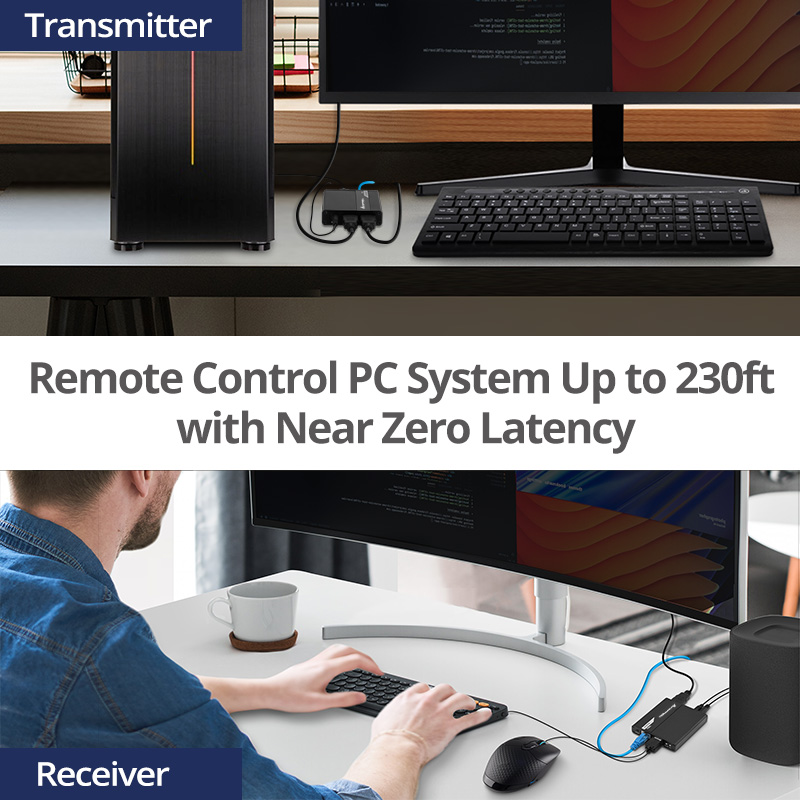

- Supports USB 2.0 extension from the transmitter to the receiver, allowing you to connect a keyboard and mouse at the extended location for remotely operate your PC system
- Supports PCM 2/5.1/7.1, Dolby & DTS 5.1 and audio extraction to 3.5mm stereo
- The transmitter's HDMI loop-out allows for local monitoring of the extended display
- The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
- Lightning protection, surge protection, ESD protection
- High quality metal housing improve heat dissipation and ensure system stability during long hours of operation
- Plug and play, no driver installation required
Specification
- Compliant with HDCP 1.4
- Resolution: 1080p / 1080i / 720p / 480p
- Transmission Distance: 1080p up to 70m via Cat6/6a/7 cable
- HDMI Audio format: PCM 2/5.1/7.1, Dolby & DTS 5.1 CH
- 3.5mm Audio format: PCM 2CH
- Product:
- Housing material: Aluminum alloy with crystal panel
- Color: Black
- Transmitting unit (TX):

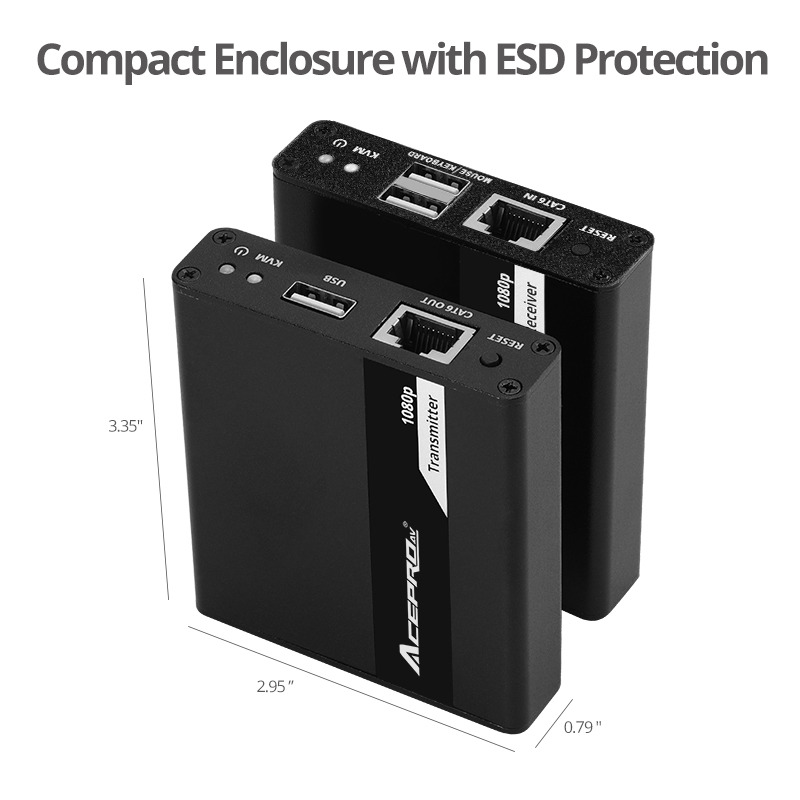

- Dimensions: 3.35" (W) x 0.79" (H) x 2.95" (D)
- Weight: 0.29 lbs

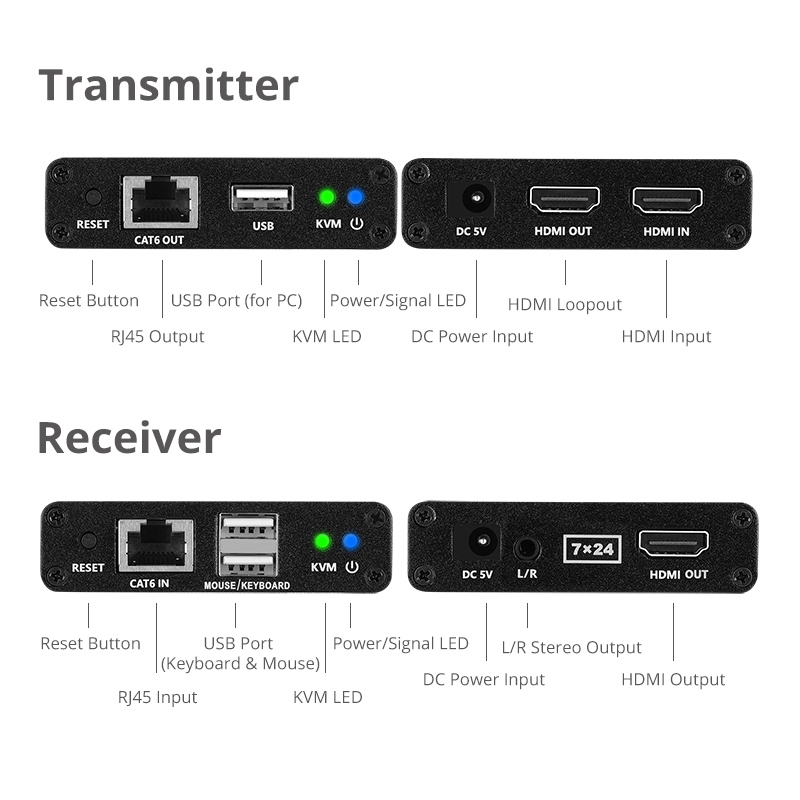

- Connectors:
- 1x 19-pin HDMI, Type A, Female, Input
- 1x 19-pin HDMI, Type A, Female, Loop-out
- 1x 4-pin USB 2.0 Type-A, Female, for Host connection
- 1x 8-pin, RJ45, Output
- 1x Reset button
- 1x Power jack
- Receiving unit (RX):
- Dimensions: 3.35" (W) x 0.79" (H) x 2.95" (D)
- Weight: 0.29 lbs
- Connectors:
- 1x 19-pin HDMI, Type A, Female, Output
- 2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse
- 1x 8-pin, RJ45, Input
- 1x 3.5mm L/R, Audio
- 1x Reset button
- 1x Power jack
- Unit package:
- Dimensions: 7.83"(W) x 3.15"(H) x 5.87"(D)
- Weight: 1.42 lbs
- Power adapter:
- Input: 100-240V / 50-60Hz
- Output: DC 5V/1A
- UL listed: E335801 / Level: VI
- Environmental conditions:
- Operating temperature: -20~60℃
- Storage temperature: -30~70℃
- Relative humidity: 0% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
