• new | AcePro-EX50-1
  • HDMI KVM Over Cat6 Extender

  • $0 $0

Highlights

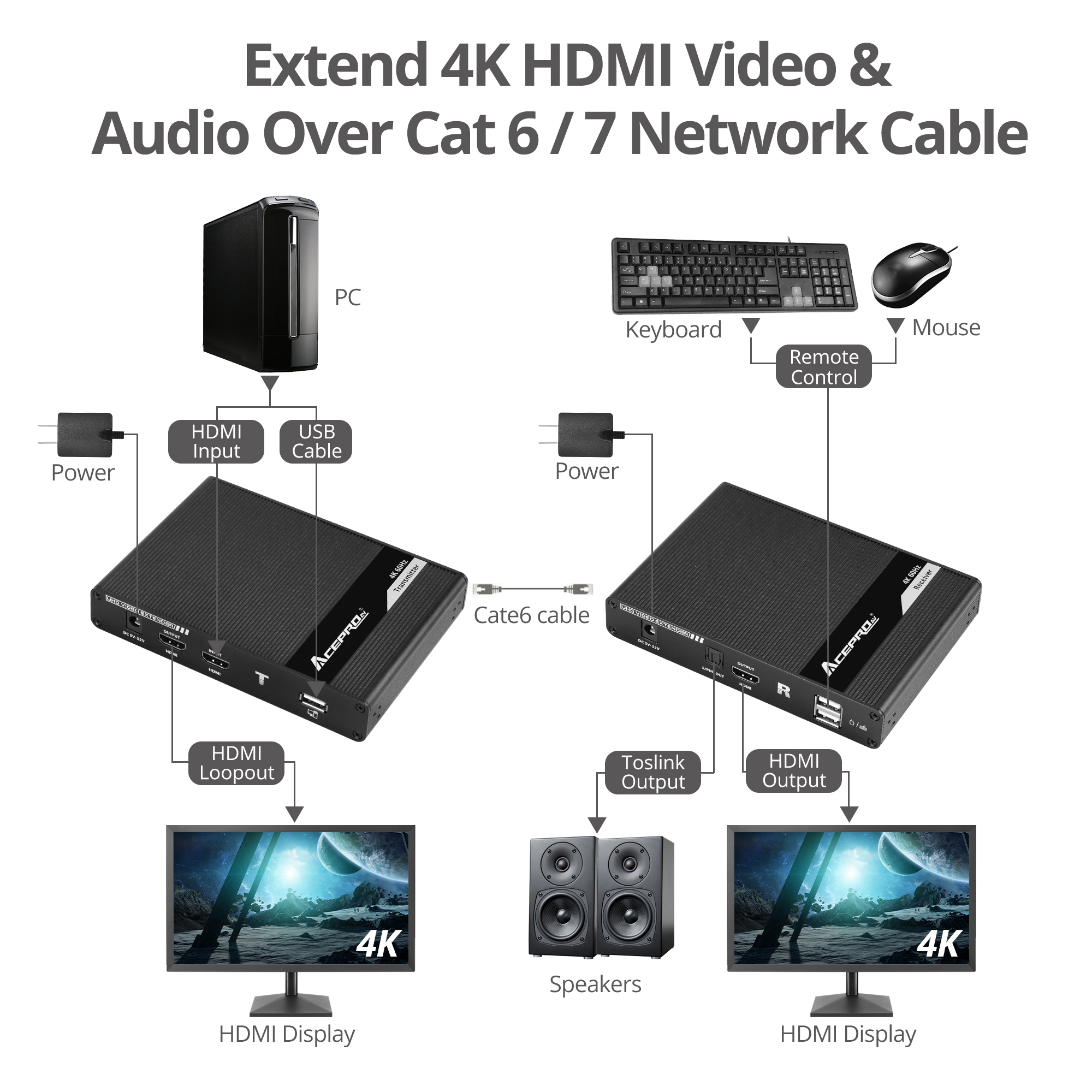

  • Extends and transmits 4K@60Hz HDMI video/audio and USB 2.0 signals up to 230ft (70m) through a Cat6/6a/7 network cable with nearly with zero latency
  • Supports USB 2.0 extension to the receiver, due to low bandwidth USB signal, only a wired/wireless keyboard and mouse is supported to control your computer remotely

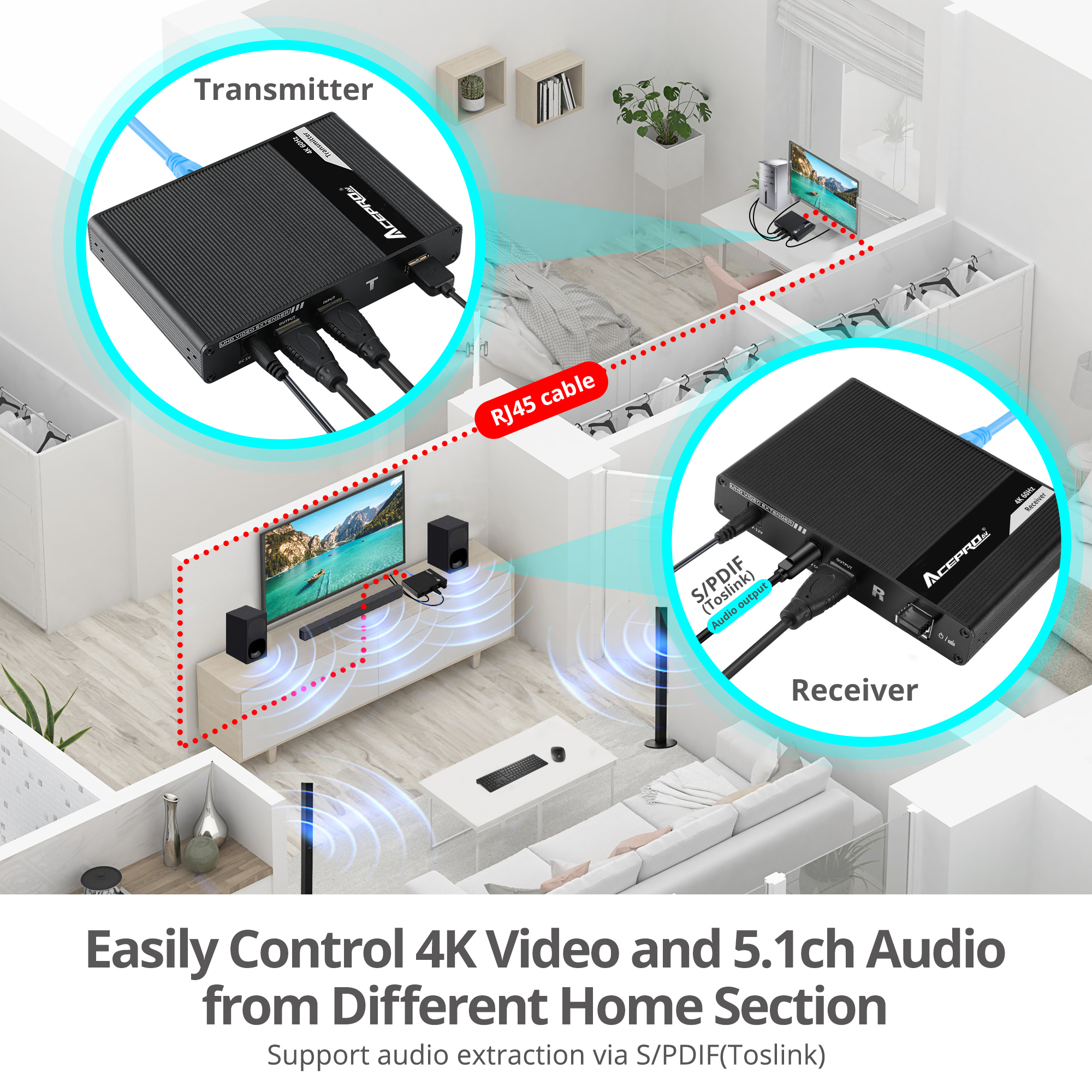

  • Supports digital audio extraction through the receiver's S/PDIF port, with PCM 2ch, Dolby, DTS 5.1
  • The transmitter's HDMI loop-out allows for local monitoring of the extended display
  • The transmitter can work as an HDMI splitter with the additional HDMI output design, and allows screen mirroring to another display device
  • Lightning protection, surge protection, ESD protection
  • Plug and play, no driver installation required

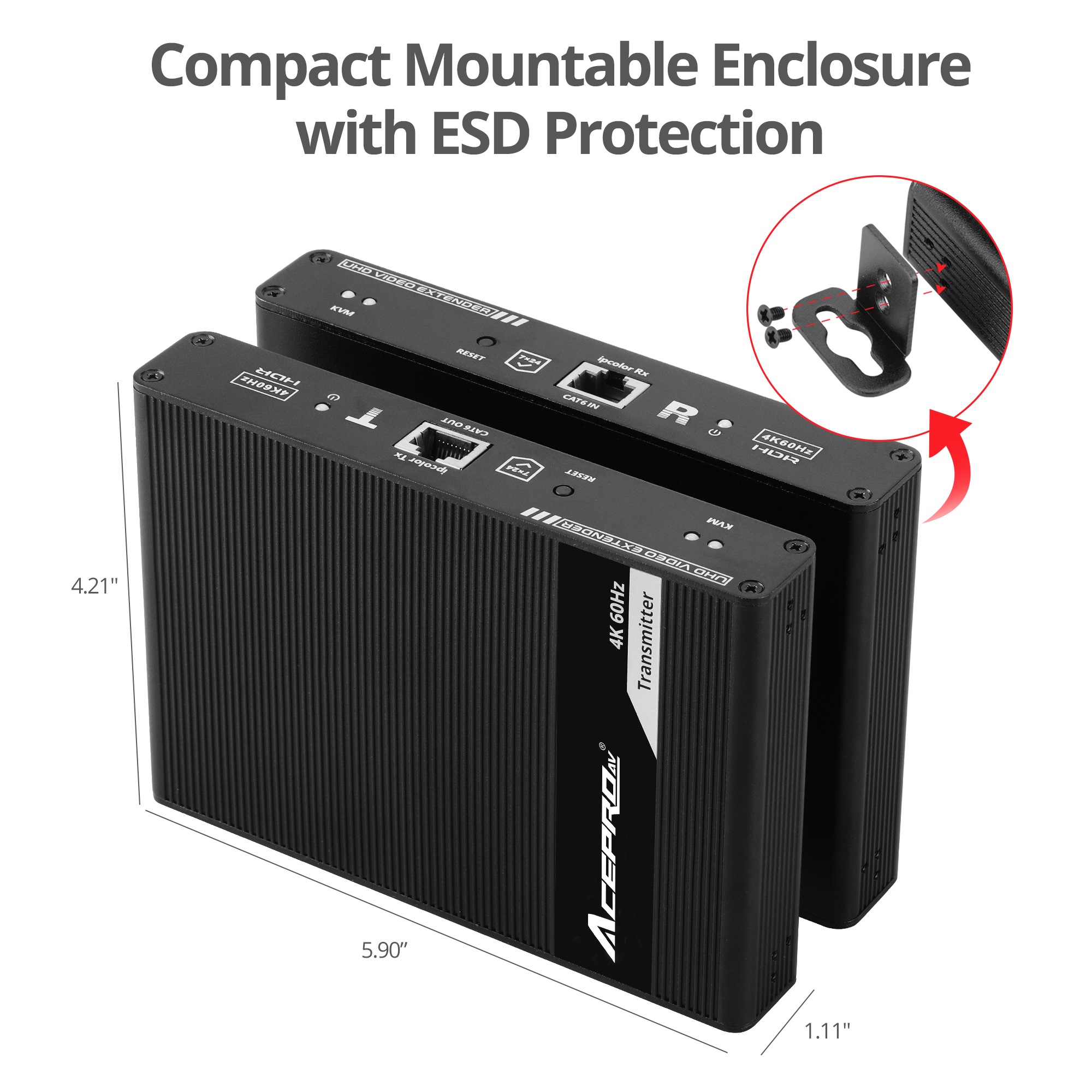

  • High quality metal housing with ventilation panels improve heat dissipation and ensure system stability during long hours of operation


Specification

  • Compliant with HDCP 2.2 specifications
  • Resolution: 2160p / 1080p / 1080i / 720p / 480p
  • HDMI Audio format: PCM 2/5.1/7.1-ch, Dolby/DTS 5.1
  • Toslink Audio format: PCM 2ch, Dolby/DTS 5.1
  • Transmission distance:
    • 4K@60Hz: Up to 40m via Cat5 cable
    • 4K@60Hz: Up to 70m via Cat6/6a/7 cable
  • Housing material: Aluminum with Plastic
  • Product:
    • Transmitting unit (TX):
      • Dimensions: 5.91" (W) x 0.98" (H) x 4.13" (D)
      • Weight: 0.55 lbs

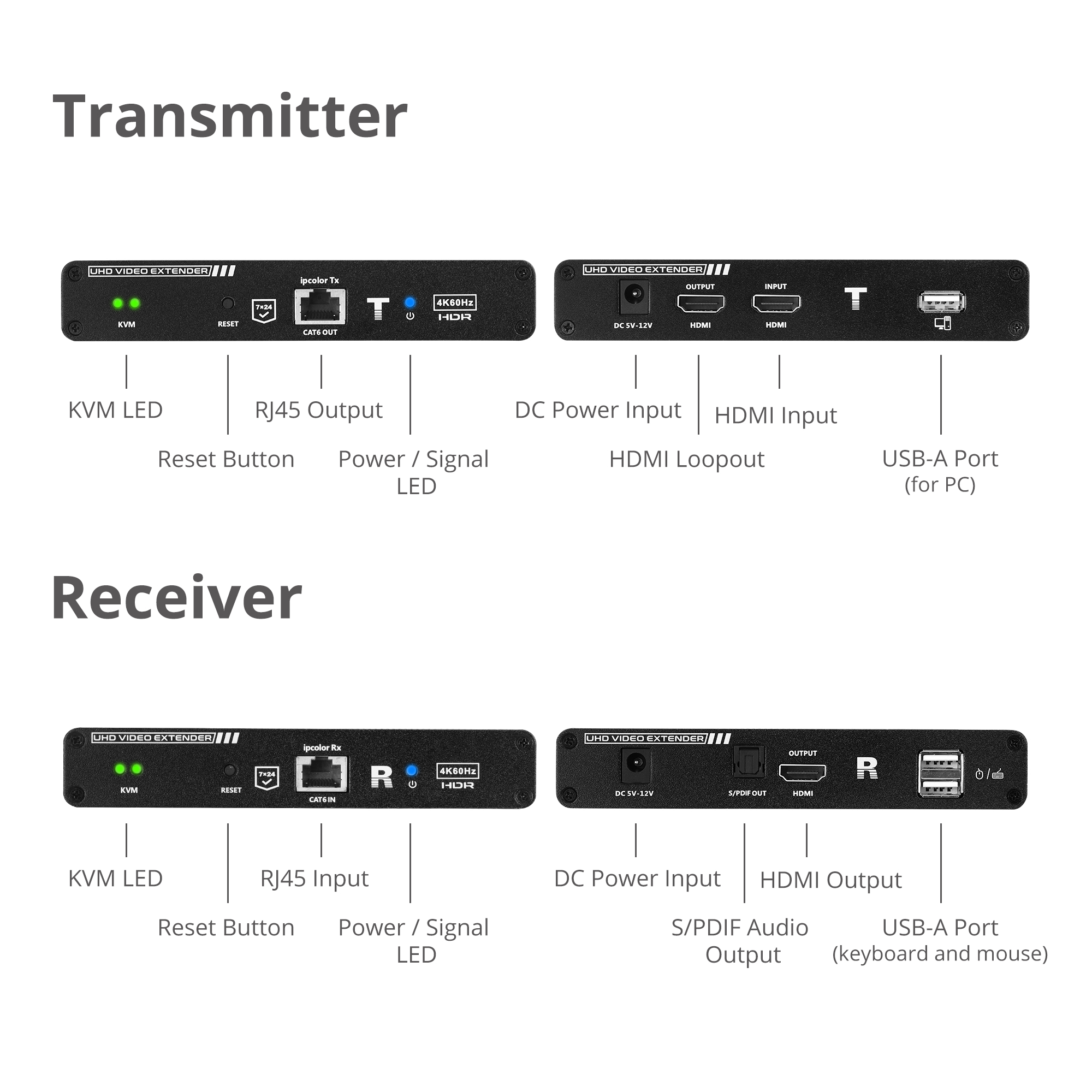

      • Connectors:
        • 1x 19-pin HDMI, Type A, Female, Input
        • 1x 19-pin HDMI, Type A, Female, loop-out
        • 1x 4-pin USB 2.0 Type-A, Female, for host connection
        • 1x 8-pin, RJ45, Output
        • 1x Power jack
        • 1x Reset button
    • Receiving unit (RX):
      • Dimensions: 5.91" (W) x 0.98" (H) x 4.13" (D)
      • Weight: 0.55 lbs
      • Connectors:
        • 1x 19-pin HDMI, Type A, Female, Output
        • 2x 4-pin USB 2.0 Type-A Female, connect to Keyboard/Mouse
        • 1x 8-pin, RJ45, Input
        • 1x S/PDIF Toslink, Audio
        • 1x Reset button
        • 1x Power jack
  • Unit package:
    • Dimensions: 14.06" (W) x 3.35" (H) x 6.02" (D)
    • Weight: 2.47 lbs
  • Power adapter:
    • Input: 100-240V / 50-60Hz
    • Output: DC 5V/2A
    • UL listed: E335801 / Level: VI
  • Environmental conditions:
    • Operating temperature: 14~140 degrees F
    • Storage temperature: -4~158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
