- AcePro-DK08-1
- Triple Hybrid 4K Video Docking Station
Highlights

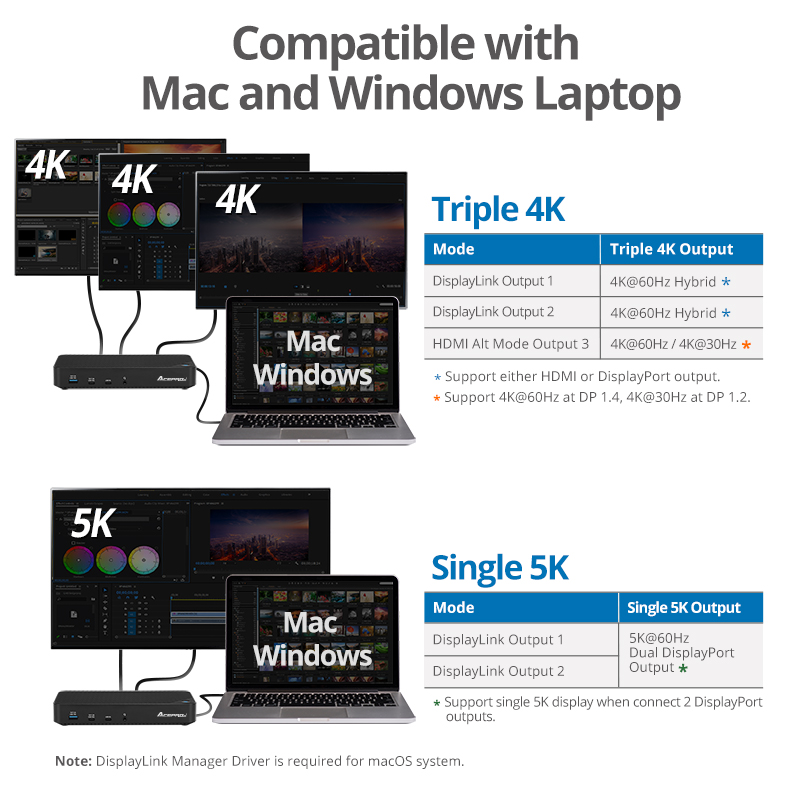

- Adds Up to Three 4K displays - One 4K@30Hz via USB-C DisplayPort Alt-mode outputs plus two 4K@60Hz via DisplayLink outputs
- Note: Non DisplayPort Alt mode USB-C ports will only provide two 4K@60Hz displays through advanced DisplayLink chipset and drivers
- Fully compatible with USB Type-C, Type-A & Thunderbolt 3 laptops and desktops. Both USB-C to USB-C cable and USB-C to USB-A cable included
- Hybrid Video Outputs - support Dual monitor via 2 DP & 2 HDMI for Mix output, and the other HDMI via USB-C DisplayPort Alt-mode (MacBook Pro with a USB-C/TBT3 port) support 3 displays up to 4K resolution, for USB-C non DisplayPort Alt-mode is only support 2 Displays up to 3840x2160 60Hz via USB DisplayLink output

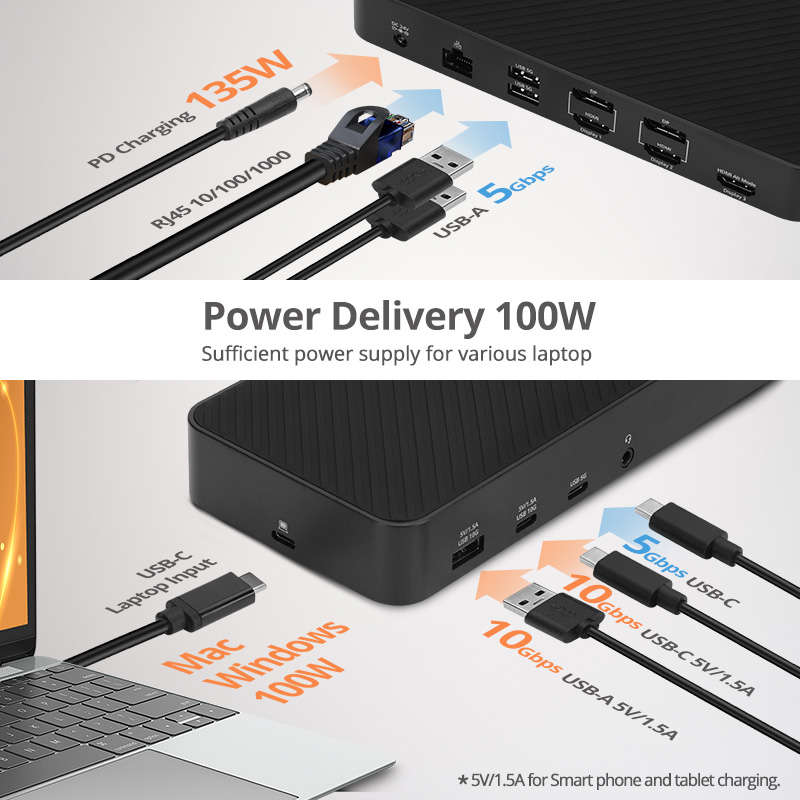

- 100 Watt PD Charging - Includes high quality USB-C 20V/5A cable for connection to laptop, supports up to 100W Power Delivery chargingfor laptop. The included 135W power adapter ensure enough power for laptop charging and USB peripherals
- Ultra-speed Data Transfer - Provides one USB-C 10Gbps with 5V/1.5A Fast Charging, one USB-A 10Gbps with 5V/1.5A Fast Charging, one USB-C 5Gbps and two USB-A 5Gbps data transfer speeds to enhance your laptop's performance capabilities
- Reliable Wired Network Connectivity - Embedded Gigabit Ethernet port, 10/100/1000BASE-T connectivity
- Audio Capability - Includes one 3.5mm headset jack for stereo audio output and microphone capabilities
- Power LED - Built-in power On/Off button with LED provides easy recognition of power status
Compatibility Notes:
- macOS 10.15.6 or later: Uninstall any legacy DisplayLink driver (v5.2.5 or earlier) and install the latest driver on SIIG's website
-Docking station is suggested for use with web and productivity software; not recommended for gaming
- Cannot be used with non-DisplayLink USB adapters and docking stations
macOS Limitations:
- Our adapter is not compatible with macOS 10.13.4 to 10.13.6. It's recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
- Does not support movie/video playback via iTunes and HDCP protected content via Safari web brower (Netflix, Amazon Prime, Hulu, HBO Go, etc...)
Specification
- Chipset: DL6950-N + PS176 + VL822 + VL817
- Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification
- Resolution: 5K (Connect both DP outputs to a single TV/Monitor) / 4K / 1080p / 1080i / 720p / 480p
- Supports data transfer rate up to 10Gbps (Gen-2) and 5Gbps (Gen-1)
- Compatible networks: 10/100/1000 Mbps
- Audio Supported: HDMI / DP up to 5.1 Channel surround sound; 3.5mm headset jack for 2 CH stereo audio
- Supported modes: Extend, Mirror and Primary Display
- Power Delivery: PD 3.0 up to 100W via USB-C for laptop source
- Product:

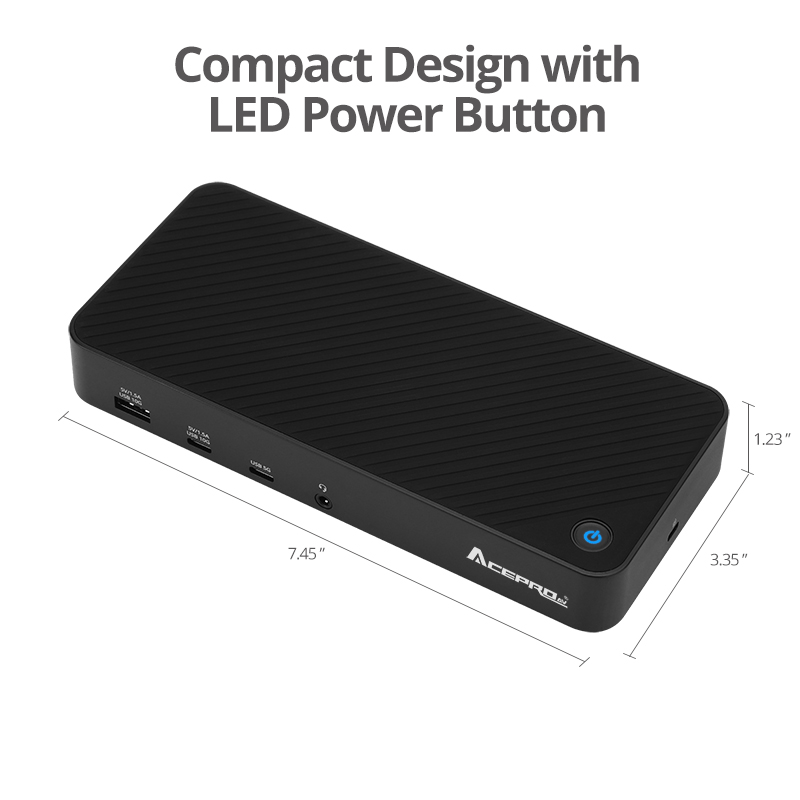

- Dimensions: 7.48"(W) x 1.24"(H) x 3.35"(D)
- Weight: 0.75 lbs
- Color: Black
- Housing material: ABS with Silicon pad

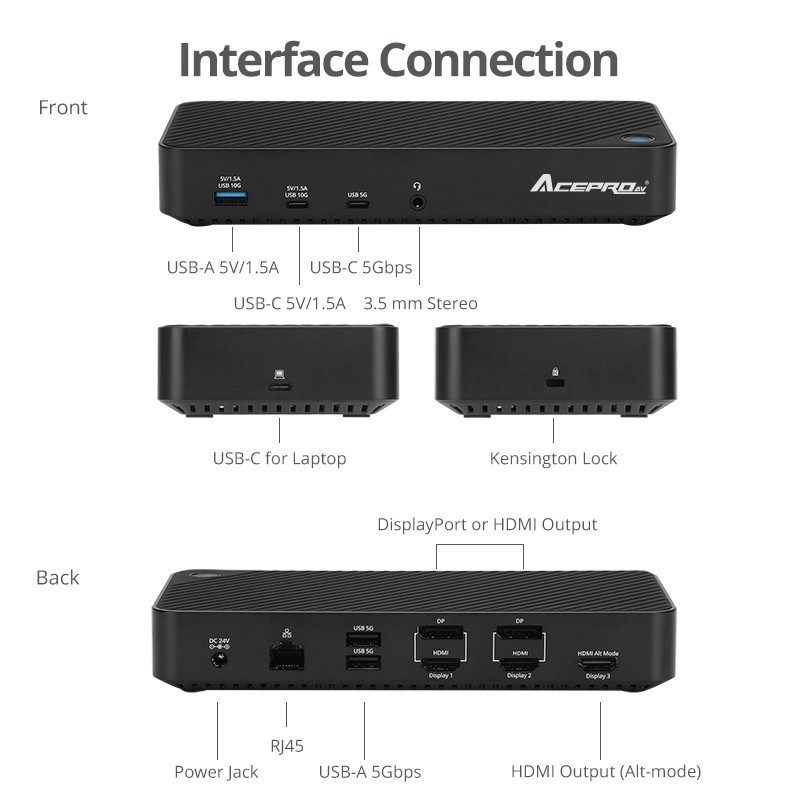

- Connectors:
- 1x 24-pin USB-C with PD 100W, Female, input
- 1x 19-pin HDMI Female, output(Alt-Mode)
- 2x 19-pin HDMI Female, output(DisplayLink)
- 2x 20-pin DisplayPort Female, output(DisplayLink)
- 2x 9-pin USB-A 5Gbps (USB 3.1 Gen-1), Female
- 1x 9-pin USB-A 10Gbps (USB 3.1 Gen-2 with 5V/1.5A), Female
- 1x 24-pin USB-C 10Gbps (USB 3.1 Gen-2 with 5V/1.5A), Female
- 1x 24-pin USB-C 5Gbps (USB 3.1 Gen-1), Female
- 1x 8-pin RJ45, Gigabit Ethernet
- 1x 3.5mm Headset Jack, Stereo audio & MIC
- 1x Kensington lock
- 1x Power button
- Unit package:
- Dimensions: 9.84"(W) x 1.97"(H) x 8.07"(D)
- Weight: 2.34 lbs
- Power Adapter:
- Input: AC 100-240V/50-60Hz
- Output: DC 24V/5.41A
- UL Listed: E355343 / Class VI
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: < 10% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
