- new | AcePro-EX57-1
- Full HD Wireless HDMI Extender - Receiver
Highlights
- Receives HDMI A/V signals wirelessly without complicated cable or wire installation, working range up to 656ft through line-of-sight environment Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
- It offers high quality configurable, low-bandwidth video and support up to 1080p@60Hz

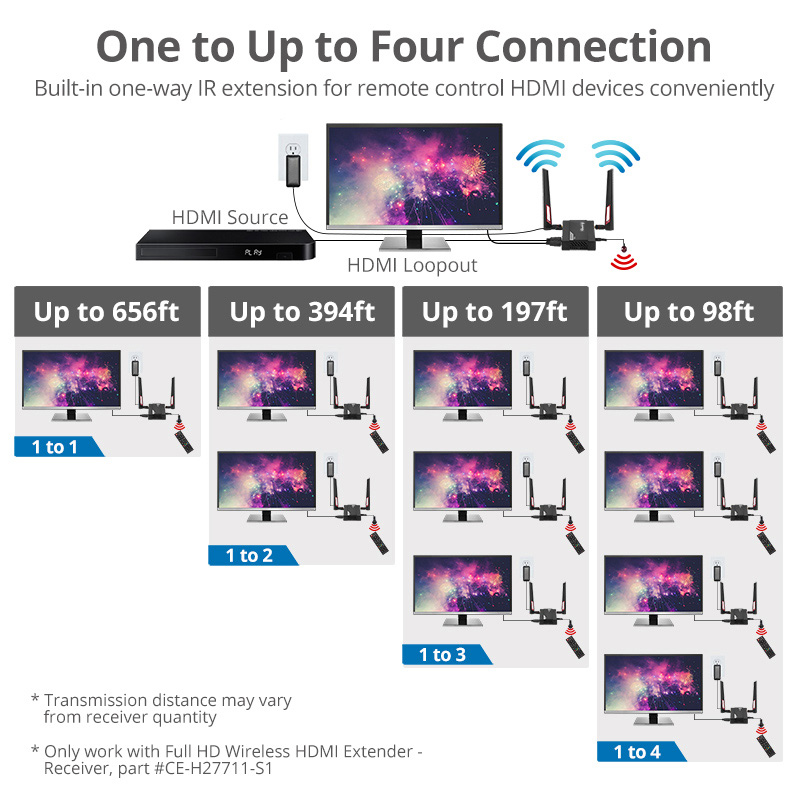

- Four Receivers At Same Time: Connect one transmitter to four receivers and a local HD display simultaneously! Perfect for sharing content like movies or security systems throughout the house or business! Note: Requires Full HD Wireless HDMI Extender with Loopout & IR Kit (part # CE-H27611-S1) sold separately
- Build in 5G wireless high speed transmission signal, faster transmission speed and stronger anti-interference ability. Using an external dual-gain antenna can transmit over long distance, up to 656 ft in an open space. Note: A delay of less than 200ms might occur due to data compression- Not recommended using for PC gaming.
- Supports Audio format LPCM 2.0 CH up to 48KHz
- Built-in one way IR signal extension modules allows remote controlling the HDMI source device at the receiver and playback at the distant display. Supports an IR signal in the 60KHz carrier frequency
- Works with most of the HDMI equipped devices, such as DVD, Blu-ray players, Set-top boxes, AV receivers, Cable/Satellite boxes and computer systems
- Ideal wireless solution for apartments or condos where installing wiring is prohibited, a perfect solution for adding displays throughout your home or serving as digital signage, POP for small business office and showroom
- Compact design for easy and flexible installation
- Plug-n-play, no software or Wi-Fi connection required
Specification
- HDMI Bandwidth: Up to 10.2G
- Supported Resolutions: Up to 1920x1080@60
- HDCP Version: HDCP 1.3 compatible
- Wireless Bandwidth: 5GHz
- Transmission Distance:

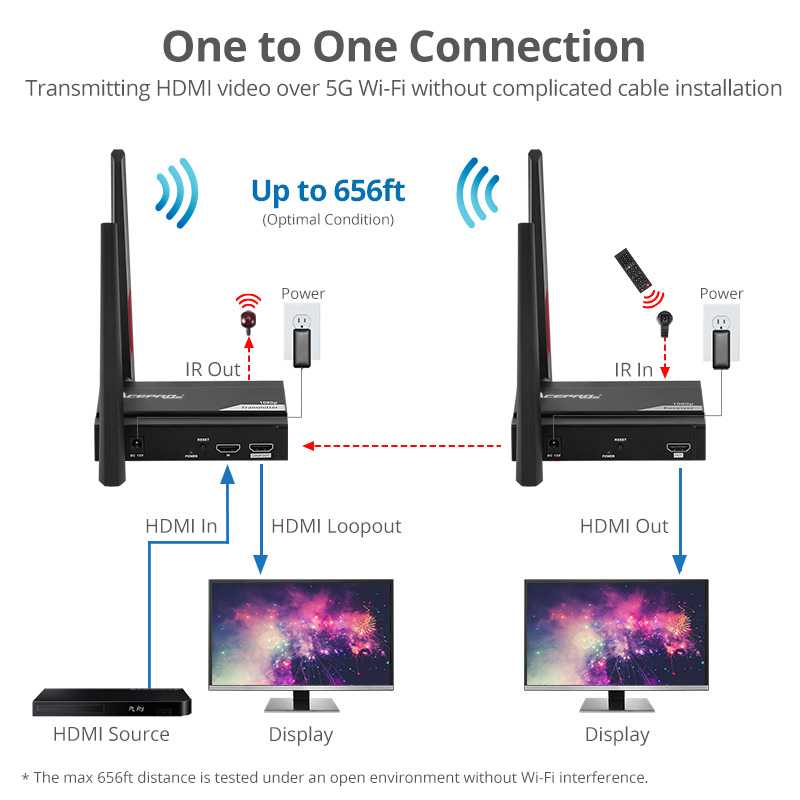

- 1 to 1: 200m (656ft) line-of-sight
- 1 to 2: 120m (394ft) line-of-sight
- 1 to 3: 60m (197ft) line-of-sight
- 1 to 4: 30m (98ft) line-of-sight
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
- HDMI Cable Length: Up to 5m (Input & Output)
- Audio Format: R/L LPCM 2.0CH 32KHz / 44.1KHz / 48KHz
- IR Remote Control: 20-60Hz Frequency Range
- Product
- Color:Black
- Housing: Metal
- Dimensions: 4.92" (W) x 1.10" (H) x 4.02" (D)
- Weight: 0.33 lbs

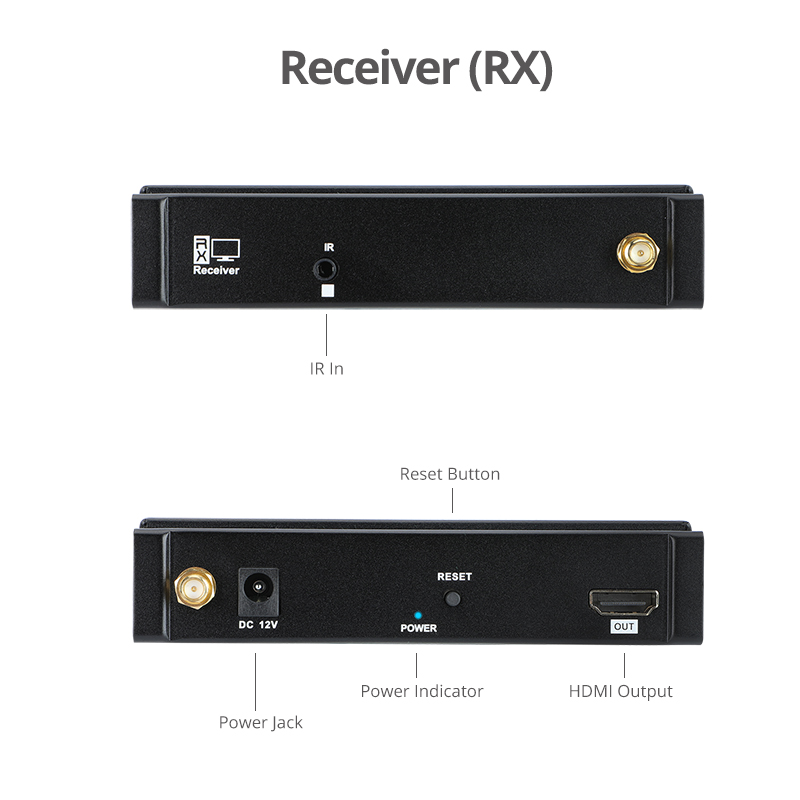

- Connector:
- 1x 19-pin, HDMI, Female, Output
- 1x Infrared 3.5mm socket, IR In
- 1x Reset Button
- 2x Antenna port
- 1x Power Jack
- Unit package:
- Dimensions: 7.87"(W) x 2.68"(H) x 5.98"(D)
- Weight: 0.88 lbs
- Power Adapter
- Input: AC 100-240V/50-60Hz
- Output: DC 12V/1A
- UL Listed: E336751/ Class: VI
- Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 23 to 158 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, RoHS
- Country of origin: China
