• new | AcePro-DK10-1
  • USB-C Triple Video MST Docking Station with PD

  • $0 $0

Highlights

  • Transforms a single USB-C port with DP Alt mode* or Thunderbolt 3/4 technology into multiple connectivity ports including three simultaneous video outputs Note: *Requires a USB-C port that supports “DisplayPort Alternate Mode” (DP Alt Mode). Not all USB-C ports/systems support DP Alt Mode functionality.
  • DisplayPort Multi Stream Transport* (MST) technology supports dual displays up to 3840x2160 60Hz (with DP 1.4) or triple displays up to 1920x1080 60Hz (with DP 1.4) Note: MAC OS does not support MST function and will only mirror for extend displays
  • Adds a wide variety of ports to your USB-C enabled computer includes - one USB 3.1 Gen-1 Type-A 5Gbps (with 5V/1.5A fast charging), three USB 3.1 Gen-1 Type-A 5Gbps, one SD & TF memory card slots, one Gigabit Ethernet port and 3.5mm Headset (Audio/MIC) port

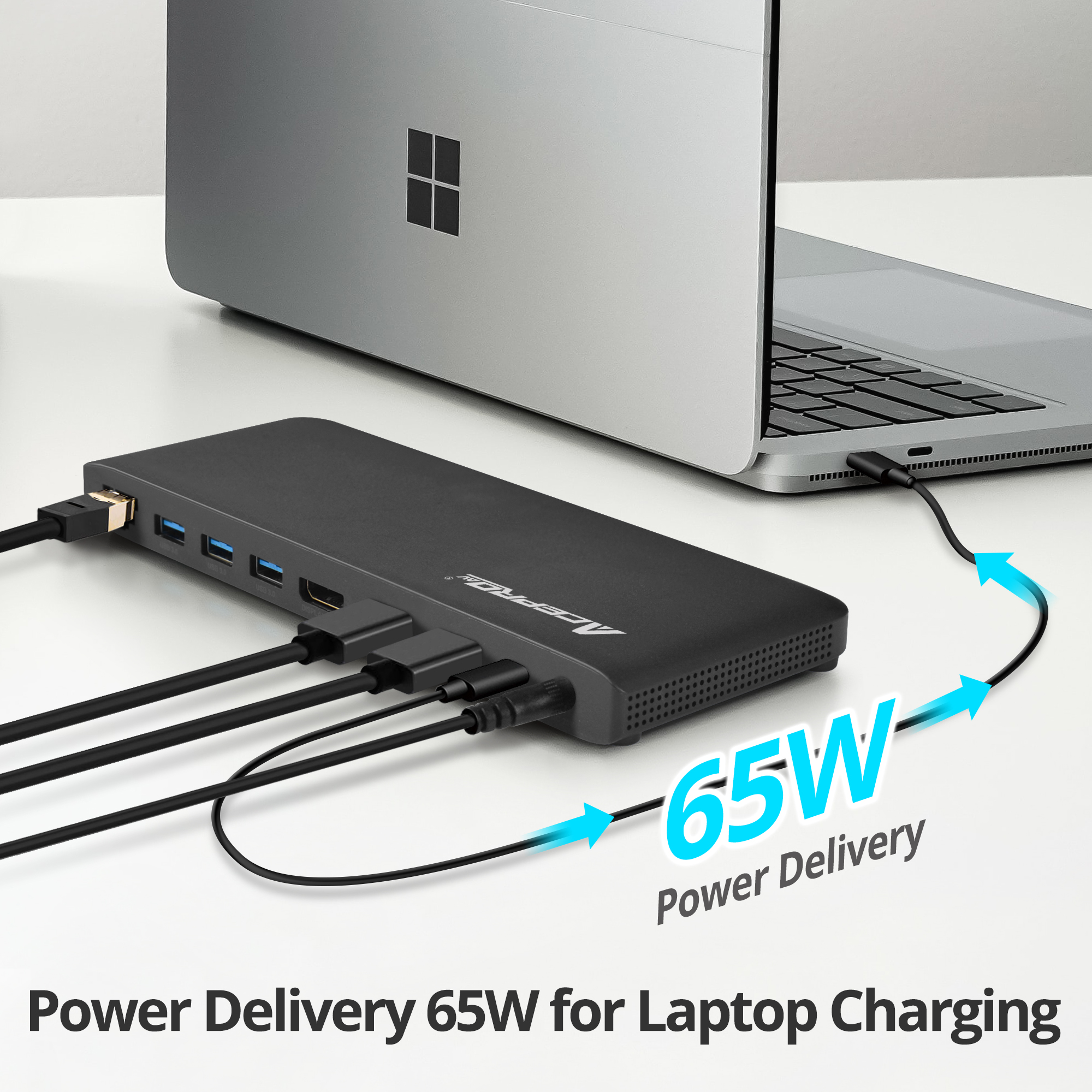

  • 65 Watt PD Charging - Supports up to 65W Power Delivery charging for USB-C laptop.
  • Ultra-speed Data Transfer - Provides one USB-A 5Gbps (front port come with BC 1.2), three USB-A 5Gbps data transfer speeds to enhance your laptop's performance capabilities
  • Compatible with all laptops and desktops system with USB 3.1 Type-C Alt-mode signal
  • Easily setting Mirror /Extend/ Primary video mode, streaming video to HDTV monitors and projectors for the perfect visual display
  • Reliable Wired Network Connectivity - Embedded Gigabit Ethernet port, 10/100/1000BASE-T connectivity
  • Audio Capability - Includes one 3.5mm headset jack for stereo audio output and microphone capabilities
  • Supports 5.1 channel surround sound through HDMI & DisplayPort output
  • Added Security - Supports security slot, keep your docking station safety
  • Power LED - Built-in power On/Off button with LED provides easy recognition of power status

Specification

  • Compliant with Universal Serial Bus 3.1, 3.0 and 2.0 specification
  • Resolution: Dual video up to 3840x2160 60Hz (with DP 1.4) or triple displays up to 1920x1080 60Hz (with DP 1.4)
  • Supports data transfer rate up to 5Gbps
  • Compatible networks: 10/100/1000 Mbps
  • Audio Supported: HDMI/DP up to 5.1 Channel surround sound; 3.5mm headset jack for 2 CH stereo audio
  • Supported modes: Extend, Mirror and Primary Display
  • Power Delivery: Up to 65W via USB-C for laptop source
  • Product:

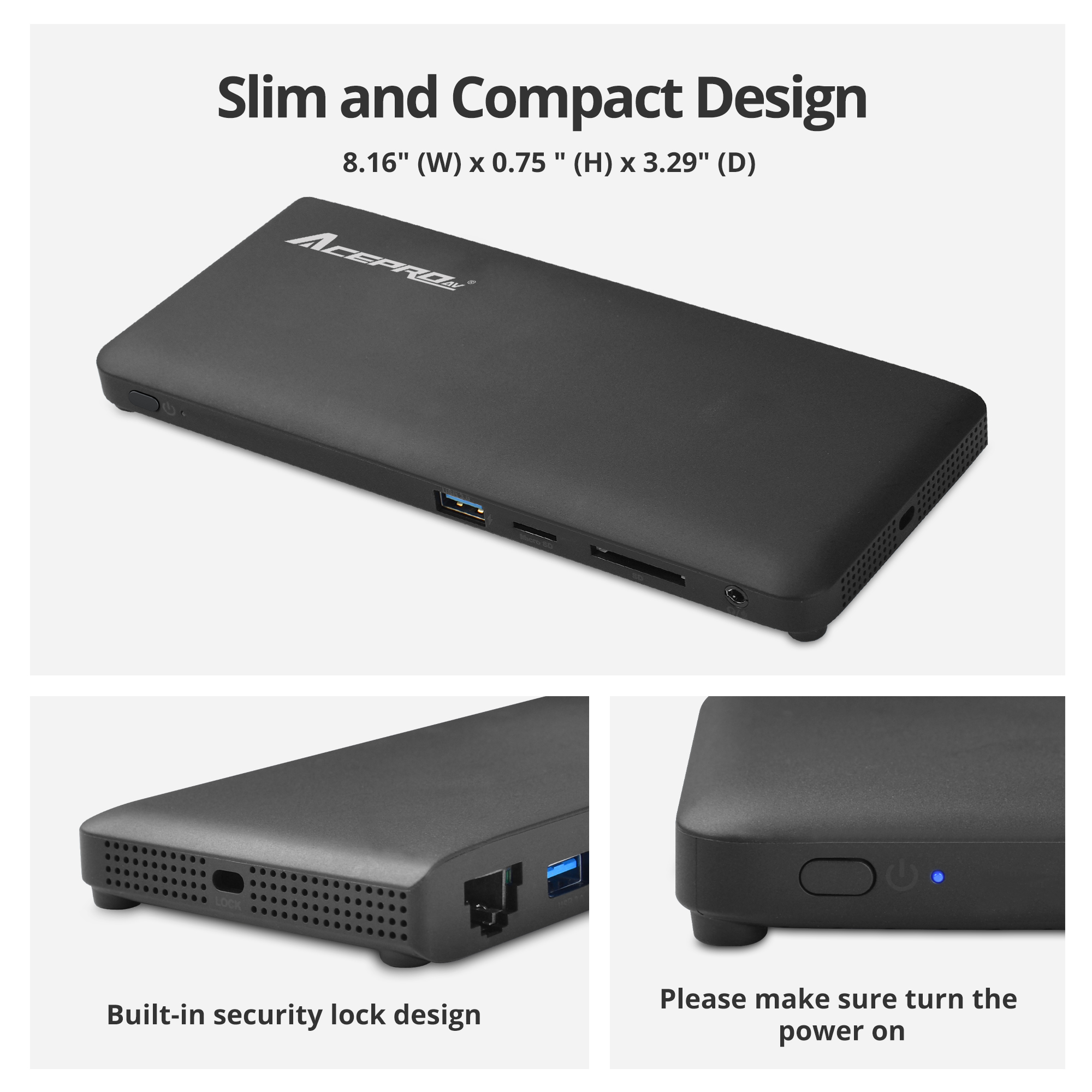

    • Dimensions: 8.16"(W) x 0.75"(H) x 3.29"(D)
    • Weight: 0.72 lbs
    • Color: Black
    • Housing material: ABS housing

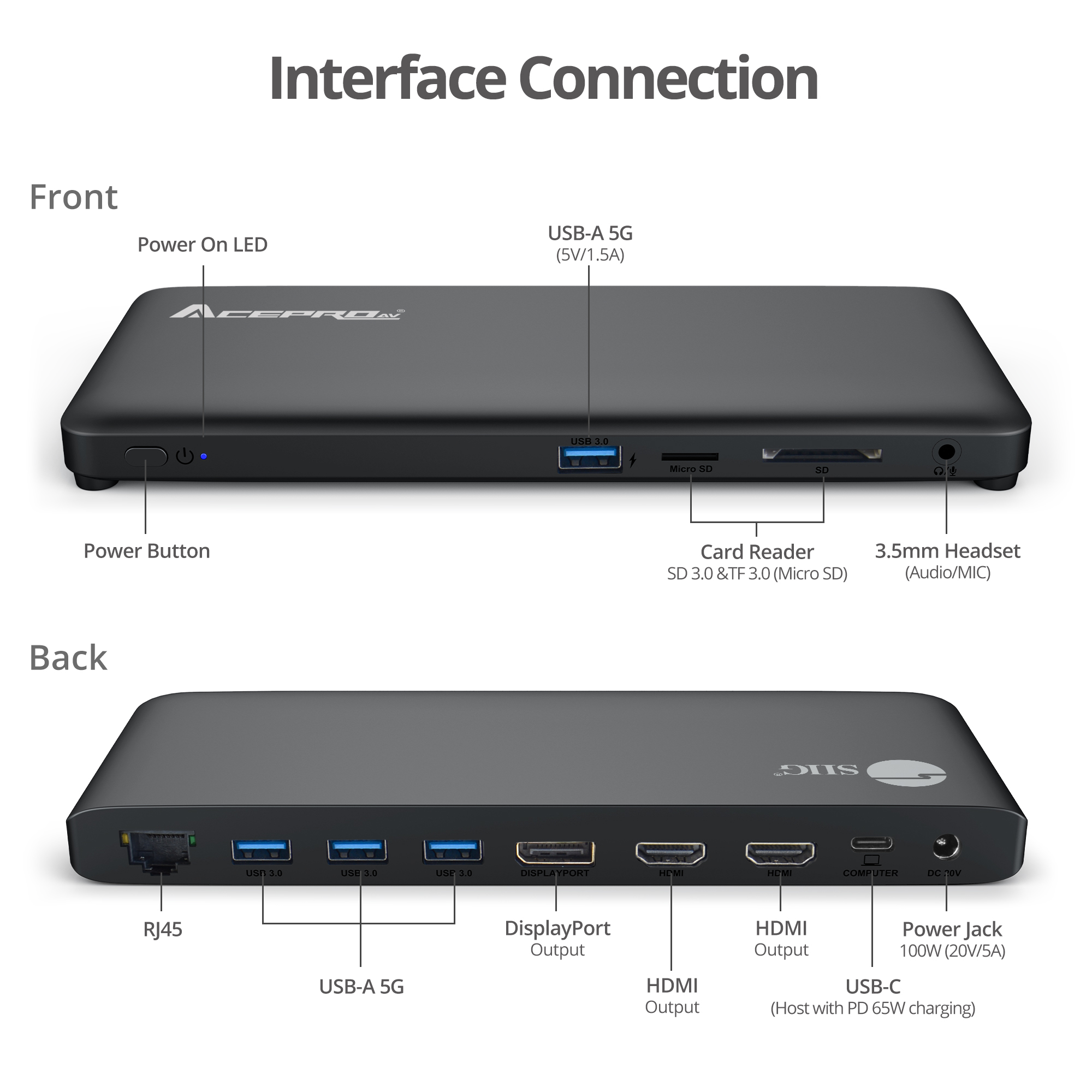

    • Connectors:
      • 1x 24-pin USB 3.1 Gen-1 Type-C, Female, input
      • 2x 19-pin HDMI Female, output (Support MST Mode)
      • 1x 20-pin DisplayPort Female, output (Support MST mode)
      • 1x 9-pin USB 3.1 Gen-1 Type-A 5Gbps (with 5V1.5A fast charging), Female
      • 3x 9-pin USB 3.1 Gen-1 Type-A 5Gbps, Female
      • 1x 8-pin RJ45, Gigabit Ethernet
      • 1x 3.5mm Headset Jack, Stereo audio & MIC
      • 1x SD & TF (Micro SD) 3.0 Card Reader, UHS-I, up to 104MB
      • 1x Button for power On/Off
      • 1x Power Jack
      • 1x Security lock
  • Power Adapter:
    • Input: AC 100-240V/50-60Hz
    • Output: DC 20V/5A
    • UL Listed: E132068 / Class VI
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: -4 to 140 degrees F
    • Relative humidity: < 10% to 90% RH (non-condensing)
  • Certifications/Standards: FCC / CE / RoHS 2.0 / REACH
  • Country of origin: China
