- new | AcePro-EX53-1
- HDMI Over IP Extender with IR - Kit
Highlights

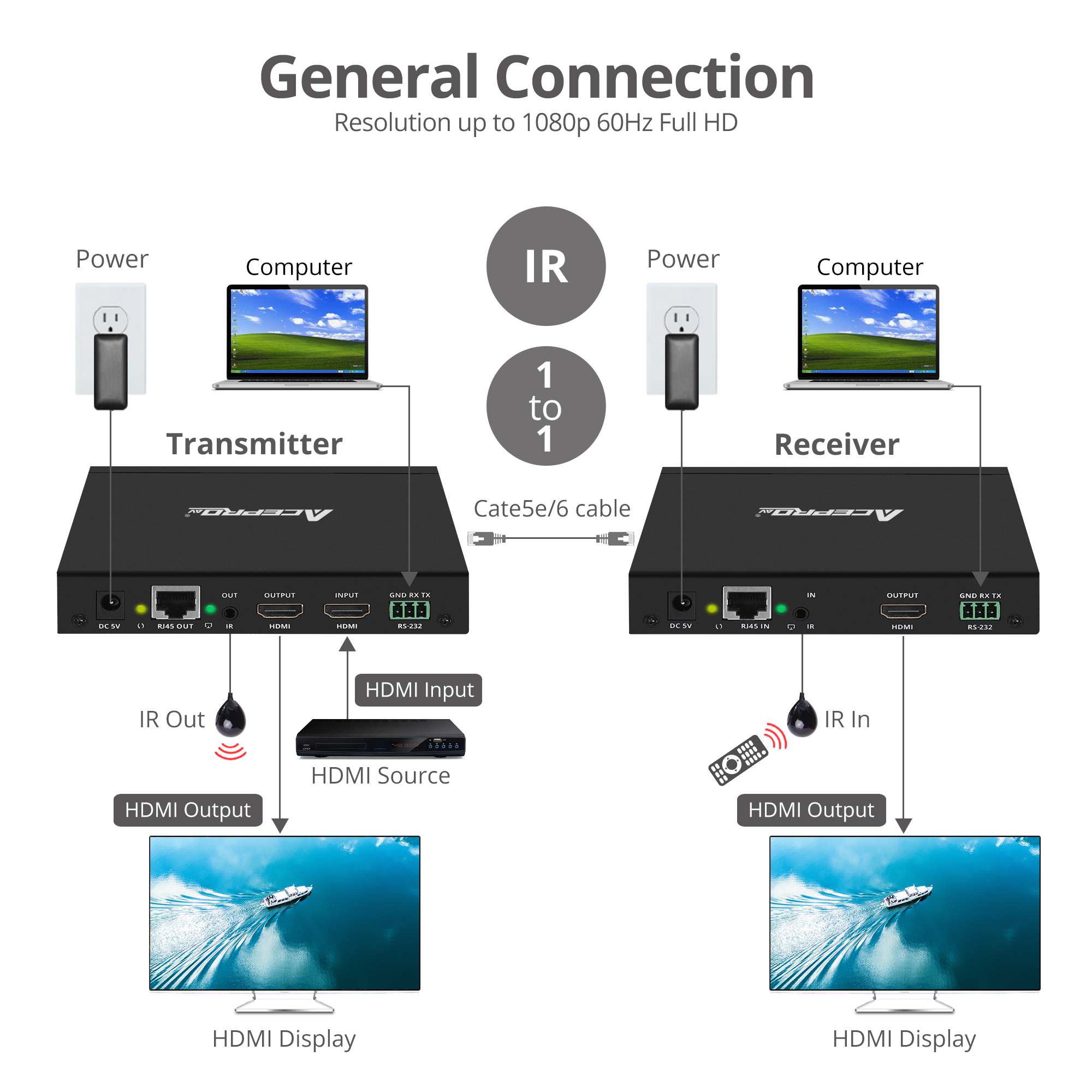

- Extends HDMI signals with stereo audio to a remote display over UTP CAT5e/6 cabling up to 120 meters

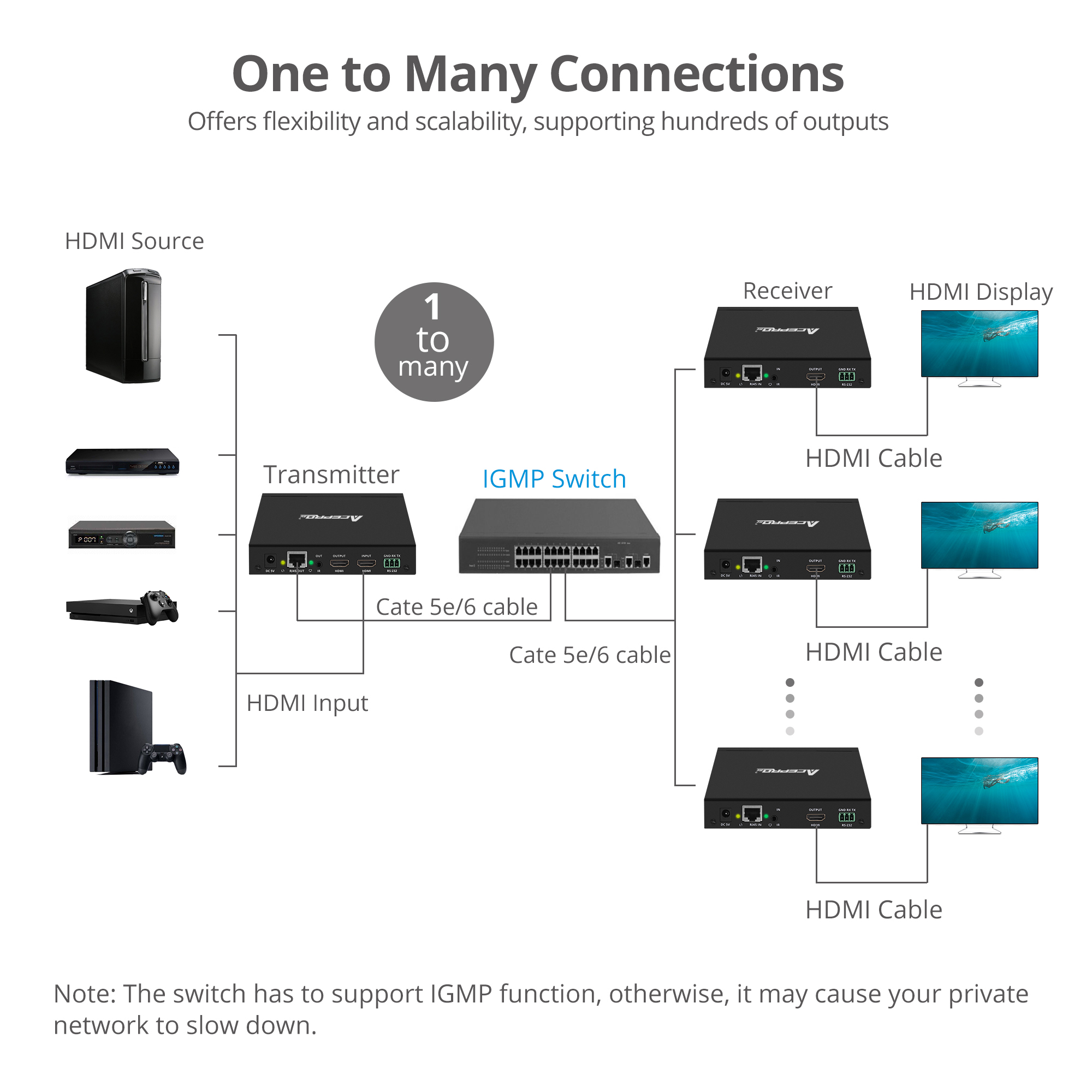

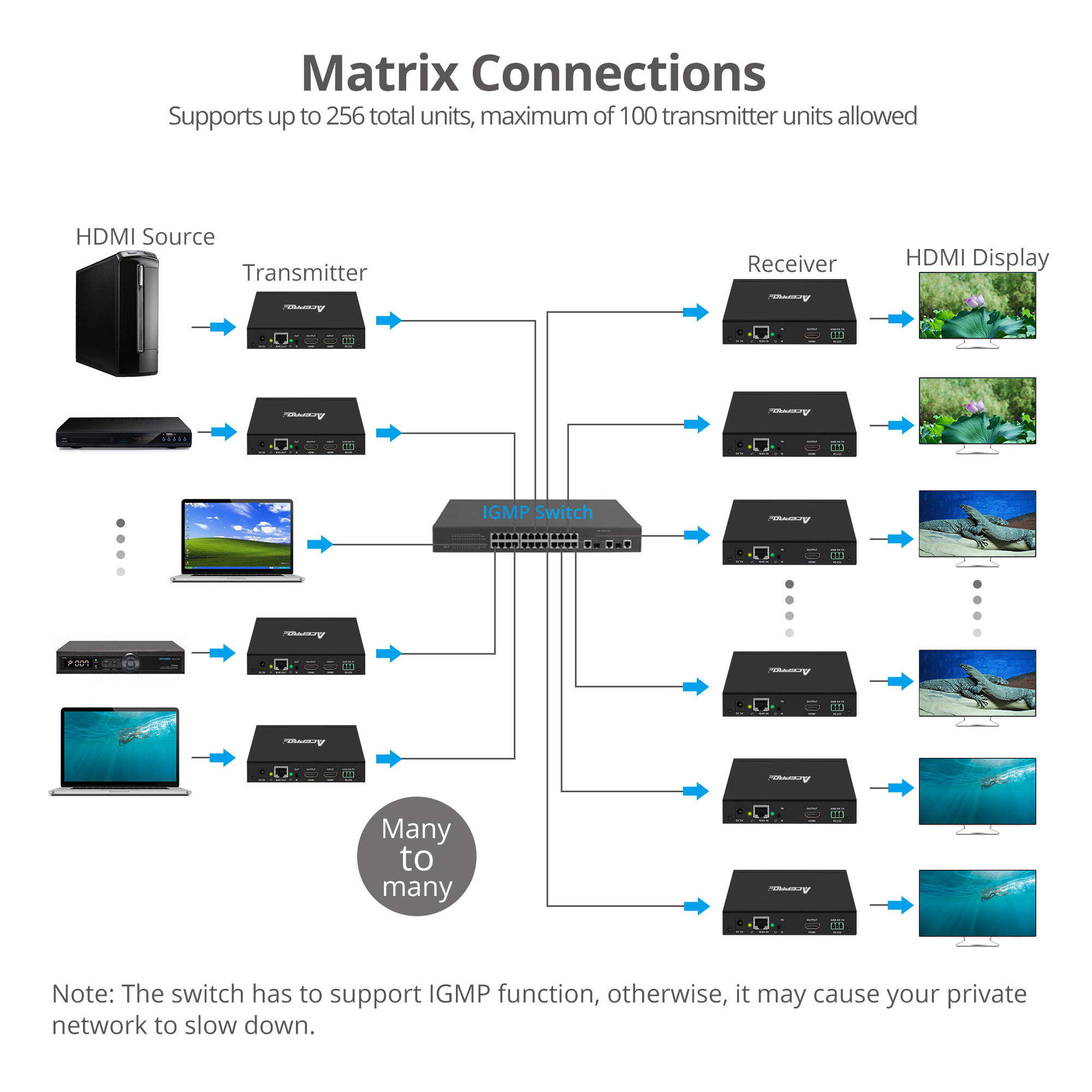

- Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units and receiver units sold separately
- Note: Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
- Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
- Supports IR pass back function to control the source device from RX location
- Supports computer control software to select and switch between source devices (Matrix only)
- Supports HDbit-T protocol with H.264 compression over IP
- HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
- RS-232 pass-through connection to control RS-232 enabled devices at either direction
Specification
- Transmission Protocol: HDbitT, V1.3x-c (H.264 compression)
- HDCP 1.4 compliant
- Resolution: 480p / 720p / 1080i / 1080p @60Hz
- Distance: 120m (CAT6) / 100m (CAT5e) / 80m (CAT5)
- Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
- HDMI cable length: Up to 5m (Input & Output)
- Supports 2-Ch PCM stereo audio
- Supports full frequency IR signal from 20KHz to 60KHz
- Housing material: Metal Housing
- Housing color: Black
- Latency: < 220ms
- Product:

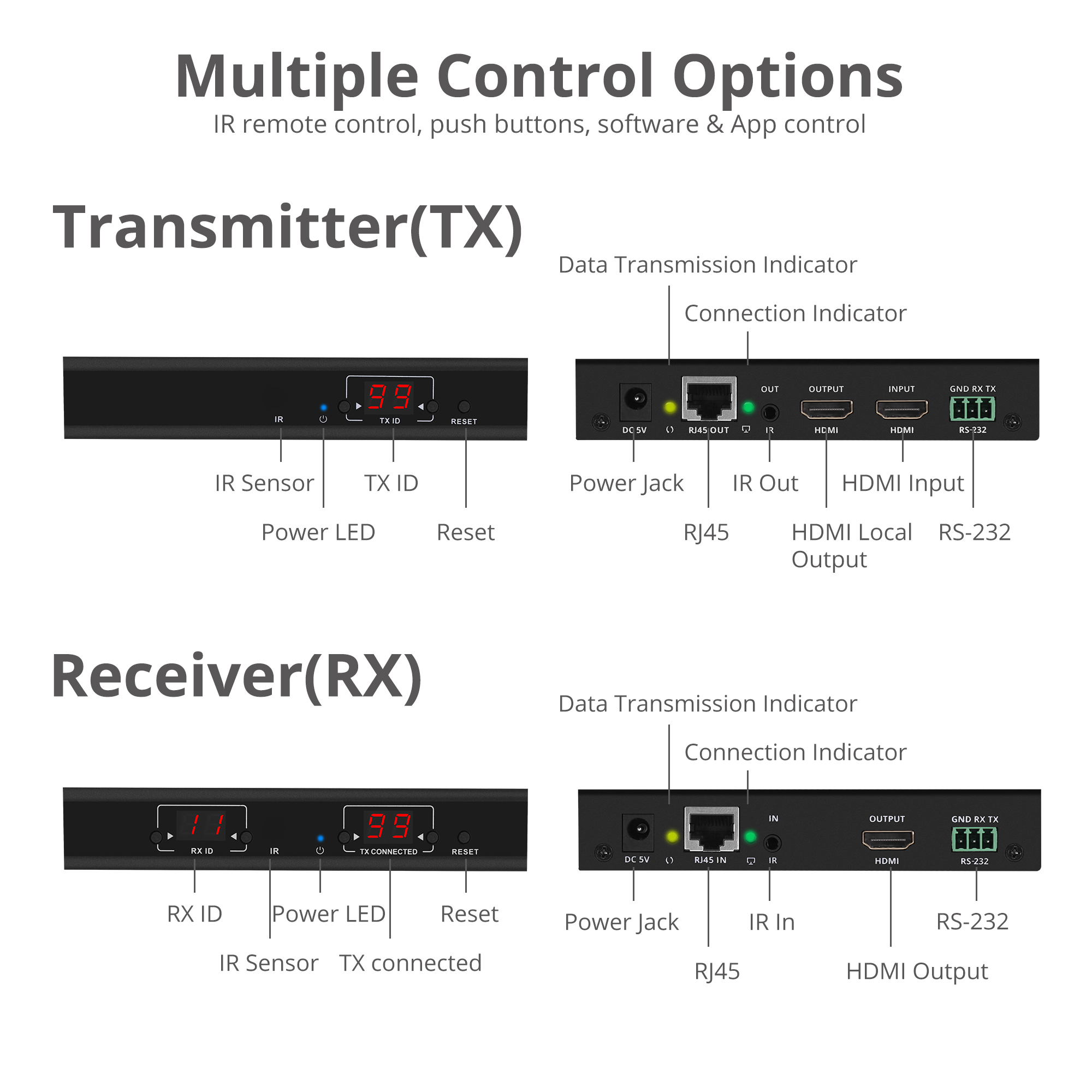

- Transmitter unit (TX):
- Dimensions: 5.24" (L) x 0.94" (H) x 3.27" (W)
- Weight: 0.60 lbs
- Connectors:
- 1x 19-pin HDMI, Type-A, Female, Input
- 1x 19-pin HDMI, Type-A, Female, Output
- 1x 3-pin RS-232 Phoenix, Female
- 1x 3.5mm jack, IR Blaster
- 1x 8-pin RJ45, HDbitT, Output
- 1x Power jack
- 2x Switch button
- 1x Reset button
- Receiver unit (RX):
- Dimensions: 5.24" (L) x 0.94" (H) x 3.27" (W)
- Weight: 0.60 lbs
- Connectors:
- 1x 19-pin HDMI, Type-A, Female, Output
- 1x 3-pin RS-232 Phoenix, Female
- 1x 3.5mm jack, IR Receiver
- 1x 8-pin RJ45, HDbitT, Input
- 1x Power jack
- 4x Switch button
- 1x Reset button
- Transmitter unit (TX):
- Unit package:
- Dimensions: 9.45" (W) x 3.15" (H) x 6.93" (D)
- Weight: 2.31 lbs
- Power Adapter:
- Input: 100-240V / 50-60Hz
- Output: DC 5V/2A
- UL Listed: E335801 / Class VI
- Environmental Conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: 14 to 140 degrees F
- Relative humidity: 0% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
