HDMI Over IP Extender with IR - Transmitter | AVLT®

Receives HDMI signals with stereo audio and transmitts it to a remote display over UTP CAT5e/6 cabling up to 120 meters, requires HDMI Over IP Extender with IR - Receiver sold separately

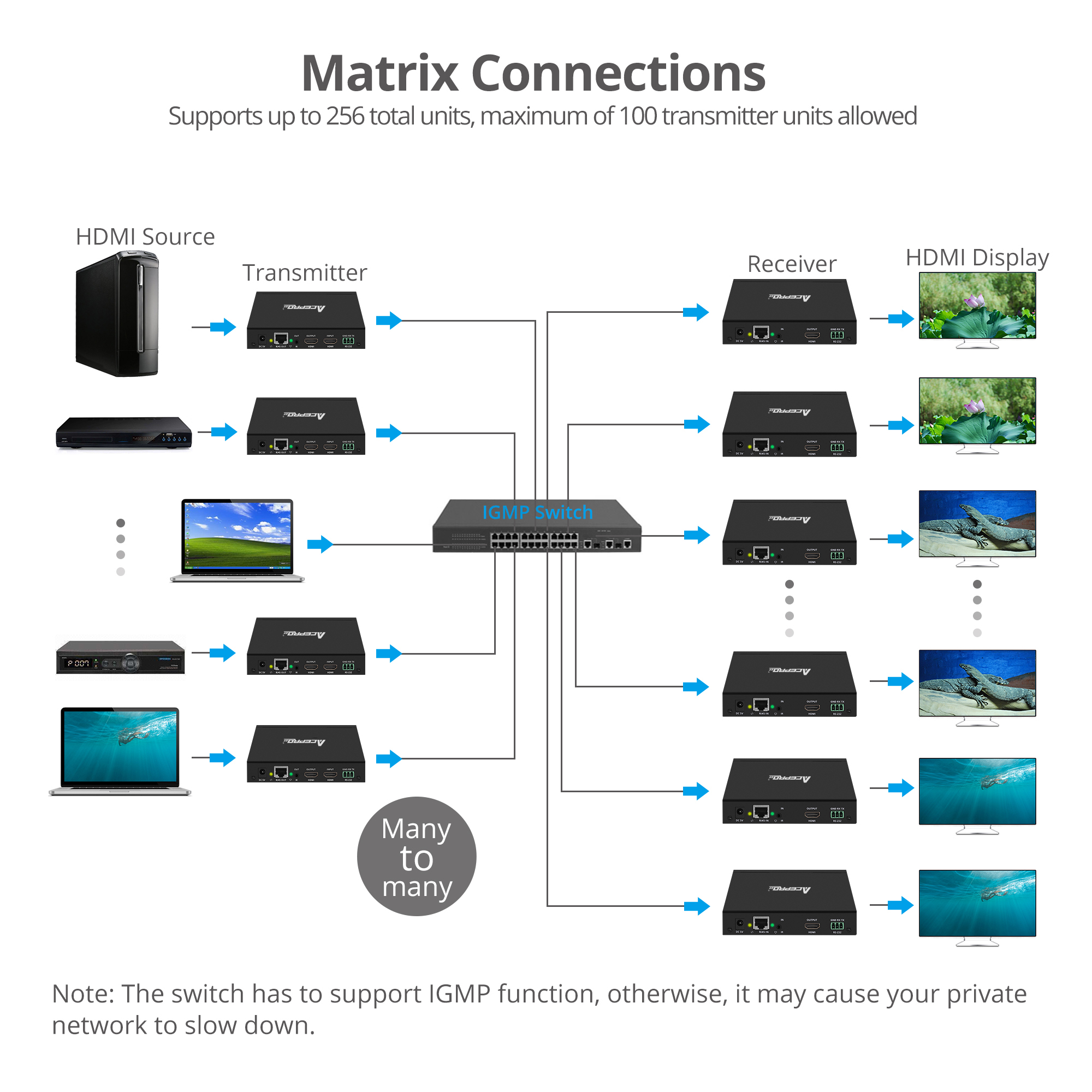

Works as a scalable TX/RX Matrix over dedicated IP network, allows up to 256 total units, limited to 100 transmitters. Additional transmitter units and receiver units sold separately
Note:Dedicated unmanaged IGMP Gigabit Switch is recommended for best performance and reliability
Supports up to 1080p @60Hz video resolution to deliver stunning and crystal clear images
Supports IR pass back function to control the source device from RX location
Supports computer control software to select and switch between source devices (Matrix only)
Supports HDbit-T protocol with H.264 compression over IP
HDMI output on the transmitter allows you to monitor the HDMI signal at the source location
RS-232 pass-through connection to control RS-232 enabled devices at either direction

Transmission Protocol: HDbitT, V1.3x-c (H.264 compression)
HDCP 1.4 compliant

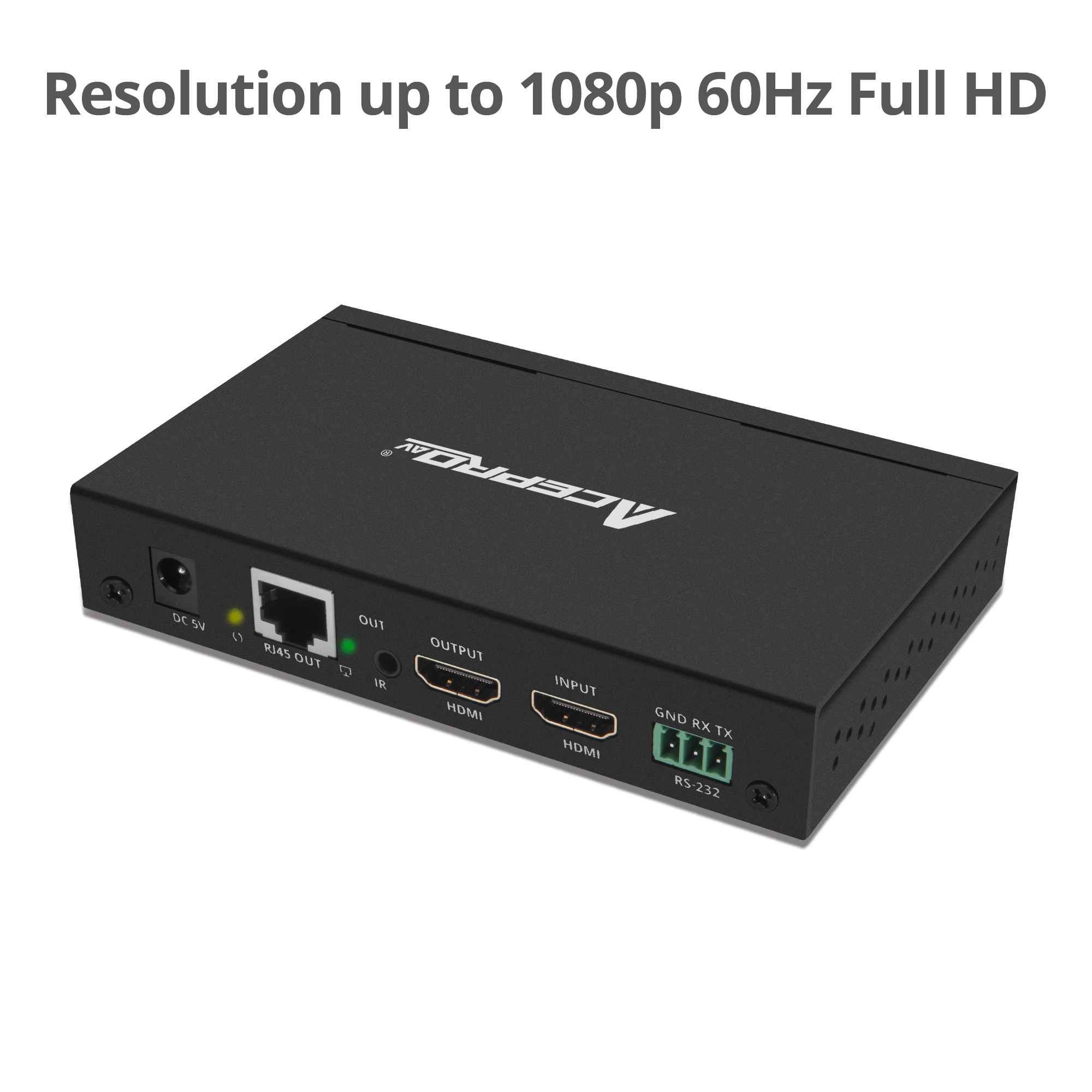

Resolution: 480p / 720p / 1080i / 1080p @60Hz
Distance: 120M (Cat6) / 100M (Cat5e) / 80M (Cat5)
Note: The transmission distance will vary depending on cable quality, 100% copper and IEEE-568B wiring standard recommended
HDMI cable length: Up to 5m (Input & Output)
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
Housing material: Metal Housing
Housing color: Black
Latency: < 220ms
Product:

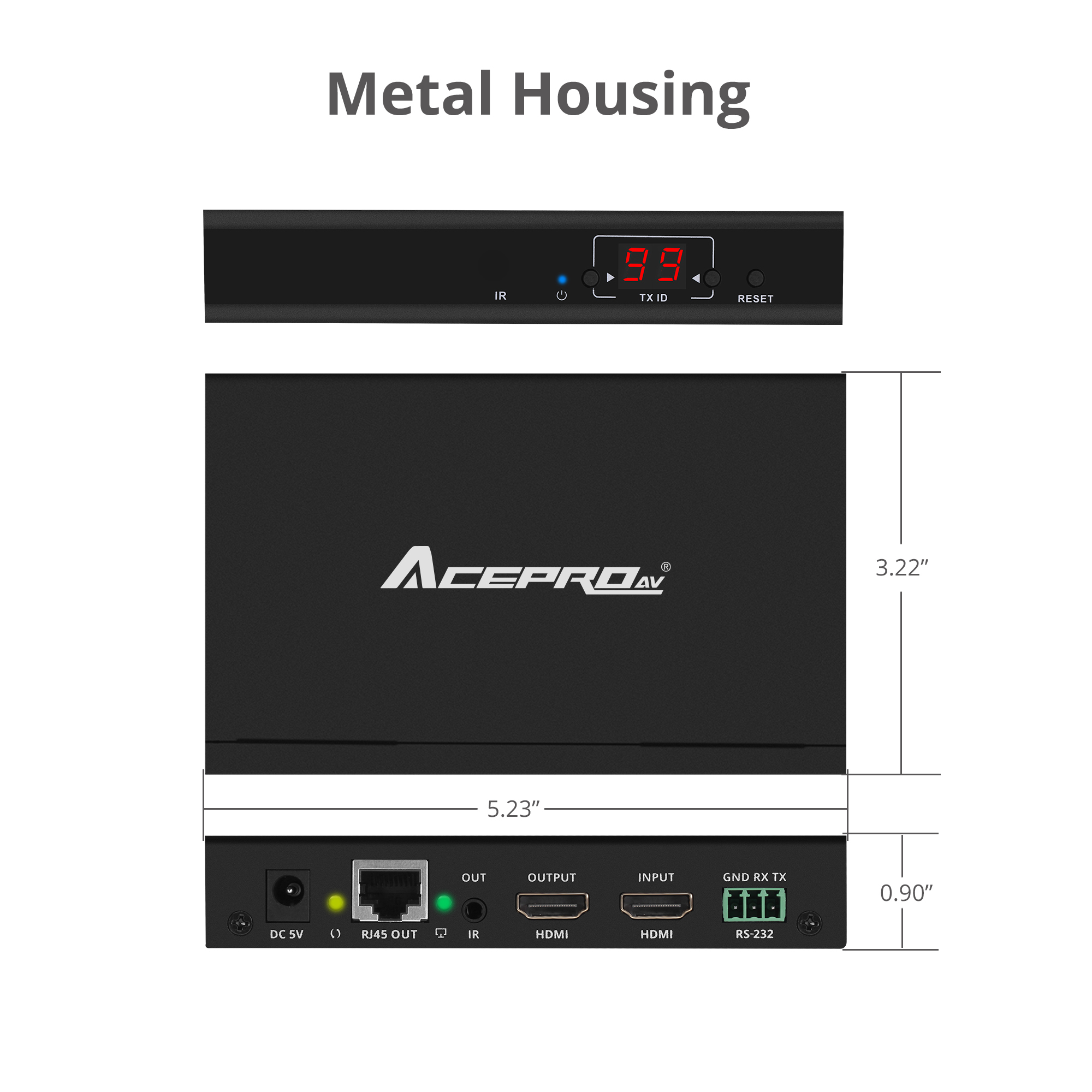

- Dimensions: 5.24" (W) x 0.94" (H) x 3.27" (D)
- Weight: 0.60 lbs

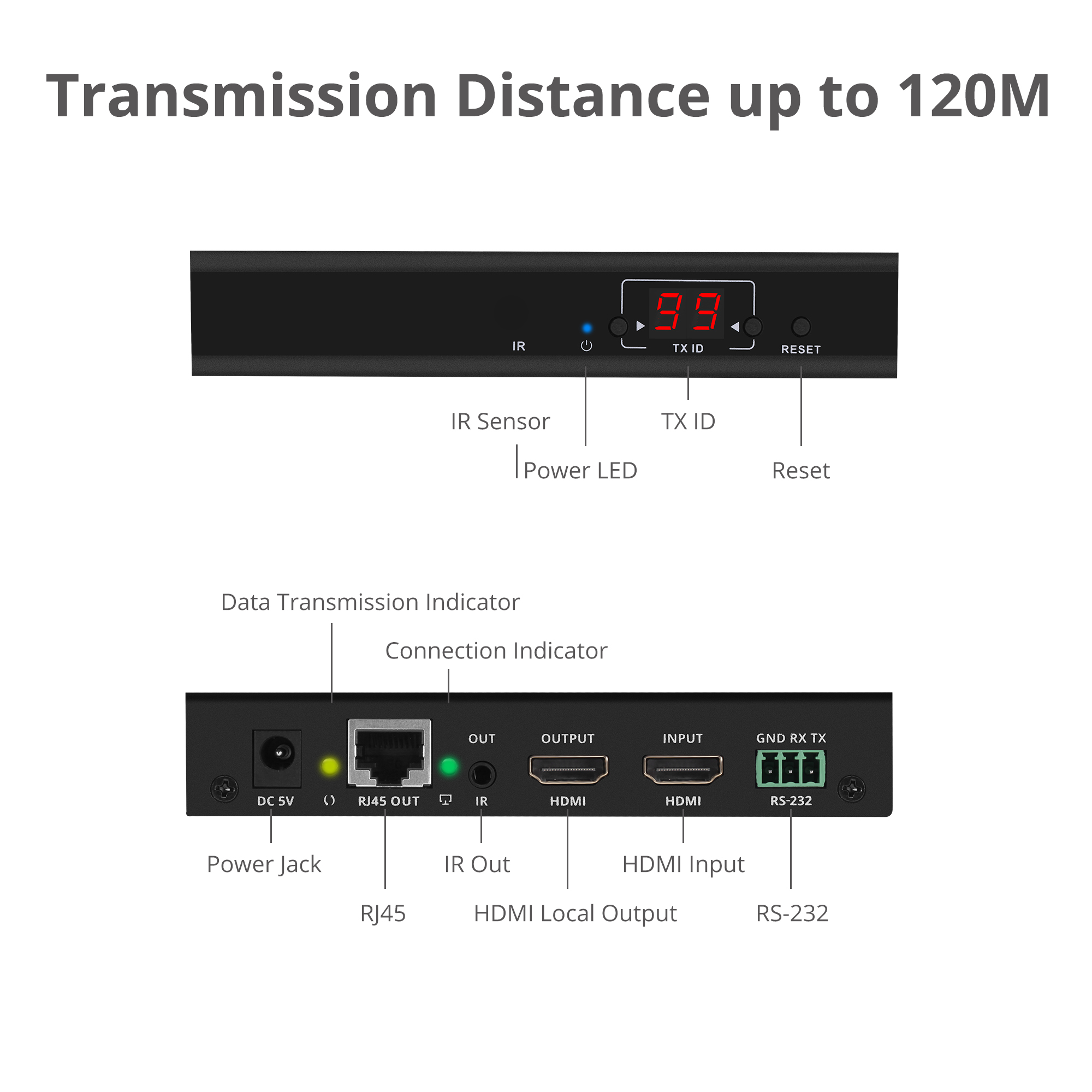

- Connectors:
  - 1x 19-pin HDMI, Type-A, Female, Input
  - 1x 19-pin HDMI, Type-A, Female, loop Output
  - 1x 3-pin RS-232 Phoenix, Female
  - 1x 3.5mm jack, IR Blaster
  - 1x 8-pin RJ45, HDbitT Output
  - 1x Power jack
  - 2x Switch button
  - 1x Reset button
Unit package:
- Dimensions: 7.83" (W) x 3.15" (H) x 5.87" (D)
- Weight: 1.30 lbs
Power adapter:
- Input: 100-240V / 50-60Hz
- Output: DC 5V/2A
- UL Listed: E335801 / Class VI
Environmental conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: 14 to 140 degrees F
- Relative humidity: 0% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
