- new | AcePro-KV15-1
- 2x1 DisplayPort 4K KVM USB 3.0 Switch with Remote Control
Highlights
- Control two computers with DisplayPort 8@30Hz video system via one set of keyboard and mouse
- The single-head DisplayPort switcher on the market to offer DisplayPort 8@30Hz or HDMI 4K60Hz output, it features Auto-EDID detection which ensures visual workspaces and screen resolutions are easy to connect to a new system every time.
- Easily to control via simple select buttons on the front panel or using programmable hot keys on USB keyboard or using remote control to switch
- Comes with 2 USB 2.0 ports for keyboard and mouse connection, and 2 USB 3.2 Gen 1 ports, Connect multiple USB peripherals such as flash drives, printers and more devices simultaneously
- Includes 3.5mm jack for microphone input and stereo speakers/headphones
- Supports infrared remote control function
- Supports screen auto scan between each display
- Plug-n-play, no driver installation
Specification
- Specification: 3D, Deep color
- Compliant with DisplayPort 1.4, HDCP 2.2
- Video Bandwidth:
- DisplayPort 1.4 up to 32.4Gbps
- DisplayPort 1.2 up to 21.6Gbps
- HDMI up to 18Gbps
- Video resolution
- DisplayPort 1.4 up to 7680x4320@30Hz
- DisplayPort 1.2 up to 3840x2160@60Hz
- HDMI up to 3840x2160@60Hz
- Audio support: Surround sound (up to 7.1ch) or stereo digital audio
- DP/HDMI: PCM2/5.1/7.1ch, Dolby Digital, DTS-HD and Dolby True-HD
- 3.5mm: PCM 2-CH stereo Audio
- USB data transfer rate:
- USB 2.0: up to 480Mbps
- USB 3.0: up to 5Gbps
- Product:

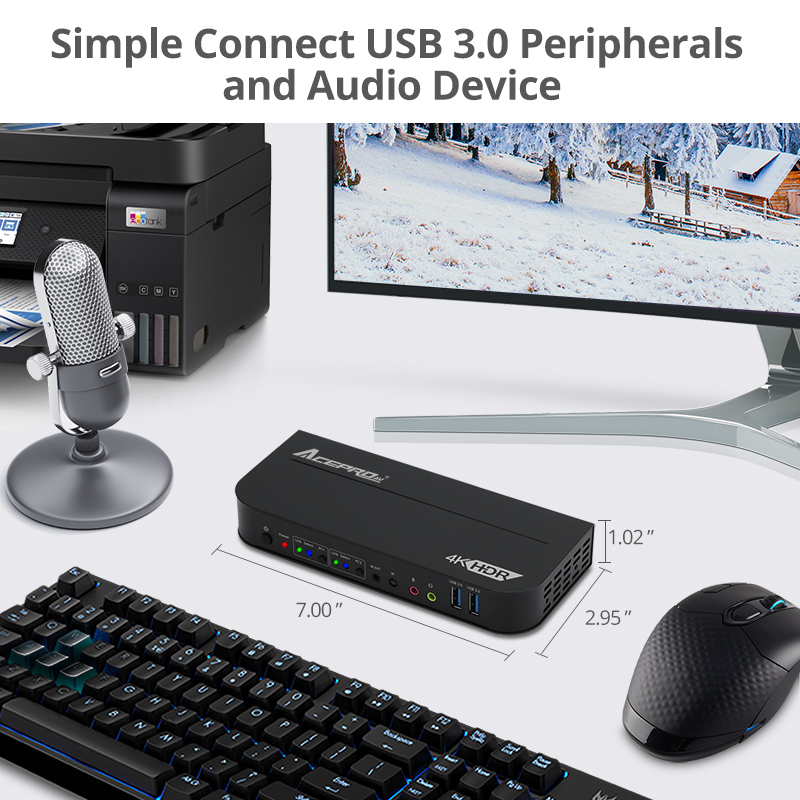

- Dimensions: 7.00"(W) x 1.02"(H) x 2.95"(D)
- Weight: 0.83 lbs
- Color: Black
- Housing material: Metal

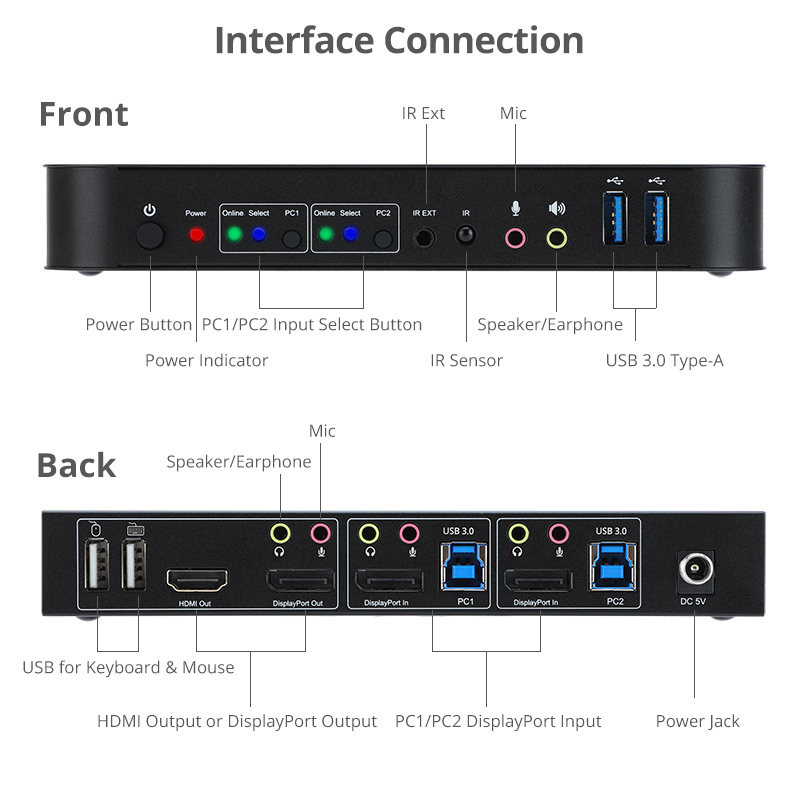

- Connector:
- Input:
- 2x 20-pin DisplayPort, Female
- 2x 9-pin USB 3.2 Gen 1 Type-B, Female
- 2x 3.5mm phone jack for MIC, Female
- 2x 3.5mm phone jack for stereo audio, Female
- 1x 3.5mm IR jack for IR extend
- 2x Buttons for PC switch
- 1x Power button for power On/Off
- 1x Power jack for power supply
- Output:
- 1x 20-pin, DisplayPort, Female (priority first)
- 1x 19-pin, HDMI, Female
- 2x 3.5mm phone jack for MIC, Female
- 2x 3.5mm phone jack for stereo audio, Female
- 2x 4-pin USB 2.0 Type-A, Female for Keyboard/Mouse
- 2x 9-pin USB 3.2 Gen 1 Type-A Female
- Input:
- Unit package:
- Dimensions: 9.06"(W) x 2.56"(H) x 7.09"(D)
- Weight: 1.79 lbs
- Power adapter:
- Input: 100-240VAC, 50/60 Hz
- Output: DC 5V/3A
- UL Listed: 60950-1 /Level:VI
- Environmental conditions:
- Operating temperature: 32 to 114 degrees F
- Storage temperature: 14 to 178 degrees F
- Relative humidity: 5% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
