- Dual Host 4K USB-C KVM MST Docking Station with PD

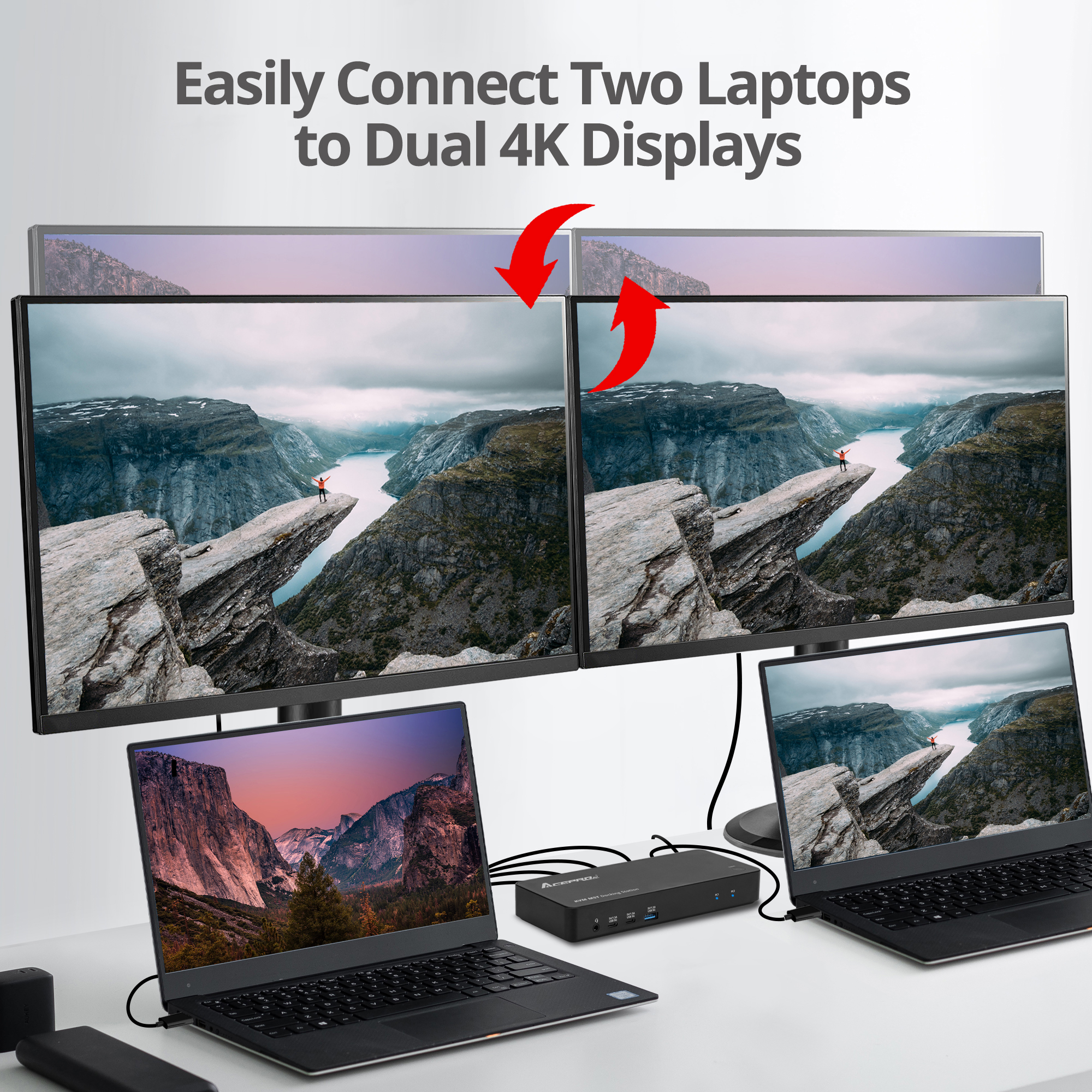

Create a dual displays (DisplayPort/HDMI) workstation with one set of keyboard & mouse and MST technology, 100W PD, and multiple connections via 2 computers with USB-C input ports and DP 1.4 Alt mode to increase your work productivity

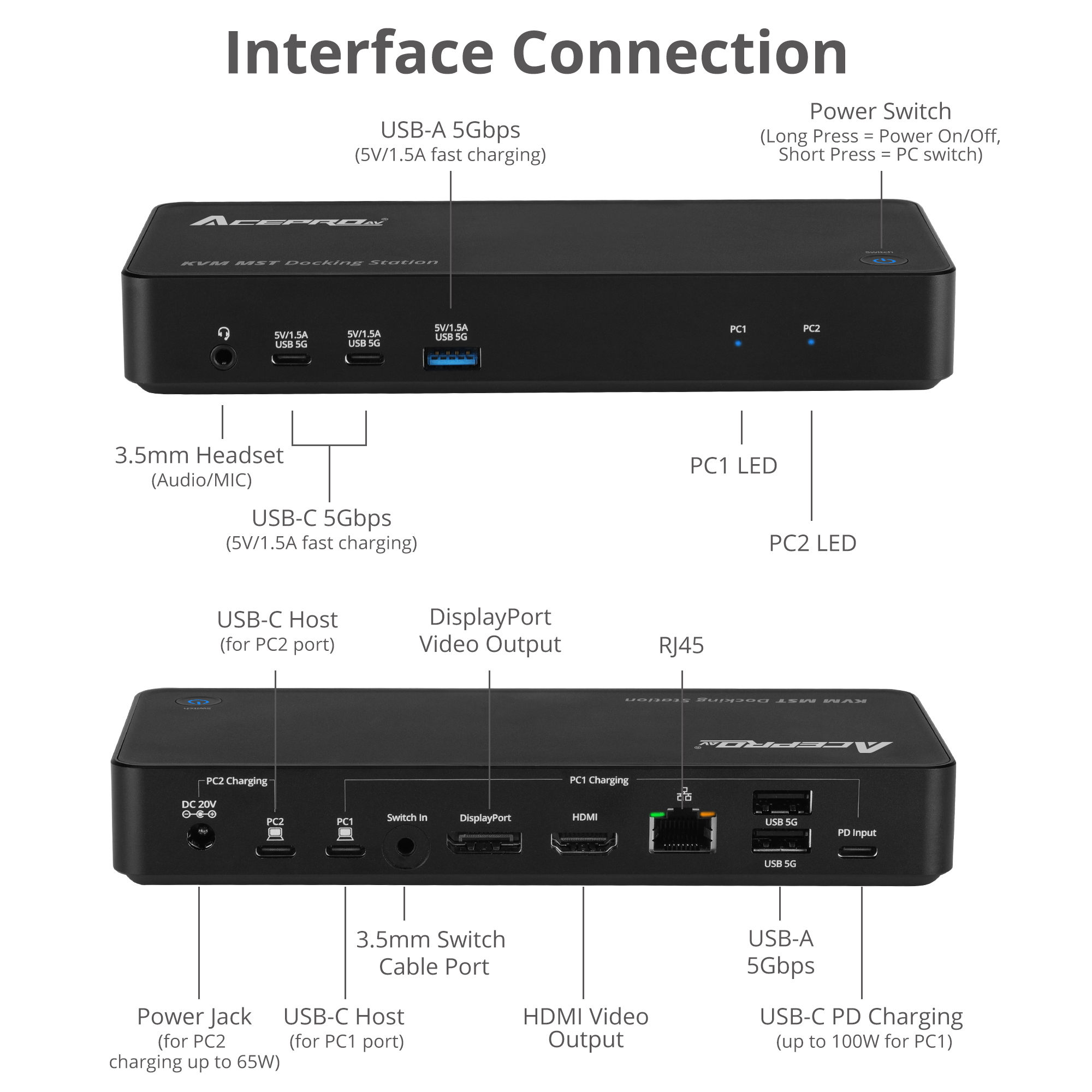

Highlights
- Supports one single display via 4K (3840x2160) @60Hz with DP 1.4 alt mode Ultra HD video resolution or dual displays via one 4K (3840x2160) @30Hz+one 1080p (2160x1080) @60Hz with DP 1.4 alt mode video resolution and 5.1-ch. surround sound
- USB-C/USB-A 3.2 Data Transferusb: Provides two USB-C 3.2 Gen 1 with 5V/1.5A charging ports (5Gbps), two USB-A 3.2 Gen 1 ports (5Gbps), and one USB-A 3.2 Gen 1 with 5V/1.5A charging port (5Gbps) to enhance the performance and transfer capability of USB devices

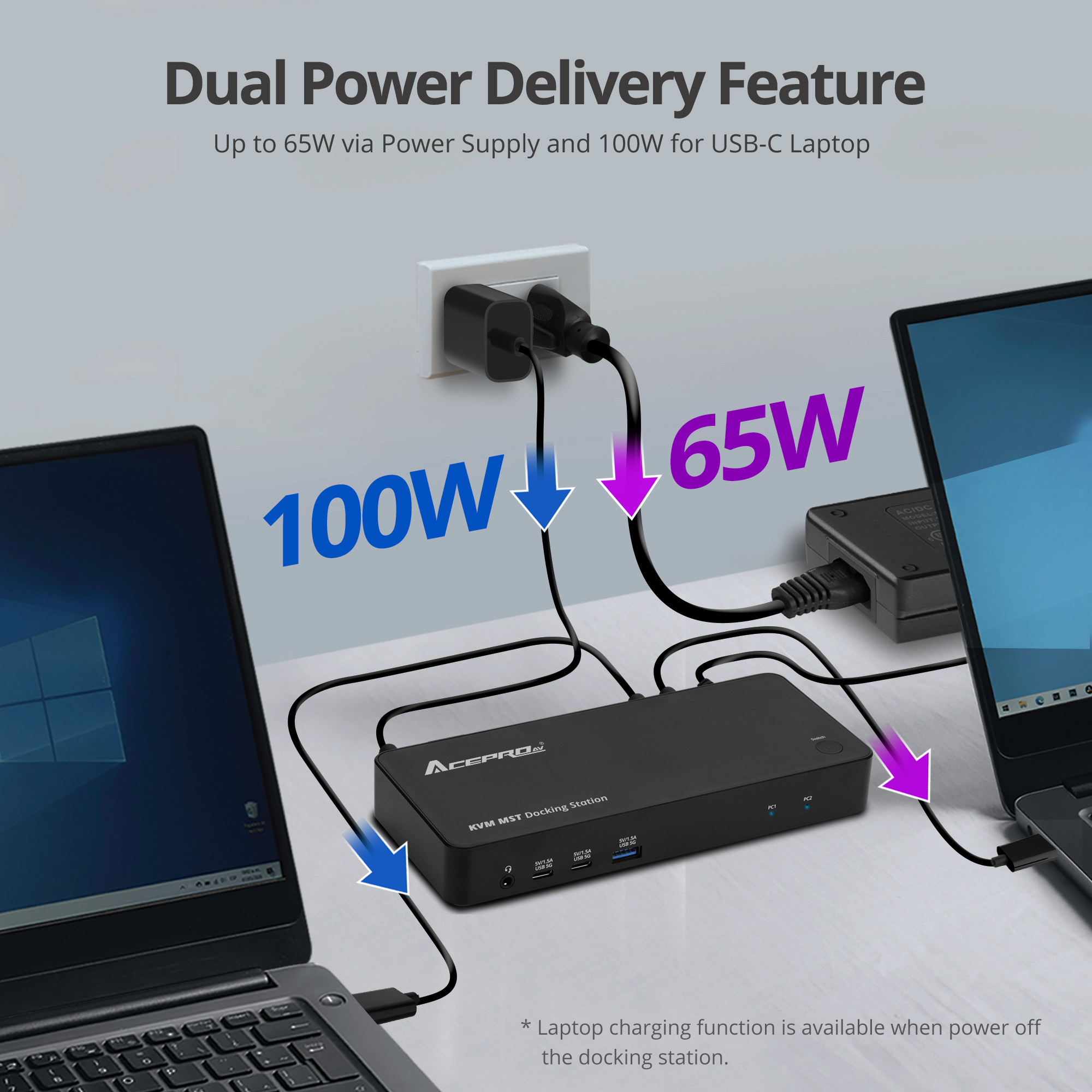

- Power Delivery: USB-C PD pass-through for charging PC 1 laptops, laptops, tablets, or smartphones with up to 100W, connectivity includes two USB-C 3.2 Gen 1 to USB-C cables. The included 120W power adapter ensures enough power for PC2 laptop charging (65W) and USB peripherals

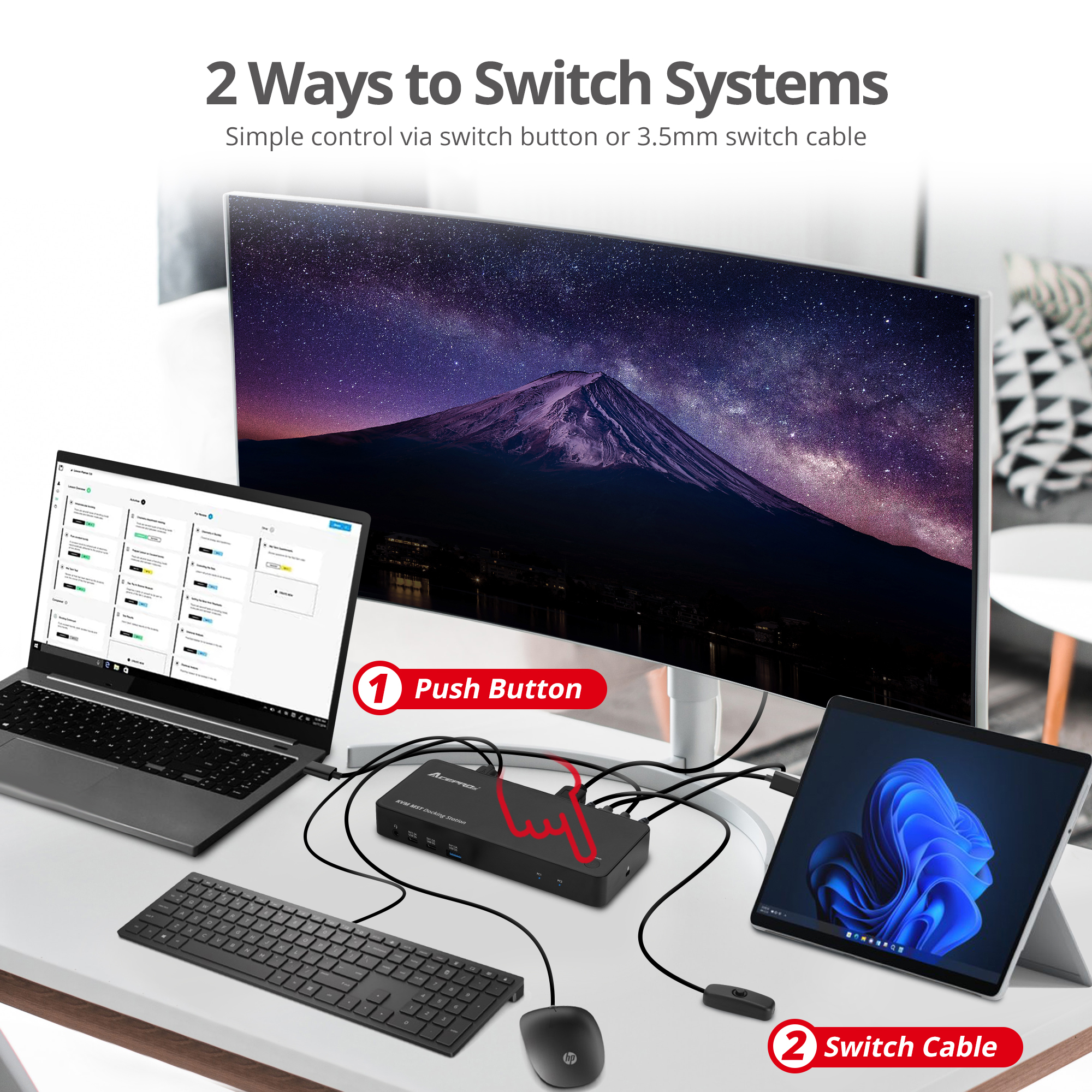

- Effortlessly Switch: Easily control/switch between two computers via the top power/switch button or 3.5mm switch cable
- Security Lock: Keep your laptop safe and secure with a security lock when you work in a public place
- 3 Display Modes: Allows the use of Multi-Stream Transport (MST) technology for multi-monitor displays, such as Mirror mode, Extended mode, and Primary mode to HDTV or projector for perfect visual displays
- 1G Ethernet Data Transmission: Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
- Jack3.5mm Headset Jack: Supports one 3.5mm headset jack for 2 channel stereo audio and microphone connection
- Housing Design: ABS housing with binding aluminum strip design for reliable performance and increased efficiency
- Built-in power and switch PC1/PC2 button with LED provides easy recognition of power status
- Maximum Compatibility: Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.1 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit) and macOS® 12 / 11 / 10.15 to 10.13
* Note:
- macOS® 10.13.4 to 10.13.6 is not supported, it’s recommended to upgrade to10.14 or later or stay with 10.13.3 and earlier
- macOS® only supports Mirror mode
Specification
| Hardware | |
|---|---|
| Chipset | RTD2142+GL3510+AX88179A+VL170 Compliant with Universal Serial Bus 3.2, 3.1, 3.0 and 2.0 specifications |
| Software | |
| OS Compatibility | Windows® 11, mac OS® 12 or new * macOS® 10.13.4 to 10.13.6 is not supported |
| Video | |
| DisplayPort | x1, with MST technology, 4K@60Hz (with DP 1.4) |
| HDMI | x1, with MST technology, 4K@60Hz (with DP 1.4) |
| Dual view | one 4K@30Hz (with DP 1.4)+one 1080p@60Hz |
| Display Mode | |
| Mirror, Extended, Primary video modes. (* MacOS ® only supports Mirror mode) | |
| USB | |
| USB-C 3.2 Gen 1 | x2, data transfer rate up to 5Gbps, 5V/1.5A charging |
| USB-A 3.2 Gen 1 | x1, data transfer rate up to 5Gbps, 5V/1.5A charging |
| USB-A 3.2 Gen 1 | x2, data transfer rate up to 5Gbps, 5V/900mA |
| Fast Charging Port | Yes |
| Audio | |
| 5.1 channel surround sound from DisplayPort/HDMI output | |
| 2 channel stereo audio & microphone from 3.5mm headset jack | |
| Power Adapter | |
| Power Delivery 3.0 | up to 100W via USB-C port (Host) |
| Power Adapter | Input: AC 100-240V/50-60Hz, Output: DC 20V/6A, UL listed: E361658/ Level: VI |
| Ethernet | |
| Data transfer rate: up to 1G (1000Mbps), backward compatible with 10/100Mbps | |
| Supports IEEE 802.3x Full Duplex flow operation, crossover detection and auto-correction | |
| Compatible with IEEE 802.3, 802.3u | |
| Environmental conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | -4 to 158 degrees F |
| Relative humidity: | 0% to 85% RH (non-condensing) |
| Product Info | |
| Dimensions | 7.28” (L) x 1.10” (H) x 3.11" (W) |
| Weight | 0.55 lbs |
| Color | Black |
| Housing material | ABS/Aluminum |
| Unit package | Dimensions: 9.84" (L) x 1.97" (H) x 8.07" (W) Weight: 2.45 lbs |
| Certifications/Standards | |
| FCC, CE, RoHS 2.0, REACH | |
| Country of origin: China | |
