- new | AcePro-KV20-1
- 4K60Hz Quad-View HDMI Mouse Roaming KVM Processor

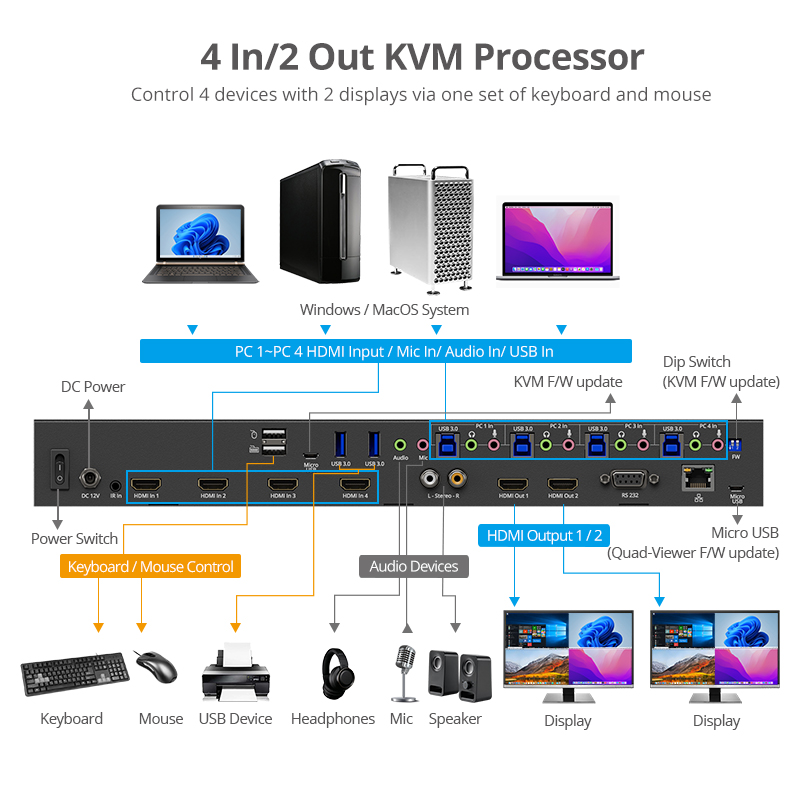

Allows you to control 4 HDMI computers using one keyboard and mouse, 2 HDMI 4K@60, 2 USB-A 3.2 Gen 1 ports, 2 USB 1.1 ports, Microphone input, Stereo audio output, RS-232, RCA L/R stereo audio, DIP switch, Switch button, Hotkeys, IR remote control, Mouse roaming, Full screen, Quad view, and TAA compliant
Highlights

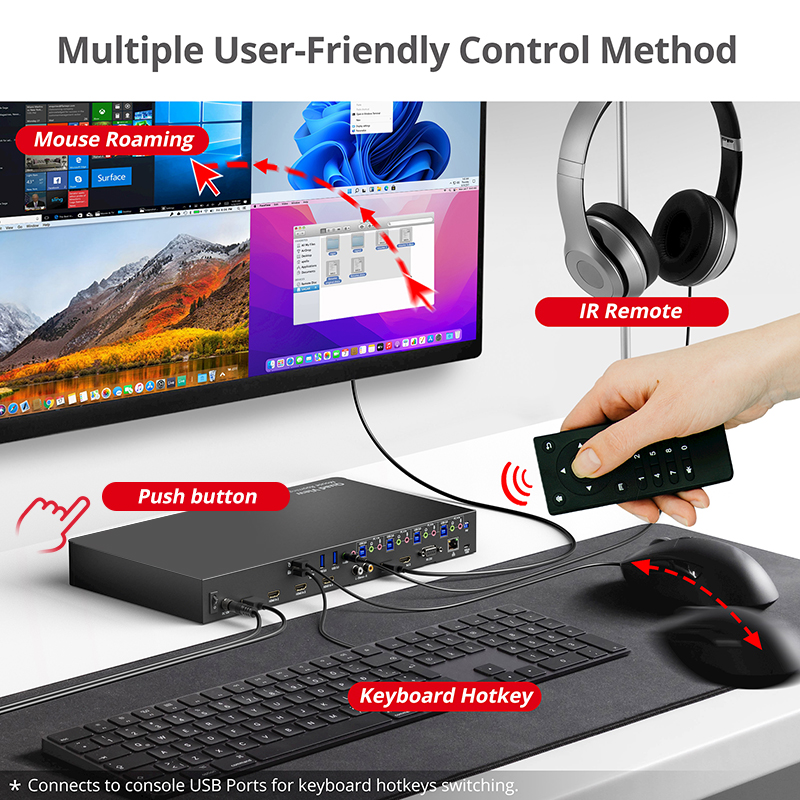

- Effortlessly Switch: Easily switching between four computers/devices via the front panel push button, USB keyboard hotkeys, IR remote control, web GUI control, and RS-232 command make this 4K60Hz Quad-View HDMI Mouse Roaming KVM Processor user-friendly to operate
- Mouse Roaming Function: Simple move the mouse to roam between the four Windows or Mac Systems make perfect operation experience
- 4K Ultra HD Resolution: Supports video resolution up to two UHD 4K (3840x2160) @60Hz, 4:4:4 8-bit through an HDMI port to display the crystal-clear video quality and 3D, deep color. Supports pure unaltered uncompressed 7.1-ch. surround sound

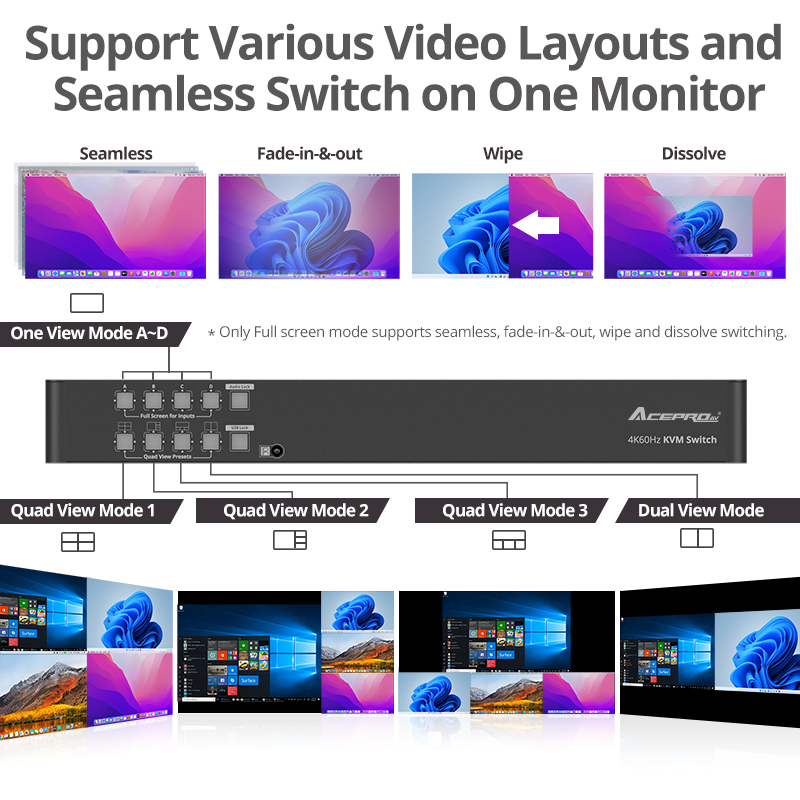

- 5 Display Modes: Video screen layout includes Full screen (original), Dual mode (left/right), Quad mode (average of 4), Quad Cycled mode 1 (1 big/ 3 small), and Quad Cycled mode 2 (1 big/ 3 small) with resizing, position, zoom, pan and blend functions
- High Performance: Offers a true 18Gbps video bandwidth and supports pure unaltered uncompressed 7.1-ch. surround sound on HDMI
- USB-A Data Transfer: Delivers two SuperSpeed USB 3.2 Gen 1 Type-A ports up to 5Gbps data transfer rate for Flash drive, Printer, and other USB peripheral devices. And two High-Speed USB 1.1 Type-A ports up to 12Mbps data transfer rate for independent HID keyboard and mouse
- Maximum Compatibility: Compatible with Windows® 11 / 10 and macOS® 12.x to 10.13. EDID mode design maximizes the compatibility frm OS to display. Supports Plug-n-play, Firmware upgrade, and no driver installation required
- ESD Protection: An ESD protection device protects a circuit from an Electrostatic discharge (ESD), to prevent a malfunction or breakdown of an electronic device.
- TAA Compliant: Completely manufactured in a TAA designated country
- Metal Housing Design: Protects the inside PCBA, and also enhances the heat dissipation for better performance. Military-grade component and ESD protection for long service life
Specification
| Software | |
|---|---|
| OS Compatibility | Windows® and macOS®12.x or new |
| video | |
| HDMI | x2, HDCP 2.2/1.4 |
| Resolution | 480i/480p/576i/576p/720p/1080i/1080p/4K (3840x2160) @60Hz |
| Video Bandwidth | Up to 18Gbps |
| Display Mode | |
| Full screen (original), Dual mode (left/right), Quad mode (average of 4), Quad Cycled mode 1 (1 big/ 3 small), and Quad Cycled mode 2 (1 big/ 3 small | |
| USB Data Transfer Rate | |
| USB-A 1.1 | x2, up to 12Mbps |
| USB-A 3.2 Gen 1 | x2, up to 5Gbps, 5V/900mA |
| Audio | |
| 7.1 channel surround sound from HDMI ports | |
| PCM 2 channel stereo audio from 3.5mm audio jack or RCA L/R stereo audio | |
| Power Adapter | |
| Input | AC 100-240V/50-60Hz |
| Output | DC 12V/2.33A |
| UL listed | E161451/Level: VI |
| Environmental conditions | |
| Operating temperature | 32 to 104 degrees F |
| Storage temperature | -4 to 140 degrees F |
| Relative humidity | 20% to 90% RH (non-condensing) |
| Product Info | |
| Dimensions | 15.35” (L) x 1.70” (H) x 7.94” (W) |
| Weight | 5.29 lbs |
| Color | Black |
| Housing material | Metal |
| Unit Package | |
| Dimensions | 20.63” (L) x 2.99” (H) x 10.51” (W) |
| Weight | 7.50 lbs |
| Certifications/Standards | |
| FCC, CE, RoHS 2.0, REACH, TAA compliant | |
| Country of origin: Taiwan | |
