• new | AVLAB-US55
  • USB-C to HDMI with LAN Hub & PD Charging Adapter

  • $59.99 $59.99

Highlights

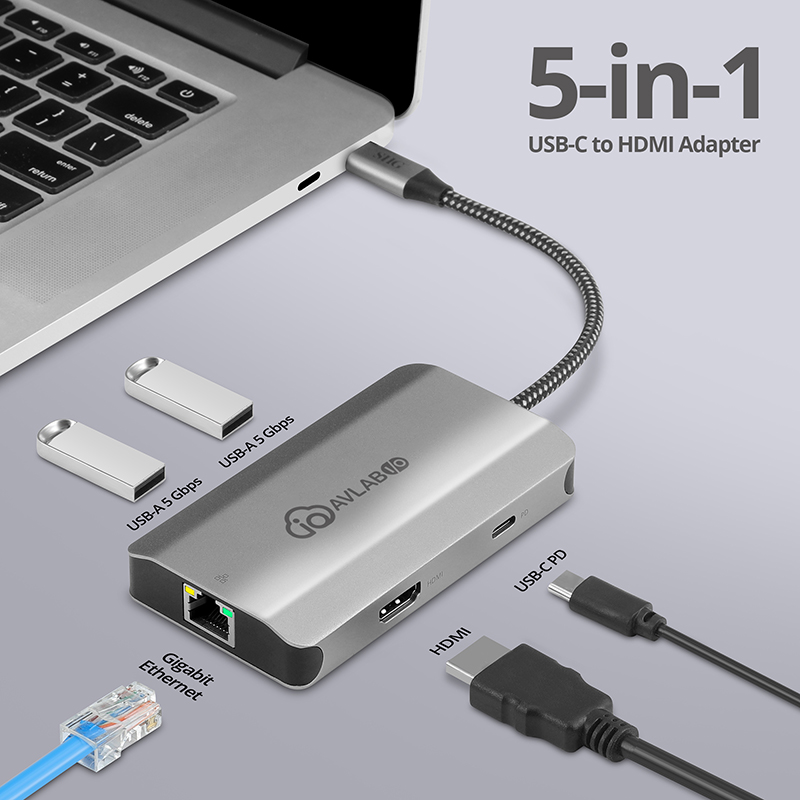

  • Designed to add one HDMI port, one Gigabit Ethernet port, two USB-A ports and power delivery through USB-C (DisplayPort signal enabled) connection to your USB-enabled computer
  • USB-A ports support data transfer rate up to 5Gbps for fast data delivery and backwards compatible with USB 2.0 ports
  • Mirror or extend your screen by HDMI port of the USB-C hub and directly stream 4K@30Hz or full HD 1080P video to HDTV, Monitor or Projector
  • Reliable wired network connectivity through embedded 10/100/1000BASE-T Gigabit Ethernet port
  • Plug-n-Play, no software installation required, and the USB-C charge port can supporting up to 100W Power Delivery (PD 3.0) passthrough, 15W for hub and 85W for charging.
  • Compatible with USB-C Gen 1 & Gen 2 ultrabooks, Chromebooks, tablets & Thunderbolt 3 / 4 laptops, such as HP, Dell, Lenovo, MacBooks; works with Windows, Mac OS, iPad OS, Chrome OS, Android

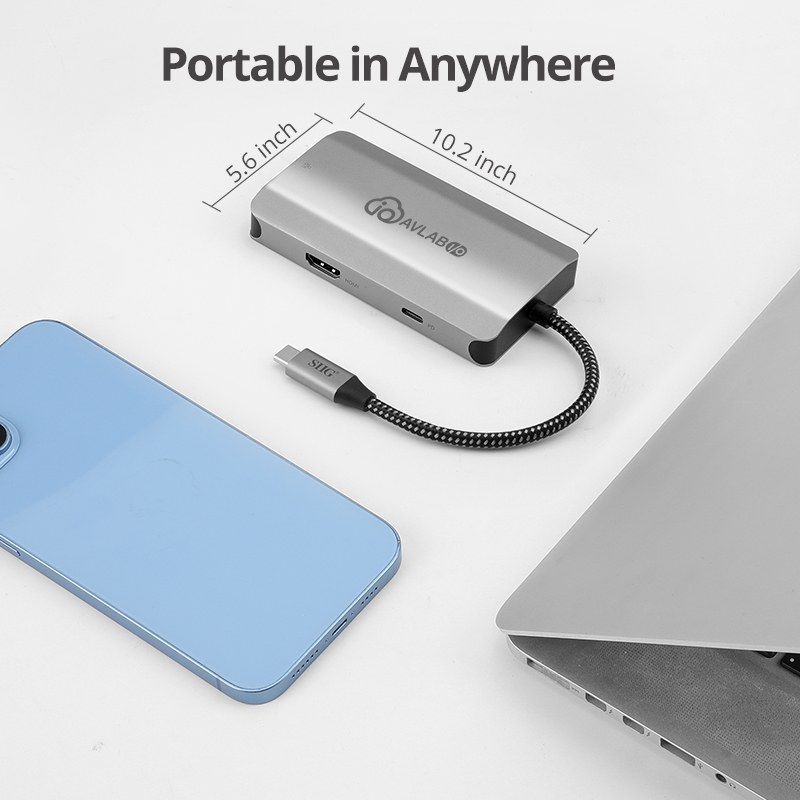

  • Pocket size aluminum enclosure enhances the durability, further providing greater portability and easy to carry in your laptop bag, convenient to use at home, office, or travel makes this adapter the perfect add-on to your workstation

Specification

  • Chipset: VL102+PS176+RTL8153+VL817
  • HDCP 1.4 compatible
  • USB data transfer rate: Up to 5Gbps
  • Compliant with USB 3.0 and backwards compatible with USB 2.0 specification
  • HMDI Supports Resolution: Up to 4Kx2K@30Hz
  • Compatible Networks: 10/100/1000 Mbps
  • Power delivery 3.0 up to 100W
  • USB bus powered and hot-pluggable
  • Product
    • - Dimension: 4.02" (W) x 2.20" (H) x 0.63" (D)
    • - Weight: 0.18 lbs
    • - Color: Space gray
    • - Housing Material: Aluminum with Plastic
    • - Built-in Cable Length: 6.29" (16cm)
    • Connectors:
      • - 1x USB-C, Male, Input
      • - 1x USB-C, Female, for PD 3.0 charging
      • - 1x 19-pin HDMI, Female, Output
      • - 2x 9-pin USB-A 5Gbps, Female, Output
      • - 1x 8-pin RJ45, Female, Output
  • Unit package:
    • - Dimensions: 9.45"(W) x 6.30"(H) x 0.63"(D)
    • - Weight: 0.22 lbs
  • Environmental conditions:
    • - Operating temperature: 32 to 122 degrees F
    • - Storage temperature: 14 to 140 degrees F
    • - Relative humidity: 5% to 85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
