• new | AVLT-CH40
  • 200W GaN PD Charger with Charging Display - 3C2A - 3x USB-C + 2x USB-A - USB-C Power Adapter

  • $189.99 $189.99

Highlights

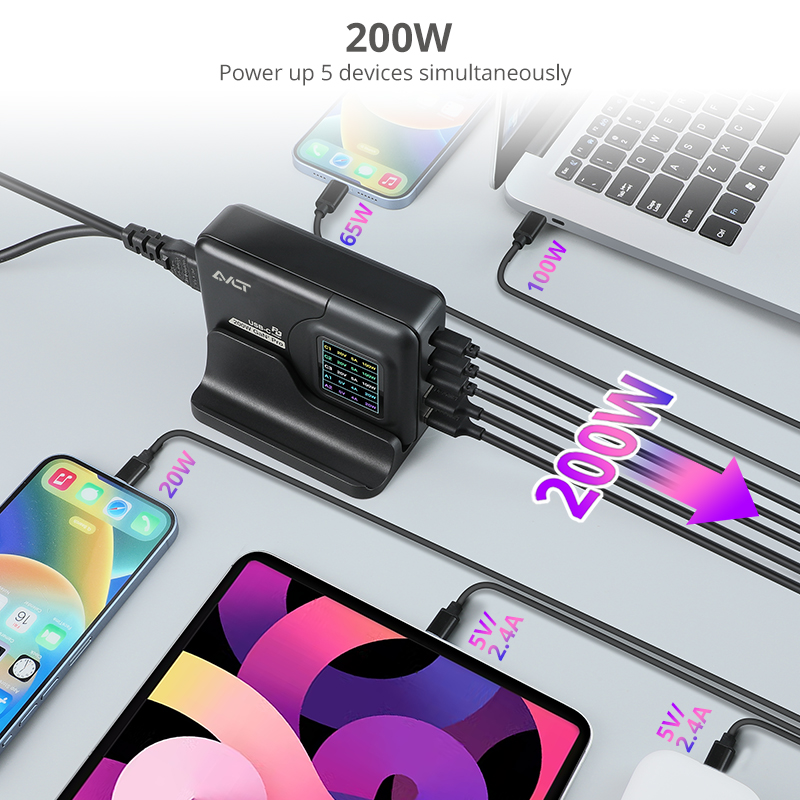

  • Simultaneously charge for USB-C and USB-A power devices to optimize charging efficiency, allows to charge 5 devices perfectly at the same time.
  • Triple USB-C ports, USB-C1/C2/C3 supports up to 100W, and two USB-A ports, USB-A1/A2 supports up to 22.5W, the charger supports a maximum output of 200W, When using all ports together, the charging station provides maximum C1(100W)+C2(65W)+C3(20W)+(USB-A1+USB-A2)(15W) power.
  • USB-C ports are compatible with Power Delivery 3.0, Fast Charger 2.0 / PPS technology protocol, USB A ports are compatible for Quick Charger 3.0 protocol

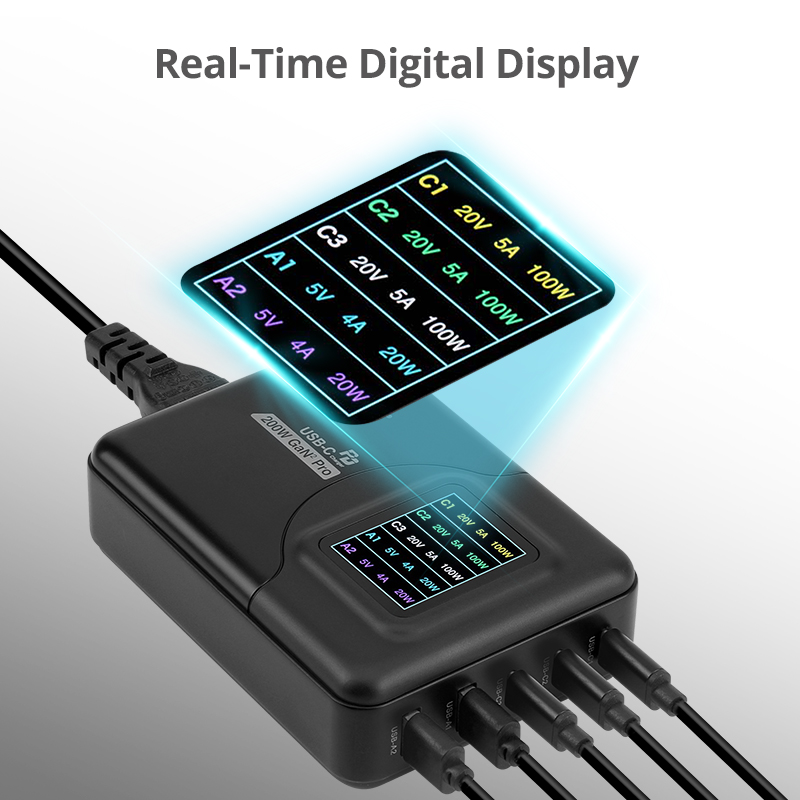

  • Built-in LCD screen displays the current data of each port in real time, and the current charging status is clear at a glance
  • New Gallium Nitride (GaN) 2 Pro semiconductor material, low heat temperature, smaller size, higher charging efficiency, allows for power devices can operate at higher voltages and switching frequency which is more powerful and durable, provide multiple protection inside protects your devices against over current, short circuit and over voltage

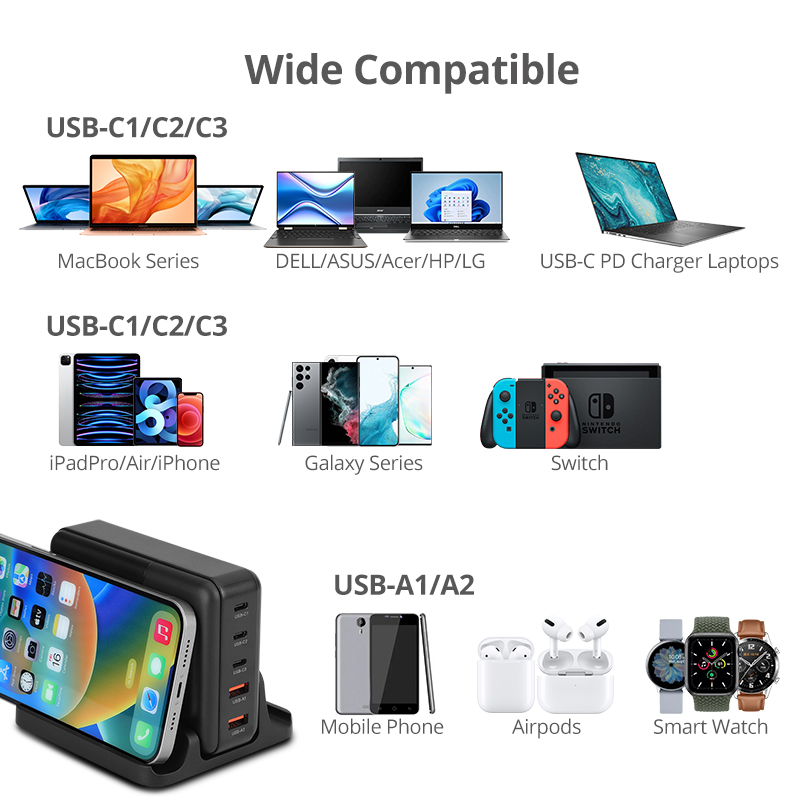

  • The USB Type-C charging box is not only suitable for various systems such as iOS of Apple products, Android as well as Windows, but also supports USB devices, such as laptops, smartphones, tablets, switch, game consoles, cameras with USB-C ports, and more Cellphone accessories. Moreover, it works well with USB-C to USB-C cord, USB-C to USB-A power cable, USB-C to iPhone charger cable…etc
  • Safety Protection: Built-in over-load, over-voltage, over-current, over heating and short-circuit protection circuitry, protects your devices and the charger itself from unforeseen power problems while charging
  • Compact and portable design, easy to carry

Specification

  • USB A ports: Quick Charger 3.0 protocol
  • USB-C ports: USB Power Delivery 3.0, Fast Charger 2.0 /PPS specification compatible
  • AC Input: AC 100-240V, 50/60Hz, 3A
  • Power output:
    • Total power output: 200 watts shared among all the charging ports
    • Single port used:
      • USB-C1/C2/C3 Up to 100W of 20V/5A
      • USB-A1/A2 Up to 22.5W of 12V/1.5A
    • Dual port used:
      • USB-C1 + USB-C2 = 100W + 100W
      • USB-C1 + USB-C3 = 100W + 100W
      • USB-C2 + USB-C3 = 100W + 100W
      • USB-C1/C2/C3 + USB-A1 = 100W + 22.5W
      • USB-C1/C2/C3 + USB-A2 = 100W + 22.5W
      • USB-A1 + USB-A2 = 12W + 12W
    • Triple port used:
      • USB-C1 + USB-C2 + USB-C3 = 100W + 65W + 30W
      • USB-C1 + USB-C2 + USB-A1/A2 = 100W + 65W + 22.5W
      • USB-C1 + USB-C3 + USB-A1/A2 = 100W + 65W + 22.5W
      • USB-C2 + USB-C3 + USB-A1/A2 = 100W + 65W + 22.5W
      • (USB-C1/C2/C3) + USB-A1 + USB-A2 = 100W + 7.5W + 7.5W
    • Quad port used:
      • USB-C1 + USB-C2 + USB-C3 + USB-A1/A2 = 100W + 65W + 20W + 15W
      • USB-C1 + USB-C2 + USB-A1 + USB-A2 = 100W + 65W + 7.5W + 7.5W
      • USB-C1 + USB-C3 + USB-A1 + USB-A2 = 100W + 65W + 7.5W + 7.5W
      • USB-C2 + USB-C3 + USB-A1 + USB-A2 = 100W + 65W + 7.5W + 7.5W
    • Full port used:
      • USB-C1 + USB-C2 + USB-C3 + USB-A1 + USB-A2 = 100W + 65W + 20W + 7.5W + 7.5W
  • Protection: Over-load, Over-Voltage, Over-Current, Over Heating and Short-Circuit
  • Product:

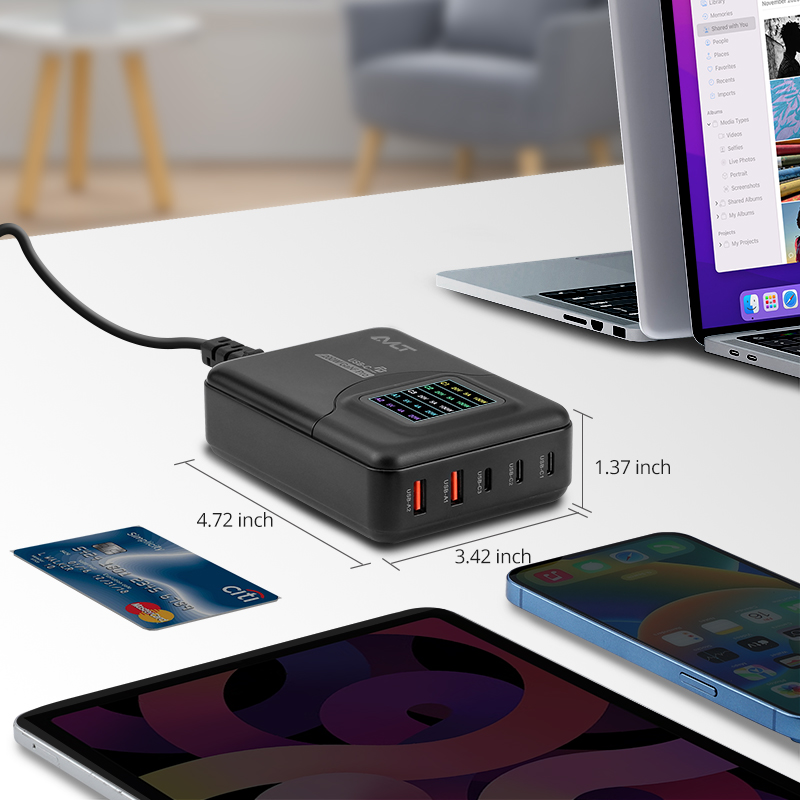

    • Dimensions: 4.69" (W) x 1.51"(H) x 3.36" (D)
    • Weight: 1.21 lbs
    • Housing material: Plastic
    • Color: Black
    • Connector:
      • 1x AC power plug in AC 100-240V, 50/60Hz, 3A, input
      • 3x 24-pin, USB-C, Female, output
      • 2x 4-pin, USB-A, Female, output
  • Unit package:
    • Dimensions: 6.38"(W) x 3.85"(H) x 5.04"(D)
    • Weight: 1.98 lbs
  • Environmental conditions:
    • Operating temperature: 14 to 104 degrees F
    • Storage temperature: -4 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS, ETL
