• AVLT-DM73-1
  • AVLT Dual 17”-43 Laptop & Monitor Desk Mount USB-C Dual Mount Dock



■【Dual Display Extension】Enhance productivity with improved multitasking capabilities through dual display extension, allowing you to work with up to three monitors simultaneously (laptop and two external monitors).

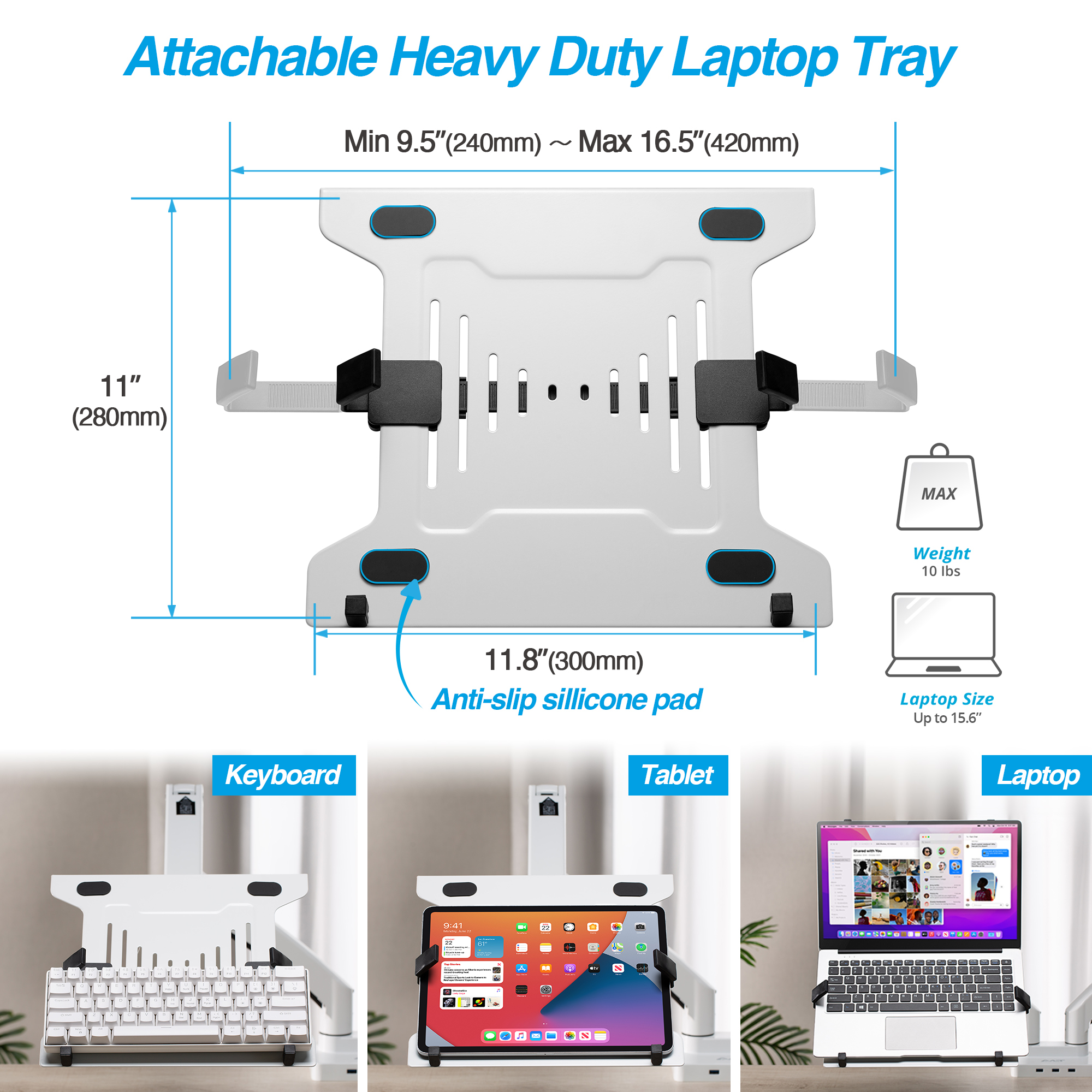

■【Attachable Laptop Tray】Versatile and adaptable. Use either as a dual monitor mount, or as a single monitor mount with a laptop holder to accommodate your laptop, tablet, or keyboard, providing you with optimal flexibility and functionality.

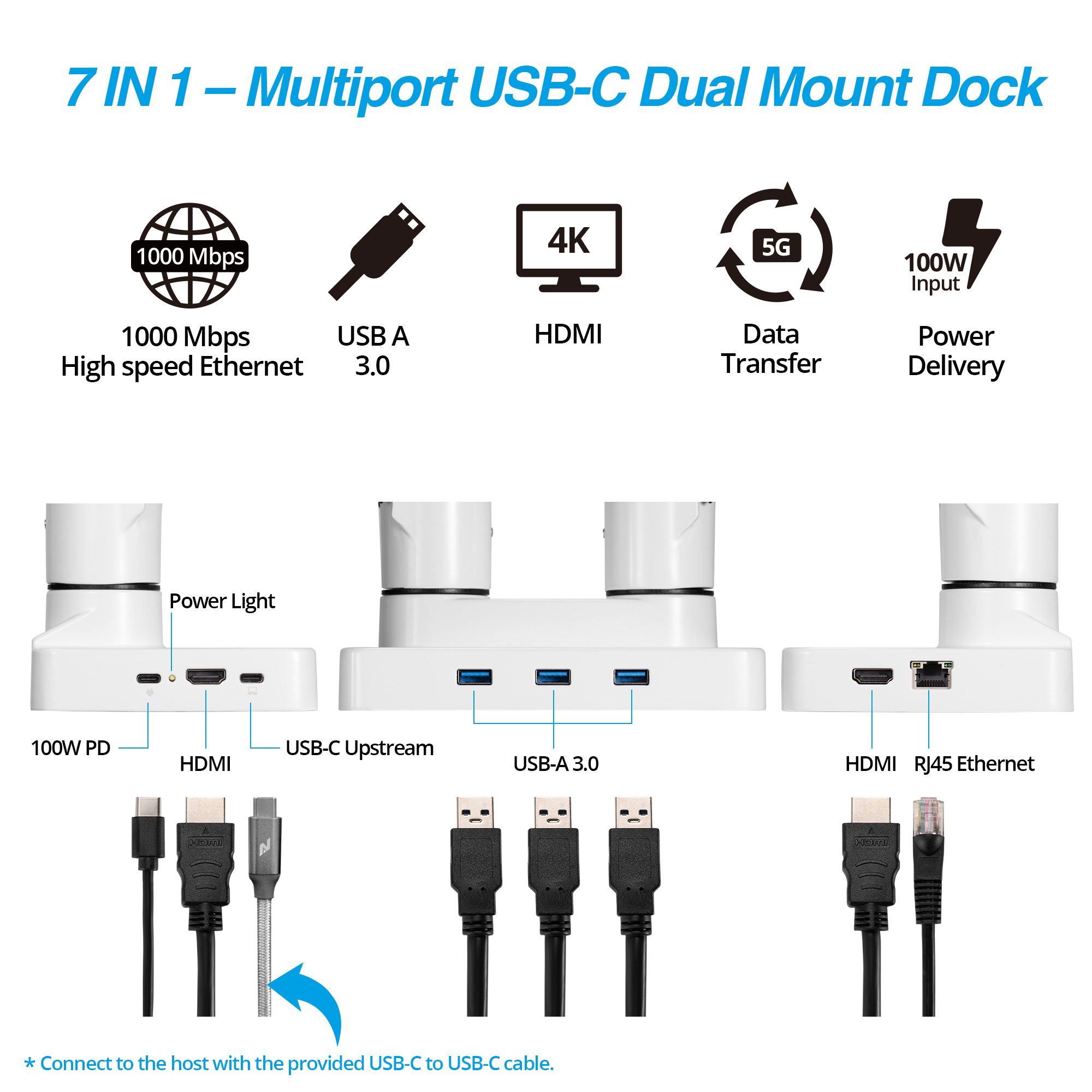

■【7 in 1 Docking Station Base】The monitor base doubles as a 7-port docking station, featuring 3x USB-A 3.0 ports (5Gbps), 2x HDMI ports (MST), 1x RJ45 Ethernet port (1Gbps), and 1x 100W PD Input port.
■【Space Saving】Maximizes desk space by lifting monitors off the surface, enabling more efficient use of your work area by reducing clutter.
■【Ergonomic Solutions】Maintain a better posture and reduce strain on your neck, shoulders, and eyes by elevating and adjusting your screens to a more comfortable viewing height.
■【Cable Management】Keeps your workspace professional and organized with the cables and wires tucked away neatly in the arms.

  • $299.99 $299.99

Highlights


AVLT Dual Monitor with Laptop Tray Mount Dock station USBA USBC HDMI Ethernet Power delivery White










































Your monitor and laptop must require:

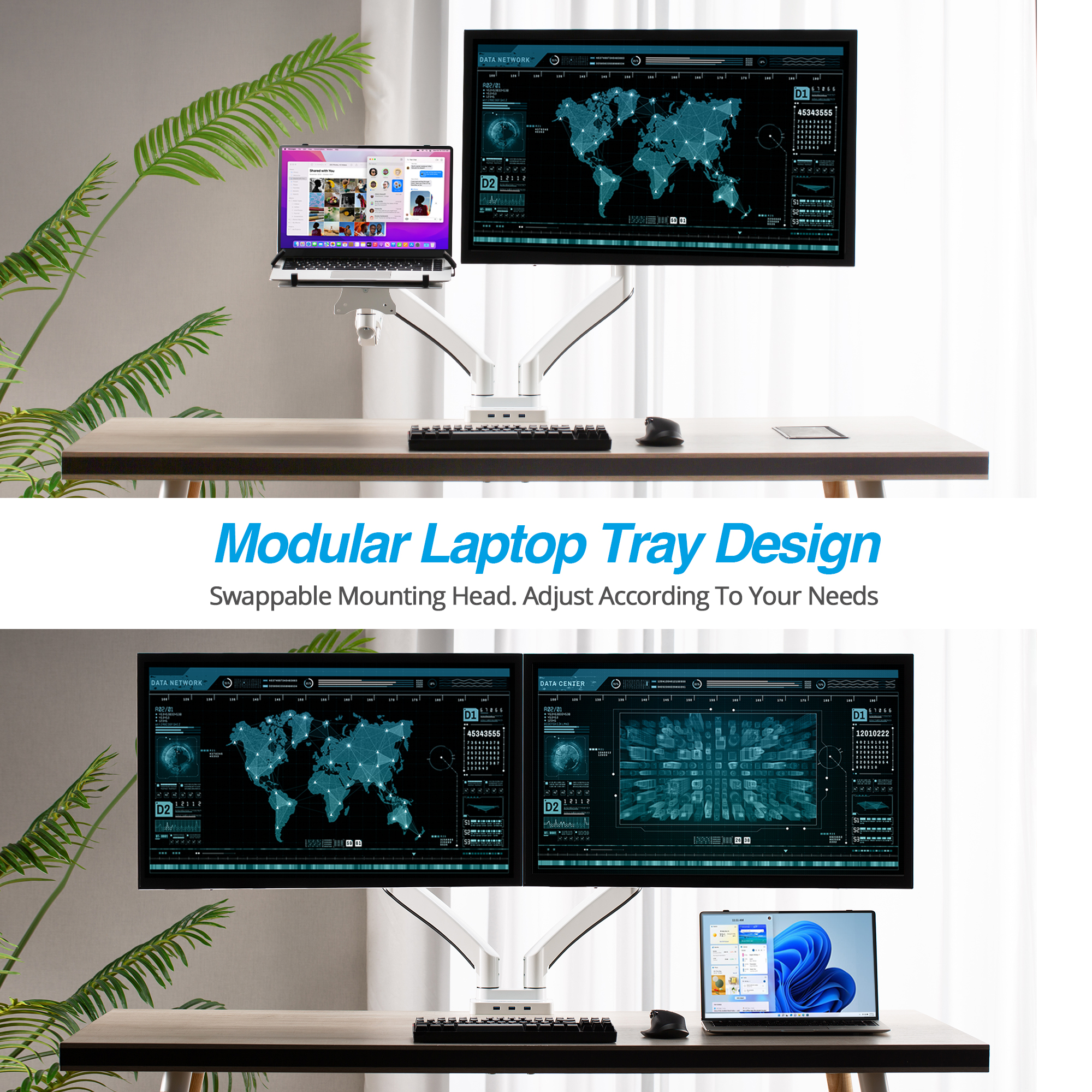

Modular Laptop Tray for Dual Usage Scenarios



  1. Monitor Size: 17" to 43" (absolute maximum must be 43" monitors in 16:9 aspect ratio and monitor arms fully stretched apart) / Monitor Weight: Under 33lbs (15kg) / Laptop Size: Under 15.6" / Laptop Port: Full-functioned USB-C Port
  2. VESA Pattern: 200x200mm, 200x100mm, 100x100mm, or 75x75mm




Modular Laptop Tray for Dual Usage Scenarios

AVLT Dual Monitor with Laptop Tray Mount Dock station USBA USBC HDMI Ethernet Power delivery Black




Ensure the four bolts for the rotation on the VESA head are tightened efore installing your monitors

Rotational Tightening Design

Ensure the four bolts for the rotation on the VESA head are tightened first before installing your monitors.

New lockable bolt design to easily hold bigger, heavier and wider monitor in position

Enhanced One-shaped VESA Head

Our one-shaped VESA head design holds monitor in position stably.

Tightening the bolt provides extra friction to hold monitor in place when tilting.

Extra adapters to mount larger monitors using 200x100mm or 200x200mm VESA patterns

Enhanced Compatibility

The included VESA Converter supports VESA mounting patterns up to 200x200mm for larger and heavier monitors.

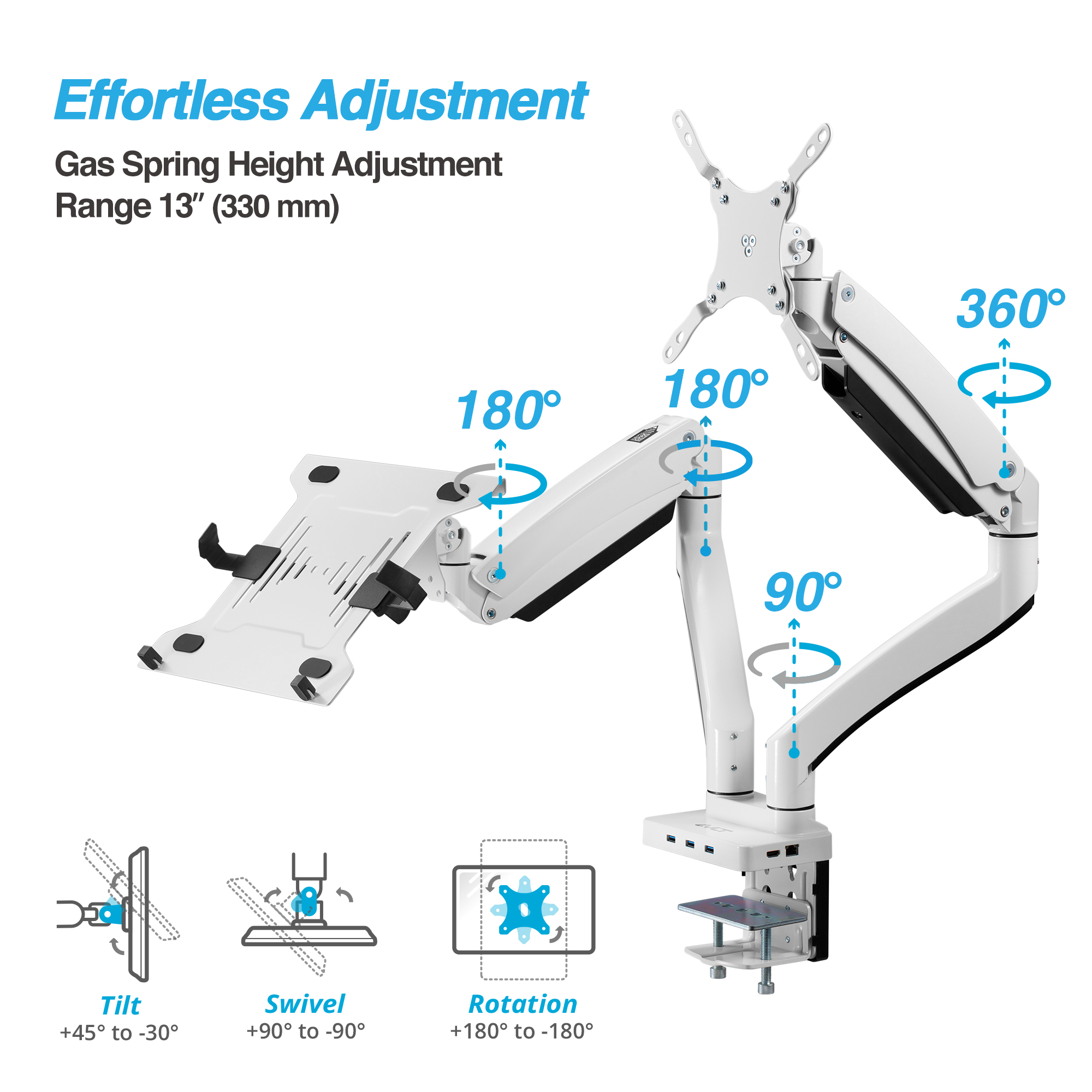

Easy to adjust gas spring tension adjustment to raise and lower the monitor arm

Gas Spring Height Adjustment



  • When your monitor droops, turn it anti-clockwise (+) to increase tension.
  • If your monitor floats up, turn it clockwise (-) to decrease tension.



Heavy-Duty C-Clamp Mount  fits most desktops from 0.4
Grommet Mount supports desktop up to 1.8

Specification

AVLT-DM73-1 Tech Specs

Screen Quantity: 1 Monitor + 1 Laptop Setup | 2 Monitor Setup
Screen Size & Weight: 17"- 43" inches | Only supports 43" monitors (Flat/Curve) with 16:9 aspect ratio and monitor arms will be fully stretched apart. Monitor size over the recommended ratio (i.e., 21:9 or 32:9) will result in overlapping. | Up to 33lbs (15kg)
Laptop Size & Weight: 10" - 15.6" | Up to 10lbs (4.5kg)
Arm Capacity: 2.2lbs to 33lbs (1kg -15kg) per arm | Lift: 23.4" (585mm) | Extend: 20.7" (526mm)
VESA: 75x75 mm / 100x100 mm / 200x100 mm / 200x200 mm (Tilt: Upward 45° / Downward 30° | Swivel: 180° | Rotation: 360°)
C-clamp Desk Mount Criteria: Desktop Thickness: 0.4" to 3.3" (10mm to 85mm) | Desktop Depth: 3.5" (90mm)
Grommet Desk Mount Criteria: Desktop Thickness: 0.4" to 1.8" (10mm to 48mm) | Desktop Grommet Hole Diameter: 0.4" to 2.3" (10mm to 60mm)
Computer/Laptop Port Required: Full-functioned USB-C Port (must support transferring data, audio, video, and power.)
USB Type A Port (x3): 5V/0.9A max. | 5Gbps (USB 3.1 Gen 1)
USB Type C Port (x2): [Port 1] Power Delivery (PD) max.100W Input (Note: adapter not included). | [Port 2] 10G data transfer. Support up to 80W PD charging to your device (Connect with the provided USB-C to USB-C cable).
USB-C to USB-C Cable (x1): 10G Data transfer/ 100W Charging | Length: 39.4" (1000mm)
HDMI Port (x2): 4K@60Hz (with DP 1.4 host) or 4K@30Hz (with DP 1.2 host)
Dual Video Output: Up to 4K@30Hz + 1080p@60Hz (with DP 1.4 host) / 1080p@60Hz + 1080p@60Hz (with DP 1.2 host)
Monitor Display: Windows: supports Dual Extend mode + Mirror mode | Mac OS: supports Single Extend mode only + Mirror mode (Mac computer can only support one external monitor with extend mode)
RJ-45 Ethernet Port (x1): Supports 1000Mbps/100Mbps/10Mbps
Product Dimensions & Weight: 44.49” x 5.04” x 29.53” (1130mm x 128mm x 750mm) | 25.07lbs (11.4kg)
