- AcePro AV HDMI Over IP Encoder & Decoder Transceiver, TX/RX Mode Switching, Cascading, 1080p, One to One 600ft, One to Many, Many to Many via VLAN, 2x RJ45, TAA Compliant
HDMI Over IP Encoder & Decoder Transceiver, Over IP Extender, TX/RX Mode Switching, 1080p, One to One 600ft, One to Many, Many to Many via VLAN, 2x RJ45 Supports cascading via LAN port directly or via LAN with IGMP gigabit switch, Cascading via HDMI Loopout, Audio Extraction and Embedded, Reset Button, Metal Housing, TAA Compliant
-
$259.99$259.99
Highlights
This versatile HDMI over IP Encoder & Decoder Transceiver seamlessly integrates extender, splitter, and switcher functionalities into a single, powerful device, offering flexibility to configure as either an encoder or a decoder to save costs and simple setup
Enabling seamless transmission and expansion of HDMI audio/video signals to remote 1080p@60Hz displays up to 600ft (180m) over Cat5e/6 network cables, it supports one-to-many or easy cascading over HDMI cable for up to 5 levels, catering to a wide range of applications
Specification
- Compliant with HDCP 1.4 specification
- Video interlaced resolution: 1080i@60Hz / 1080i@50Hz
- Video progressive resolutions: 1080P@60Hz / 1080P@50Hz
- VESA resolution: 1920x1080 / 1680x1050 / 1600x1200 / 1920x1200 / 1440x900 / 1440x1050 / 1360x768 / 1280x1024 / 1280x960 / 1280x800 / 1280x768 / 1280x720 / 1024x768 / 800x600 / 640x480 @60Hz
- Extensions Distance: 180m (600 feet) for 1080p @60Hz
- Three Cascading Methods:

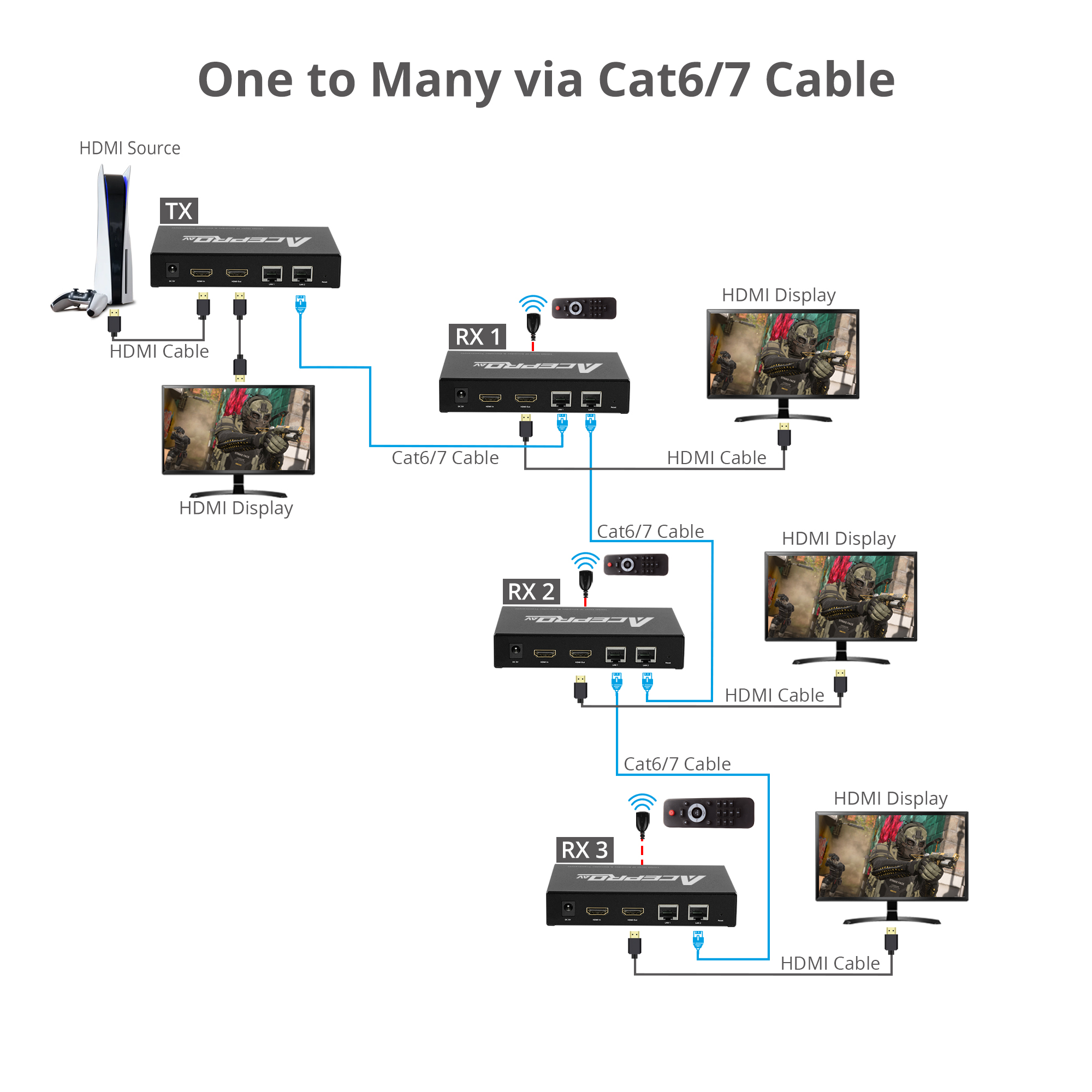

- Cascading via LAN port directly to achieve one to many
- Cascading via LAN port with IGMP gigabit switch to achieve one to many or many to many

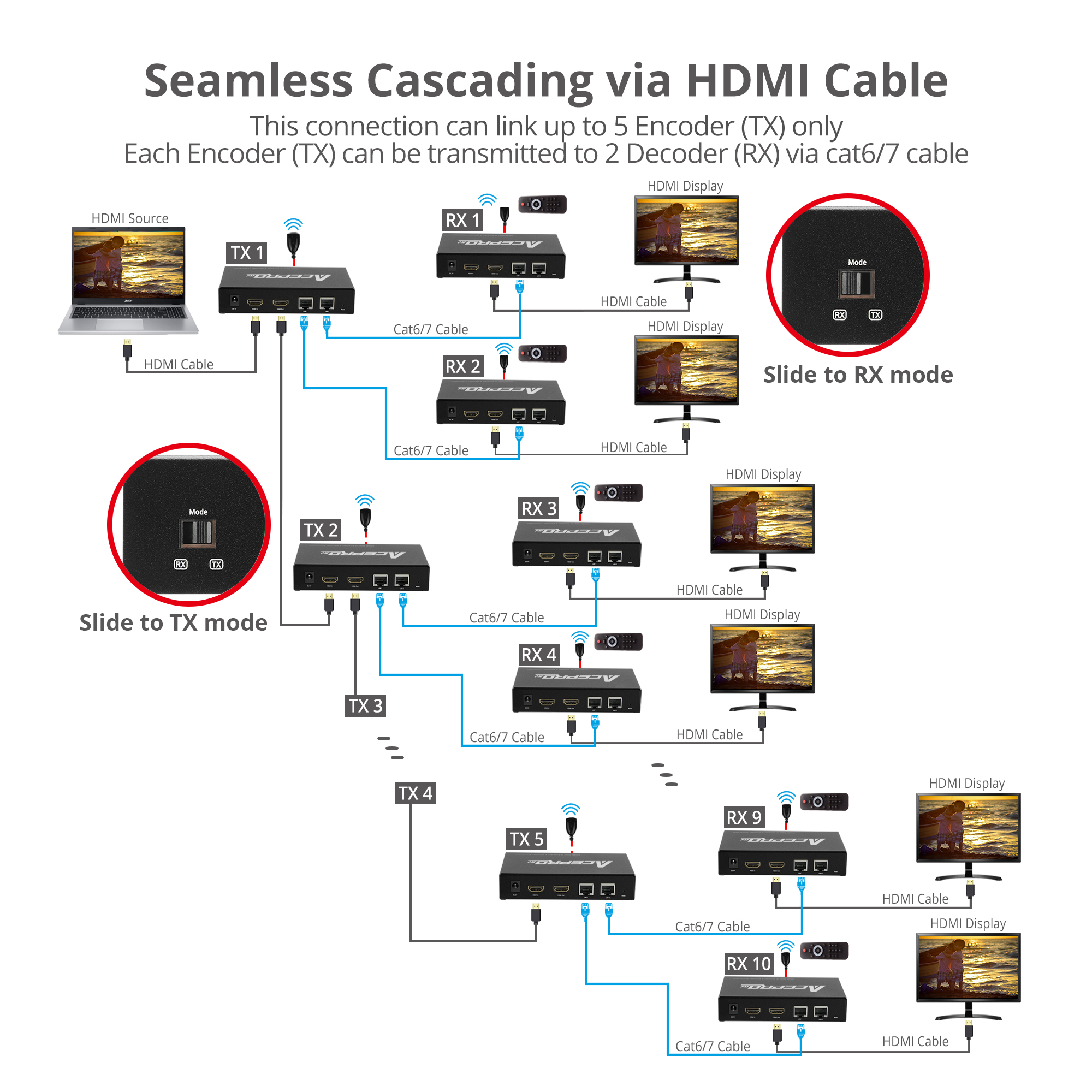

- Cascading via HDMI Loopout to achieve one to many, up to level 5 only

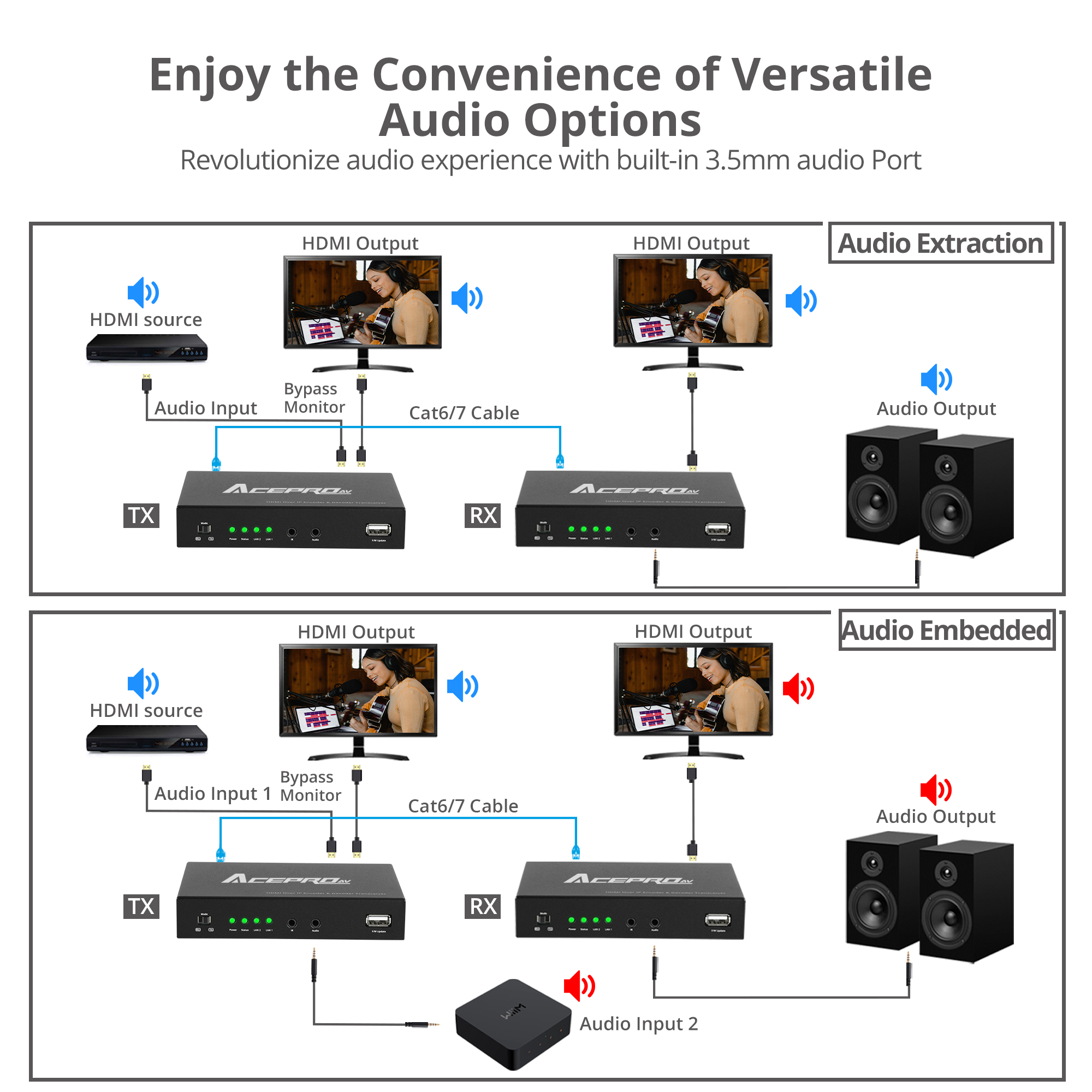

- Audio Format
- 3.5mm Stereo Audio Format: Supports PCM 2.0
- HDMI Audio Format: Supports 5.1ch
- LAN port: TCP/IP 10/100Mbps
- IR Frequency Range: 20-60KHz
- Firmware upgradable through USB port
- Product:
- Dimensions: 5.20" (W) x 1.00" (H) x 3.08" (D)
- Weight: 0.63 lbs
- Color: Black
- Housing: Metal

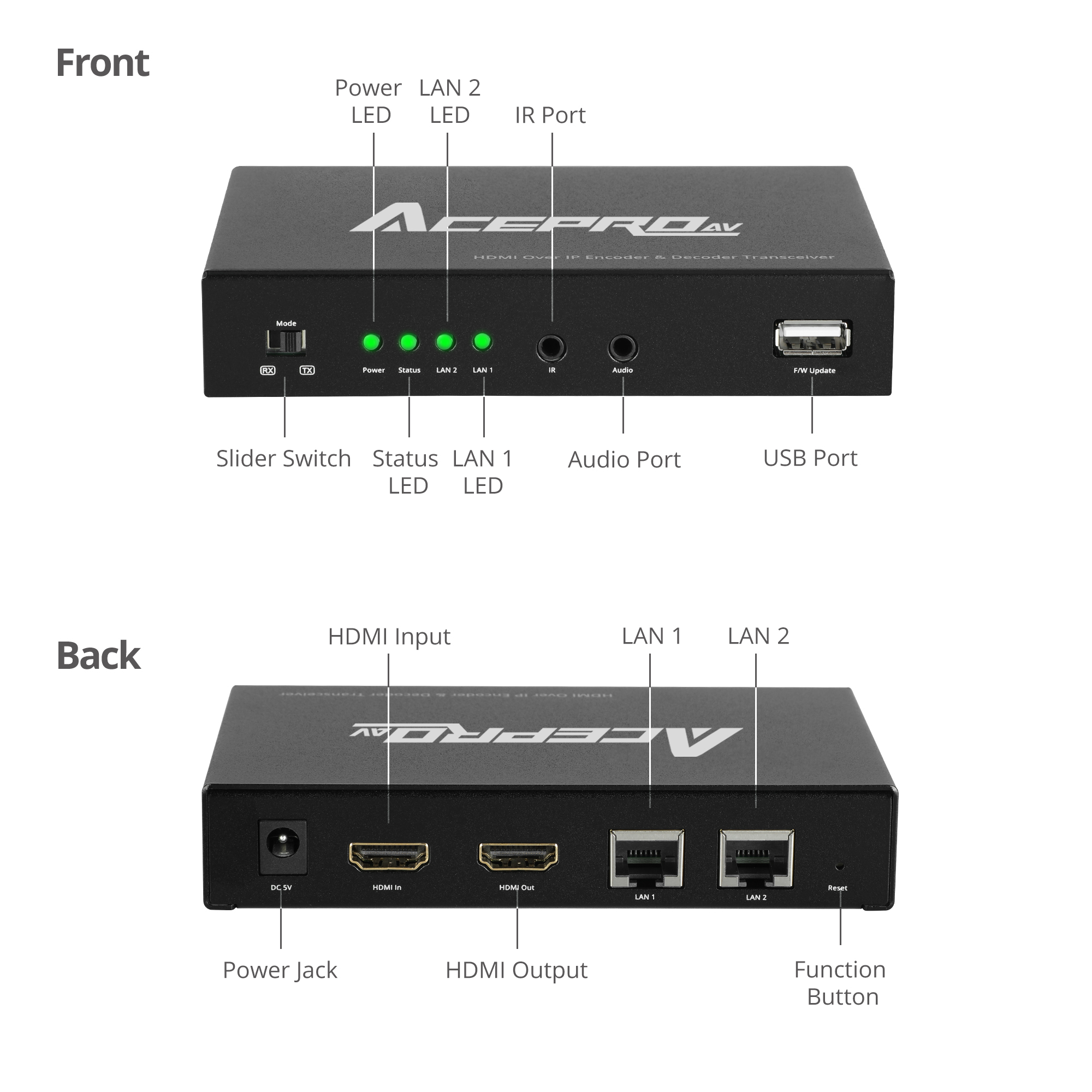

- Connector:
- 1x 19-pin, HDMI, Type A, Female, Input
- 1x 19-pin, HDMI, Type A, Female, Output
- 2x 8P8C RJ45, Video signal, Input / Output
- 1x Reset Button, for default reset
- 1x Slider for Encoder (TX) / Decoder (RX) switch
- 1x 3.5mm for IR Input / Output
- 1x 3.5mm for Audio aux in
- 1x 4-pin, USB-A for FW update
- 1x Power jack
- Unit package:
- Dimensions: 10.39" (W) x 3.03" (H) x 6.85" (D)
- Weight: 1.64 lbs
- Power adapter:
- Input: 100-240V AC, 50/60 Hz
- Output: DC 5V/2A
- Level: VI
- Environmental conditions:
- Operation Temperature: 32 to 104 degrees F
- Storage Temperature: 14 to 140 degrees F
- Relative humidity: 5 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- TAA compliant
- Country of origin: Taiwan
