- new | AcePro-EX67
- 4K HDMI USB KVM Extender over CAT6 - 230 feet - Zero Latency
HDMI KVM Extender transmits HDMI 1080p and USB signals up to 230ft (70m) over single Cat6/7 cable with zero latency, and 4K@30Hz up to 130ft (40m), allows you to control computer from a remote location with a USB keyboard and mouse, HDCP 1.4, HDR 10, Reset Button, ESD Protection, Metal Housing
-
$129.99$129.99
Highlights

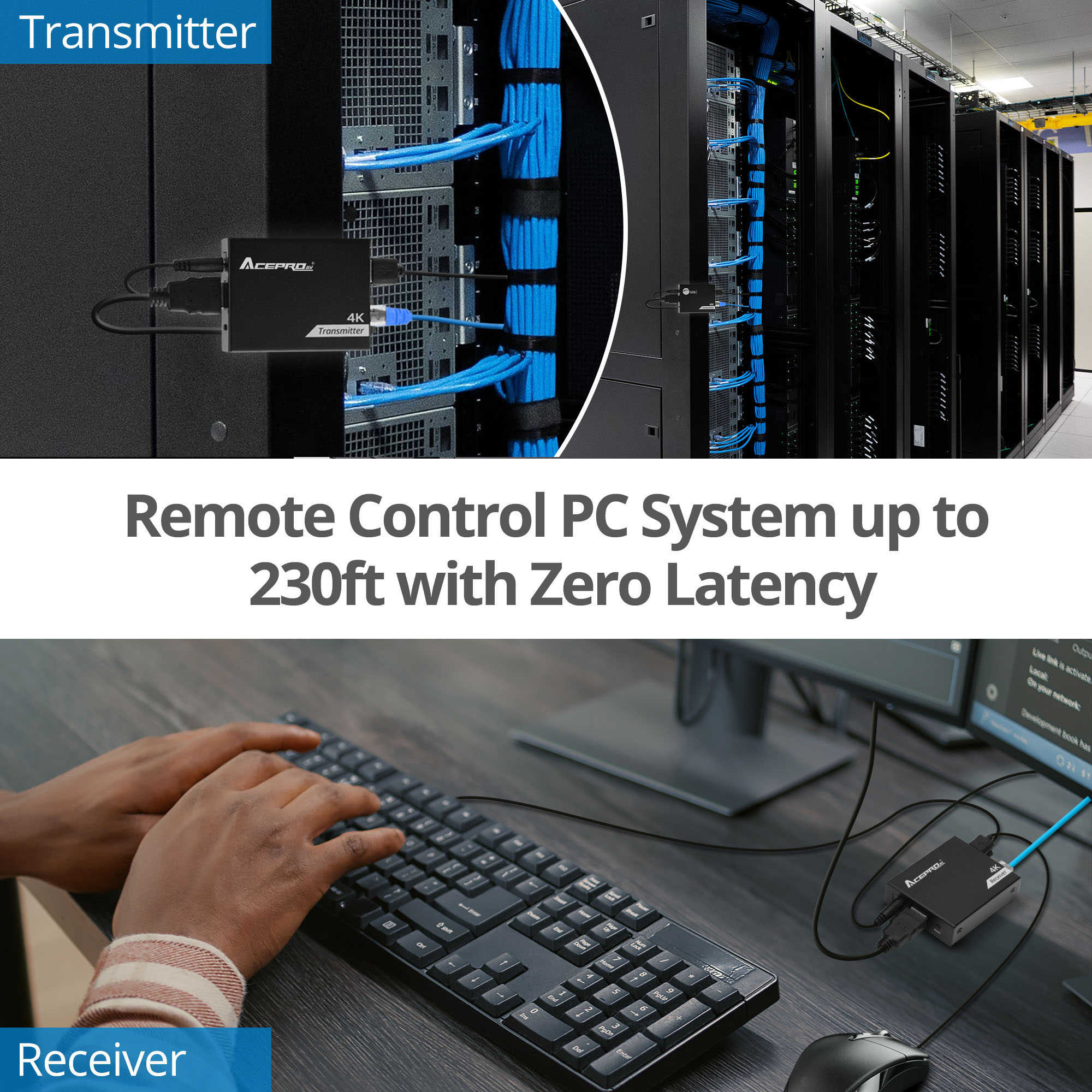

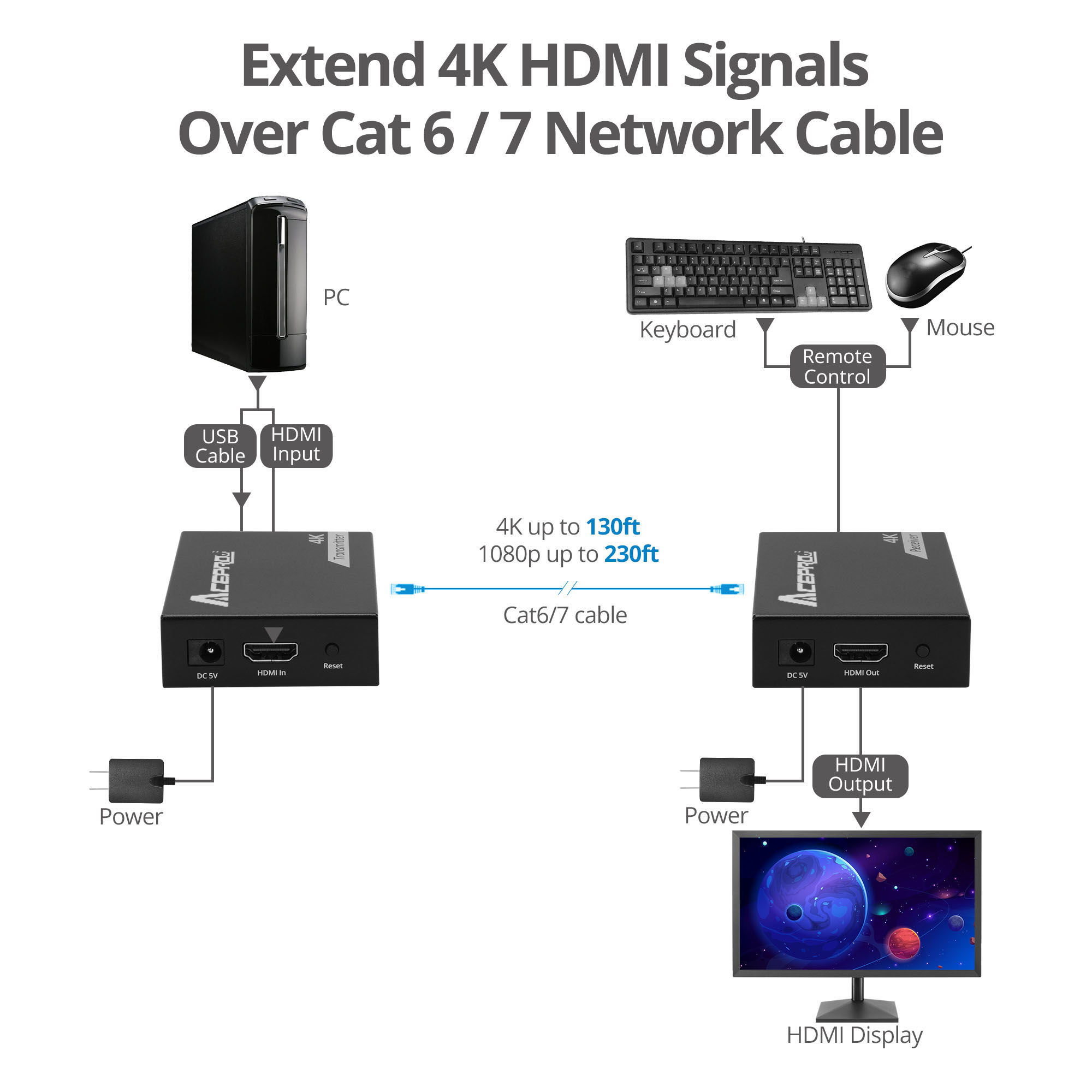

- Extends HDMI and USB signals to a remote display up to 230ft (70m) over Cat6 network cable with zero latency. Connect keyboard and mouse to control the computer from any extended display
- Delivers video content up to Full HD 1080p@60Hz up to 70 meters and 4K@30Hz transmission distance is up to 40 meters
- There are two USB Type-A ports equipped on the KVM receiver (RX) for you to control computer from a remote location with a USB keyboard and mouse (Wireless keyboard and mouse are also supported. Simply plug the dongle into the USB port)
- Support HDR 10
- Lighting protection, surge protection, ESD protection
- Automatically adjusts parameters to match different network cables and achieve the best display performance
- High quality surface metal housing efficiently dissipates heat build-up, to ensure system stability and trouble-free operation. Plug-n-Play installation, no software installation or hardware setup is required
Specification
- Compliant with HDCP 1.4 specification
- Video resolution: 3840x2160@30Hz / 1080p@60Hz / 1080i@60Hz / 720p@60Hz / 576p@50Hz / 576i@50Hz / 480p@60Hz / 480i@60Hz / 1920x1080 / 1680x1050 / 1440x900 / 1366x768 / 1280x960 / 1280x720 / 1024x768 / 800x600
- HDR Supported
- Bandwidth: True 10.2Gbps
- Transmission distance: 70m (230 feet) for 1080p @60Hz, 40m (130 feet) for 4K @30Hz
- Audio Format: PCM 2/5.1/7.1ch, Dolby 5.1/7.1ch, DTS 5.1/7.1ch
- Product:
- Color: Black
- Housing: Metal
- Transmitting unit (TX):
- Dimensions: 3.03" (W) x 0.83" (H) x 2.36" (D)
- Weight: 0.27 lbs

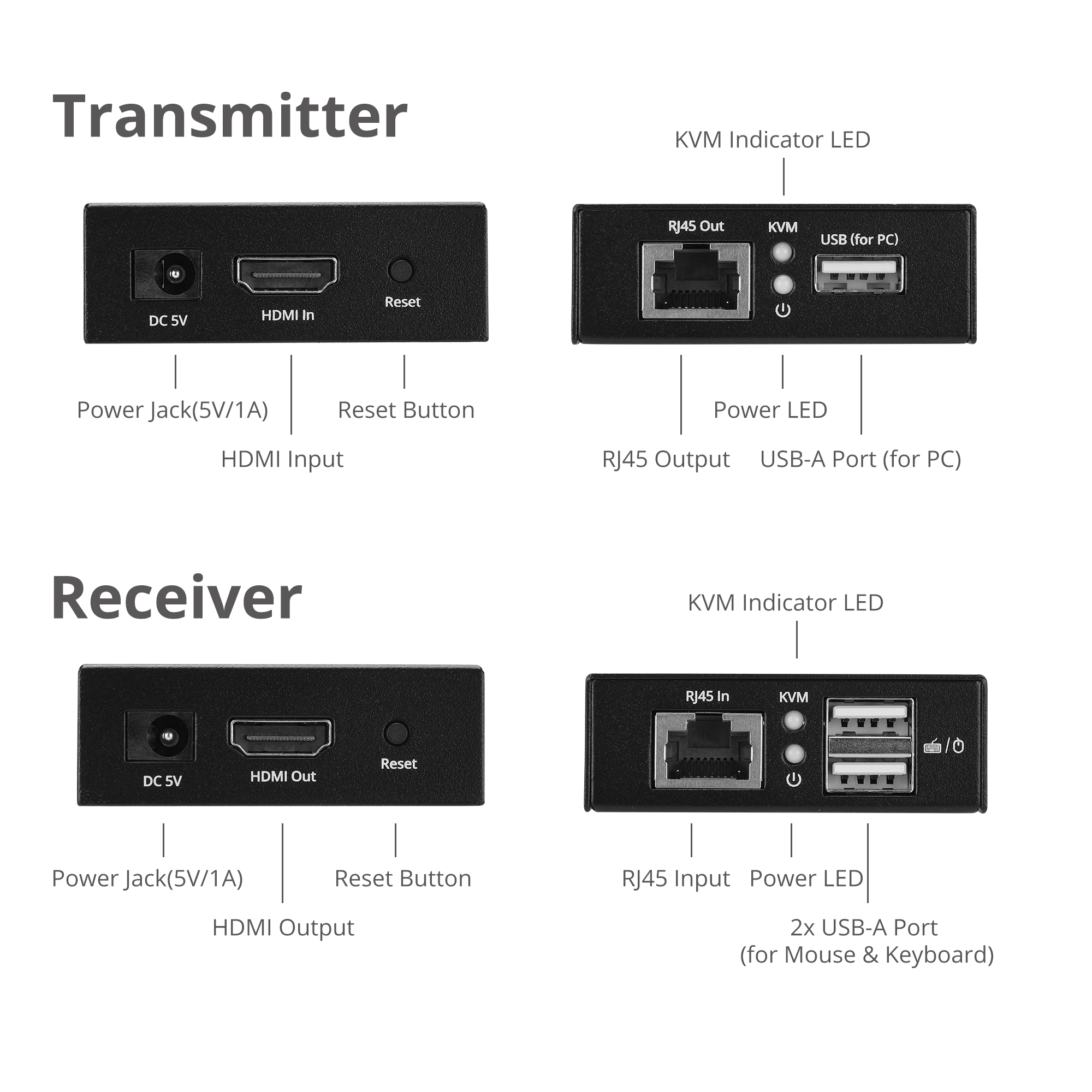

- Connectors:
- 1x 19-pin HDMI, Type A, Female, Input
- 1x 8-pin, RJ45 Output
- 1x 4-pin USB Type-A, Female, for Host connection
- 1x Reset Button
- 1x Power Jack
- Receiving unit (RX):
- Dimensions : 3.03" (W) x 0.83" (H) x 2.36" (D)
- Weight: 0.27 lbs
- Connectors:
- 1x 19-pin HDMI, Type A, Female, Output
- 1x 8-pin RJ45, Input
- 2x 4-pin USB Type-A Female, connect to Keyboard/Mouse
- 1x Reset Button
- 1x Power Jack
- Unit package:
- Dimensions: 6.02" (W) x 3.03" (H) x 4.61" (D)
- Weight: 1.04 lbs
- Power adapter:
- Input: 100-240V AC, 50/60 Hz
- Output: DC 5V/1A
- UL listed: E335801 / Level: VI
- Environmental conditions:
- Operation Temperature: 32 to 122 degrees F
- Storage Temperature: 14 to 158 degrees F
- Relative humidity: 0 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- UPC Code: 662774-046310
- Warranty: 2 years limited
- Country of origin: China
