- new | AcePro-CV29
- 4K120Hz HDMI 2.1 Capture Device for Gaming and Streaming
Easily capture and recording 4K60Hz resolution from any HDMI source such as Gaming PC (4K144Hz), Gaming console (4K120Hz), Media players or Set-top box while simultaneously viewing in the HDMI loopout for 4K144Hz / 4K120Hz, 1080p240Hz resolution, USB-C 10Gbps, VRR, Aluminum Housing, ESD Protection, TAA Compliant
-
$299.99$299.99
Highlights

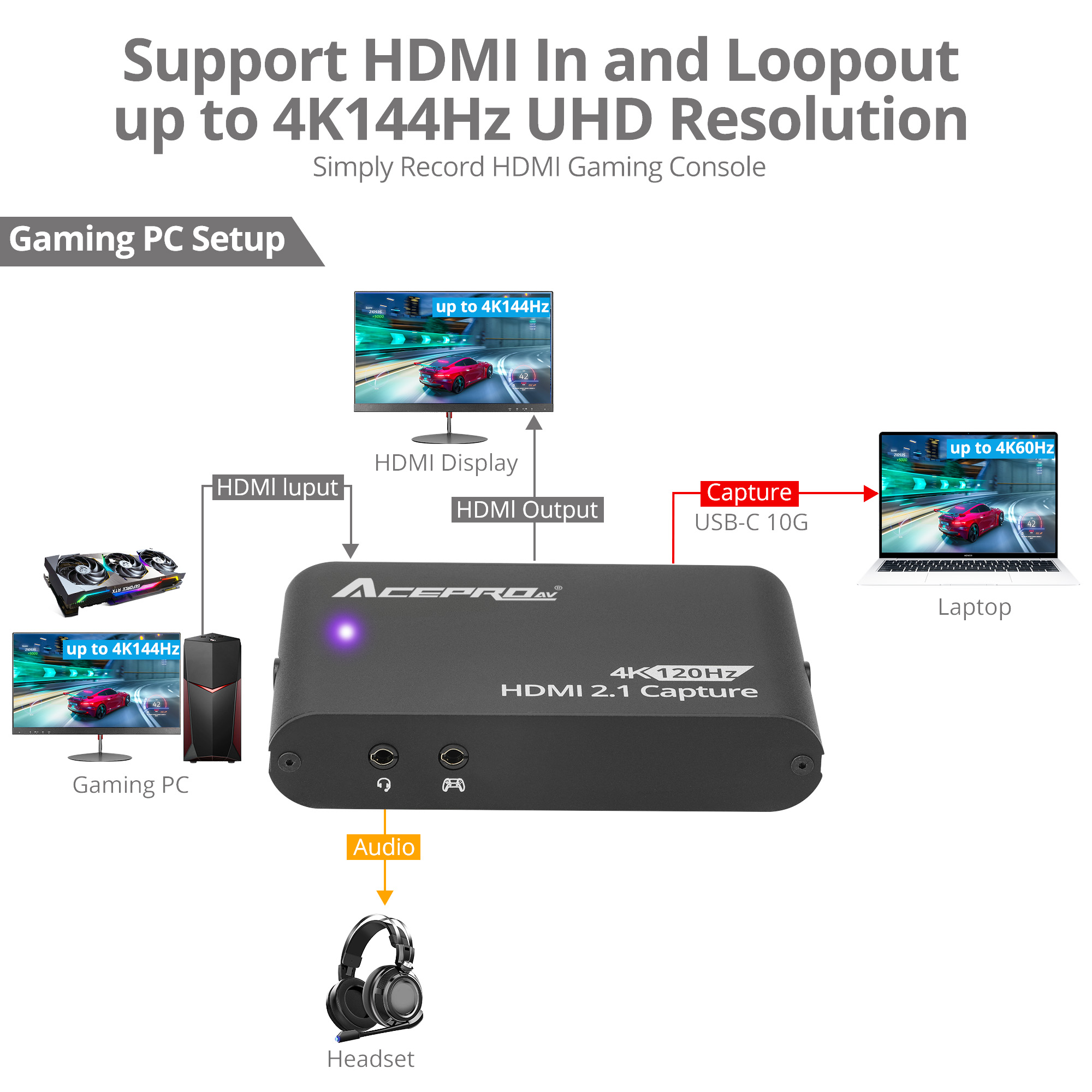

- Supports HDMI video resolution up to 4K144Hz HDR / 2560x1440 144Hz / 1920x1080 240Hz (Video stream over USB-C) & pass-through loopout
- Records HDMI signals through USB 3.2 Gen 2 10Gbps type-C with low latency, great for gaming, meetings or live streaming to YouTube and more
- Support HDMI input and output up to 4Kx2K 144Hz (without DSC)

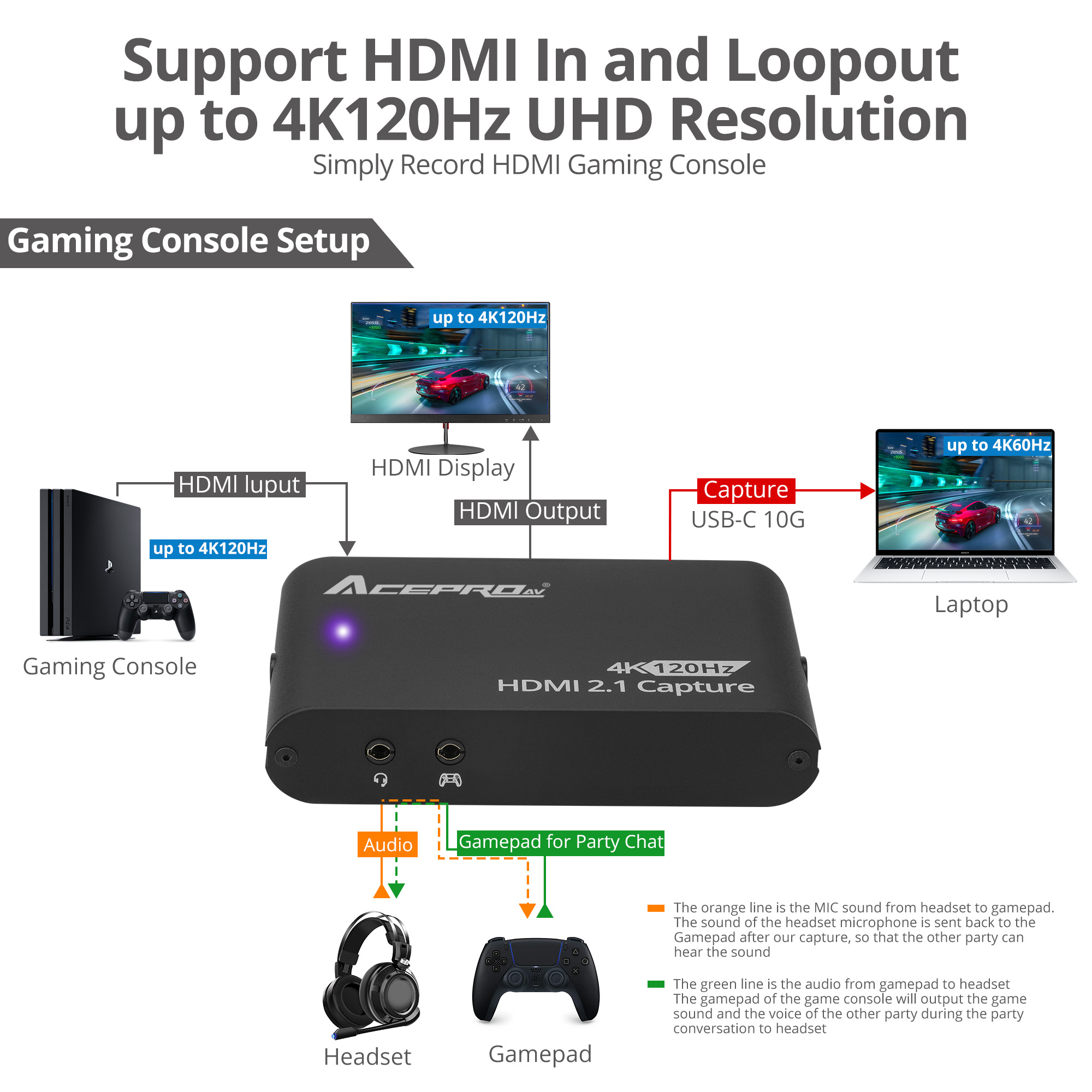

- Supports playing 4K120 HDR on HDMI out while streaming perfect 4Kx2K 60Hz, 1080p 240/120Hz or 2560x1440 120Hz with SDR colors for gameplay capture
- Supports separate UAC for HDMI in and Mic in and UAC for PC audio out
- Auto-detection on video format to ensure plug-play operations
- Allows any output to view any HDMI source at any time
- Supports various resolution with downscaling and upscaling *
- Supports mic-in mix with HDMI audio
- Recording Video Format: Software Compression
- UVC driver compatible
- Low Latency (5~6 frame at 4K 60Hz)
- Compatible with Windows and Mac OS Quick Time. Works with most 3rd party software such as OBS Studio and VLC
Specification
- USB-C bandwidth: Up to 10Gbps (USB-C)
- Video support USB-C: Up to 4K60Hz/ 1080p240Hz/ 2560x1440120Hz/ 4K30Hz HDR
- HDMI bandwidth: Up to FRL 6 (48Gbps)
- Video support HDMI input & Loopout: Up to 4K120Hz / 4K144Hz (4:2:0)
- Audio input: HDMI embedded audio & Mono mic input audio
- Audio support: HDMI output up to 7.1ch, stereo audio up to 2ch
- Recording mode: Software compression
- Recording Video Fomat:
- RGB/YUY2/NV12/I420/P010/ MJPEG (USB 10Gbps)
- MJPEG/YUY2/NV12/I420(USB2.0)
- Software compatibility(not complete list): OBS Studio (Windows, Linux, MAC), AMCap (Windows), Potplayer (Windows)¸VLC (OS X, Linux), XSplit Broadcaster (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
- Firmware update: Feasible via USB-C port
- Product:

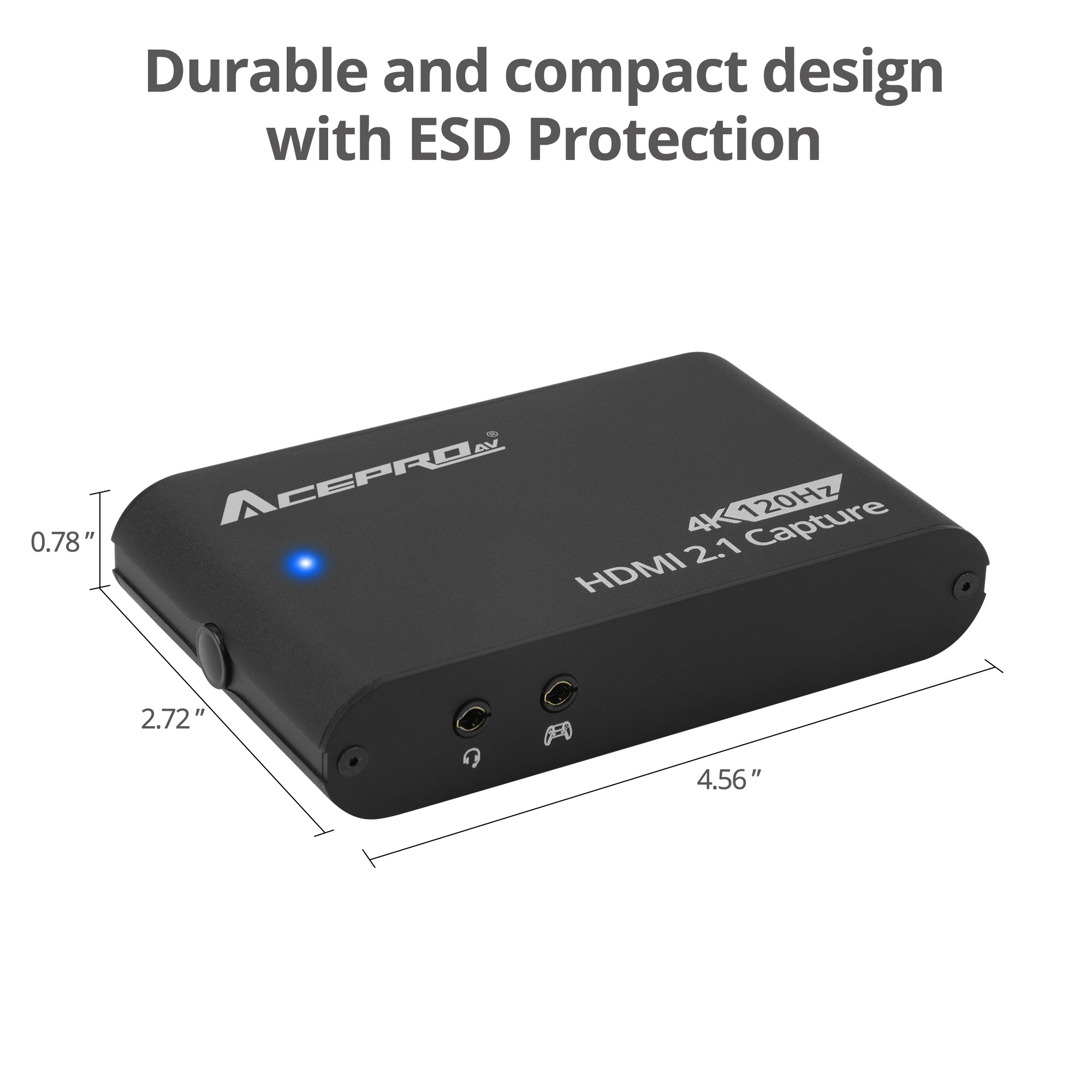

- Dimensions: 4.56" (W) x 0.78" (H) x 2.72" (D)
- Weight: 0.56 lbs
- Color: Black
- Housing: Aluminum

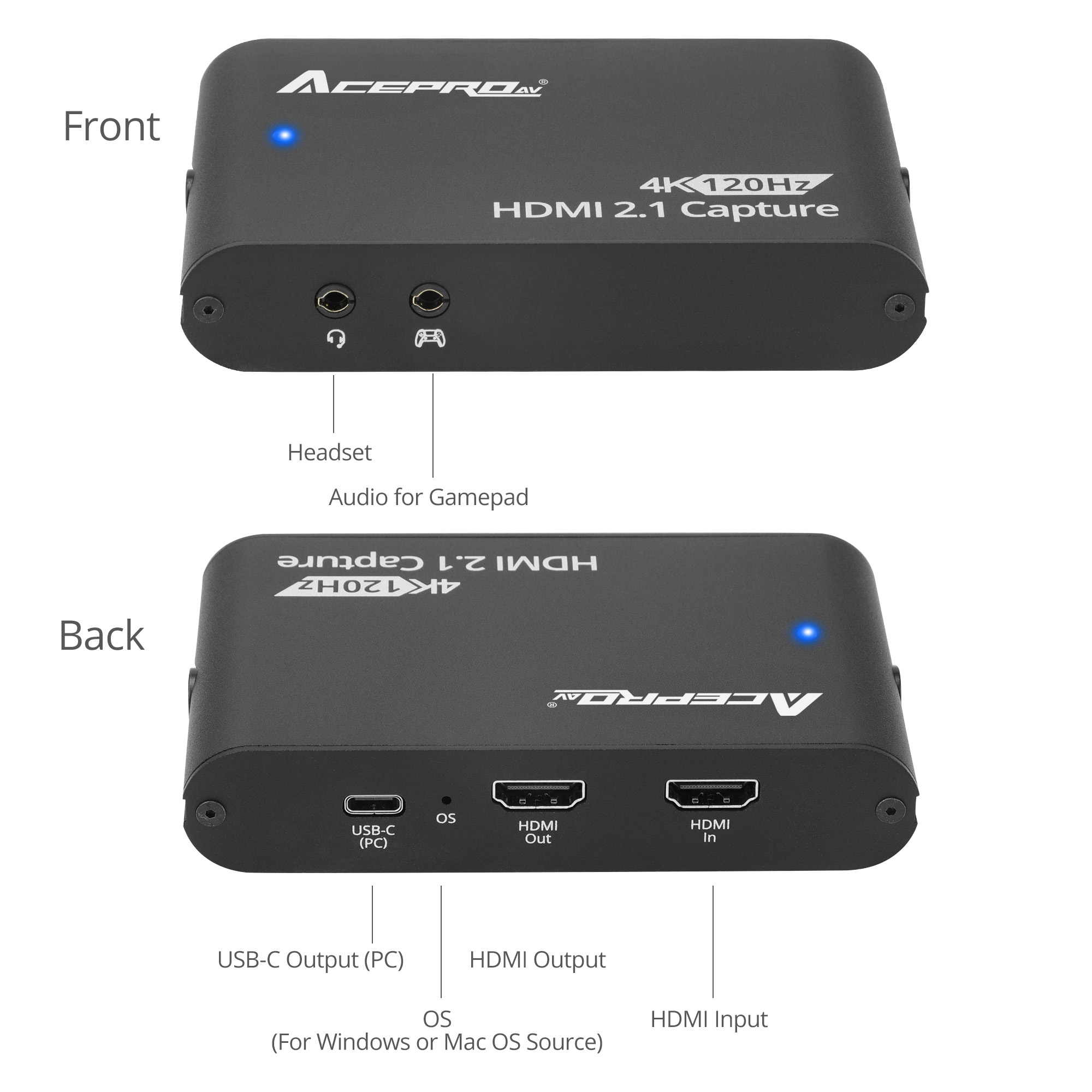

- Connector:
- 1x 19-pin HDMI, Type-A, female, Input
- 1x 19-pin HDMI, Type-A, female, Output
- 1x 4-pole 3.5mm jack for Headset
- 1x 4-pole 3.5mm jack for Gamepad
- 1x 24-pin USB-C 10Gbps, female
- Unit package:
- Dimensions: 6.50" (W) x 1.65" (H) x 4.37" (D)
- Weight: 0.86 lbs
- Environmental conditions:
- Operation Temperature: 32 to 104 degrees F
- Storage Temperature: -4 to 140 degrees F
- Relative humidity: 20 to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- TAA compliant
- UPC Code: 662774-046327
- Warranty: 3 years limited
- Country of origin: Taiwan
