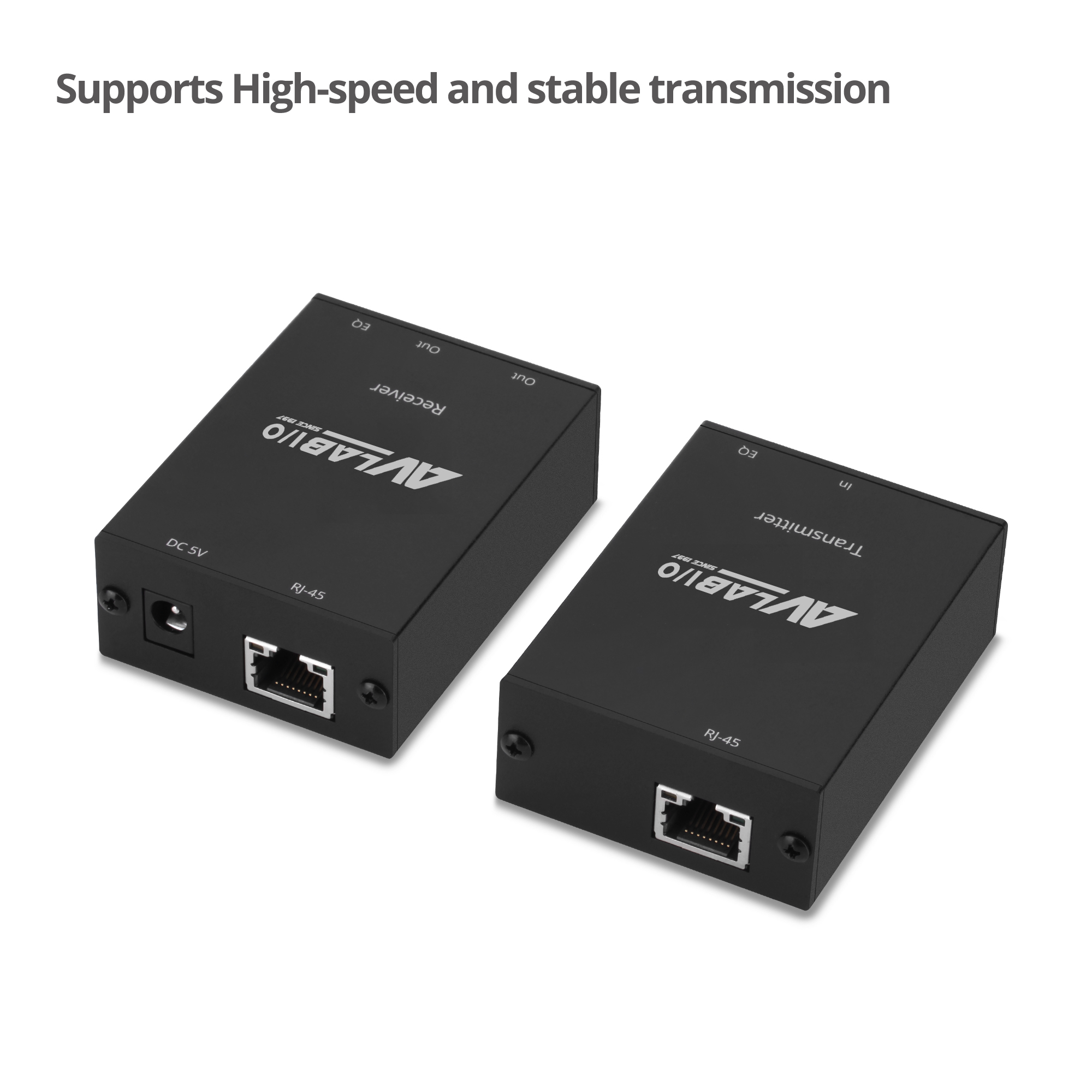

• AVLAB-US50-1
  • AVLAB 4-Port USB 2.0 Extender

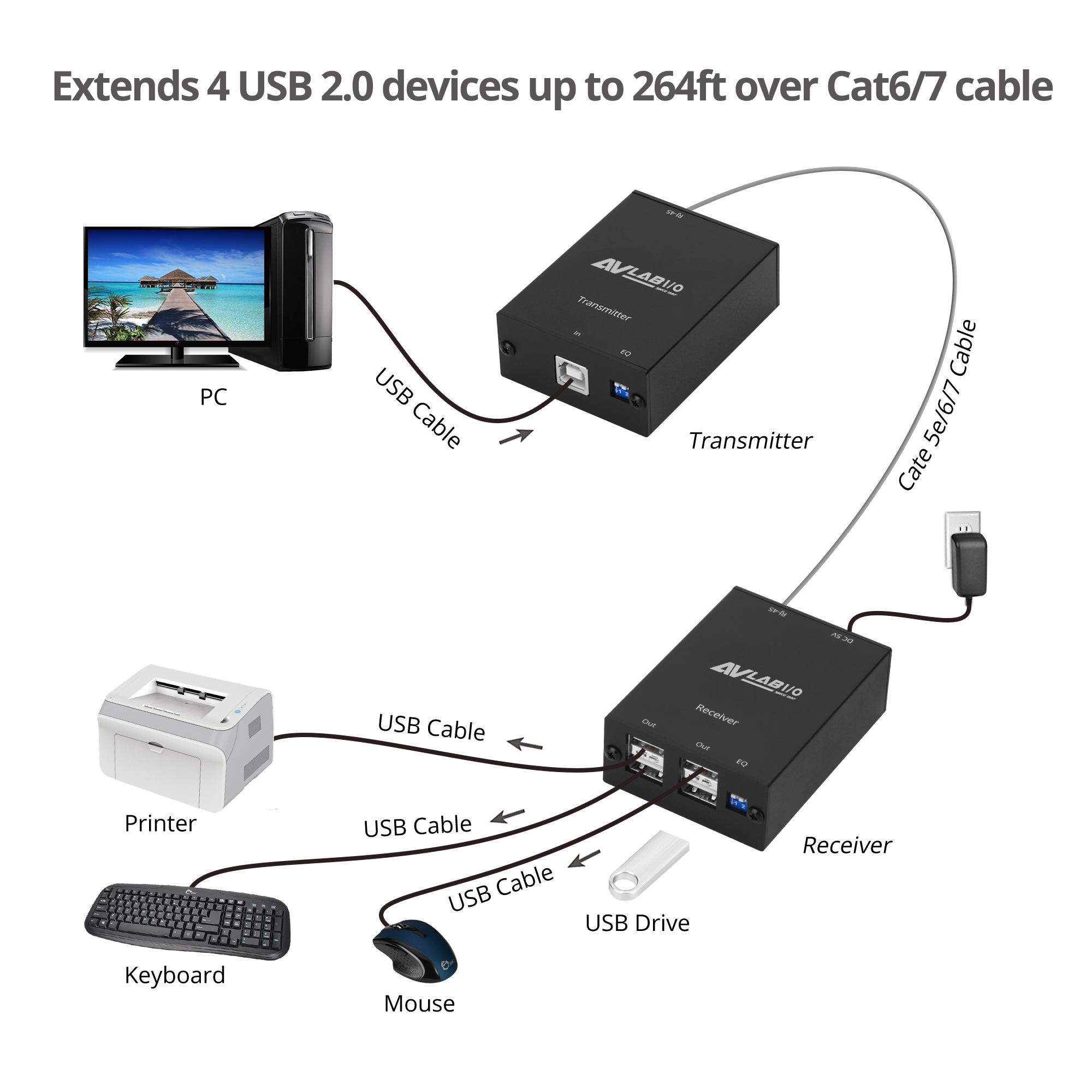

■ Extends USB 2.0 transmission distance up to 264 feet (80 meters) to connect to far away USB devices
■ Connect up to four USB peripheral devices, such as USB printers, USB camera, USB storage devices, USB card-readers, and more
■ Supports USB 1.0 (low-speed), USB 1.1(full-speed), and USB 2.0 (high-speed) data transfer rates
■ Supports USB hot-swap, Plug-and-Play, and suspend/resume features
■ No driver installation needed for the extender, the USB driver is installed automatically by the operating system
■ Metal housing for better RF shielding, efficient cooling, dependable performance

  • $0 $0

Highlights

USB SIGNAL EXTENDER
Extends USB 2.0 transmission distance up to 264 feet (80 meters) to connect to far away USB devices



4 USB DEVICES
Connect up to four USB peripheral devices, such as USB printers, USB camera, USB storage devices, USB card-readers, and more



HIGH-SPEED TRANSFER
Supports USB 1.0 (low-speed), USB 1.1(full-speed), and USB 2.0 (high-speed) data transfer rates



ADVACNED FEATURES
Supports USB hot-swap, Plug-and-Play, and suspend/resume features



PLUG-N-PLAY
No driver installation needed for the extender, the USB driver is installed automatically by the operating system



METAL HOUSING
Better RF shielding, efficient cooling, dependable performance

Specification

Compliant with USB 2.0 specification


Supports USB 2.0 data transfer rate up to 480Mbps


DIP switch adjusts the cable skew for different length Cat6 cable


Integrated equalizer compensates for different cable types


Power LED indicators


ESD protection:
■ Air: ±19kV
■ Contact: ±12kV

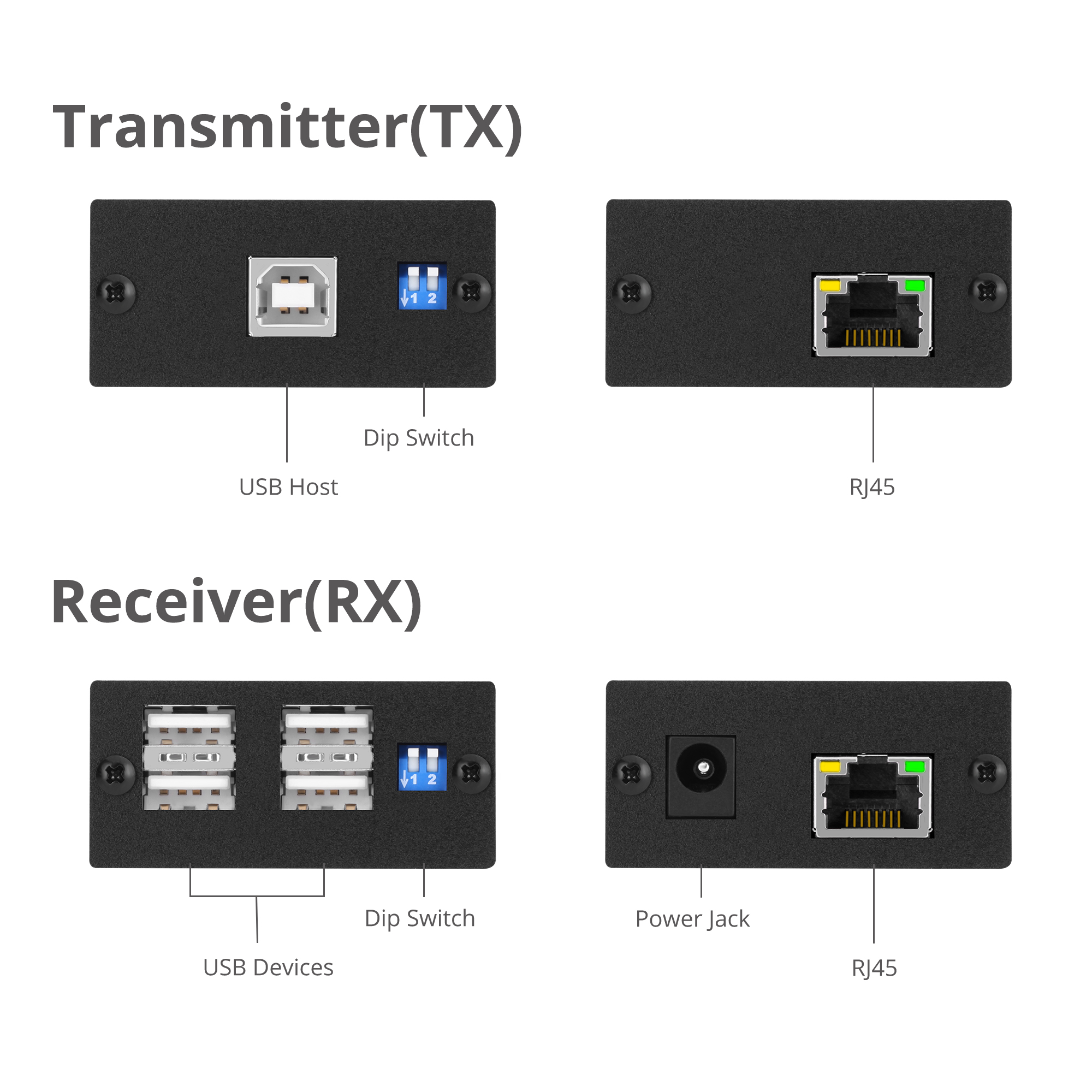

Transmitting unit (TX):

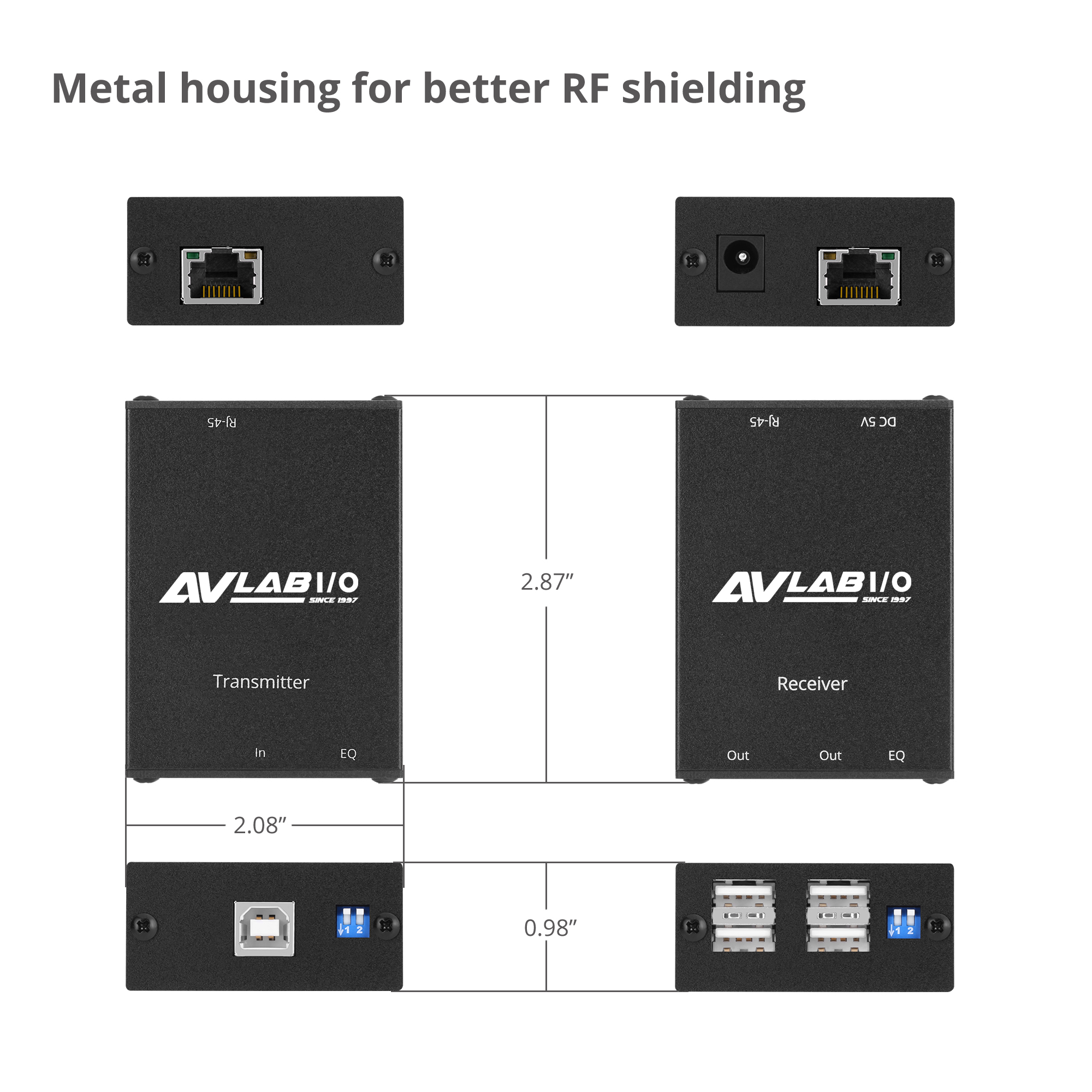

■ Dimensions: 2.13" (L) x 0.98" (H) x 2.76" (W)
■ Weight: 0.19 lbs
■ Color: Black
■ Housing: Metal
■ Connector:
1x 4-pin, USB Type-B, Female, Input
1x 8P8C with 2 LED indicators, RJ45, Female, Output
1x 2-pin DIP switch for cable equalization


Receiving unit (RX):
■ Dimensions: 2.13" (L) x 0.98" (H) x 2.76" (W)
■ Weight: 0.22 lbs
■ Color: Black
■ Housing: Metal
■ Connector:
1x 8P8C with 2 LED indicators, RJ45, Female, Input
4x 4-pin, USB Type-A, Female, Output
1x 2-pin DIP Switch for cable equalization
1x Power jack, power input


Power Adapter:
■ Input: 100-240VAC, 50/60Hz
■ Output: DC 5V/2A


UL listed: E135856 / Level: VI


Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20 to 90% RH (non-condensing)


TAA compliant


Certifications/Standards: FCC, CE, RoHS


Warranty: 1 year limited


Country of origin: Taiwan
