• new | AVLAB-CB29-1
  • AVLAB USB Type-C to DVI Video Adapter,1080p 60Hz, DP Alternate mode, Aluminum

■ Easily add a DVI display via a DisplayPortTM Alternate enabled USB-C port or ThunderboltTM 3 port
Note: The USB-C source connection must contain DisplayPort video/audio signal, aka DisplayPort Alternate/DisplayPort Alt, in order for the audio and video signals to pass through to the DVI adapter
■ Supports video resolutions up to 1920x1200 or Full HD 1080p @60Hz
■ USB-C interface with reversible plug orientation supports non-directional plug-in connection provides quick and error less plug-in connection
■ Plug-n-Play, no driver installation and no external power adapter required
■ USB-C with DisplayPort Alt or ThunderboltTM 3 technology found on computers such as 2016/2017 MacBook Pro, MacBook, Google Chromebook Pixel, and more
■ Premium aluminum housing reduces signal interference and extends durability and reliability
■ Compact and lightweight design quickly adds an additional display, convenient to use at home, office or travel makes this the perfect add-on to your workstation or laptop

  • $0 $0

Highlights

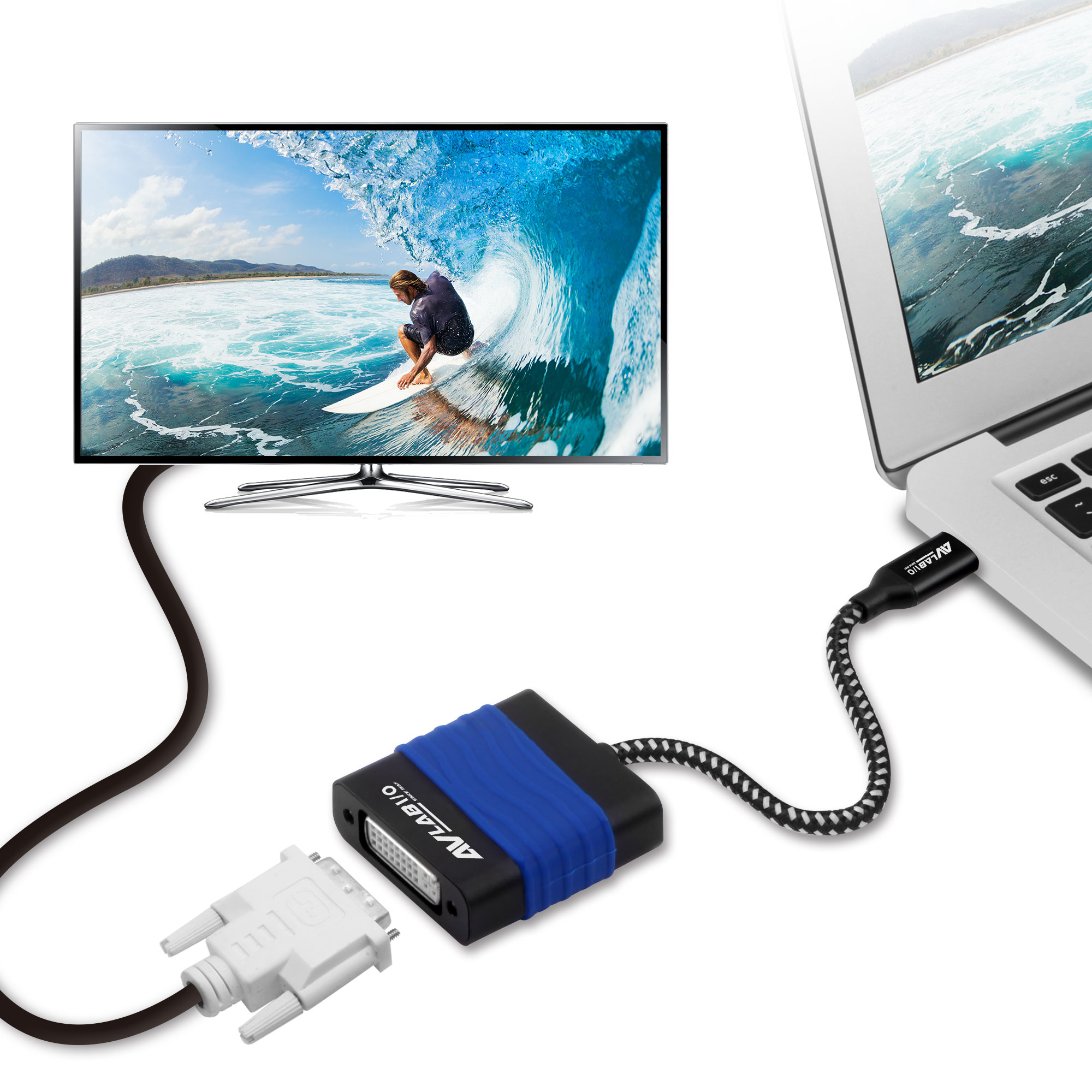

Easily add a DVI display
via a DisplayPortTM Alternate enabled USB-C port or ThunderboltTM 3 port
Note: The USB-C source connection must contain DisplayPort video/audio signal, aka DisplayPort Alternate/DisplayPort Alt, in order for the audio and video signals to pass through to the DVI adapter

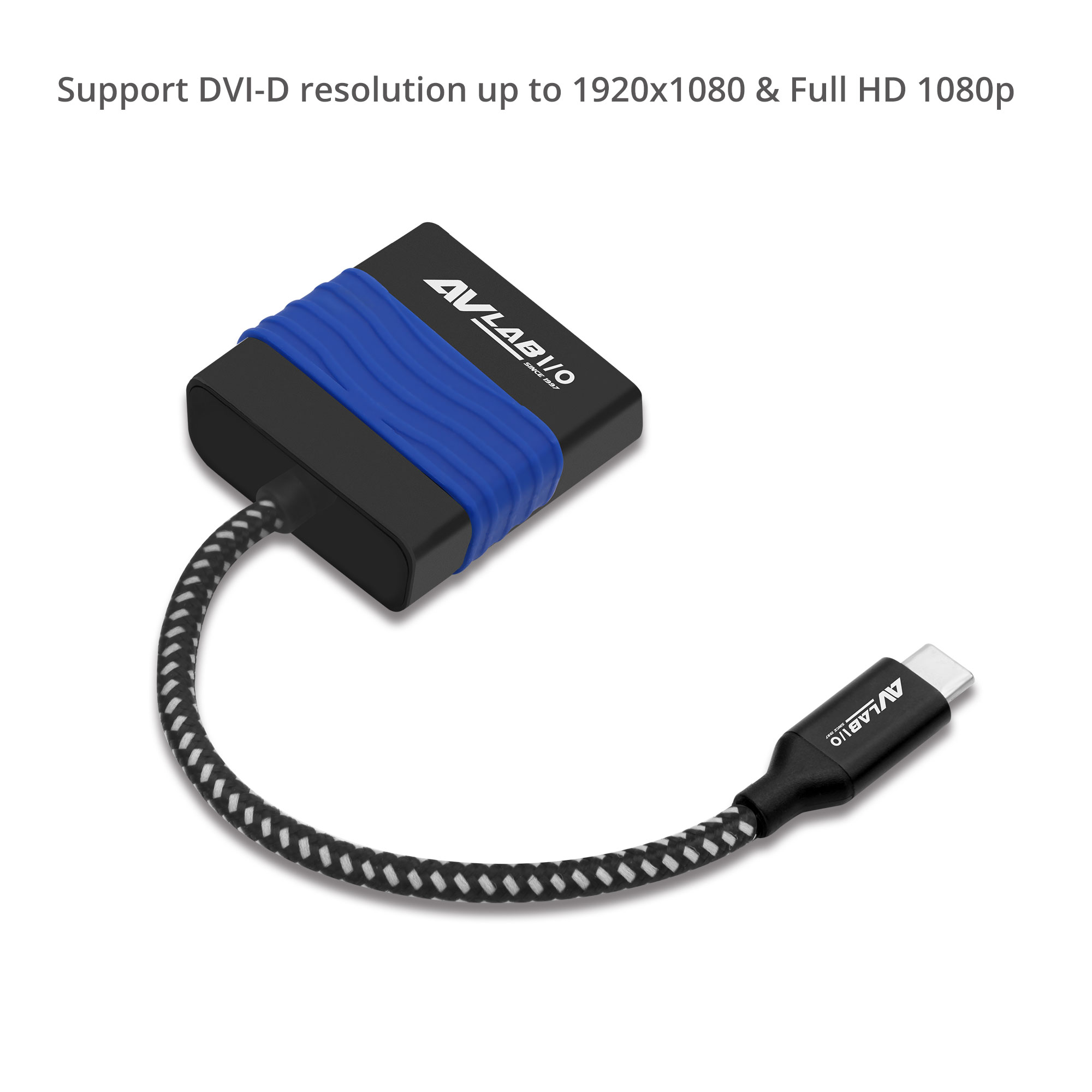

Supports video resolutions up to 1920x1200 or Full HD 1080p @60Hz

USB-C interface with reversible plug orientation
supports non-directional plug-in connection provides quick and error less plug-in connection

Plug-n-Play
no driver installation and no external power adapter required

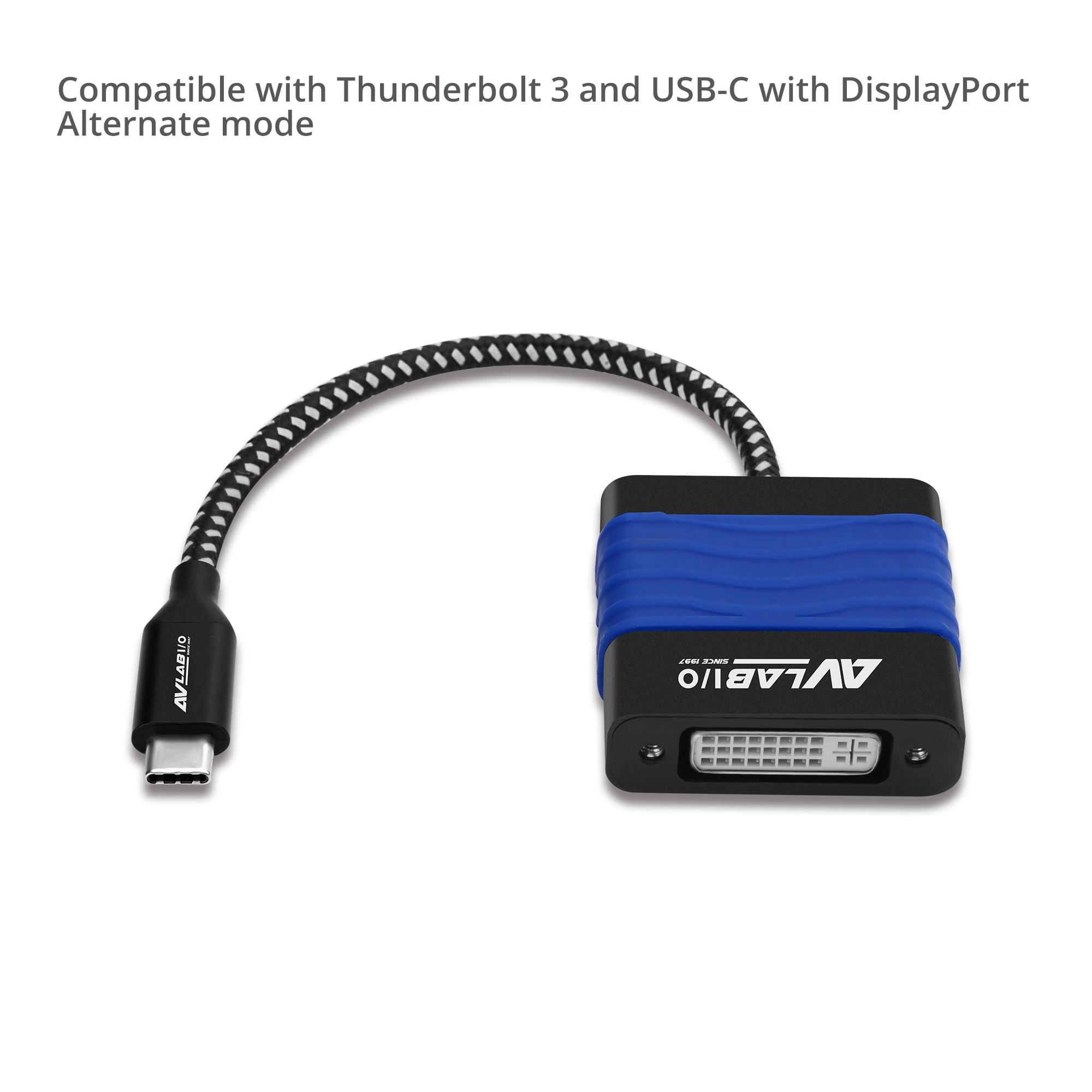

USB-C with DisplayPort Alt or ThunderboltTM 3 technology
found on computers such as 2016/2017 MacBook Pro, MacBook, Google Chromebook Pixel, and more

Premium aluminum housing
reduces signal interference and extends durability and reliability

Compact and lightweight design
quickly adds an additional display, convenient to use at home, office or travel makes this the perfect add-on to your workstation or laptop

Specification

Chipset: PS171

Compatible with DisplayPort Standard Version 1.2

Video resolution: 720p, 1080p and up to 1920x1200 @60Hz

DVI cable transmission distance: up to 16ft (5m)

DVI Signal:  DVI-D single link

System Interface:

■ USB Type-C
■ DisplayPort Alt
■ Thunderbolt 3TM technology

Product:

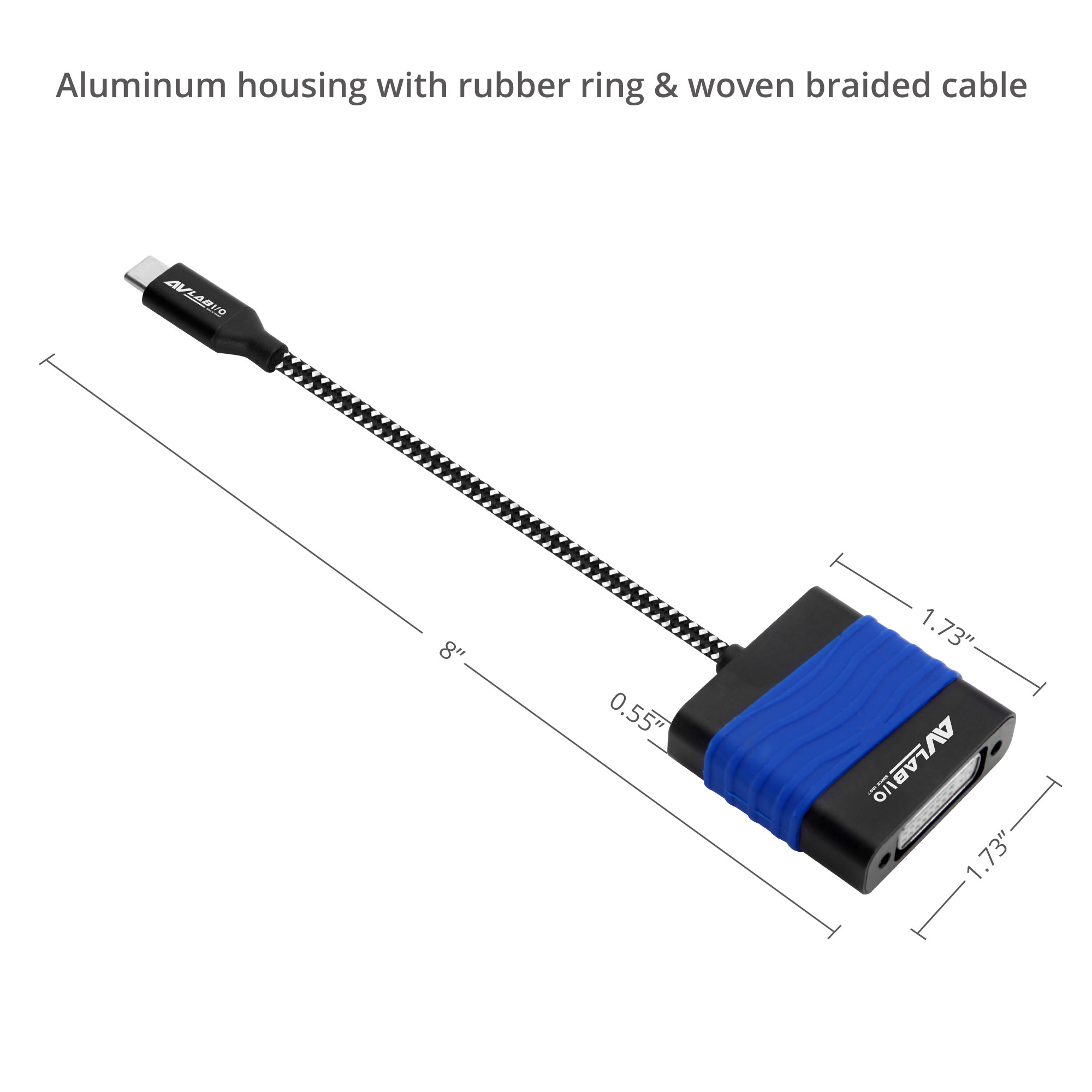

■ Dimensions: 8.0" (L) x 0.55" (H) x 1.73" (W)
■ Weight: 0.08 lbs
■ Color: Black
■ Housing: Aluminum

Connector:
■ 1x USB Type-C, Male, Input
■ 1x 29-Pin, DVI-D, Female, Output
■ Nickel plated

Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 10 to 90% RH (non-condensing)

Certifications/Standards: FCC, CE, RoHS

Warranty: 2 years limited

Country of origin: China
