- new | AVLAB-US33-1
- AVLAB USB 3.0 5G 2.5
■ Ultra portable drive dock easily adds more storage to Windows or Mac computers through USB 3.0 Type-A port ■ Compatible with 9.5mm and 7mm 2.5" SATA I/II/III hard drives and SSDs, with capacity up to 2TB ■ Supports USB 3.0 data transfer rates up to 5Gbps ■ Supports UASP feature for enhanced data transmission speed. UASP requires native Windows 10 and Windows 8 USB 3.0 host controller drivers ■ Built-in SSD/HDD storage compartment provides easy storage and protects your drive when not in use ■ USB Plug-n-Play installation, no additional driver installation needed ■ Included USB 3.0 Type-A to Micro B cable supplies power to storage device, no additional power adapter is needed
Highlights

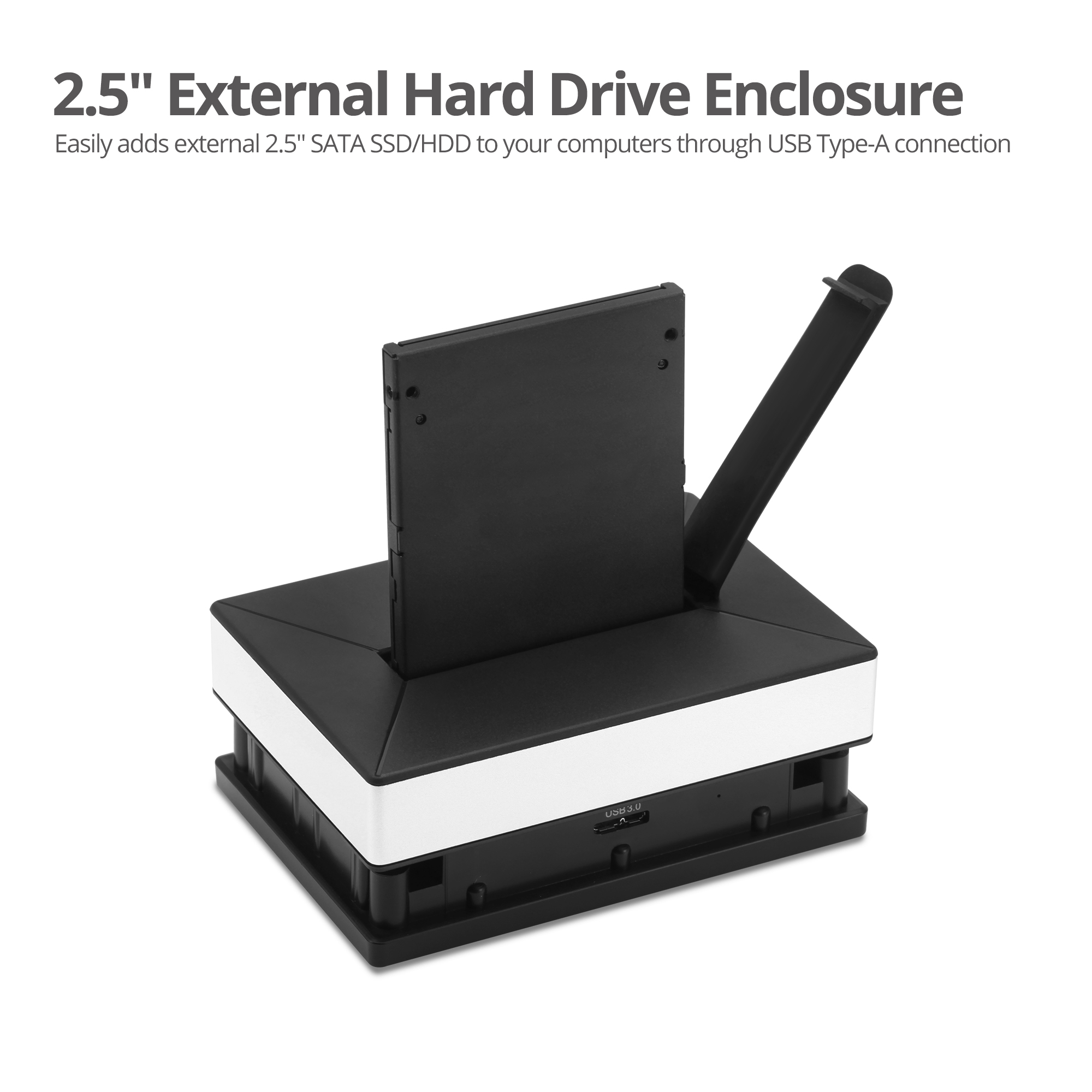

Ultra portable drive dock easily adds more storage
To Windows or Mac computers through USB 3.0 Type-A port
Compatible with 9.5mm and 7mm 2.5" SATA I/II/III hard drives and SSDs, with capacity up to 2TB

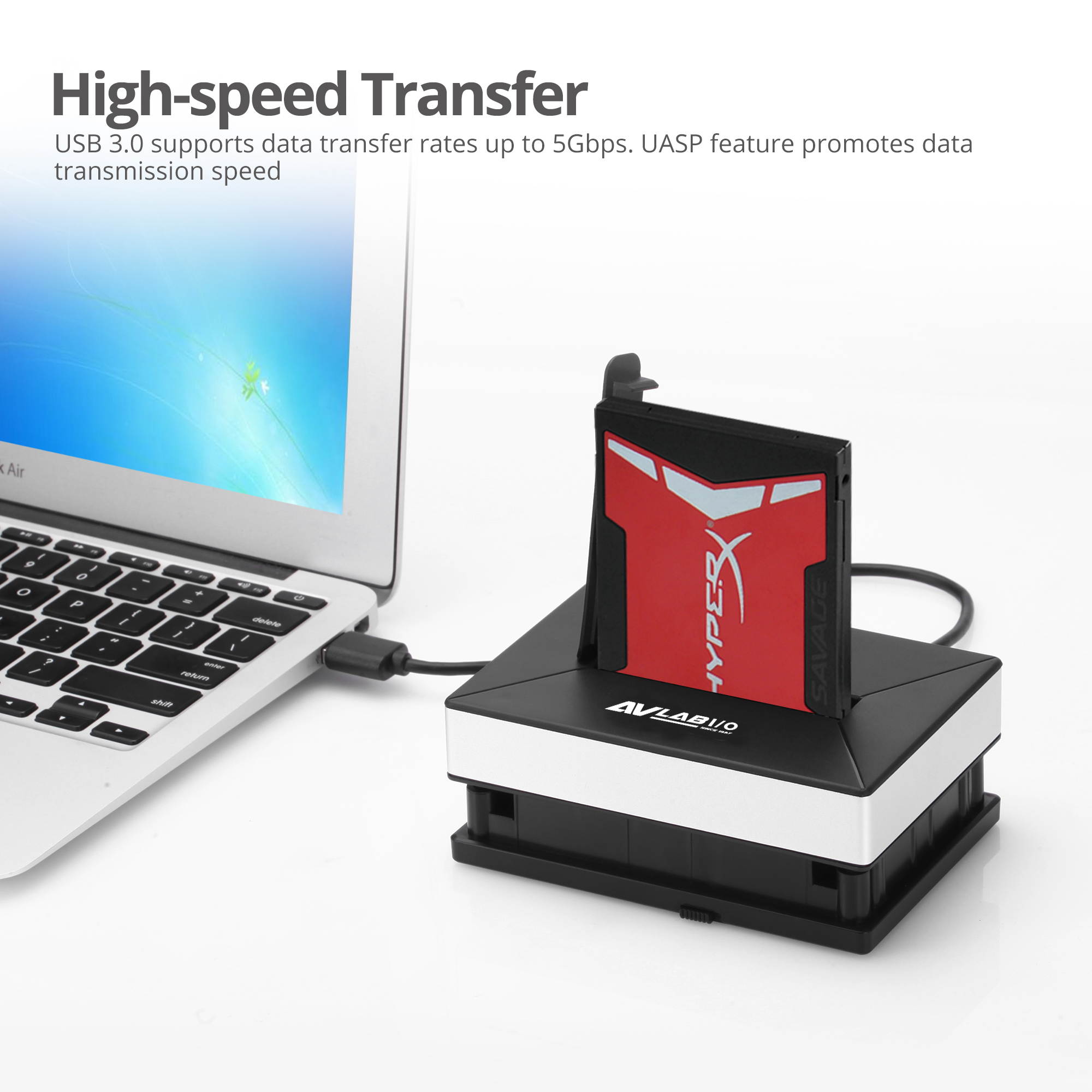

Supports USB 3.0 data transfer rates up to 5Gbps
Supports UASP feature
For enhanced data transmission speed. UASP requires native Windows 10 and Windows 8 USB 3.0 host controller drivers

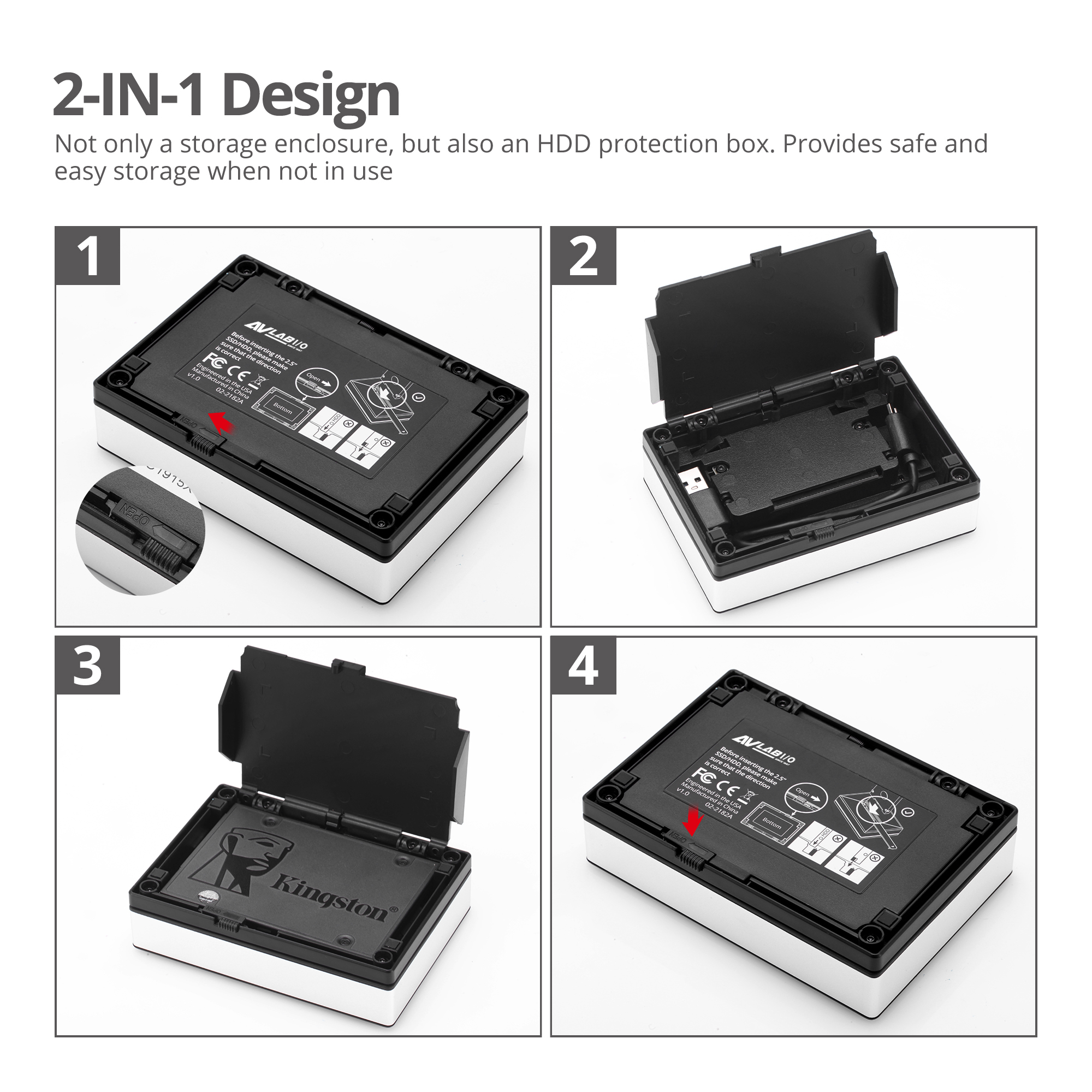

Built-in SSD/HDD storage compartment
Provides easy storage and protects your drive when not in use
USB Plug-n-Play installation
No additional driver installation needed
Included USB 3.0 Type-A to Micro B cable
Supplies power to storage device, no additional power adapter is needed
Specification
Chipset:ASMedia ASM1153E
Compliant with USB 3.0 specification
Supports SATA III disks, and backwards compatible with SATA I/II
USB data transfer rate:Up to 5Gbps
Power source:USB bus power
Product:
■ Dimensions:
- Closed: 4.84" (L) x 1.28" (H) x 3.44" (W)
- Open: 4.84" (L) x 1.9" (H) x 3.44" ("W)
■ Weight: 0.39 lbs
■ Color: Black
■ Housing material: Aluminum + Plastic ABS
■ Connectors:
- 1x 9-pin USB 3.0 Micro B connector, Female
- 1x 7+15-pin SATA Data & SATA Power connector, Male
USB cable:
■ USB 3.0 Type-A (M) to Micro-B (M)
■ Length: 12 inches
Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:China
Requirements
■ Desktop or laptop with one available USB 3.0 Type-A port
■ 2.5" SSD or Hard disk drive, 9.5mm / 7mm thickness
■ Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
■ Windows® Server 2019 / 2016 / 2012 R2 / 2012 / 2008 R2 / 2008
■ Mac OS X® 10.6 or later
Package Contents
■ USB 3.0 to 2.5" SSD/HDD Storage Enclosure
■ USB 3.0 type-A to Micro B cable
■ Quick start guide
