• new | AcePro-EX62-1
  • 4-Port USB 2.0 Hub Extender

4-Port USB Extender, Extends USB 2.0 device connections up to 492 feet (150 meters) over single Cat6/7 cable, Metal Housing, Plug-and-Play

  • $0 $159.99

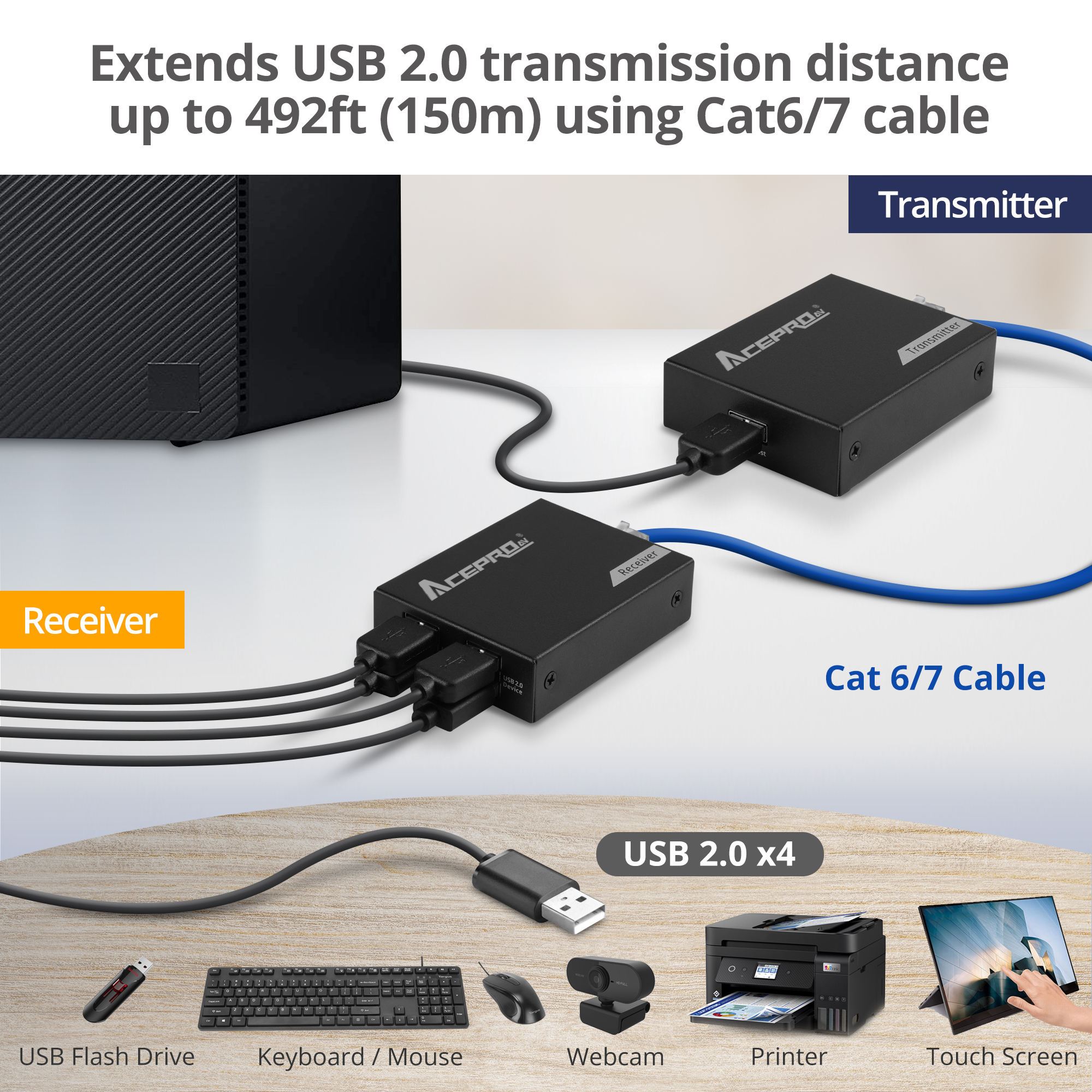

  • Easily extends four USB-A 2.0 signals and transmitters up to 330ft (100m) via Cat5e network cable or up to 492ft (150m) via Cat6/7 network cable
  • This 4-Port USB 2.0 Hub Extender is designed for reliably extend USB signals up to 492ft (150m) to remote devices through Gigabit Ethernet network and Gigabit Ethernet switch

  • Supports 1 to 1 connection or up to 4 layers cascading connection through unmanaged dedicated Gigabit Ethernet routers or switches

  • Delivers five USB-A 2.0 ports (1 in 4 out) with 480Mbps data transfer rate to enhance the performance and transfer capability of USB devices. One for USB Host, such as PC, Laptop; others for printer, scanner, camera, flash drive, keyboard, mouse, touchscreen…

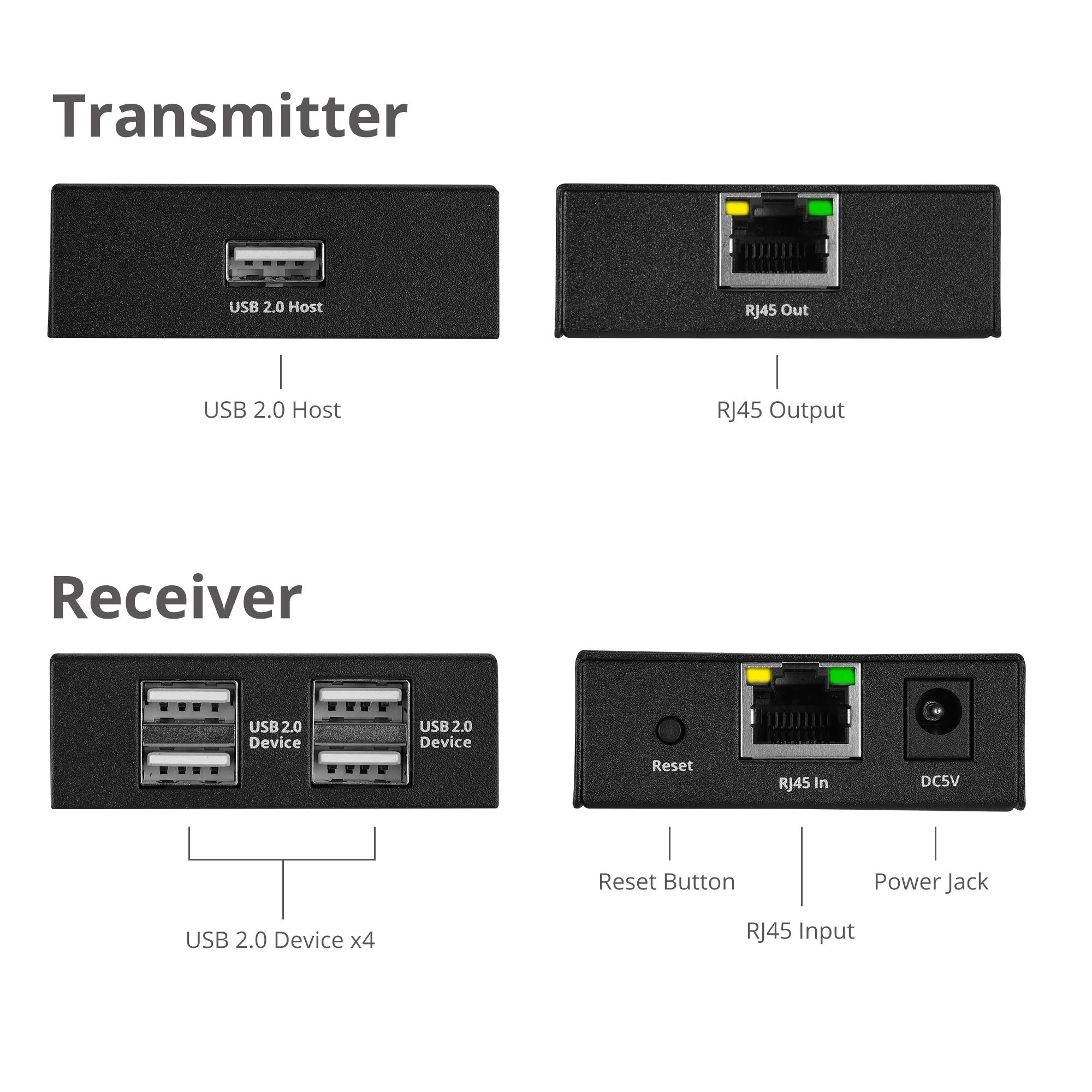

  • Adds one USB-A 2.0 input port (Host), four USB-A 2.0 output ports, one RJ45 Ethernet network input port, one RJ45 Ethernet network output port, one reset button, and one DC power jack (5V/2A) for RX unit

  • Supports ESD protection, lightning protection, and surge protection to safe your electronic equipment

  • Supports Plug-n-play and no driver installation required. The reset button allows displays to be re-detected if no displays are detected

  • Protects the inside PCBA, also enhance the heat dissipation for better performance. Military-grade component for long service life



USB-A 1x input, 4x output
Data transfer rate Up to 480Mbps
Transmission distance Up to 330ft (100m) via Cat5e network cable
Up to 492ft (150m) via Cat6/7 network cable
When cascading, the receiving unit must be connected to the last switch, otherwise it will not work
Power Adapter (on RX unit)
Input AC 100-240V/50-60Hz
Output DC 5V/2A
UL Listed E335801/Level: VI
Protection Components
Supports lightning protection, surge protection, and ESD protection
Environmental conditions
Operating temperature 14 to 140 degrees F
Storage temperature -4 to 158 degrees F
Relative humidity: <0% to 90% RH (non-condensing)
Product Info

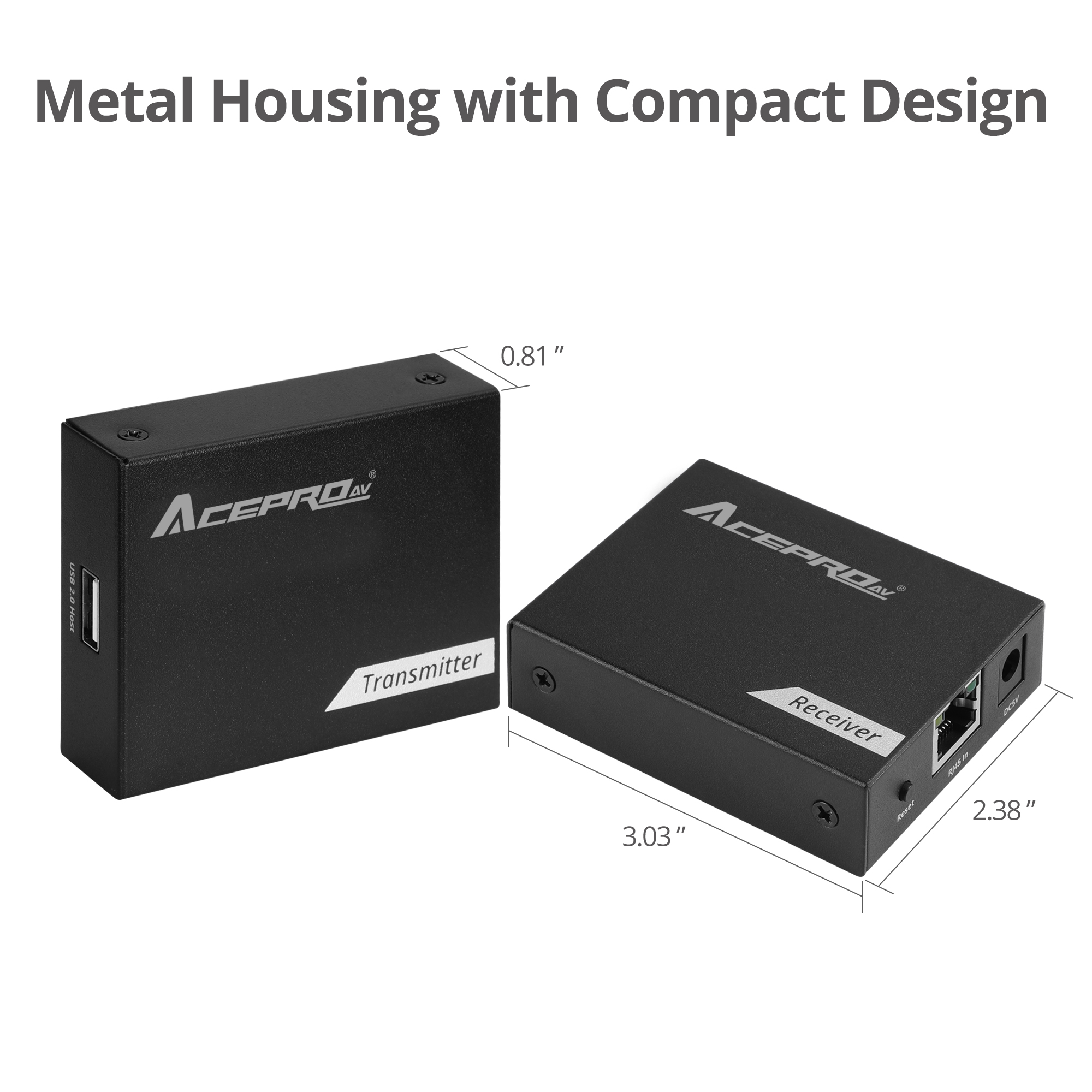

Transmitter unit (TX) Dimensions: 2.99” (L) x 0.83” (H) x 2.36” (W)
Weight: 0.27 lbs
Color: Black
Housing material: Metal
Receiver unit (RX) Dimensions: 2.99” (L) x 0.83” (H) x 2.36” (W)
Weight: 0.28 lbs
Color: Black
Housing material: Metal
Unit Package
Dimensions 5.91” (L) x 3.03” (H) x 4.61" (W)
Weight 1.08 lbs
