• AVLAB-JJ18-1

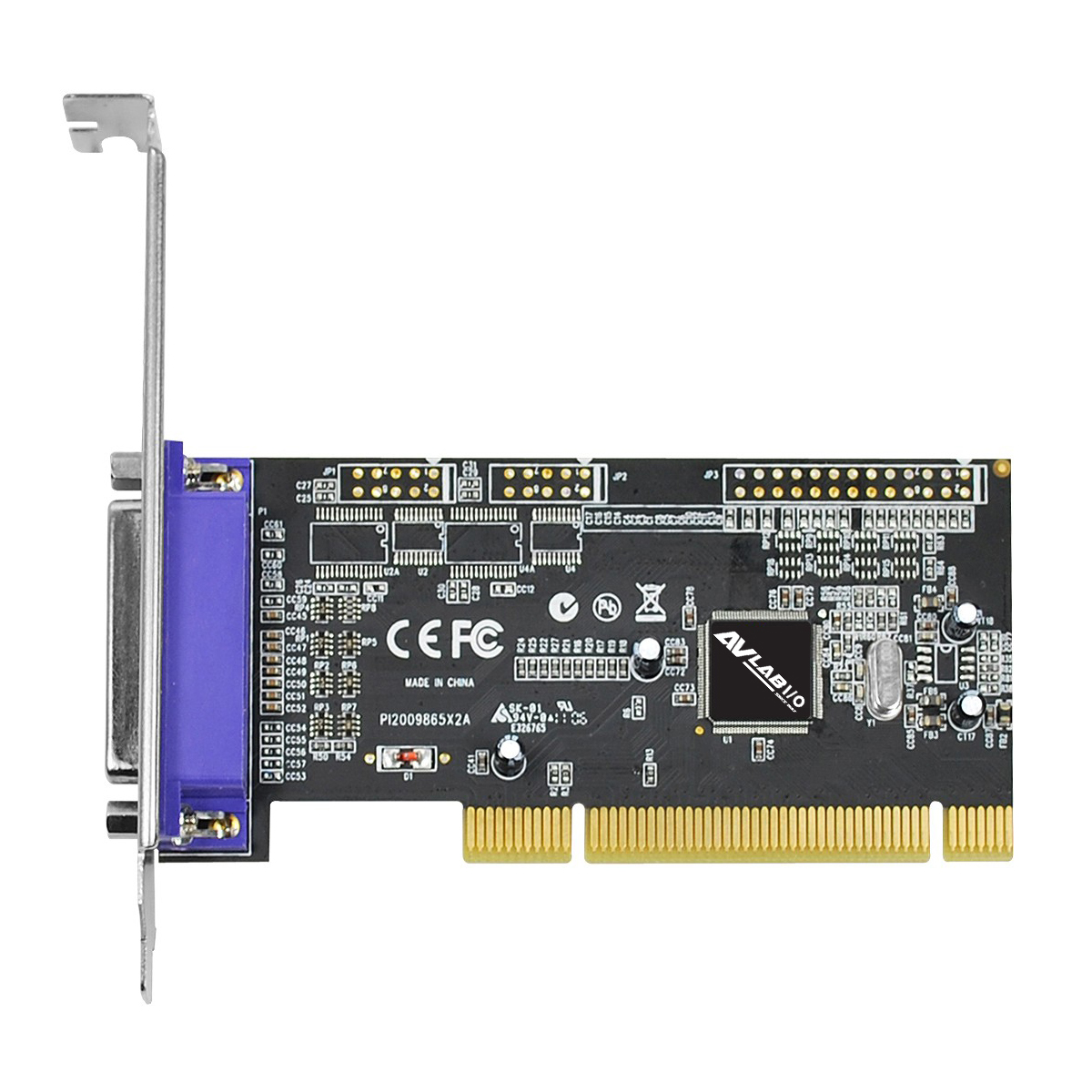

  • AVLAB 2-Port Parallel PCI, ECP/EPP/SPP/PS2, DB25 Port, Dual Profile Bracket

■ Adds 2 ECP/EPP parallel ports to your PCI enabled system
■ Can be installed in 32-/64-bit, 3.3v/5v PCI and PCI-X slot
■ Dual Profile design to install in standard height or low profile chassis with included brackets

  • $0 $0

Highlights

EXPANSION
Adds 2 ECP/EPP parallel ports to your PCI enabled system

SUPPORTS PCI AND PCI-X SLOTS
Supports 32-/64-bit, 3.3V/5V PCI and PCI-X slots

FULL HEIGHT AND LOW PROFILE SUPPORT
Installs in full height and low profile chassis with included brackets

Specification

Chipset: ASIX (Moschip) MCS9865

Compliant with PCI Local Bus Specification, Revision 2.3

Interface: 32-bit PCI

Compliant with IEEE 1284-1994 parallel port standard

Supports ECP, EPP, PS2, and SPP parallel port modes

Supports data transfer rates up to 1.5 MB/s

Full support for DOS- and Windows-based software

PCI IRQ sharing feature reduces IRQ conflicts

Ports: 2x parallel ports (DB25 - female)

Environmental conditions
■  Operating temperature: 32 to 122 degrees F (0 to 50 degrees C)
■  Operating humidity: 20% to 80% RH
■  Storage temperature: -4 to 140 degrees F (-20 to 60 degrees C)
■  Storage humidity: 10% to 90% RH

Certifications/Standards: FCC, CE, RoHS

Warranty: Lifetime limited

Country of origin: China

FAQ

  • How do I confirm that Windows detects my expansion card?
  • To confirm that Windows detects your expansion card, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a RS-422/485 controller card would be under Ports (COM & LPT)
  • How do I confirm that Windows detects my USB device?
  • To confirm that Windows detects your USB device, complete the following:
    Press the Windows key+R, type devmgmt.msc, and press Enter.
    In Device Manager, under the appropriate heading, confirm that your expansion card is listed and that there isn't an exclamation mark next to it. For example, a USB device would be under Universal Serial Bus controllers.
  • How can I make sure my serial port is working in Windows?
  • To check whether or not an RS-232 serial port is working, perform an RS-232 loopback test by doing the following:

    If your serial port is not female, convert it by taking a female/female cable or gender changer and plugging it into the serial port.

    Take a metal paperclip or wire and cross pins 2 and 3. If you look closely at the female end, the pins should be numbered.

    Open a telnet session on the COM port number of the device that you are testing.

    Note: To open a telnet session on the COM port, you need a telnet client like PuTTY or Hyper Terminal. Windows XP comes with Hyper Terminal.

    When the session is open, anything you type into it you should see. The loopback test fails when you cannot see what you are typing.

    If the loopback test fails, make sure that the serial cable or gender changer that you are using works and that the adapter is in the correct port.
