- new | AVLAB-NN06-1

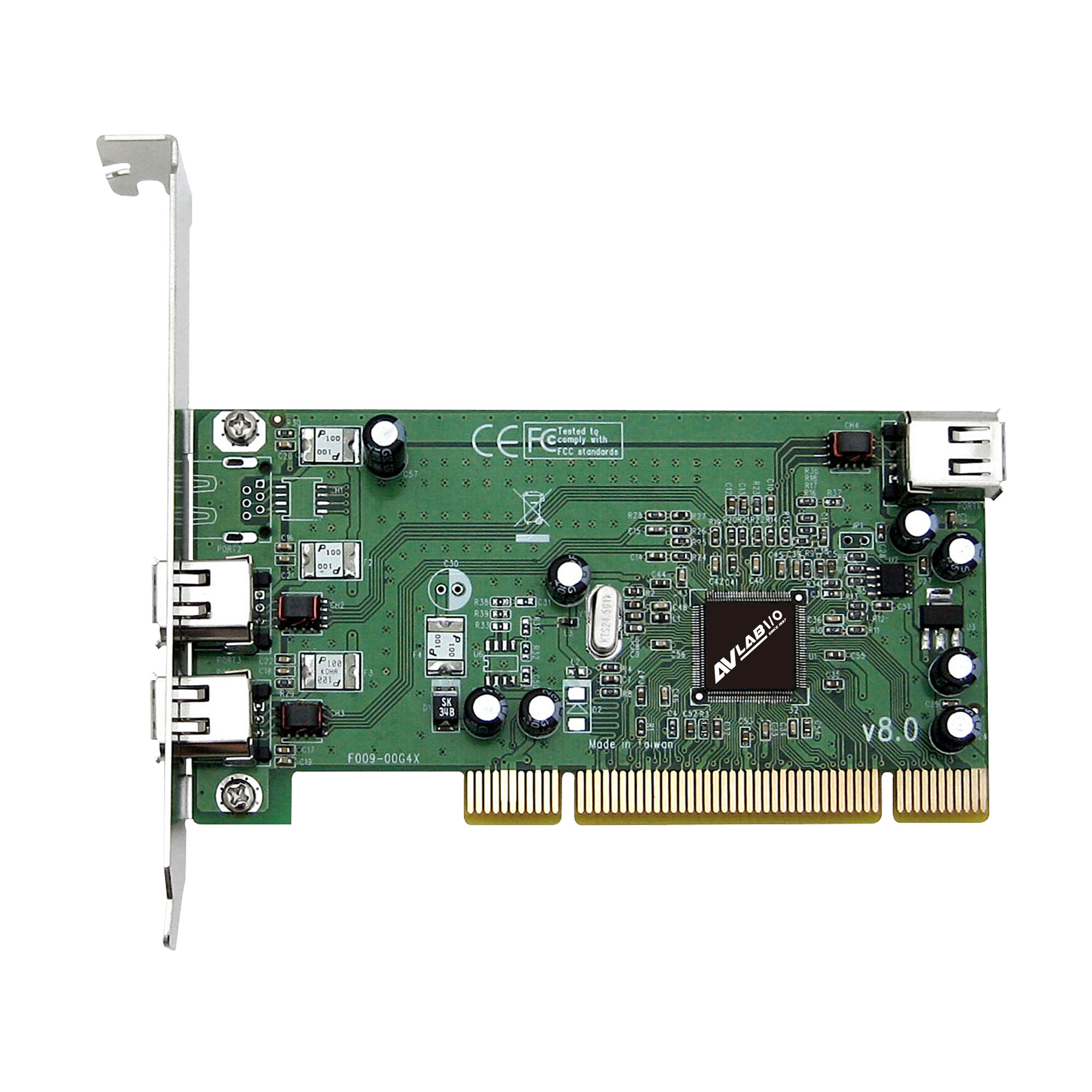

- AVLAB 1394a 2+1 Port PCI Card - 2-Ext, 1-Int, 3x6-Pin, FireWire 400, Dual Profile Bracket
■ Two external and one internal IEEE 1394 (FireWire) ports support DV camcorders, hard disk drives, removable drivers, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s ■ Supports both PC and Mac ■ Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
Highlights
Two external and one internal IEEE 1394 (FireWire) ports
support DV camcorders, hard disk drives, removable drivers, scanners, printers and other 1394 audio/video devices including TV, VCR, DVD with data transfer rates up to 400Mb/s
Supports both PC and Mac
Work with most big brands
Works with Sony, Panasonic, Cannon, Sharp, JVC and many other DV camcorders for digital video creating/editing
Specification
Chip: Texas Instruments TSB43AB23
Bus type: 32-bit PCI
Port type:
■ Two external IEEE 1394 400Mbps ports, 6-pin connector, Female
■ One internal IEEE 1394 400Mbps port, 6-pin connector, Female
Compliant with IEEE 1394-1995, 1394a-2000 and OHCI 1.1 standards
Compliant with PCI Plug-n-Play 2.2
Hot-swapping feature allows you to connect/disconnect devices without powering down the system
Supports serial bus data transfer rates of 100, 200 and 400Mb/sec
Adds 3 IEEE 1394 ports to your desktop computer for high-speed I/O connection and supports up to 63 devices
Cable length: 16.4 ft / 5m (max)
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Operating humidity: 20% to 80% RH
■ Storage humidity: 10% to 90% RH
Certifications/Standards: FCC, CE, RoHS
Warranty: Lifetime limited
Country of origin: China
