- AVLAB-SC12-1
- AVLAB Dual Profile 4-Channel SATA 6G PCIe Host Card
■ Improves system performance dramatically, reduces system boot up time and improves operating system performance with demanding resource intensive applications such as graphic editing tools, gaming, media editing/streaming and more ■ Increases your data storage on high capacity, low cost SATA HDDs ■ Supports Port Multiplier FIS-based and Native Command Queuing (NCQ) ■ Embedded drivers enable users to take advantage of OS commands like TRIM to extend the life of SSDs for maximum durability ■ Works with the latest 6Gbps SATA HDDs and backwards compatible with 3Gbps and 1.5Gbps HDDs ■ Built-in LEDs indicate power and data transfer status ■ Installs in standard height or low profile chassis with included brackets ■ No driver installation required
Highlights
Improves system performance dramatically
Reduces system boot up time and improves operating system performance with demanding resource intensive applications such as graphic editing tools, gaming, media editing/streaming and more
Increases your data storage on high capacity, low cost SATA HDDs

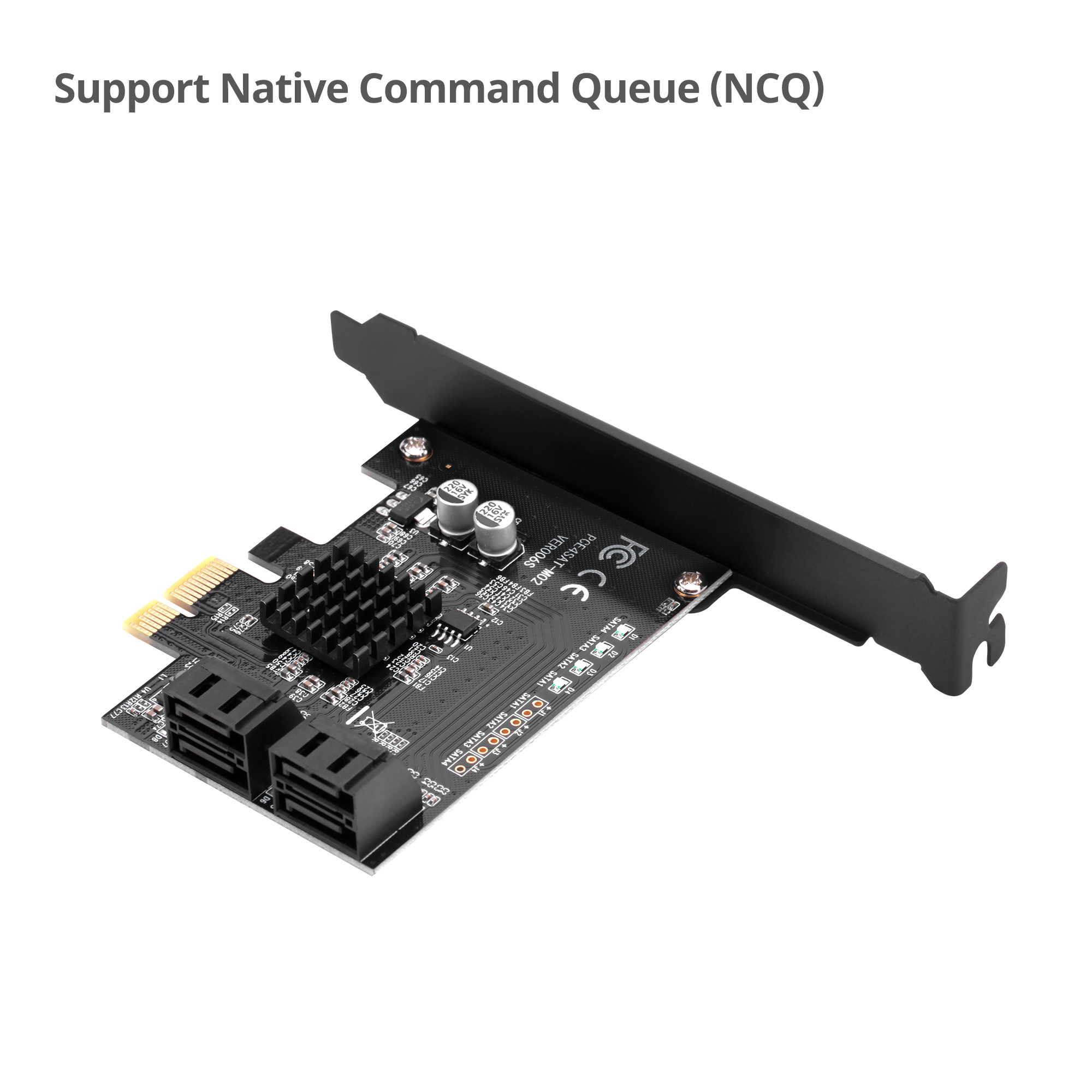

Supports Port Multiplier FIS-based and Native Command Queuing (NCQ)
Embedded drivers enable users to take advantage of OS commands
Like TRIM to extend the life of SSDs for maximum durability
Works with the latest 6Gbps SATA HDDs And backwards compatible with 3Gbps and 1.5Gbps HDDs
Built-in LEDs indicate power and data transfer status
Installs in standard height
Or low profile chassis with included brackets
No driver installation required
Specification
Chipset: Marvell 88SE9215
Compliant with PCIe 2.0 specification
Compliant with Serial ATA Specification 3.1
Supports AHCI programming interface registers for the SATA controller

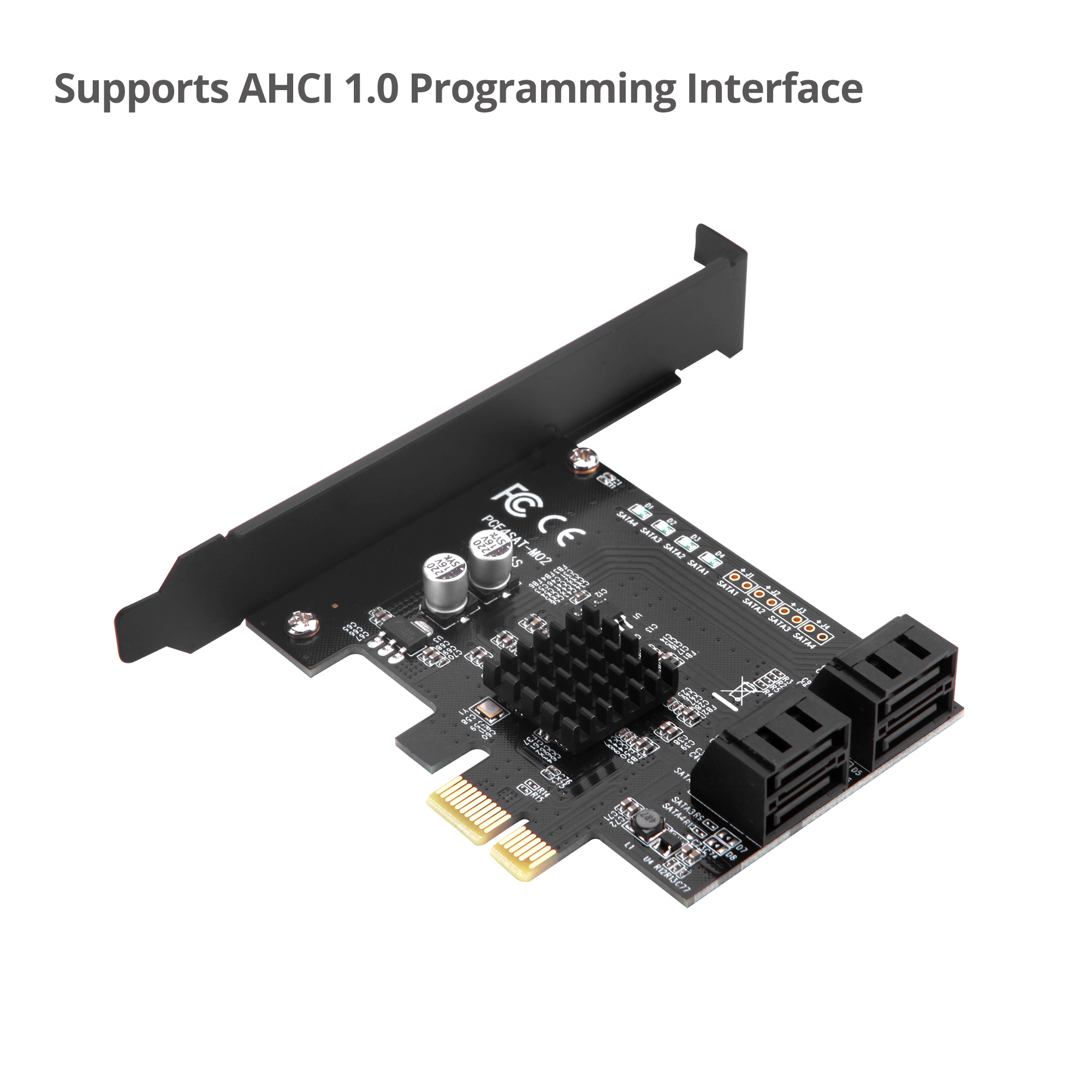

Supports AHCI 1.0 programming interface
Supports Port Multiplier FIS based switching or command based switching
Supports date transfer rate:1.5Gbps / 3Gbps / 6Gbps

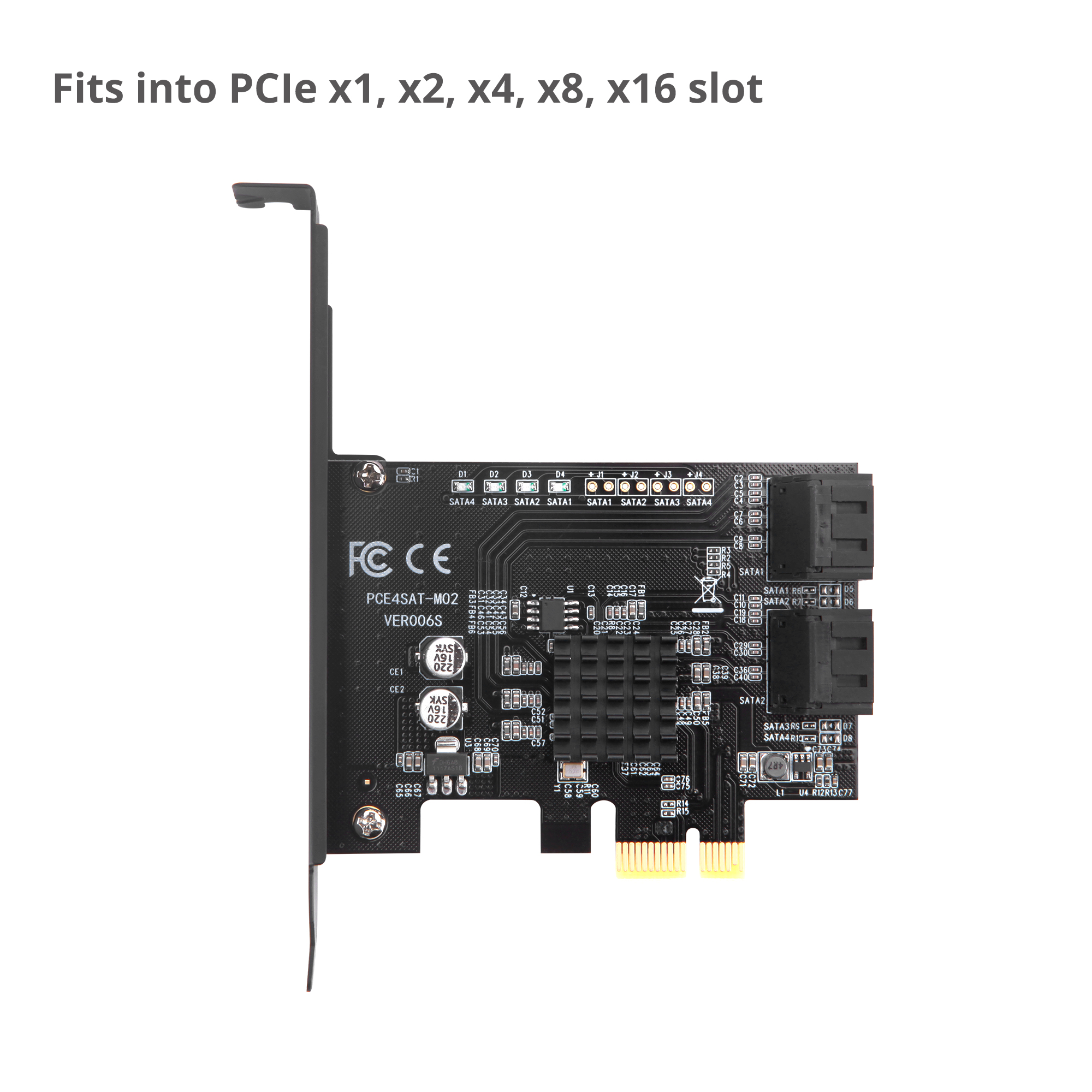

Bus type:PCIe x1 and work with x4, x8 and x16 bus slots
Product:
■ Dimensions: 4.72" (W) x 0.70" (H) x 3.26" (D)
■ Weight: 0.09 lbs
■ Color: Black
Connector:
■ Host bus: PCIe x1

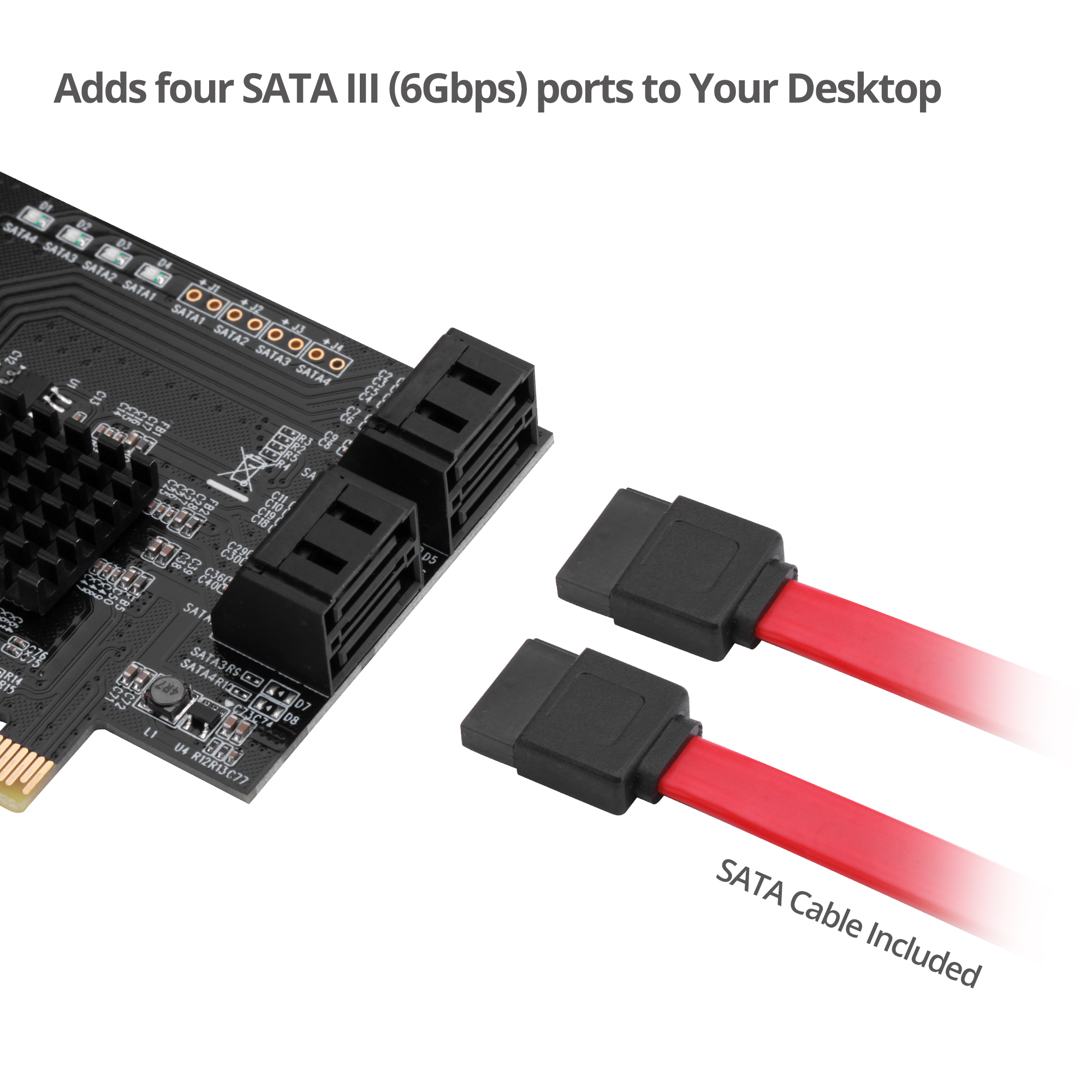

■ 4x 7-pin SATA Connector
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 10% to 90% RH (non-condensing)
TAA compliant
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:Taiwan
Requirements
■ Desktop PC with one available PCIe slot
■ Windows 10 (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
■ Windows Server 2003 or later
Package Contents
■ Dual Profile 4-Channel SATA 6G PCIe Host Card
■ Low profile bracket
■ SATA cable (2pcs)
■ Quick start guide
