- new | AVLAB-US35-1
- AVLAB 4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
■ Features four independent SuperSpeed USB 3.0 Type-A ports delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps ■ Industry recognized high performance Renesas uPD720202 chipset ■ Supports the following speed data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps) ■ Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0 ■ Compliant with PCIe 2.0 standard ■ Supports USB legacy function and UASP mode (UASP requires Windows 10 and 8 embedded drivers only) ■ Supports PCI Bus Power Management Interface Specification Revision 1.2 ■ Low-profile bracket design fits lower size system form factor with included low profile bracket ■ Each USB port featured with independent over-current protection to further protect your devices and the board itself from unforeseen power spikes
Highlights

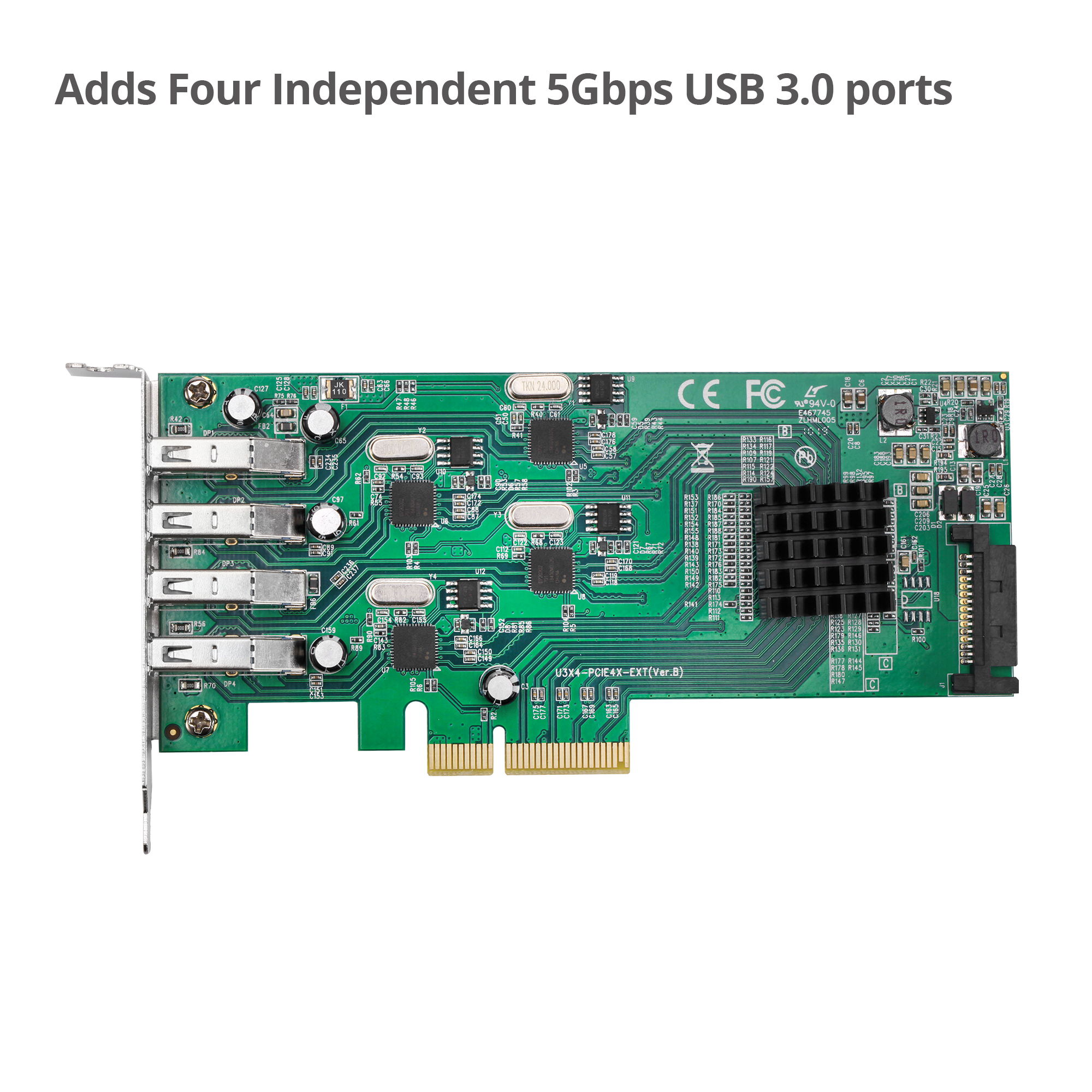

Features four independent SuperSpeed USB 3.0 Type-A ports

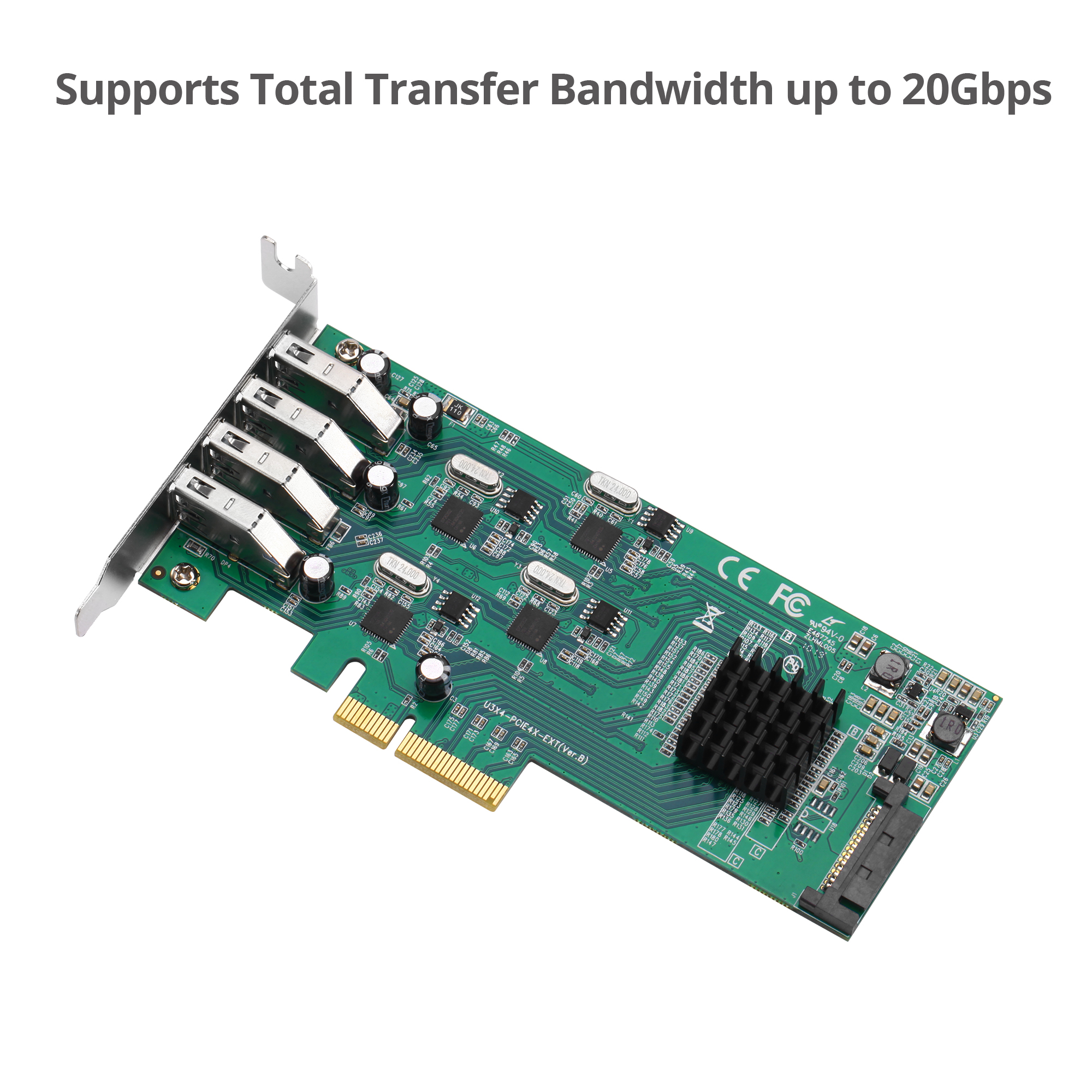

Delivering up to 5Gbps data transfer per port for a total USB bandwidth of up to 20Gbps
Industry recognized high performance Renesas uPD720202 chipset
Supports the following speed
Data rate as follows: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5Gbps)
Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
Compliant with PCIe 2.0 standard

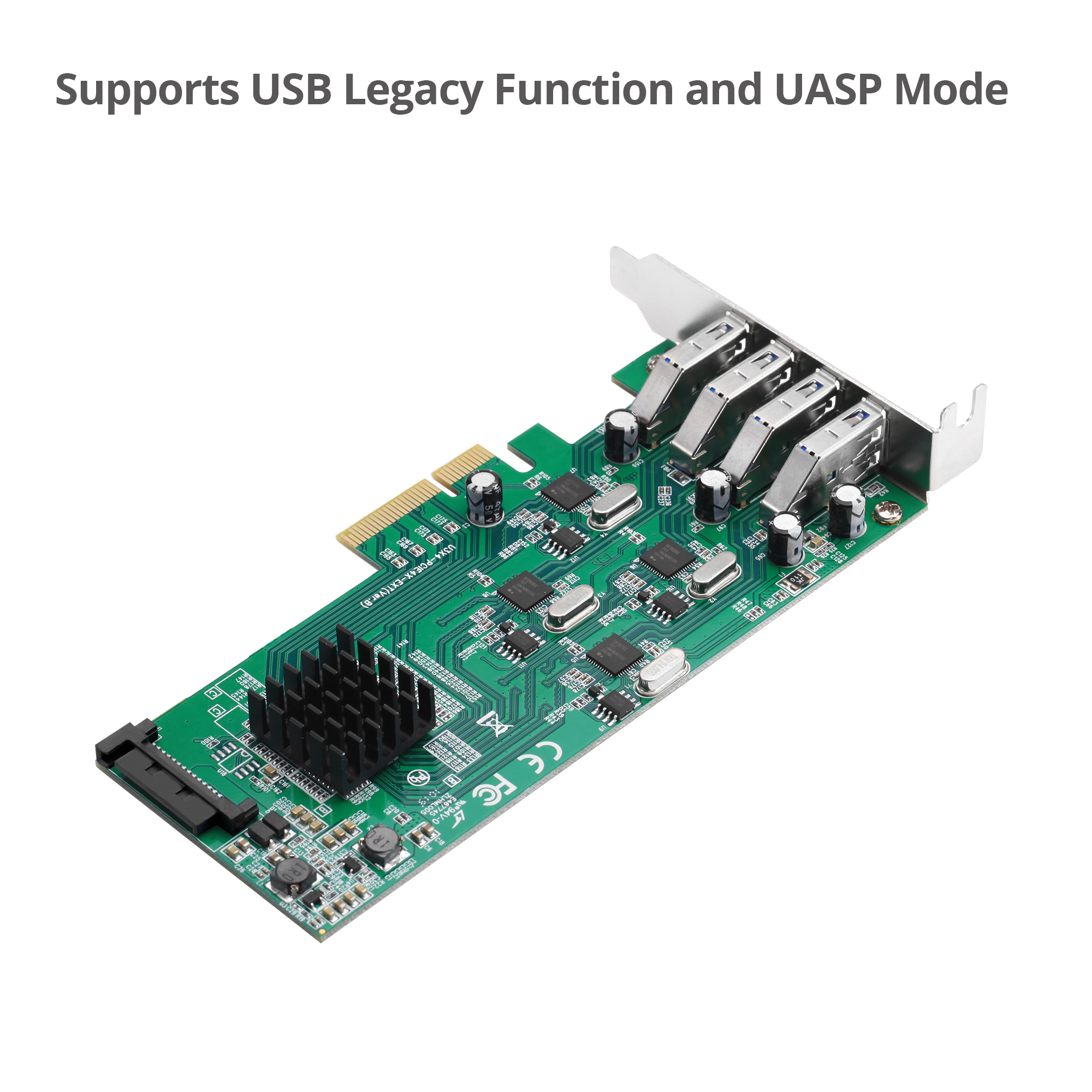

Supports USB legacy function and UASP mode
(UASP requires Windows 10 and 8 embedded drivers only)
Supports PCI Bus Power Management Interface Specification Revision 1.2

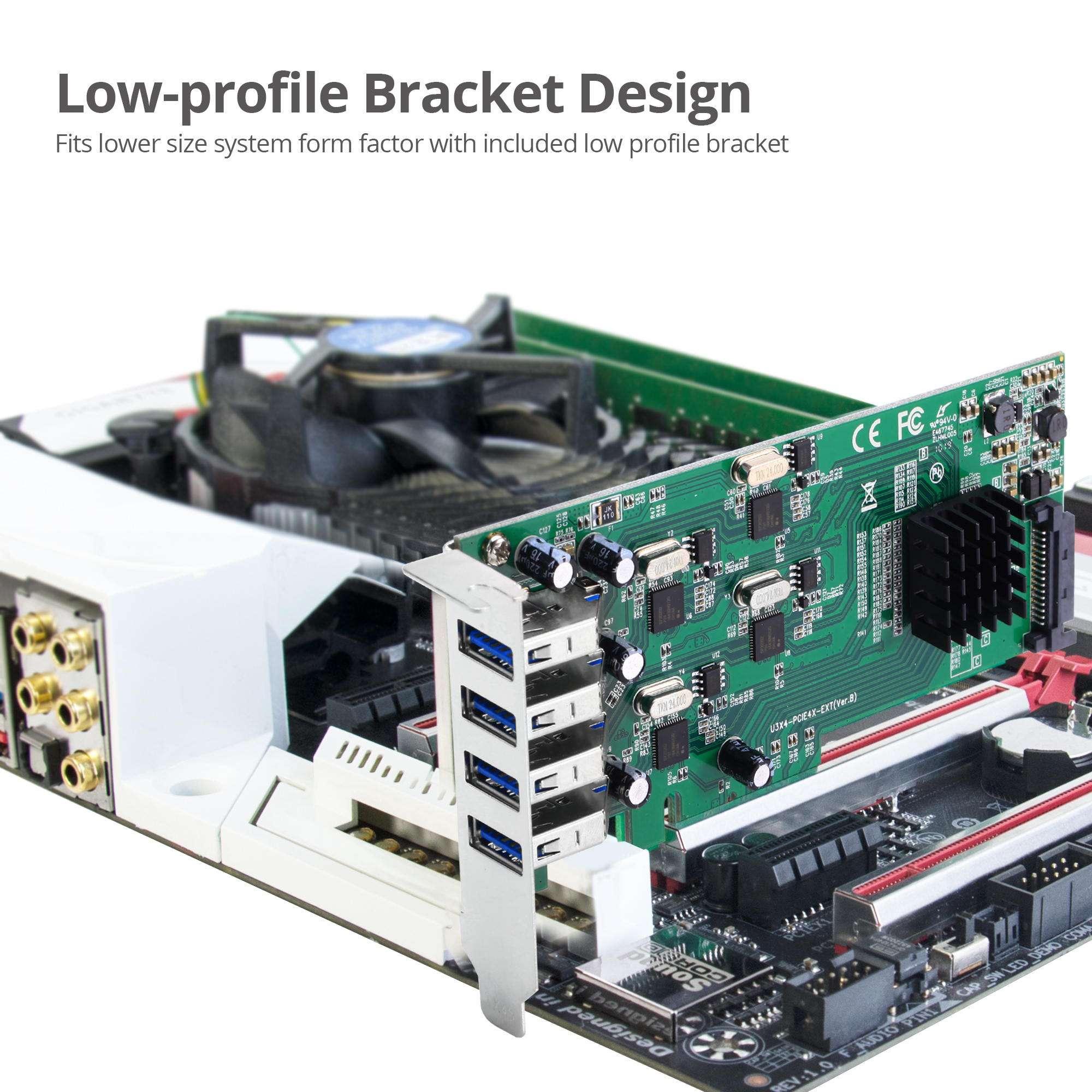

Low-profile bracket design
Fits lower size system form factor with included low profile bracket
Each USB port featured with independent over-current protection
To further protect your devices and the board itself from unforeseen power spikes
Specification
Chipset:Renesas uPD720202
Compliant with USB 3.0 Specification
Bus connector:PCI Express 4x
Version:PCI Express 2.0
USB data transfer rate:Up to 5Gbps for each port
Total USB bandwidth:20Gbps
USB power output:Up to 900mA for each port
Product:
■ Dimensions: 5.91" (W) x 0.79" (H) x 3.15" (D)
■ Weight: 0.15 lbs
■ Color: Green
■ Connectors:
- 4x 9-pin USB 3.0 Type A, Female
- 1x 15-pin SATA power connector
Note: SATA power connector required
Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards:FCC, CE, RoHS
Warranty:1 years limited
Country of origin:China
Requirements
■ Low profile desktop PC with one available PCI Express (PCIe) x4 slot
■ SATA power connection is required
■ Windows® 10 (32-/64-bit) / 8.x (32-/64-bit) / 7 (32-/64-bit)
■ Windows® Server 2019 / 2016 / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
Package Contents
■ 4-Port SuperSpeed USB 3.0 PCIe Card - Quad Core
■ Driver CD
■ Quick Start Guide
