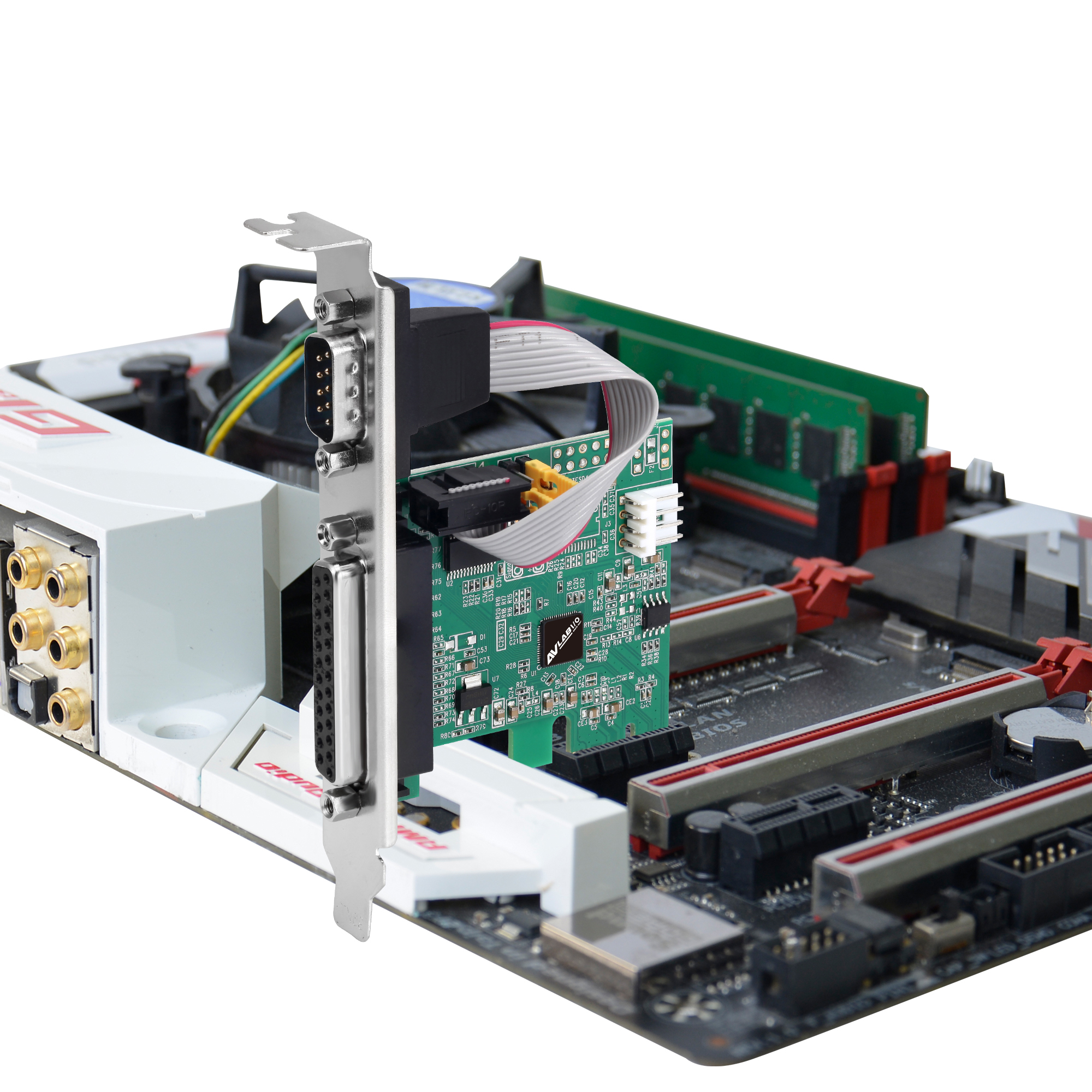

  • AVLAB Dual Profile Cyber 1 Serial 1 Parrelle PCIe Card

■ Easily adds one serial port and one parallel port through an available PCI Express slot
■ 16C650 UART serial port with data transfer rate up to 250Kbps
■ Compliant with PCI Express 2.0 Gen 1
■ Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode
■ Single-lane (X1) PCI Express end-point controller with PHY integrated
■ Full serial modem control
■ Hardware and software flow control
■ 5, 6, 7, 8 and 9-bit serial format
■ Even, odd, none, space and mark parity
■ On chip 256 byte FIFO buffers in transmit, receive path
■ Works as standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers
■ Supports PCI bus Power Management Interface Specification Revision 1.2
■ Dual-profile design fits full height and low-profile system chassis with the included spare low-profile brackets
■ Perfect solution to connect with POS systems, industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.

  • $0 $0

Highlights

Easily adds one serial port and one parallel port
Through an available PCI Express slot

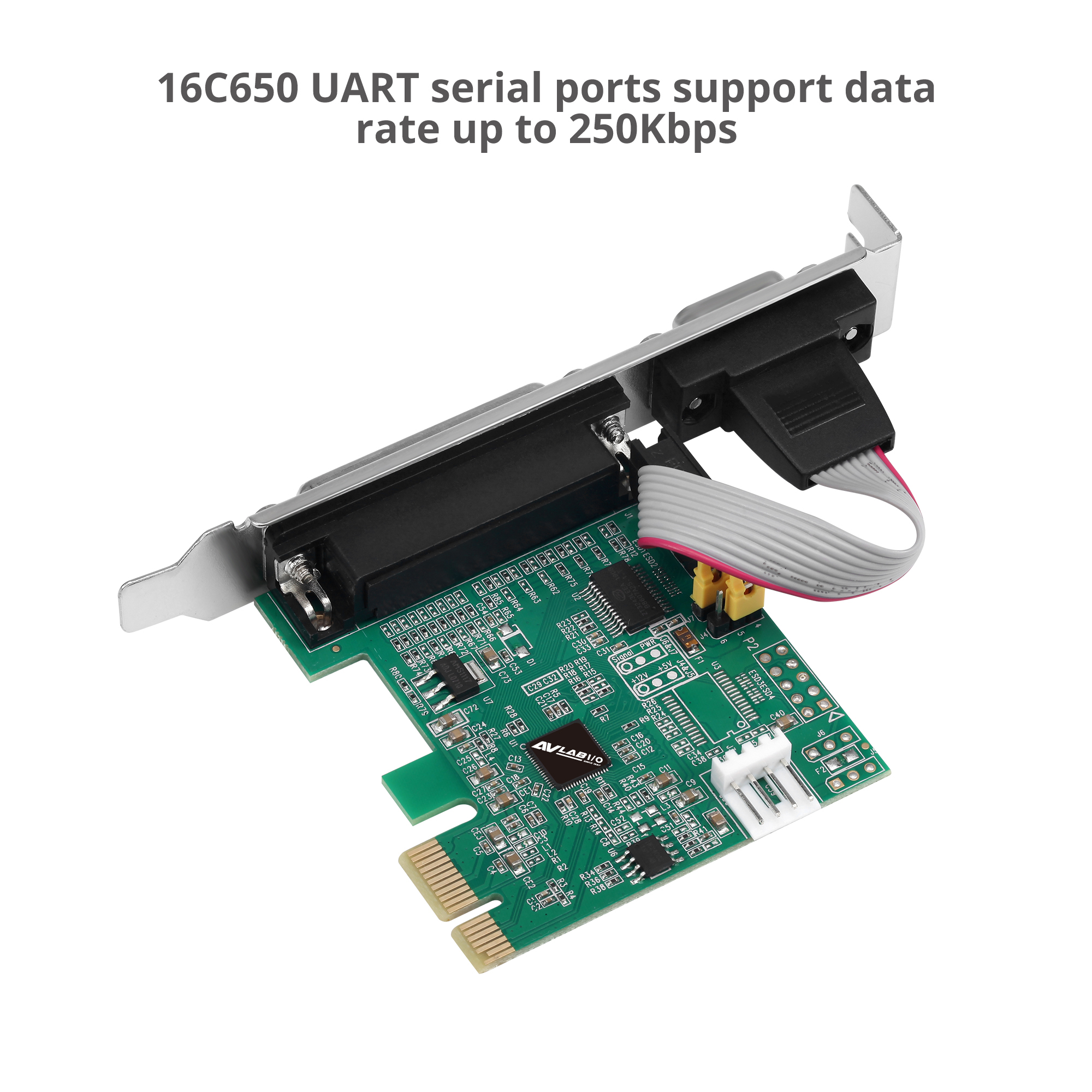

16C650 UART serial port with data transfer rate up to 250Kbps

Compliant with PCI Express 2.0 Gen 1

Compatible with IEEE 1284 -1994 parallel port standard for SPP/Byte/ECP Mode

Single-lane (X1) PCI Express end-point controller with PHY integrated

Full serial modem control

Hardware and software flow control

5, 6, 7, 8 and 9-bit serial format

Even, odd, none, space and mark parity

On chip 256 byte FIFO buffers in transmit, receive path

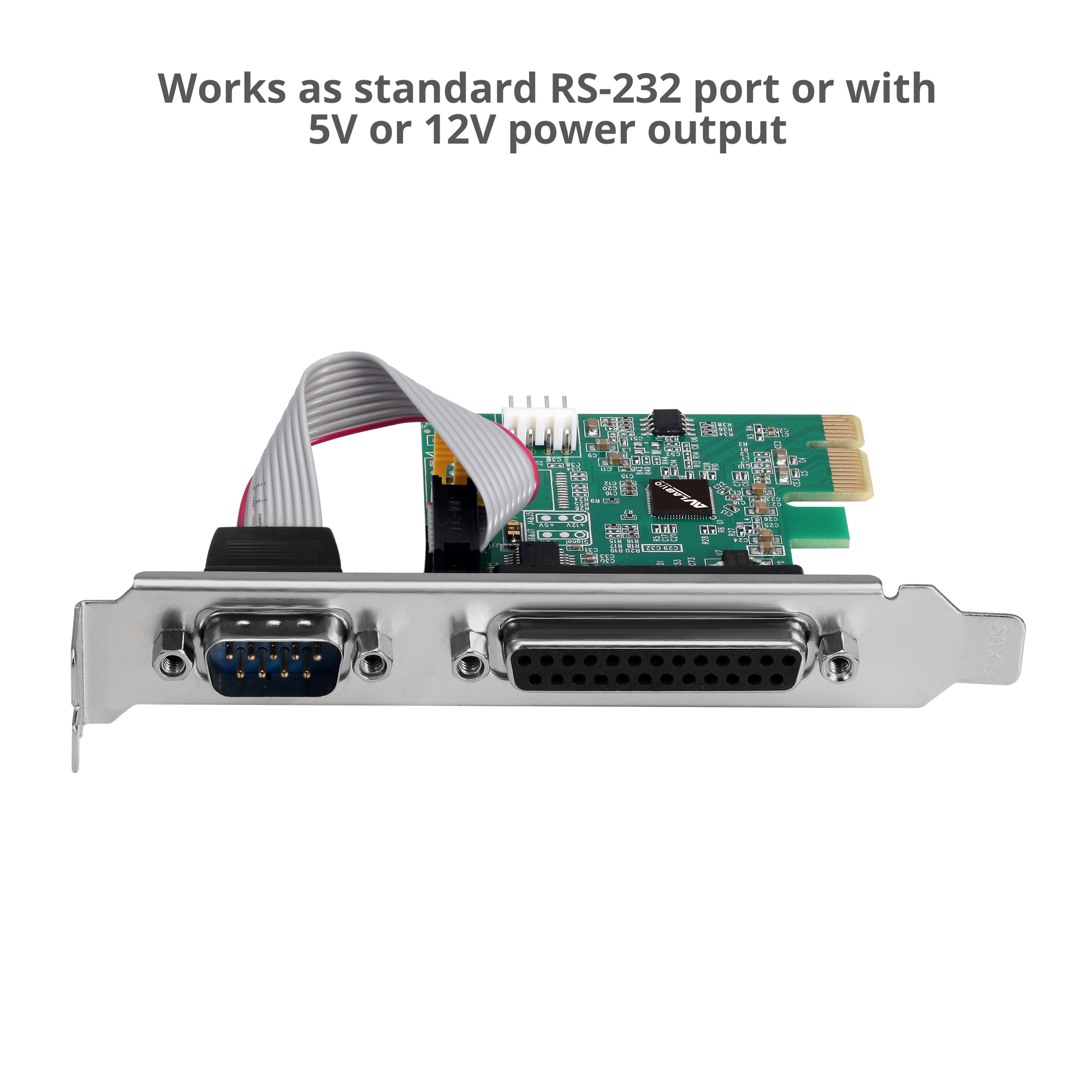

Works as standard RS-232 port or with 5V or 12V power output
For devices that require power (such as handheld scanners, table scanners, POS displays, etc.), power output configurable via jumpers


Supports PCI bus Power Management Interface Specification Revision 1.2

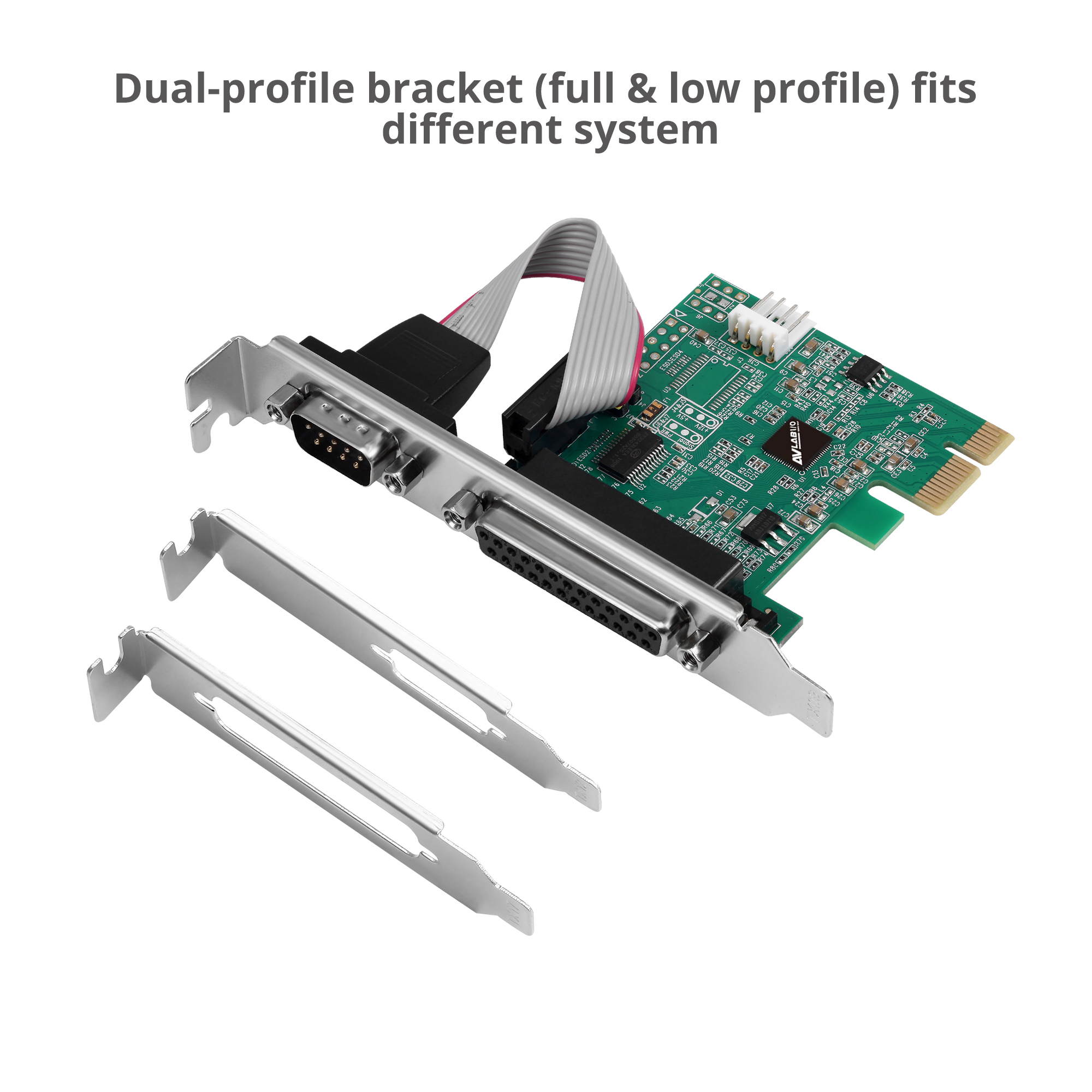

Dual-profile design fits full height and low-profile system chassis
With the included spare low-profile brackets

Perfect solution to connect with POS systems

Industrial testing and control devices, security systems, logistic management equipment, printers, scanners, etc.

Specification

Chipset: ASIX AX99100



Compliant with PCI Express Base Specification 2.0



Compliant with PCIe Bus Power Management Interface Revision 1.2



Data transfer rate:
■ Serial port: Up to 250Kbps
■ Parallel port: Up to 1.5Mbps



Flow control: Hardware and software



Serial format: 5, 6, 7, 8 and 9-bit



Parity: Even, Odd, None, Space, and Mark



On chip 256 Byte FIFO buffer (Transmit, Receive)



Serial power output: 0V / 5V / 12V by Jumper.



■ Note: Y-Split power cable connection is required for 5V and 12V output.





Power consumption: 3W



System chassis form factor: Full height and Low-profile



Product:
■ Dimensions (with full height bracket): 2.87" (L) x 4.72" (W) x 0.71" (D)
■ Weight: 0.10 lbs
■ Color: Green
■ 2x, 9-pin RS-232 Serial, Male
■ 1x, 25-pin Parallel, Female
■ 1x, 4-pin, Molex mini power connector



Environmental conditions:
■ Operating temperature: 32 to 140 degrees F
■ Storage temperature: 14 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non- condensing)



Certifications/Standards: FCC, CE, RoHS



Warranty: 2 years limited



Country of origin: China



Requirements
■ PCI Express-enabled system with an available PCI Express slot 1x
■ Windows 10 / 8 /7
■ Server 2016 (32-/64-bit) / 2012 R2 / 2012 (32-/64-bit) / 2008 R2 / 2008
■ Low-profile system installation requires 2 available chassis slot openings



Package Contents
■ DP Cyber 1S1P PCIe Card
■ Low-profile bracket (2pcs)
■ Y-Split power cable
■ Voltage Jumper (2pcs)
■ Software CD
■ User manual
