• AVLAB-GE05-1
  • AVLAB-I/O 1-Port 10G RJ45 Ethernet PCIe Card

Add 10G Ethernet capability to your enterprise, server, or desktop computer

  • $0 $0

Highlights

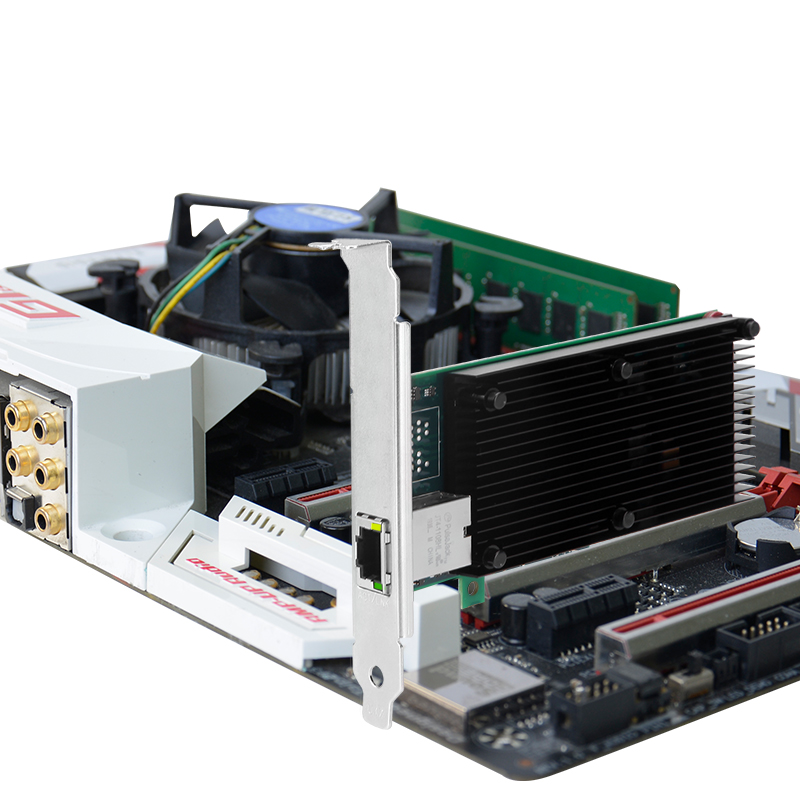

  • Quickly adds one 10G* Ethernet port, through an available PCI Express 3.0 x4 slot, to server or desktop systems
  • NBASE-TTM technology** allows 2.5Gbps and 5Gbps Ethernet speeds for cable lengths up to 100 meters, over existing CAT5e/6 cable infrastructure plus Power over Ethernet (PoE) over CAT cable
  • Intel X550 chipset supports reliable and advanced network connectivity with Intel virtualization technology
  • Compliant with IEEE 802.3, 802.3an, 802.1Q with full duplex and Wake-on-Lan support
  • Feature innovative power management including 802.3az EEE (Energy Efficient Ethernet) and DMA Coalescing to increase efficiency and reduce power consumption

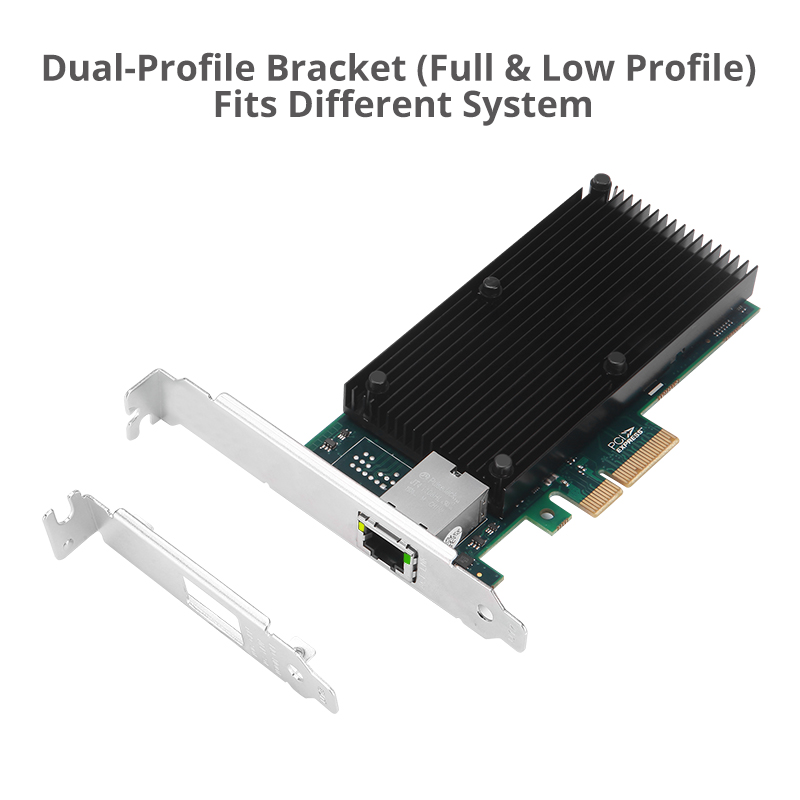

  • Fits both standard and low-profile system chassis with the included brackets
  • Extra large heat-sink guards against heat build-up for reliable performance and long life

Compatibility Notes:
*100% copper CAT6a and CAT7 cabling recommended for the best 10G performance
**Requires NBASE-T enabled switches, hubs, wireless access points, workstations, gateways, and other hardware





Specification

  • Chipset: Intel X550-T2

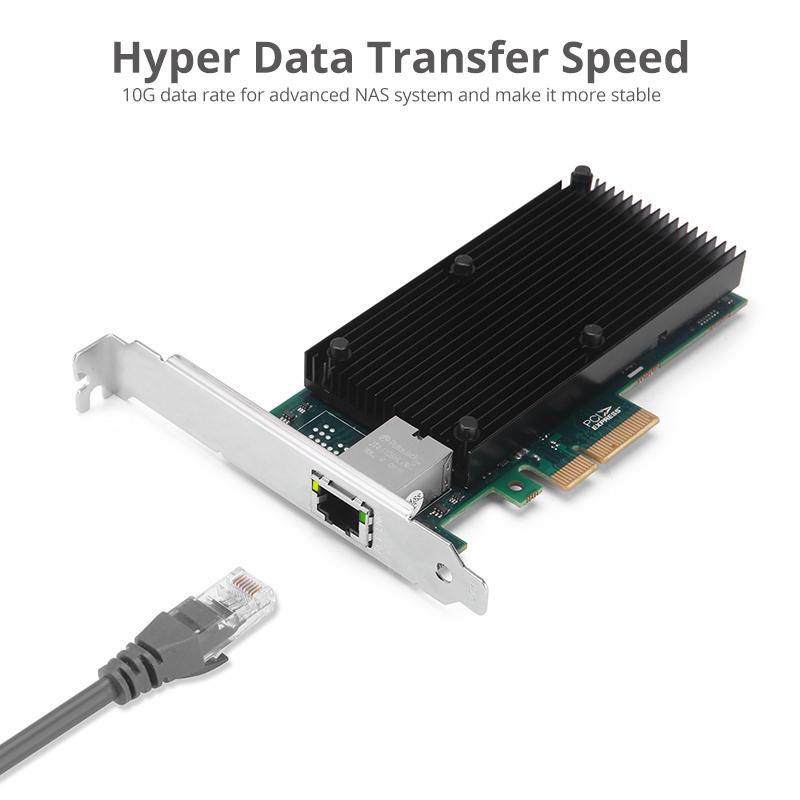

  • Network transfer rate: 10G / 5G / 2.5G / 1G / 100Mbps

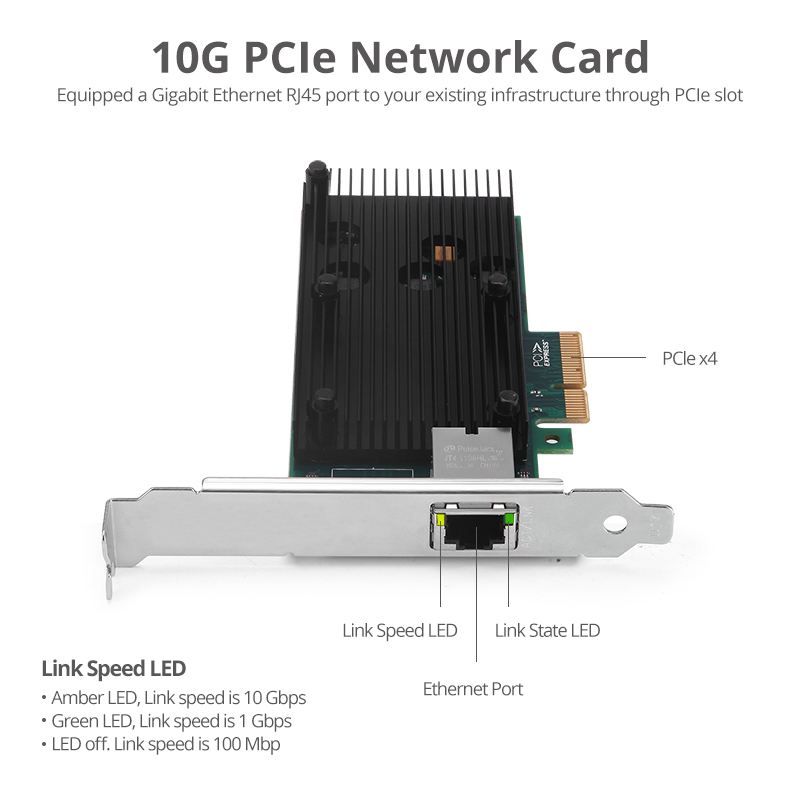

  • Bus connector: PCI Express x4
  • Network support: 10GBASE-T, 1000BASE-T, 100BASE-TX, NBASE-T (2.5GBASE-T & 5GBASE-T)
  • PoE through CAT cable (PoE over Fiber Optic cable not supported)
  • 802.3az EEE (Energy Efficient Ethernet) technology
  • Forwarding modes: MAC, VLAN, E-tag
  • Anti Spoof: MAC, VLAN, EtherType
  • Product:
    • Connectors: 1x 8-Pin RJ-45 Female
    • Dimensions: 5.71" (W) x 0.83" (H) x 4.72" (D)
    • Weight: 0.32 lbs
    • Color: Green
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: 14 to 140 degrees F
    • Relative humidity: 5% to 85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
