• AVLAB-GE06-1
  • AVLAB-I/O 2-Port 10G RJ45 Ethernet PCIe Card

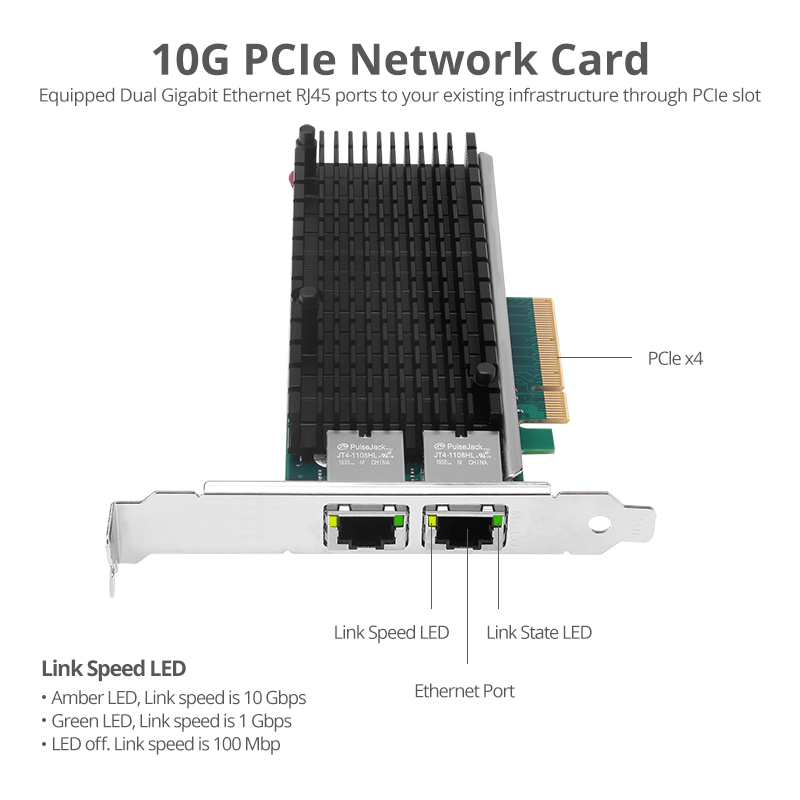

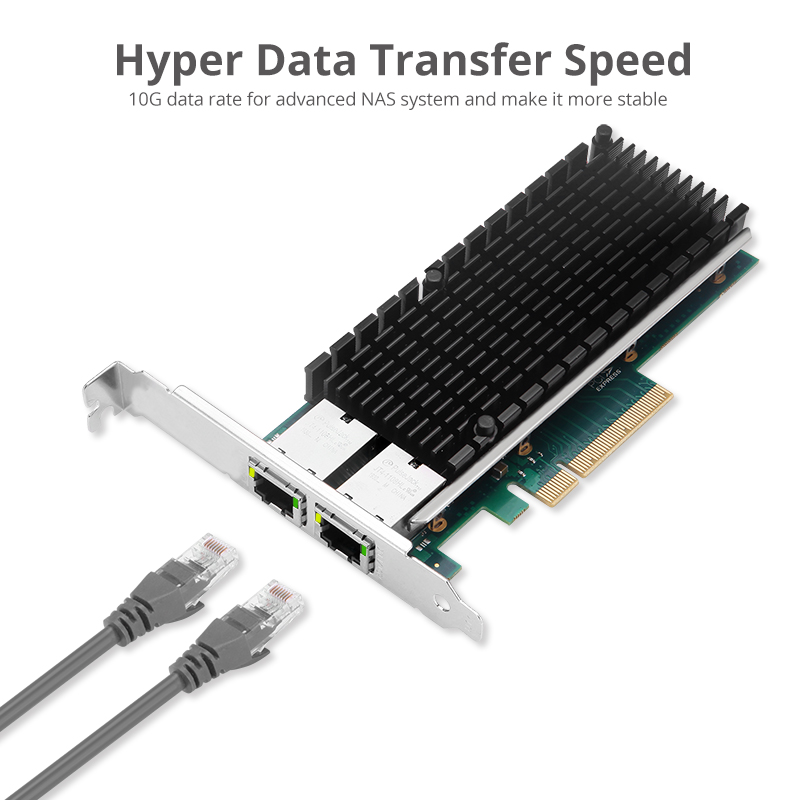

Add two independent 10G Ethernet ports to your enterprise, server, or desktop computer

  • $0 $0

Highlights

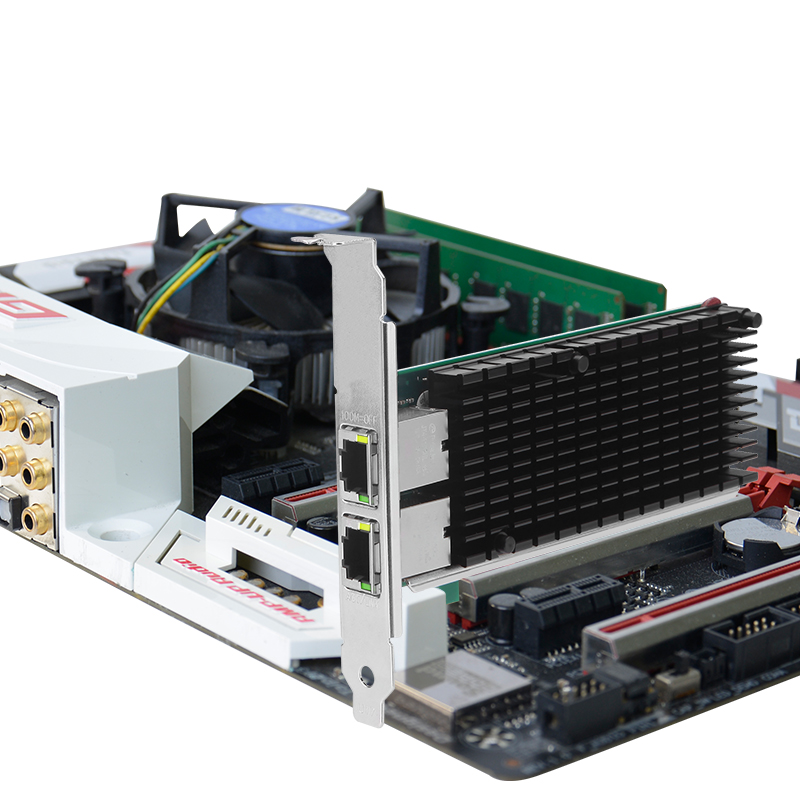

  • Adds two independent 10G* Ethernet ports through an available PCI Express 2.1 specification x8 or larger PCIe slot to server or desktop systems
  • Intel X540-T2 chipset supports reliable and advanced network connectivity with Intel virtualization technology
  • Compliant with IEEE 802.3, 802.3an, 802.3ad, 802.1Q with full duplex and Wake-on-Lan support
  • Features DMA Coalescing to increase efficiency and reduce power consumption

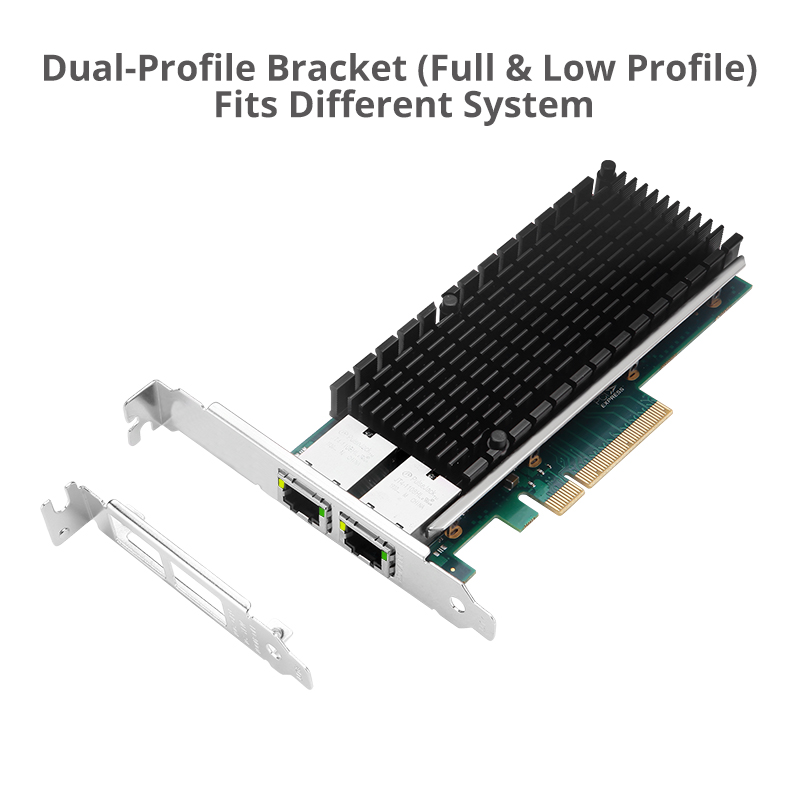

  • Fits both standard and low-profile system chassis with the included brackets
  • Extra large heat-sink provides better heat-dissipation for reliable performance and long life

Note:
*100% copper CAT6a / CAT7 cabling recommended for the best 10G performance

Specification

  • Chipset: Intel X540-T2
  • Network transfer rate: 10G / 1G / 100Mbps
  • PCI Express 2.1 specification compatible
  • Bus connector: PCI Express x8
  • Network support: 10GBASE-T, 1000BASE-T, 100BASE-TX
  • Forwarding modes: MAC, VLAN
  • Anti spoof: MAC, VLAN
  • Product:
    • Connectors: 2x 8-Pin RJ-45 Female
    • Dimensions: 6.69" (W) x 0.83" (H) x 4.72" (D)
    • Weight: 0.40 lbs
    • Color: Green
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: 14 to 140 degrees F
    • Relative humidity: 5% to 85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
