• AVLAB-GE07-1
  • AVLAB-I/O 1-Port 10G SFP+ Ethernet PCIe Card

Adds one 10GbE SFP Ethernet port through an available PCI Express slot to server or desktop systems

  • $0 $0


  • Quickly adds one 10GbE SFP Ethernet port through an available PCI Express 2.0 x8 slot to server or desktop systems
  • Intel X520 chipset support reliable and advanced network connectivity with Intel virtualization technology, flexible features of LAN and SAN network with iSCSI, NFS
  • Compliant with IEEE 802.3ae, 802.3x, 802.1Q with full duplex and Wake-on-Lan support
  • Feature innovative power management including Energy Efficient Ethernet(EEE) and DMA
  • Coalescing to increase efficiency and reduce power consumption

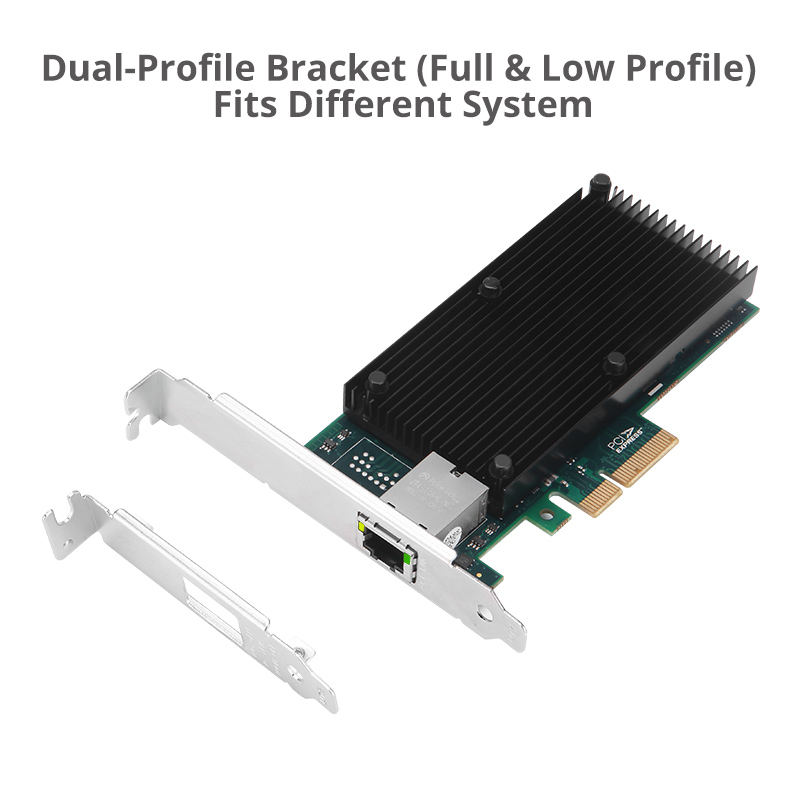

  • Fits both standard and low-profile system chassis with the included brackets
  • Large heat-sink provides better heat-dissipation for reliable performance and long life


    • Chipset: Intel X520
    • Network transfer rate: 10G / 1G / 100Mbps
    • PCI Express 2.0 specification compliant
    • Bus connector: PCI Express x8
    • Product:
        • Connectors: 1x SFP+, Female
        • Dimensions: 6.02" (W) x 0.83" (H) x 4.72" (D)
        • Weight: 0.26 lbs
        • Color: Green
    • Environmental conditions:
        • Operating temperature: 32 to 104 degrees F
        • Storage temperature: 14 to 140 degrees F
        • Relative humidity: 5% to 85% RH (non-condensing)
    • Certifications/Standards: FCC, CE, RoHS
    • Country of origin: China
