• AVLAB-GE11-1
  • AVLAB-I/O 2-Port 2.5G RJ45 Ethernet PCIe Card

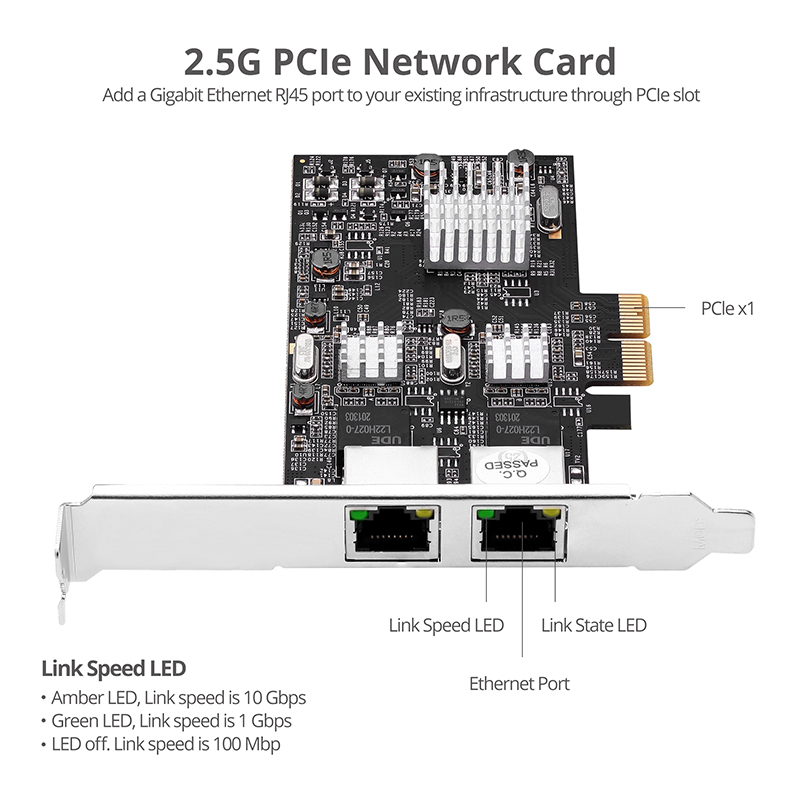

Adds multi-gigabit Ethernet capability to your server or desktop computer, quickly enable 2.5G, 1G, 100Mbps, or 10Mbps connection over dual RJ45 ports

  • $0 $0

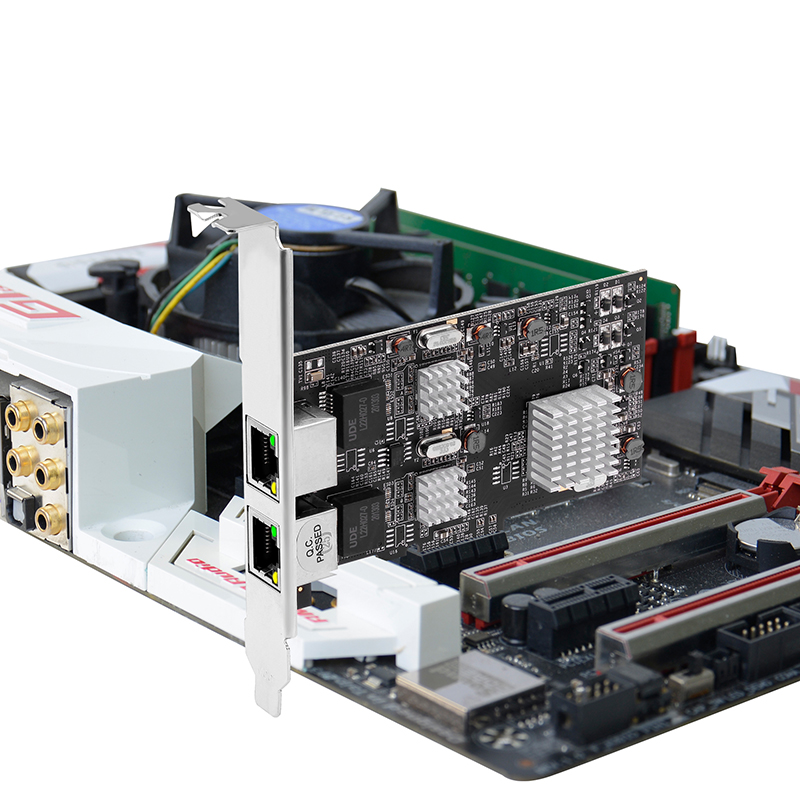

  • Easily add two multi-Gigabit Ethernet ports through an available x4 PCIe slot to server and desktop computers
  • Compliant with PCI Express Specification Revision 2.1
  • Compatible with NBASE-TTM Alliance PHY Specification

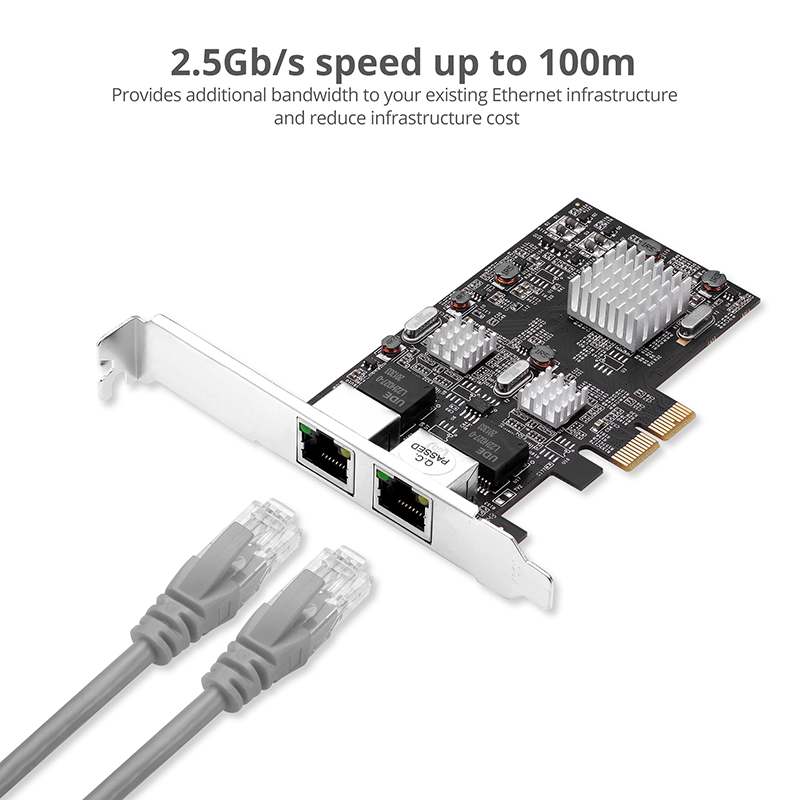

  • Supports 4 Multi-Speed of 10M/100M/1Gbps/2.5Gbps Ethernet data rates
  • Compatible with IEEE 802.3, 802.3u, 802.3a, IEEE 802.3bz (2.5GBase-T), IEEE 802.1Q VLAN tagging, IEEE 802.3az (Energy Efficient Ethernet)
  • Supports jumbo frame to 16K bytes for higher and better data throughput
  • Supports Full Duplex flow control IEEE 802.3x
  • Supports Wake-On-LAN and ‘RealWoW!’ Technology (Remote wake-up)

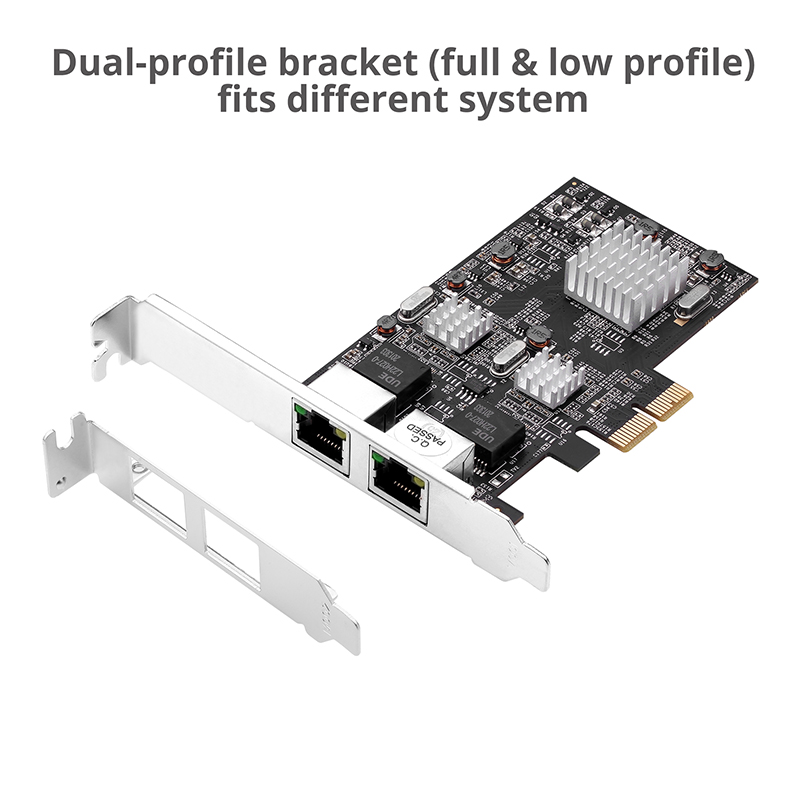

  • Fits both standard and low profile system chassis with the included spare low profile bracket


  • Chipset: Realtek RTL8125
  • Network transfer rate: 10Mbps / 100Mbps / 1G / 2.5Gbps
  • Bus Type: PCI Express 2.1 (5.0 GT/s)
  • Bus Width: x4 Lane PCI Express
  • Product:
    • Connectors: 2x 8-Pin, RJ-45, Female
    • Dimensions: 4.72" (L) x 0.83" (H) x 4.88" (W)
    • Weight: 0.14 lbs
    • Color: Black
  • Environmental conditions:
    • Operating temperature: 32 to 104 degrees F
    • Storage temperature: 14 to 131 degrees F
    • Relative humidity: 5% to 85% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
