AVLAB-I/O 4-Port Gigabit RJ45 Ethernet PCIe Card - Intel 350 | AVLT®

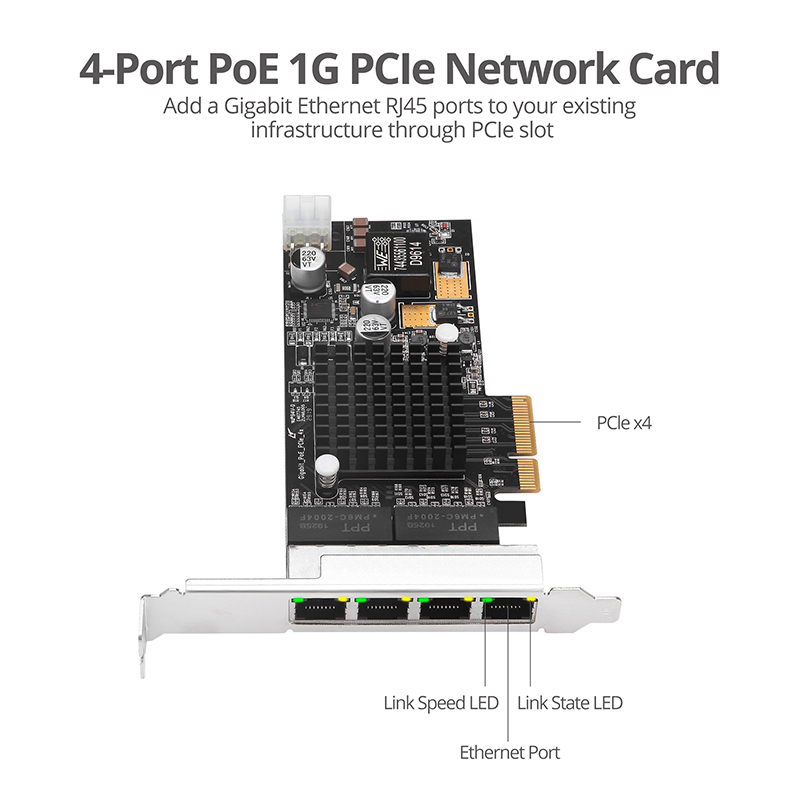

Quickly adds four independent Gigabit Ethernet ports with PoE through an available PCI Express slot to server or desktop systems

Adds four independent Gigabit Ethernet ports through an available PCI Express slot to server or desktop systems, with Power over Ethernet capability
Intel I350-T4 chipset supports reliable and advanced network connectivity
Compliant with IEEE 802.3, 802.3u, 802.3ab with full duplex and Wake-on-LAN support

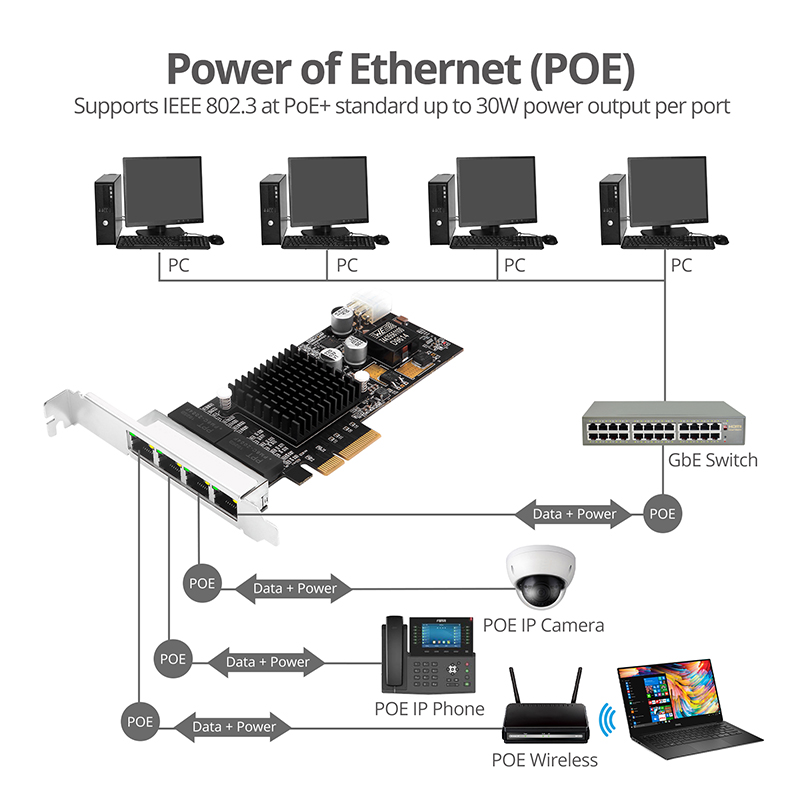

Supports IEEE 802.3at PoE+ standard, with up to 30W power output per port
Supports IEEE 802.3az Energy Efficient Ethernet (EEE)
Supports PXE network boot
Features innovative power management including Energy Efficient Ethernet (EEE) and DMA Coalescing to increase efficiency and reduce power consumption
Supports IEEE standard 802.1Q for VLAN
Advanced Configuration and Power Interface (ACPI) power management states and wake-up capability
Advanced Power Management (APM) wake-up functionality
Supports 12V mini-fit 6-pin power connector input
Powered device (PD) auto detection and classification

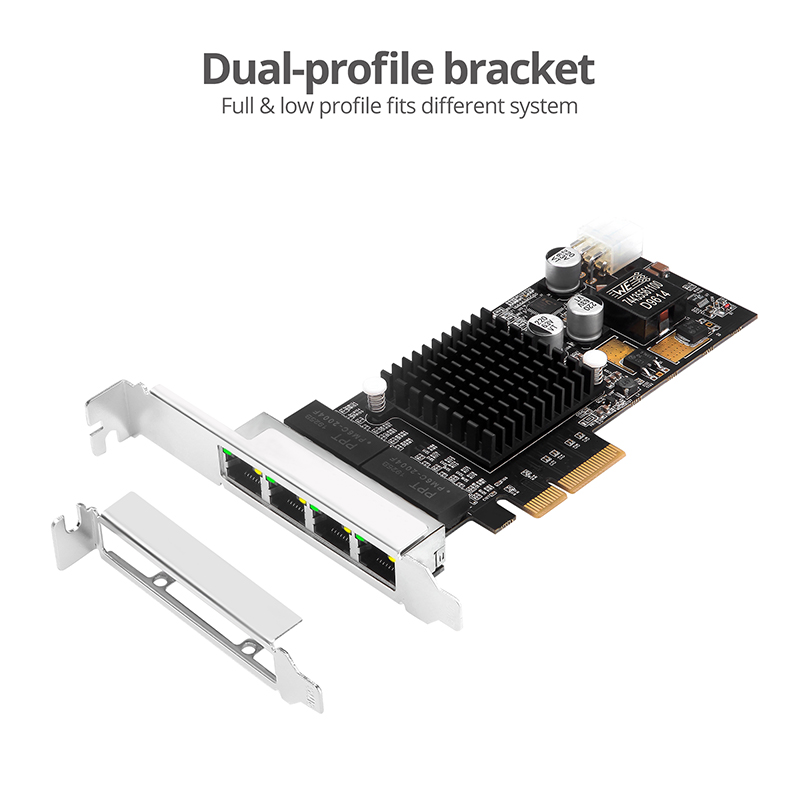

Fits both standard height and low profile system chassis with the included full size and spare low profile brackets

Chipset: Intel I350-T4
Network transfer rate: 10M / 100M / 1G
PCI Express specification: PCI Express 2.1 (5.0 GT/s)

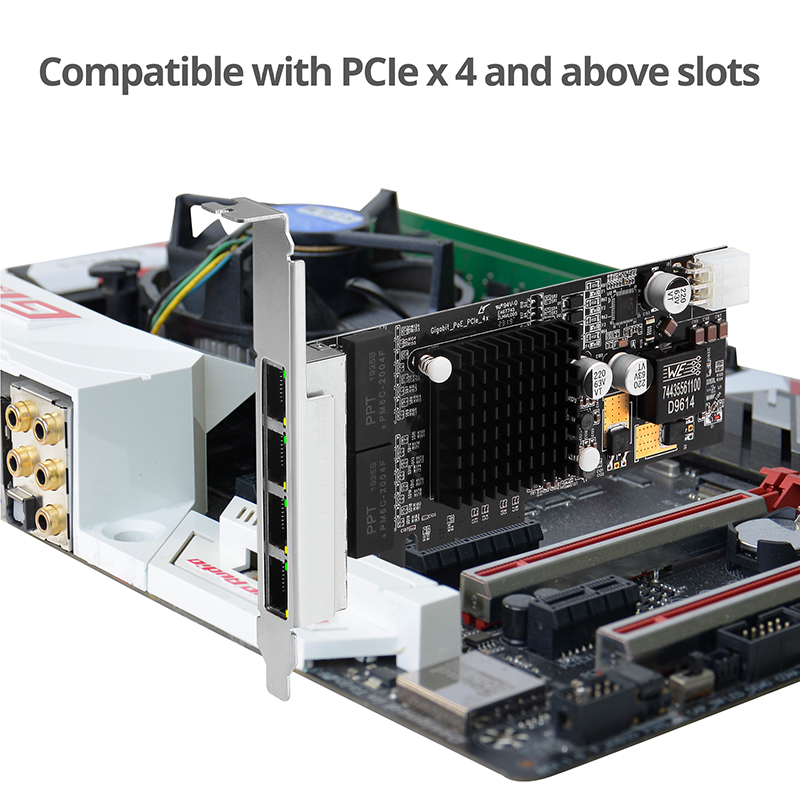

Bus connector: x4 Lane PCI Express
Industry Standards: IEEE 802.3 10BASE-T, IEEE 802.3u 100BASE-TX, IEEE 802.3ab 1000BASE-T, IEEE 802.1Q VLANs, IEEE 802.3x Flow Control, IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus
Cable length:
- 1000BASE-T: 100m for CAT 5e, CAT 6 or CAT 6A
- 100BASE-T: 100m for CAT 5e, CAT 6 or CAT 6A
- 10BASE-T: 100m for CAT 5e, CAT 6 or CAT 6
Power over Ethernet: Support 30 Watts (Max) power output per port (52V DC)
Power Supply: 12V Mini-Fit 6-pin Power, 70W (Max input)
Power Pin assignment: 1/2 (+), 3/6(-)
Product:
- Dimensions: 6.42" (L) x 0.87" (H) x 4.72" (W)
- Weight: 0.25 lbs
- Color: Black
- Connectors: 4x 8-Pin RJ-45 Female
Environmental conditions:
- Operating temperature: 41 to 122 degrees F
- Storage temperature: -13 to 158 degrees F
- Relative humidity: 20% to 80% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
