• AVLAB-GE13-1
  • AVLAB-I/O Wireless WiFi Ethernet PCIe Card AC1200 Dual Band (2.4G/5G)

Quickly adds 2T2R Dual Band WiFi connectivity through an available PCI Express slot to server or desktop systems

  • $0 $0

Highlights

  • Quickly adds dual band capable wireless ethernet connectivity through an available PCI Express slot to server or desktop systems
  • Complies with PCI Express 2.1 specification

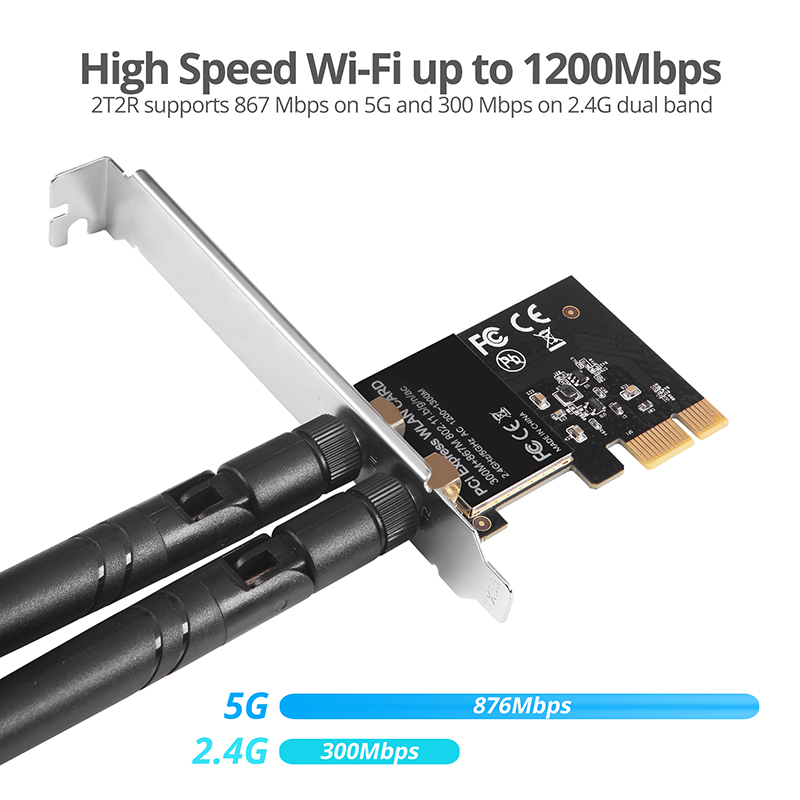

  • Support High Speed Wi-Fi data rate up to 1200Mbps based on IEEE 802.11 AC standard of 867Mbps on 5G and 300Mbps on 2.4G dual band

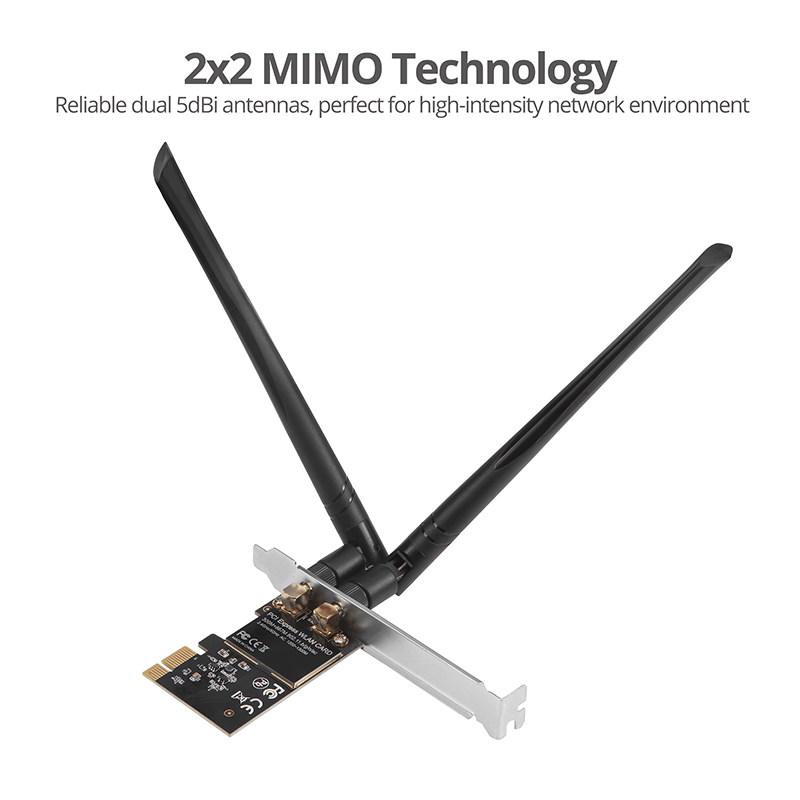

  • 2×2 Multiple In Multiple Out (MIMO) feature allows easy access to High-Speed Wireless environment
  • 802.11ac dual band provides 3 times faster than the 802.11n standard, perfect for high-intensity network usage
  • Supports Wake-On-WLAN via Magic Packet and Wake-up frame
  • Works with all current Wi-Fi routers and backward compatible with 802.11a/b/g devices while operation at 802.11n data rates
  • Supports bandwidth transmission of 5MHz/10MHz/20MHz/40MHz/80MHz

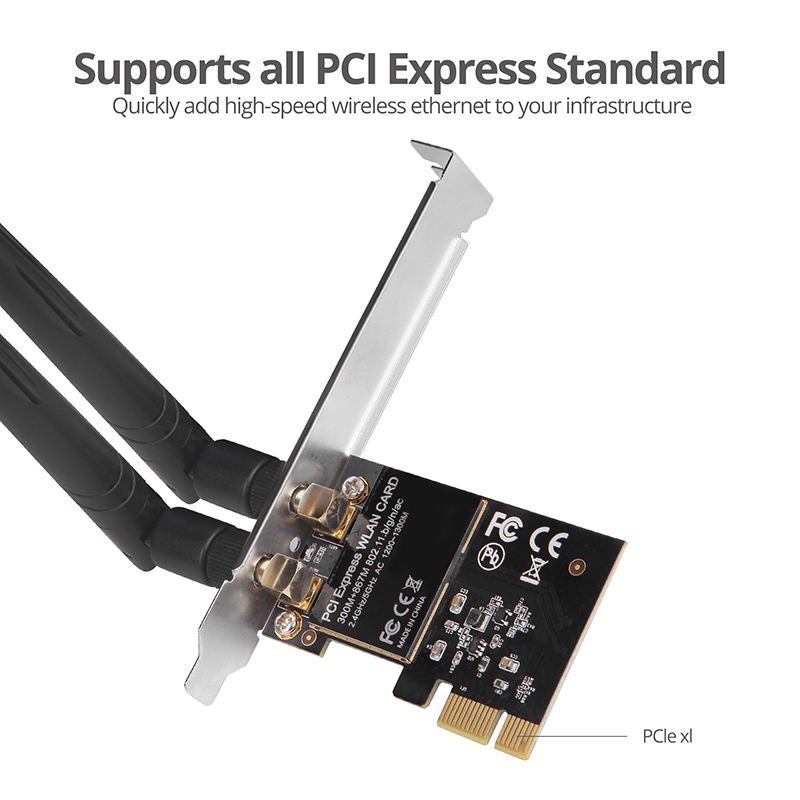

  • Supports all PCIe standards, PCIe x1 slot has the best compatibility

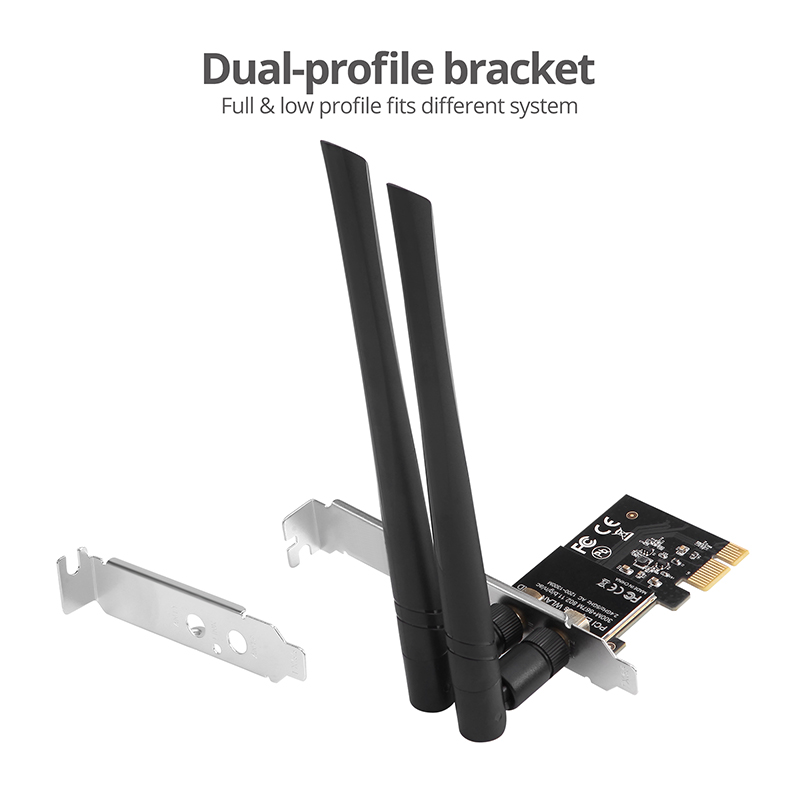

  • Fits both standard and low profile system chassis with the included full height and spare low profile brackets

Specification

  • Chipset: RTL8812AE
  • PCI Express 2.1 (5.0 GT/s) compliant
  • PCI Express bus connector: x1 PCI Express
  • Industry Standards: IEEE802.11.ac, IEEE802.11.n, IEEE802.11.b, IEEE802.11.g, IEEE802.11.a
  • Security: WPA, WPA-PSK, WPA2, WPA2-PSK, WEP 64bit & 128bit, IEEE 802.11x, IEEE 802.11i
  • Data Rates: 5G up to 867M / 2.4G up to 300M
  • Out-Power 5G:
  • Out-Power 2.4G:
  • Sensitivity 5G_11ac:
    • HT80M_MCS9: -51dBm @10% PER
    • HT40M_MCS7: -62dBm @10% PER
    • HT20M_MCS7: -65dBm @10% PER
  • Sensitivity 11N_2.4G
  • Product:
    • Dimensions: 2.60" (L) x 4.72" (H) x 0.71" (W)
    • Weight: 0.10 lbs
    • Color: Black
    • Connectors: 2 x 5dBi un-fixed
  • Environmental conditions:
    • Operating temperature: 32 to 140 degrees F
    • Storage temperature: -14 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
