- AVLAB-US52-1
- AVLAB-I/O USB-C 3.2 Gen 2x2 20Gbps NVMe SSD Enclosure
Adds extra storage to USB 3.2 Gen 2x2 enabled computers
Highlights
- This ultra small enclosure easily adds fast M.2 (M key) PCIe NVMe SSD storage to your Windows or Mac computers through USB 3.2 Gen 2x2 USB-C port
- Ultra-fast data transfer rate up to 20Gbps through USB 3.2 Gen 2x2 with UASP technology. Requires UASP compatible USB 3.2 Gen 2 2x2 host controller hardware along with Windows 10 and Windows 8 USB 3.2 host controller drivers
- Compliant with SuperSpeed USB 20Gbps/10Gbps/5Gbps, High Speed 480Mbps, and Full Speed 12Mbps

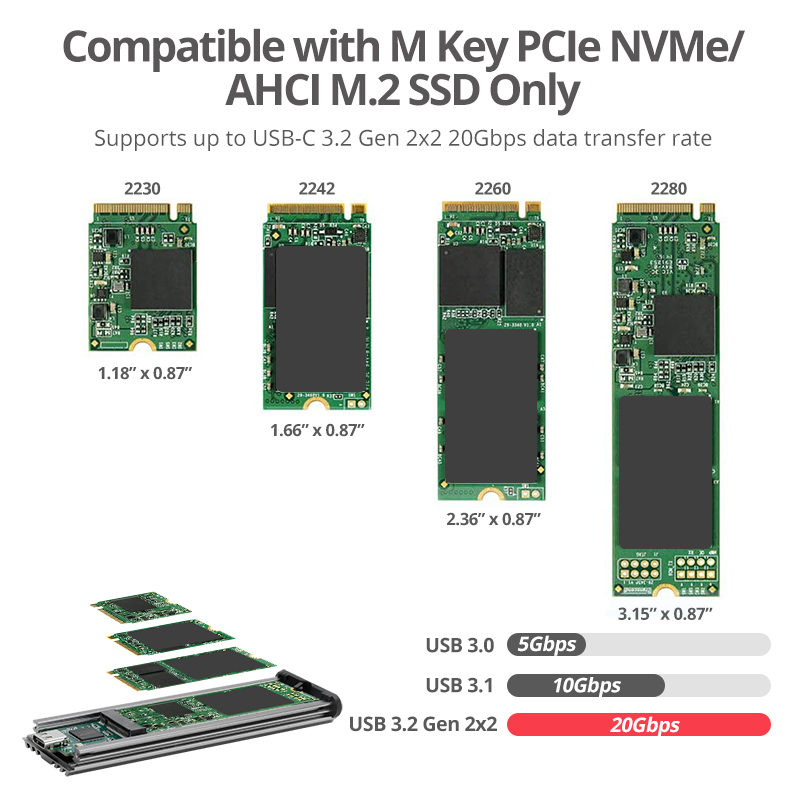

- Accommodates 2230, 2242, 2260, and 2280 form factor M-Key M.2 PCIe NVMe SSD. Note: Does NOT work with B-key M.2 PCIe NVMe SSDs or M.2 SATA SSDs
- USB Type-C (USB-C) interface with reversible connection design supports non-directional plug-in connection
- Compatible with PCIe 3.0 x4 specification and backward compatible with PCIe 1.0 and PCIe 2.0
- Aluminum housing offers durability and excellent neat dissipation for long life and reliable performance
- Ultimate SuperSpeed transmission allows you to enjoy unprecedented data transfer speed, saves times for large-capacity data transmission and improves efficiency working at the office or home
- Convenient tool free design, easily installs your NVMe SSD without using a screw driver
- Bus powered for extra portability, no need to take along a separate power adapter while on-the-go
- Built-in LED indicates power and data transfer status

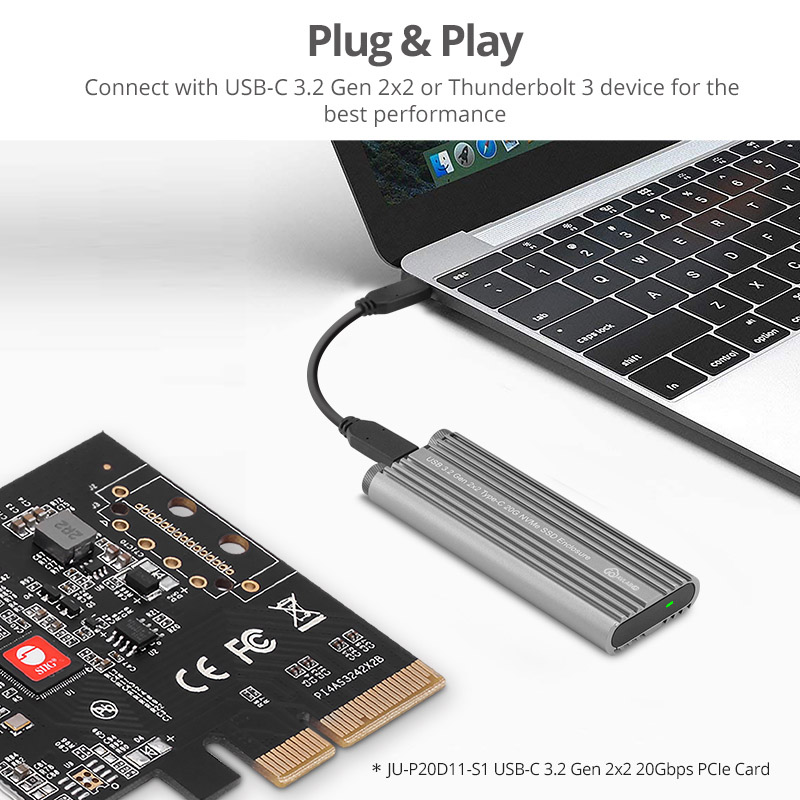

- Plug-n-Play with no driver installation required
- Includes USB-C cable for easy connection to notebook or laptop
Specification
- Chipset: ASMedia 2364
- Compliant with USB 3.2 Gen 2x2 specification revision 1.0
- Compatible with PCIe 3.0 x4 specification
- USB data transfer rate: Up to 20Gbps
- SSD type (not included): M.2 PCIe NVMe SSD (M Key). Note: Not compatible with M.2 SATA SSDs
- SSD size: 2230 / 2242 / 2260 / 2280 mm
- Power source: USB-C Bus-powered (5V)
- UASP: Yes
- Hot plug: Yes
- Product:
- Dimensions: 4.84" (L) x 0.59" (H) x 1.81" (W)
- Weight: 0.25 lbs
- Color: Silver
- Housing material: Aluminum
- Connectors:
- 1x, 24-pin, USB 3.2 Gen 2x2 Type-C, Female
- 1x, PCIe SSD: M.2 (M Key)
- USB cable:
- USB 3.2 Gen 2x2, USB-C to USB-C (M-M)
- Length: 10 inches (25.8cm)
- Environmental conditions:
- Operating temperature: 32 to 104 degrees F
- Storage temperature: 14 to 131 degrees F
- Relative humidity: 20% to 90% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: China
