AVLAB-I/O Dual Profile Cyber 1 Serial PCIe Card | AVLT®

Add one 16650 RS232 port to your PCI Express system

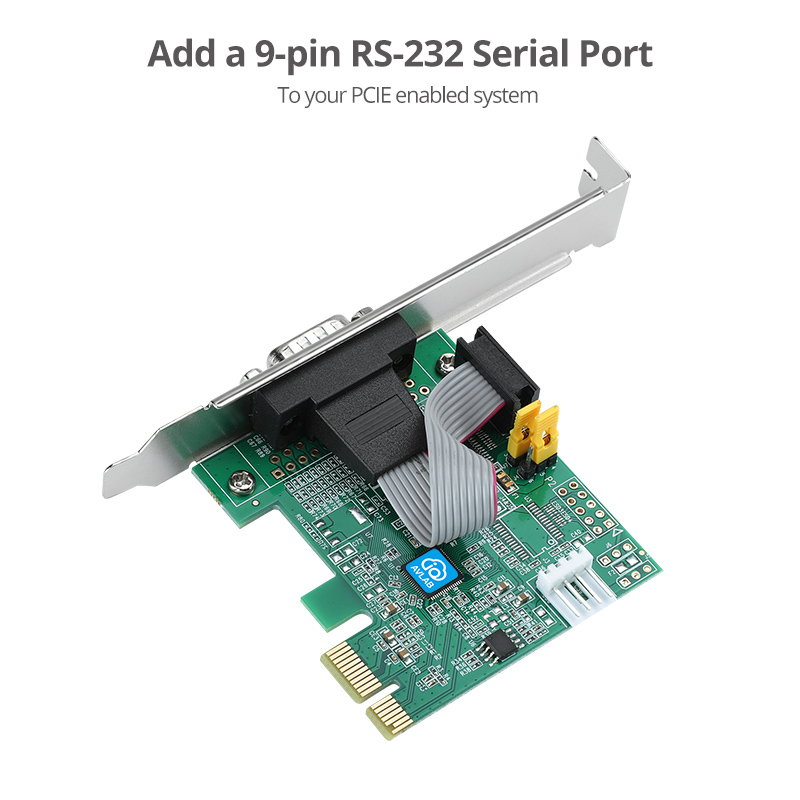

Adds one 9-pin RS-232 serial port to PCIe enabled desktop computers
One 16C650 UART serial port supports data transfer rate up to 250Kbps
Compliant with PCI Express 2.0 Gen 1
Single-lane (x1) PCI Express End-point Controller with PHY integrated
Full serial modem control with hardware and software flow control
Supports 5, 6, 7, 8 and 9-bit serial formats
Supports Even, Odd, None, Space and Mark parity
Supports on chip 256-byte FIFO buffers in transmit and receive path
Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
Supports PCI Bus Power Management Interface Specification Revision 1.2

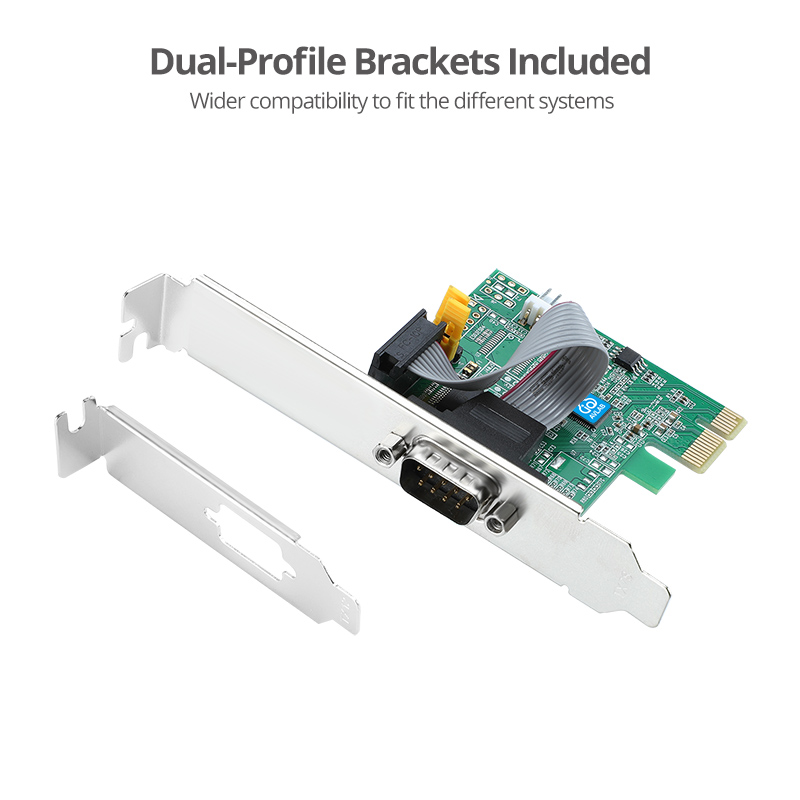

Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets

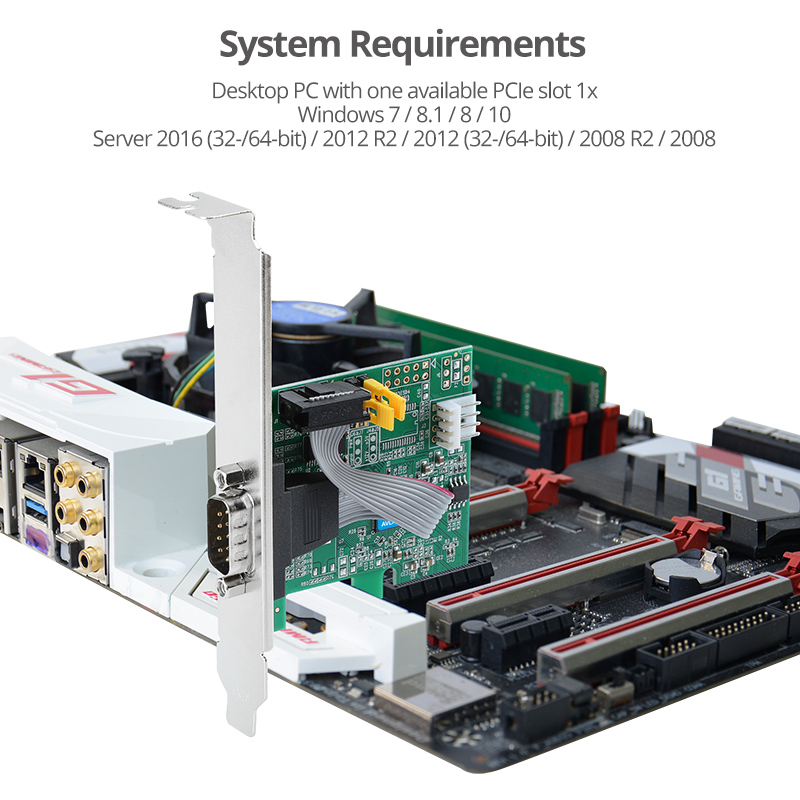

Installs into any PCI Express slot of any lane width
Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc

Chipset: ASIX AX99100
Compliant with PCI Express Base Specification 2.0
Bus type: One lane (x1) PCI Express
Data transfer rate: Up to 250Kbps
Flow control: Hardware and software
Serial format: 5, 6, 7, 8 and 9-bit
FIFO buffers: On-chip 256-byte transmit and receive
Serial power output: 0V / 5V / 12V configured by jumpers
Power consumption: 3W
PCB form factor: Full and low profile (full height and low profile brackets included)
Product:
- Dimensions (with full height bracket): 4.72" (L) x 0.71" (H) x 2.87" (W)
- Weight: 0.10 lbs
- Color: Green
- Connectors:
  - 1x, 9-pin RS-232 Serial, Male
  - 1x, 4-pin, Molex mini, Power connector
Environmental conditions:
- Operating temperature: 32 to 140 degrees F
- Storage temperature: 14 to 158 degrees F
- Relative humidity: 5 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Country of origin: China
