• AVLAB-JJ33-1
  • AVLAB-I/O Dual Profile Cyber 2 Serial PCIe Card

Add two 16650 RS232 ports to your PCI Express system

  • $0 $0

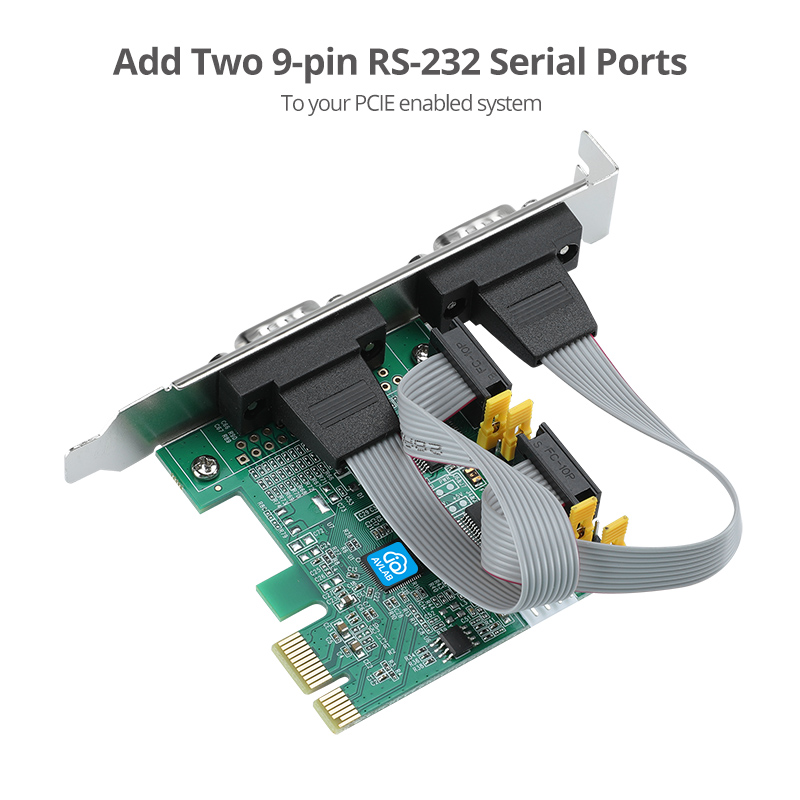

  • Adds two 9-pin RS-232 serial ports to PCIe enabled desktop computers
  • Two 16C650 UART serial ports support data transfer rate up to 250Kbps
  • Compliant with PCI Express 2.0 Gen 1
  • Single-lane (x1) PCI Express End-point Controller with PHY integrated
  • Full serial modem control with hardware and software flow control
  • Supports 5, 6, 7, 8 and 9-bit serial formats
  • Supports Even, Odd, None, Space and Mark parity
  • On chip 256-byte FIFO buffers in transmit and receive path for each serial port
  • Works as either standard RS-232 port or with 5V or 12V power output for devices that require power (such as handheld scanners, table scanners, POS displays and many more). Configurable via jumpers
  • Supports PCI Bus Power Management Interface Specification Revision 1.2

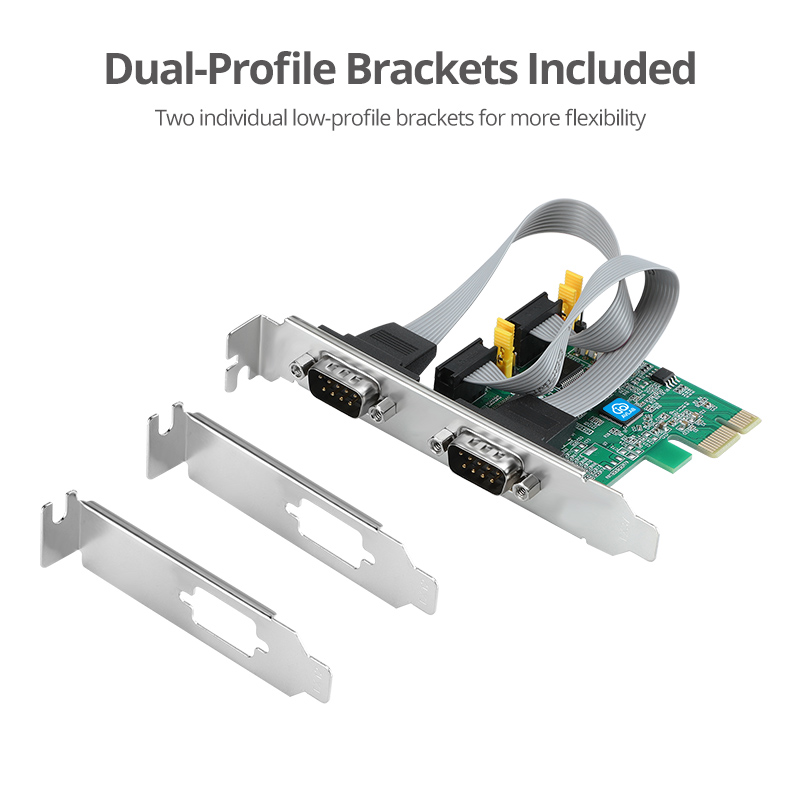

  • Dual profile design installs into both full-size and low-profile system chassis with the included mounting brackets

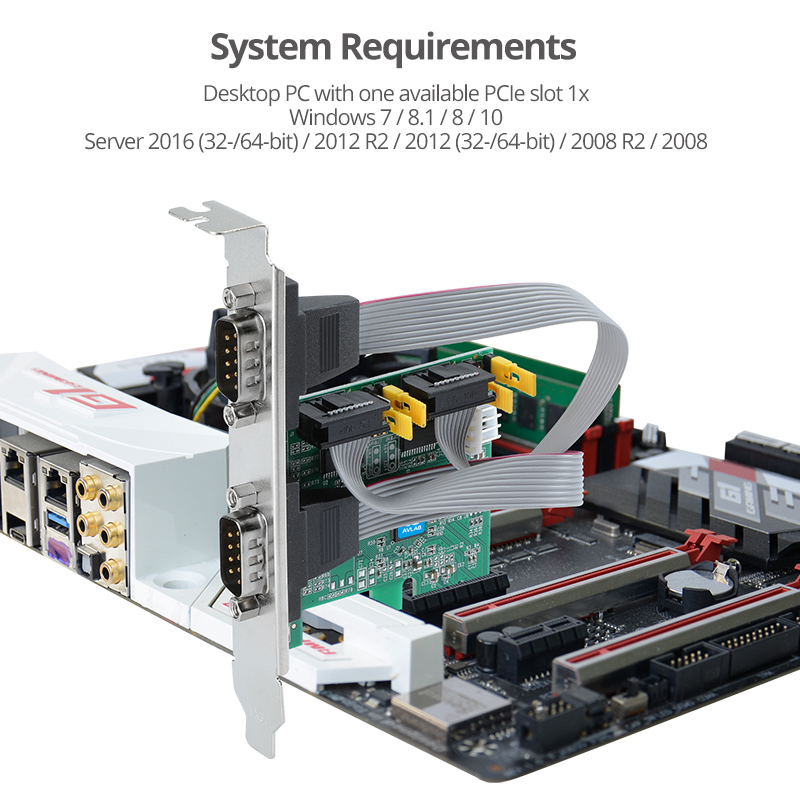

  • Installs into any PCI Express slot of any lane width
  • Perfect solution to connect with POS system, industrial testing and control device, security system, logistic management equipment, printers, scanners, etc


  • Chipset: ASIX AX99100
  • Compliant with PCI Express Base Specification 2.0
  • Bus type: One lane (x1) PCI Express
  • Data transfer rate: Up to 250Kbps
  • Flow control: Hardware and software
  • Serial format:  5, 6, 7, 8 and 9-bit
  • On chip 256-byte transmit and receive FIFO buffers for each serial port
  • Serial power output: 0V / 5V / 12V configured by jumpers
  • Power consumption: 3W
  • PCB form factor: Full and low profile (full height and low profile brackets included)
  • Product:
    • Dimensions (with full height bracket): 4.72" (L) x 0.71" (H) x 2.87" (W)
    • Weight: 0.12 lbs
    • Color: Green
    • Connectors:
      • 2x, 9-pin RS-232 Serial, Male
      • 1x, 4-pin, Molex mini, Power connector
  • Environmental conditions:
    • Operating temperature: 32 to 140 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Relative humidity: 5 to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
