• new | AVLAB-US54-1
  • DP USB 3.0 7-Port PCIe i/e

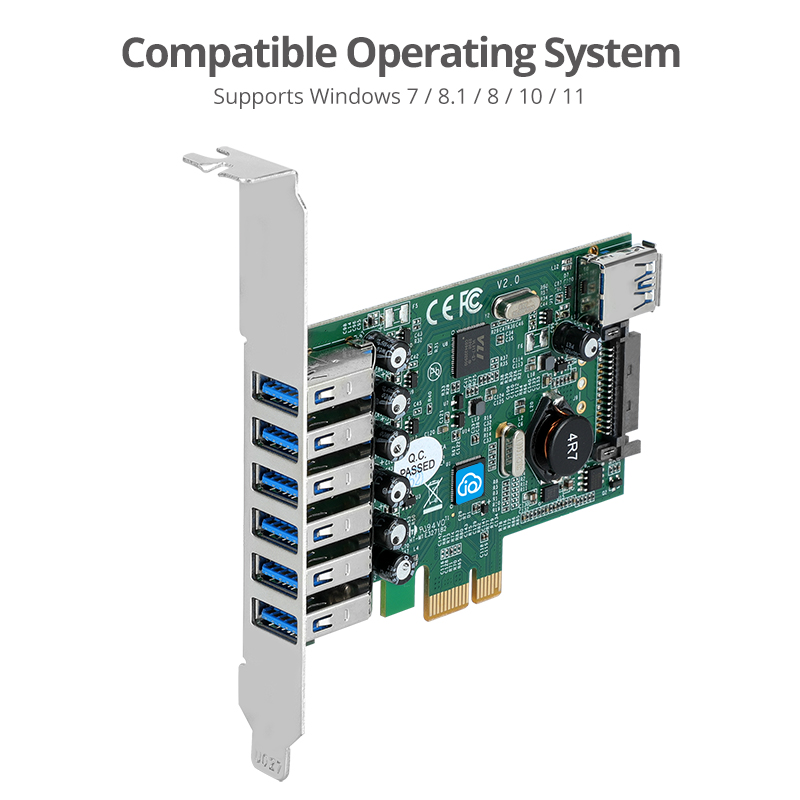

Adds six external and one internal SuperSpeed USB 3.2 Gen 1 Type-A 5Gbps ports to your PCIe enabled desktop computer, PCIe 2.0 standard

  • $0 $0

Highlights

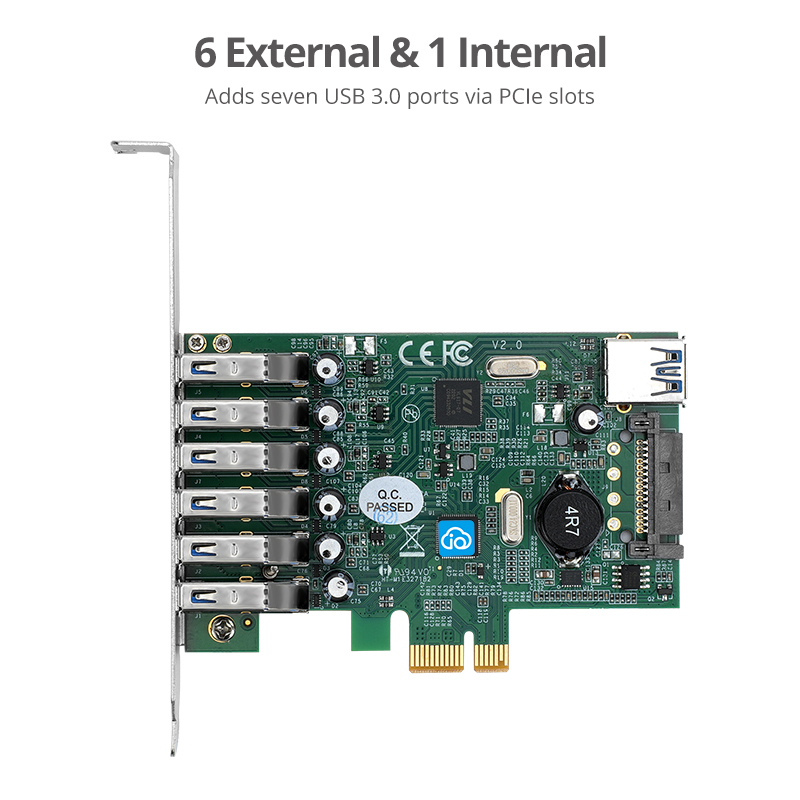

    • Adds seven SuperSpeed USB 3.2 Gen 1 Type-A 5Gbps ports, 6 external and one internal, to your desktop system
    • Industry recognized high performance Renesas uPD720201 + VL817 chipset
    • Supports the following speed data rates: Low-speed (1.5 Mbps) / Full-speed (12Mbps) / High-speed (480 Mbps) / Super-speed (5 Gbps)
    • Complies with PCIe 2.0 standard; Compliant with Intel’s eXtensible Host Controller Interface (xHCI) Specification Revision 1.0
    • Supports USB legacy function and UASP mode (UASP supports Windows 10 and 8 embedded drivers only)
    • Supports PCI Bus Power Management Interface Specification Revision 1.2

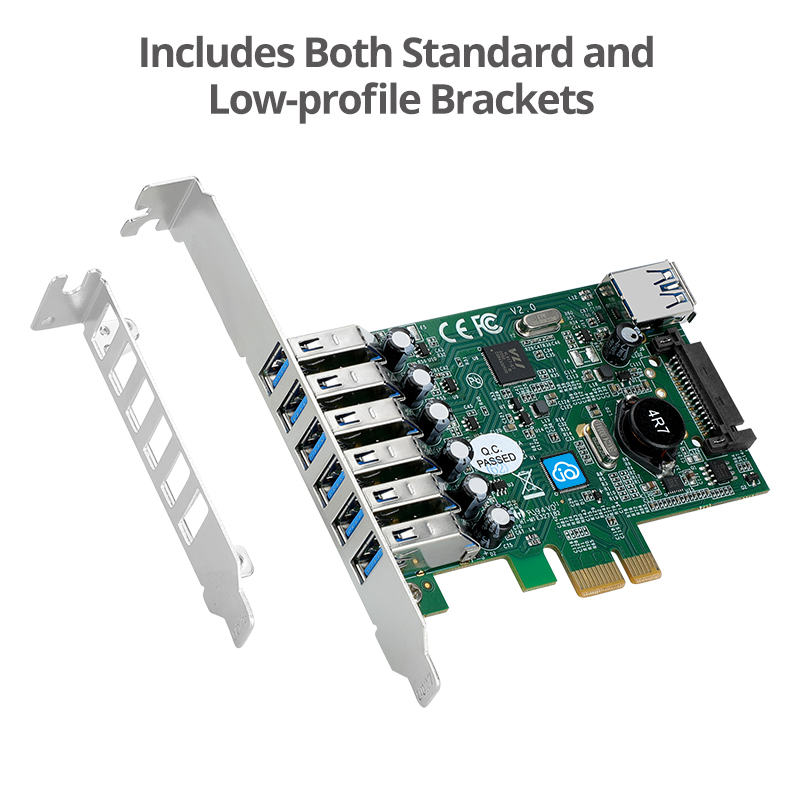

    • Dual-profile bracket included (full & low profile) designed to fit multiple system form factors with included brackets
    • Each USB port features independent over-current protection to further protect your connected devices and the PCIe board itself from unforeseen power spikes
    • Hardware Installation Note:
      SATA power connection is required

Specification

  • Chipset: Renesas uPD720201 + VL817
  • Compliant with USB 3.0 Specification
  • Compliant with PCI Express 2.0
  • USB data transfer rate: Up to 5Gbps
  • USB power output: Up to 900mA (per port)
  • Bus connector size: PCI Express 1x
  • Product:
    • Dimensions: 4.41" (W) x 4.72" (H) x 0.91"(D)
    • Weight: 0.15 lbs
    • Color: Green
    • Connectors:
      • 6x 9-pin USB 3.0 Type A, External, Female
      • 1x 9-pin USB 3.0 Type A, Internal, Female
      • 1x 15-pin SATA power connector
        • SATA power connection is required
  • Unit package:
    • Dimensions: 8.70" (W) x 6.30" (H) x 1.50" (D)
    • Weight: 0.35 lbs
  • Environmental conditions:
    • Operating temperature: 32 to 140 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS
  • Country of origin: China
