- new | AVLAB-GE01
- AVLAB Dual Profile Gigabit Ethernet PCIe - up to 1000Mb/s data transfer rate

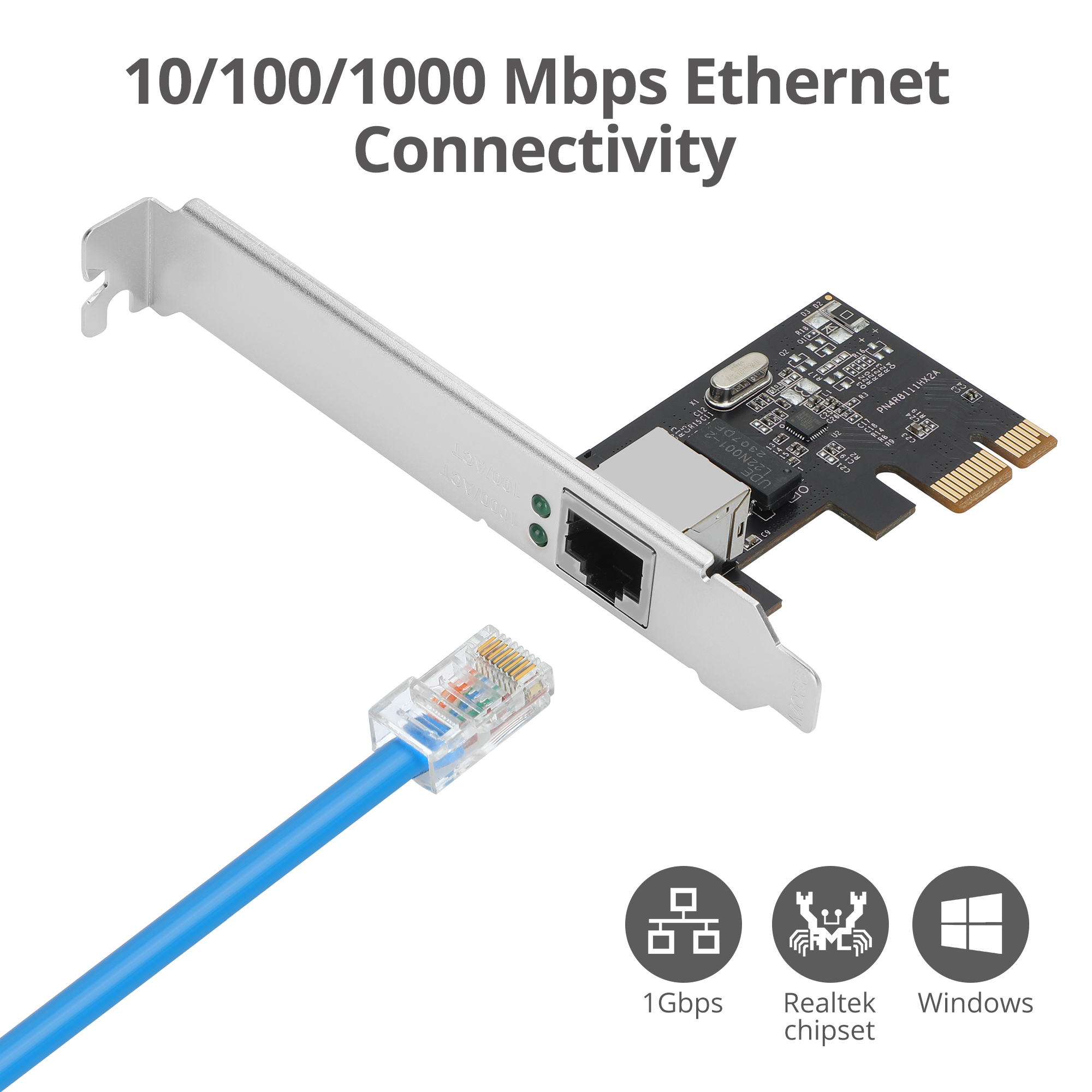

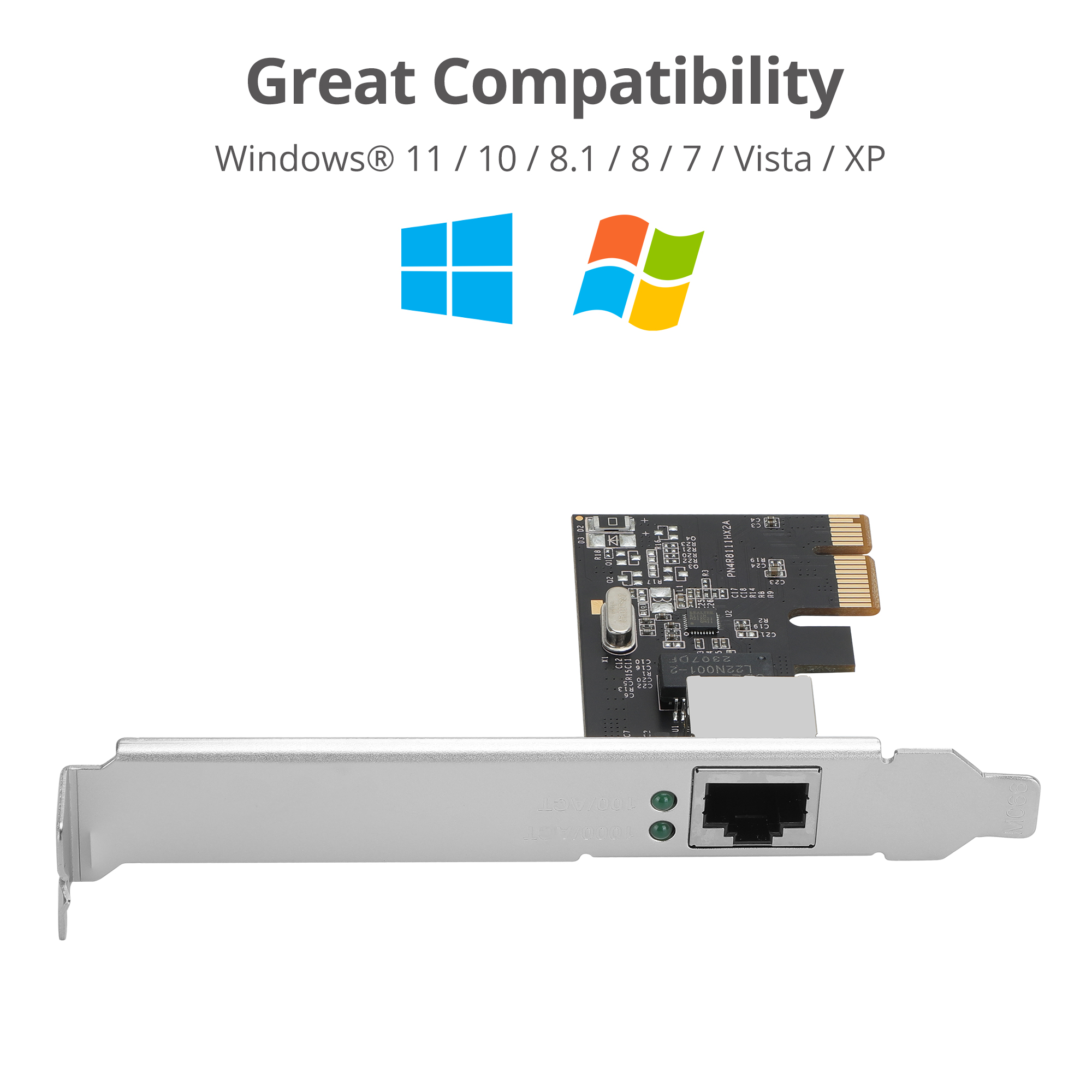

Dual Profile Single Port Gigabit Ethernet PCIe Adapter adds one high-speed Gigabit Ethernet port to PCI Express enabled desktop computers and workstations. Supports up to 1000Mb/s data transfer rate, auto-negotiation and full duplex mode to enhance your network’s performance and reliability, Works in any available PCI Express slot
- $39.99
Highlights
- Adds a high-speed Gigabit Ethernet port into PCI Express (PCIe) enabled computers
- Supports crossover detection & auto-correction
- Supports full duplex mode that doubles the network connection speed
- Supports Wake On LAN (WOL) power management
- Checksum and Segmentation Task-offload reduce CPU workloads for enhanced system response and network scalability
- Automatic MDI/MDIX crossover at all speeds
- Supports Flow Control, Layer 2 Priority Queuing, VLAN Tang and Jumbo Frames
- LEDs indicate the Link/Activity status and 10/100/1000 Mbps
- Easy plug-n-play installation and works in any available PCI Express slot

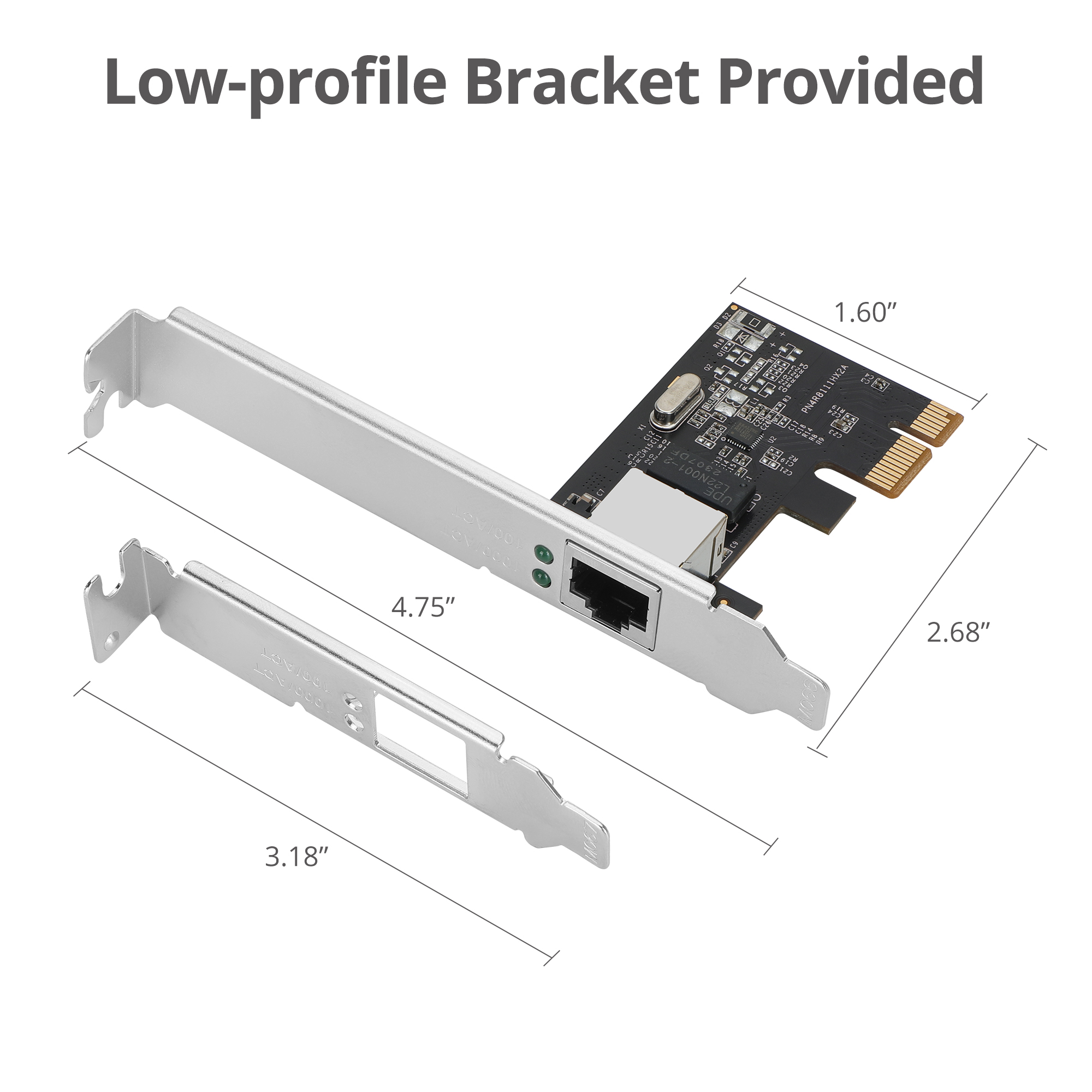

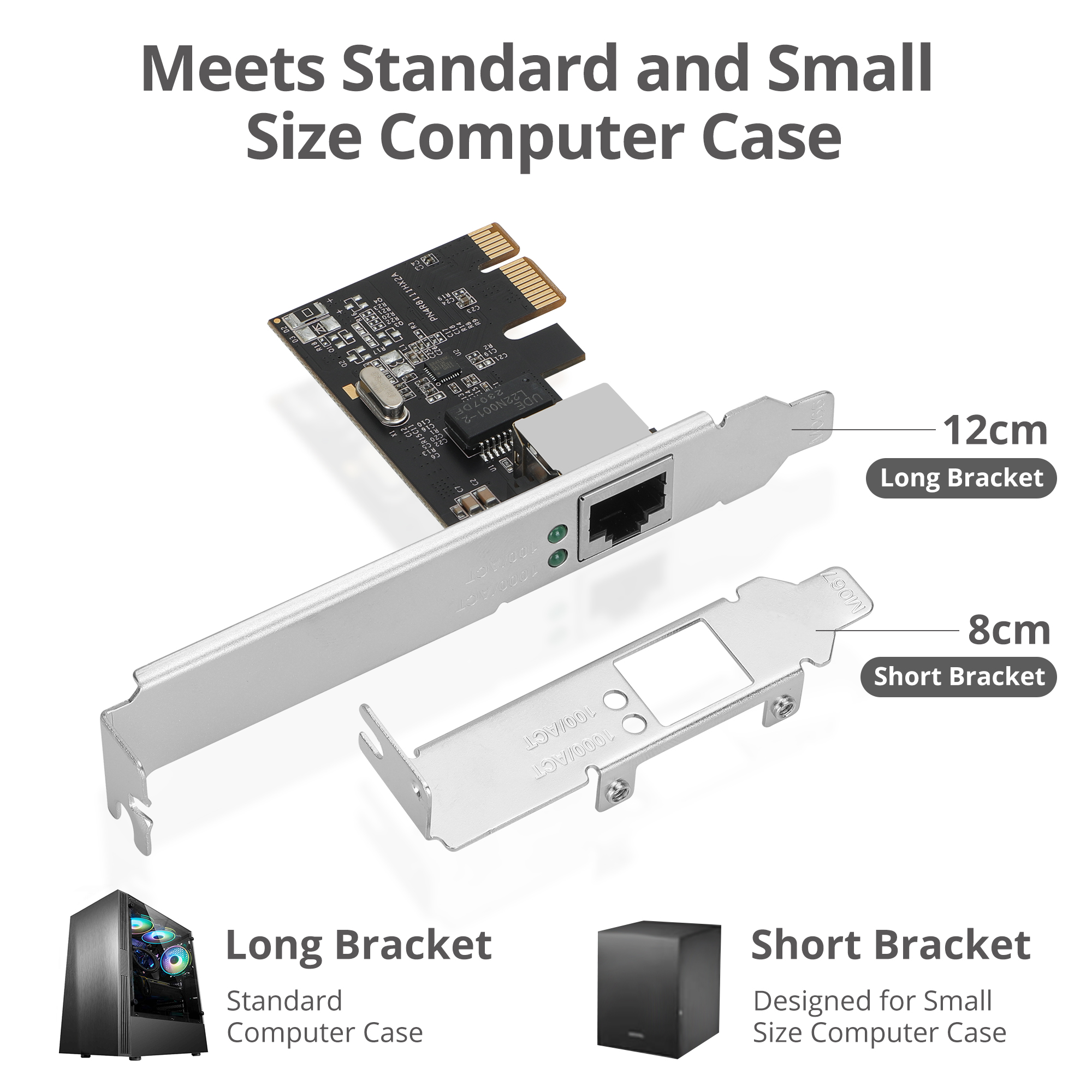

- Dual Profile design to work with standard height and low profile chassis
Specification
-
- Chipset: Realtek RTL8111H
- Compliant with PCI Express v1.1 Specification
- Compliant with IEEE 802.3, IEEE 802.3u, IEEE 802.3ab
- Supports up to 1000 Mb/s data transfer rate and is backward compatible with 10/100 Mb/s
- Product:
- Dimensions: 4.72" (W) x 2.64" (H) x 0.79" (D)
- Weight: 0.07 lbs
- Color: Black
- Interface: x1 (1-Lane), PCI Express
- Connector: 1x 8-pin, RJ45, Female
- Unit package:
- Dimensions: 8.70" (W) x 1.50" (H) x 6.30" (D)
- Weight: 0.37 lbs
- LED indicators:
- 100 Link/Active LED (Green)
- 1000 Link/Active LED (Green)
- Environmental conditions:
- Operating temperature: 32 to 122 degrees F
- Storage temperature: -4 to 140 degrees F
- Relative humidity: 5% to 85% RH (non-condensing)
- Certifications/Standards: FCC, CE, RoHS
- Country of origin: Engineered in USA , Manufactured in China
