• new | AVLT-CH37-1
  • 200W GaN PD Combo Charger - 3C1A

Powerful 4-Port high-power charger with three USB-C PD 3.0, Fast Charger 2.0, PPS, and one USB-A Quick Charge 3.0 fast charging port, Supports maximum 200W output totally, C1/C2 up to 100W, C3 up to 65W, USB-A up to 60W

  • $0 $0

Highlights

  • This 200W Gan PD Combo Charger with three USB-C charging ports, one USB-A charging port, and Gallium Nitride 2 (Gan2) Pro technology makes the best power charging efficiency

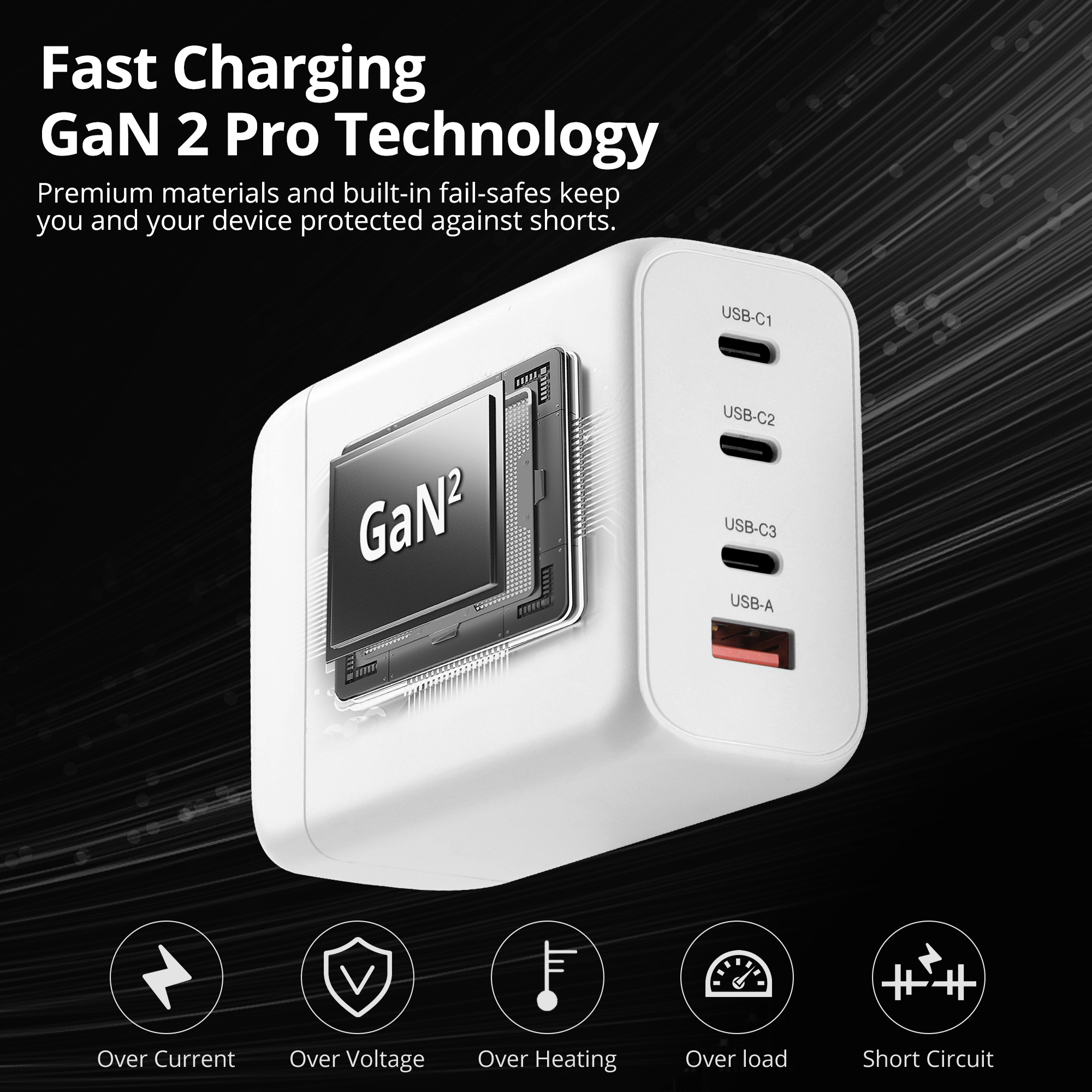

  • New GaN2 Pro: Built-in the new semiconductor material achieves low heat temperature, higher charging efficiency, hard, and smaller size. Allows operation at higher voltages and switching frequencies is more powerful and durable and offers multiple protections to protect your devices from Over-load, Over-Current, Short-Circuit, and Over-Voltage

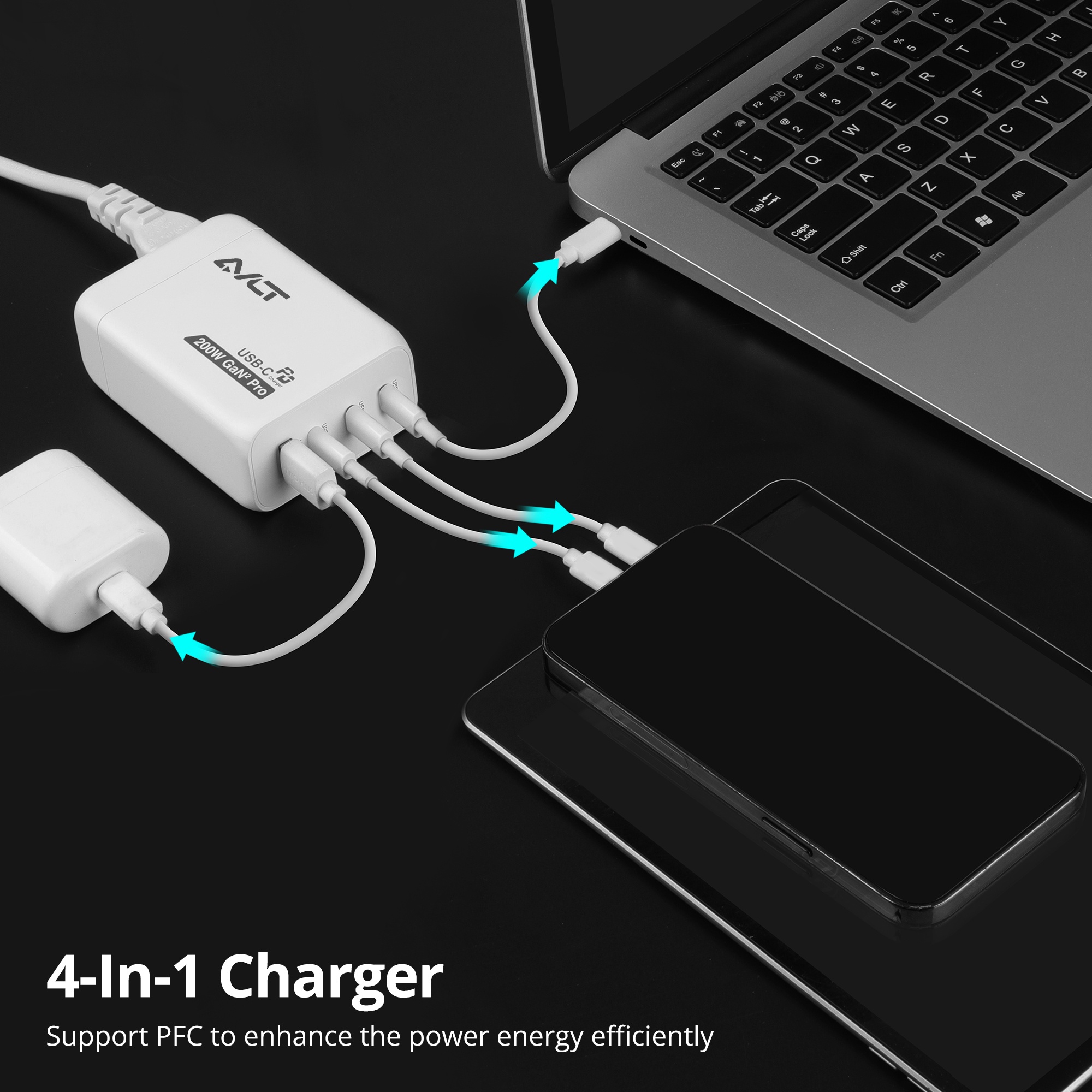

  • PFC Technology: Support the PFC (power factor correction) feature to enhance the power energy efficiently and to reduce the amount of reactive power generated by a PC or device
  • 200W Fast Charging/QC 3.0: Provides a total 200 watts power output- Max. 2x USB-C 100W (USB-C1 & 2) charging ports, 1x USB-C 65W (USB-C3) charging port and 1x USB-A 60W (USB-C4) charging ports enable fully charging laptops, smartphones and tablets simultaneously
  • USB Power Source" Offers Power Delivery 3.0 (PD 3.0), Fast Charging 2.0, and Programmable Power Supply (PPS) technologies to meet most USB-C power devices, and Quick Charger 3.0 (QC 3.0) compliant with USB-A power device for reliable and stable power
  • Multiple Connectivity Port: Comes with two USB-C charging ports (Max. 100W), one USB-C charging port (Max. 65W), one USB-A (Max. 60W), an AC power jack (200W)

Specification

  • Power
    Power adapter Input: AC 100-240V / 50-60Hz, Output: AC 200W
    USB-C1 & C2 charging ports (PD) DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/5A (Max.100W)
    USB-C3 charging port (PD) DC 5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A (Max. 65W)
    USB-A charging port (QC 3.0) DC 5V/4.5A, 5V/3A, 9V/3A, 12V/3A, 20V/3A (Max. 60W)



    Auto Adjustment Power Delivery
    1-Port 2-Port 3-Port 4-Port
    USB-C1
    100W    		 USB-C1+C2
    100W+100W    		 USB-C1+C2+C3
    100W+65W+30W    		 USB-C1+C2+C3+USB-A
    100W+65W+ (12W+12W)*
    *share 24W
    USB-C2
    100W    		 USB-C1+C3
    100W+65W    		 USB-C1+C2+USB-A
    100W+65W+30W
    USB-C3
    65W    		 USB-C1+USB-A
    100W+60W    		 USB-C2+C3+USB-A
    100W+(12W+12W)*
    *share 24W
    USB-A
    60W    		 USB-C2+C3
    100W+65W
      USB-C2+USB-A
    100W+60W
      USB-C3+USB-A
    (12W+12W)*
    *share 24W



    Protection circuit module
    Over-Current, Over-Voltage, Over-Charge, and Short-Circuit protection
    Environmental conditions
    Operating temperature 14 to 104 degrees F
    Storage temperature -4 to 158 degrees F
    Relative humidity: 5% to 95% RH (non-condensing)
    Product Info
    Dimensions 3.26” (L) x 1.38” (H) x 2.48” (W)
    Weight 0.66 lbs
    Color White
    Housing material Plastic
    Unit Package
    Dimensions 4.72” (L) x 1.57” (H) x 6.30” (W)
    Weight 1.05 lbs
    Certifications/Standards
    FCC, RoHS 2.0, REACH, ETL
    Country of origin: China
