• new | AVLT-CH39
  • 240W GaN PD 3.1 Charger - 3C1A - 3x USB-C + 1x USB-A - USB-C Power Adapter

  • $179.99 $179.99

Highlights

  • Simultaneously charge for USB-C and USB-A power devices to optimize charging efficiency, allows to charge 4 devices perfectly at the same time
  • Triple USB-C ports, USB-C1 supports up to 140W, USB-C2/C3 supports up to 100W, and one USB-A port supports up to 30W , the charger supports a maximum output of 240W

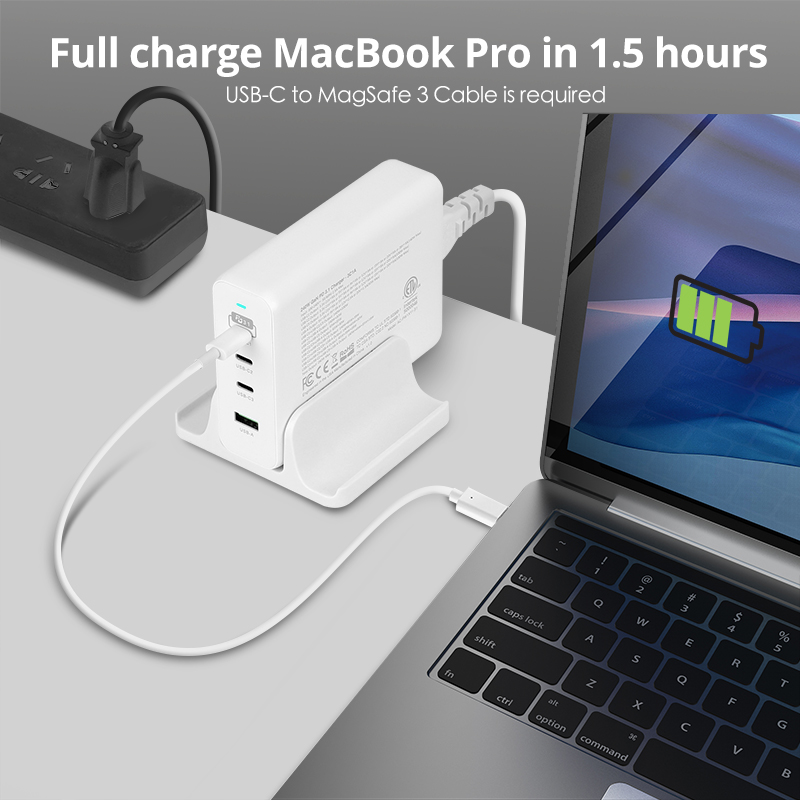

  • USB-C1 port compatibility with USB Power Delivery 3.1, allows you to charge for 2021 MacBook Pro 16” full of in 1.5 hours (Note: USB-C to MagSafe 3 Cable required for 140W PD output is NOT included)
  • USB-C2/C3 ports are compatible with Power Delivery 3.0, Fast Charger 2.0 / PPS technology protocol, USB A port is compatible for Quick Charger 3.0 protocol
  • New Gallium Nitride (GaN) 2 Pro semiconductor material, low heat temperature, smaller size, higher charging efficiency, allows for power devices can operate at higher voltages and switching frequency which is more powerful and durable, provide multiple protection inside protects your devices against over current, short circuit and over voltage
  • The USB Type-C charging box is not only suitable for various systems such as iOS of Apple products, Android as well as Windows, but also supports USB devices, such as smartphones and laptops with USB-C ports, tablets, Switch, game consoles, cameras and more Cellphone accessories. Moreover, it works well with USB-C to USB-C cord, USB-C to USB-A power cable, USB-C to iPhone charger cable…etc
  • Safety Protection: Built-in over-load, over-voltage, over-current, over heating and short-circuit protection circuitry, protects your devices and the charger itself from unforeseen power problems while charging
  • Compact and portable design, easy to carry

Specification

  • USB A port: Quick Charger 3.0 protocol
  • USB-C1 ports: USB Power Delivery 3.1, Fast Charger 2.0 /PPS specification compatible
  • USB-C2/3 ports: USB Power Delivery 3.0, Fast Charger 2.0 /PPS specification compatible
  • AC Input: AC 100-240V, 50/60Hz, 2.5A
  • Power output:
    • Total power output: 240 watts shared among all the charging ports
    • Single port used:
      • USB-C1 Up to 140W of 28V/5A
      • USB-C2 Up to 100W of 20V/5A
      • USB-C3 Up to 100W of 20V/5A
      • USB-A Up to 30W of 20V/1.5A
    • Dual port used:
      • USB-C1 + USB-C2 = 140W + 100W
      • USB-C1 + USB-C3 = 140W + 100W
      • USB-C1 + USB-A = 140W + 30W
      • USB-C2 + USB-C3 = 65W + 35W
      • USB-C2 + USB-A = 65W + 30W
      • USB-C3 + USB-A = 65W + 30W
    • Triple port used:
      • USB-C1 + USB-C2 + USB-C3 = 140W + 65W + 35W
      • USB-C1 + USB-C2 + USB-A = 140W + 65W + 30W
      • USB-C1 + USB-C3 + USB-A = 140W + 65W + 30W
      • USB-C2 + USB-C3 + USB-A = 45W + 35W + 18W

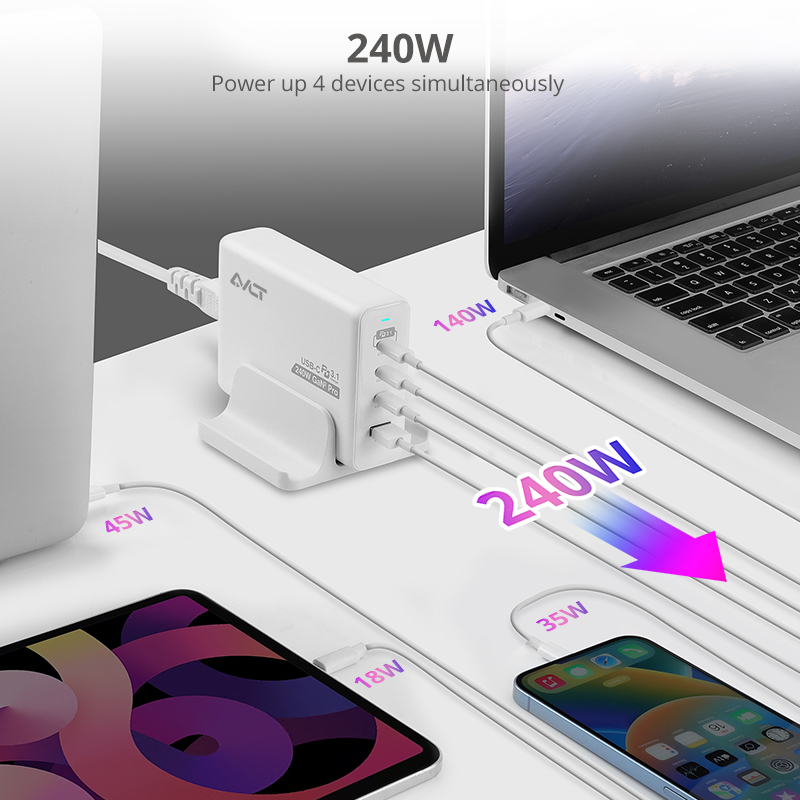

    • Quad port used:
      • USB-C1 + USB-C2 + USB-C3 + USB-A = 140W + 45W + 35W + 18W
  • Protection: Over-load, Over-Voltage, Over-Current, Over Heating and Short-Circuit
  • Product:

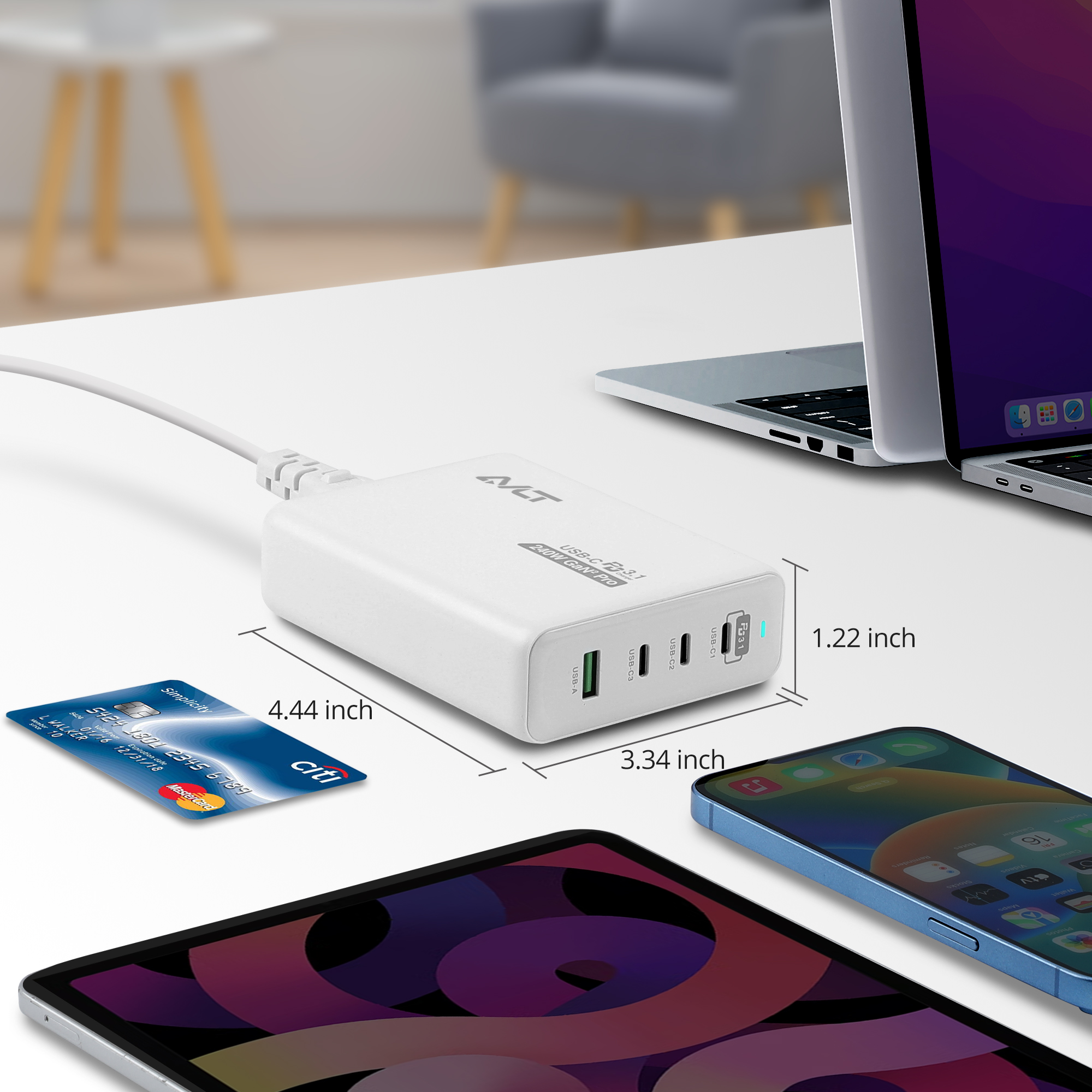

    • Dimensions: 4.45" (W) x 1.28"(H) x 3.39" (D)
    • Weight: 1.26 lbs
    • Housing material: Plastic
    • Color: White
    • Connector:
      • 1x AC power plug in AC 100-240V, 50/60Hz, 2.5A, input
      • 3x 24-pin, USB-C, Female, output
      • 1x 4-pin, USB-A, Female, output
  • Unit package:
    • Dimensions: 6.38"(W) x 3.46"(H) x 5.04"(D)
    • Weight: 1.85 lbs
  • Environmental conditions:
    • Operating temperature: 14 to 104 degrees F
    • Storage temperature: -4 to 158 degrees F
    • Relative humidity: 5% to 90% RH (non-condensing)
  • Certifications/Standards: FCC, CE, RoHS, ETL
