- new | AVLAB-CB49-1
- AVLAB 4K HDMI 2.0 AOC Cable - 60M
■ Connects DisplayPort source devices to DisplayPort equipped monitors or displays over long distances ■ Transmits Ultra HD 4K signals up to 60 meters (197ft) ■ Compliant with DisplayPort 1.2 specification, 1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps ■ 21.6Gbps signal bandwidth and up to 4Kx2K 60Hz YUV 4:4:4 resolution ■ AOC (Active Optical Cable) Fiber/Copper inner conductor material and gold-plated connectors provide maximum video clarity ■ Very low Electro-Magnetic Interference (EMI) and Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments ■ Features unidirectional connection requiring the cable to be installed in a specific direction, the end marked Source plugs into a DisplayPort source and the end marked Display plugs into a DisplayPort TV, monitor, projector, and other display devices ■ Premium quality latching DisplayPort connector prevents accidental disconnection ■ Plug and Play and hot swappable
Highlights
Connects DisplayPort source device
To DisplayPort equipped monitors or displays over long distances

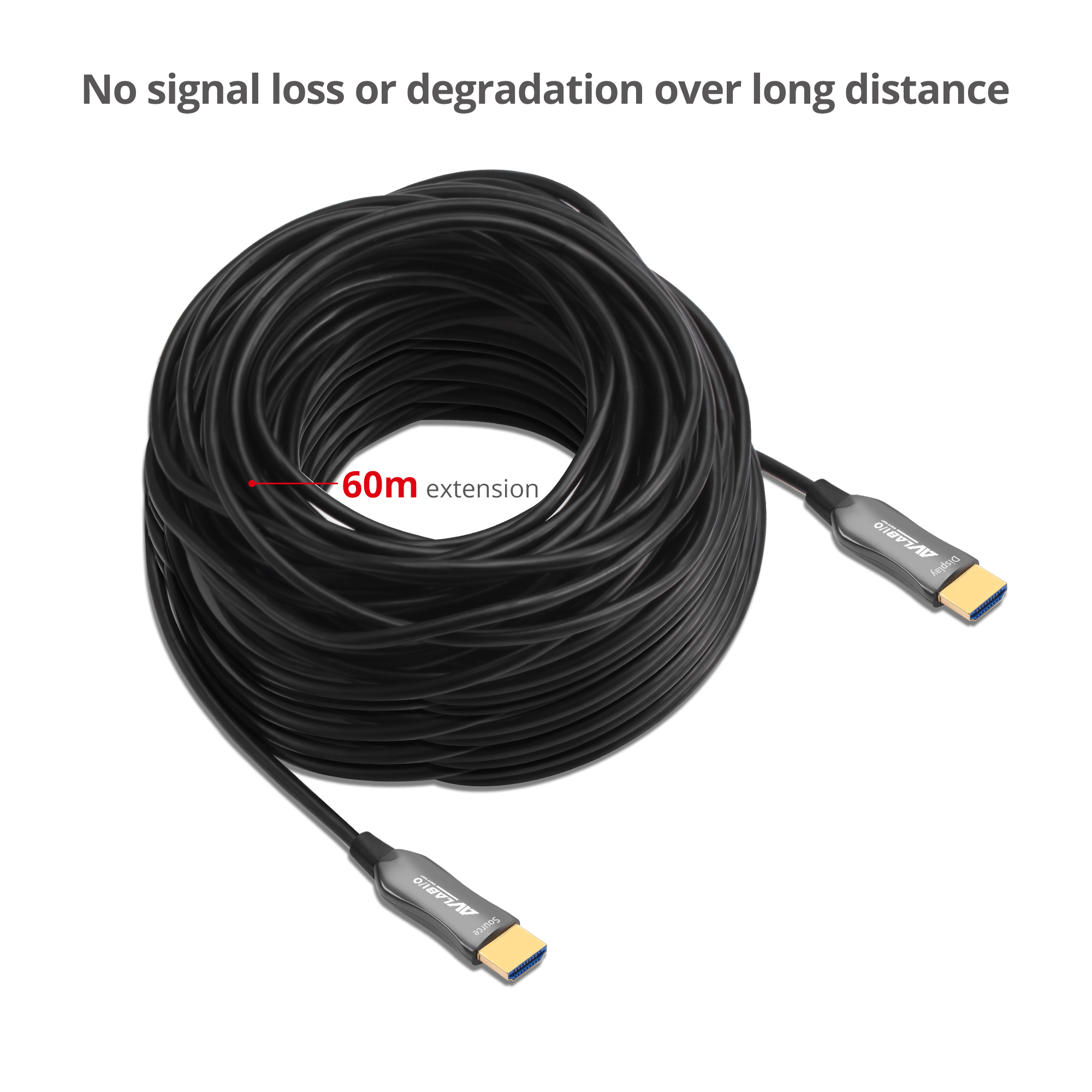

Transmits Ultra HD 4K signals up to 60 meters (197ft)
Compliant with DisplayPort 1.2 specification
1, 2 and 4 lanes at 1.62Gbps, 2.7Gbps & 5.4Gbps
21.6Gbps signal bandwidth
And up to 4Kx2K 60Hz YUV 4:4:4 resolution
AOC (Active Optical Cable) Fiber/Copper inner conductor material

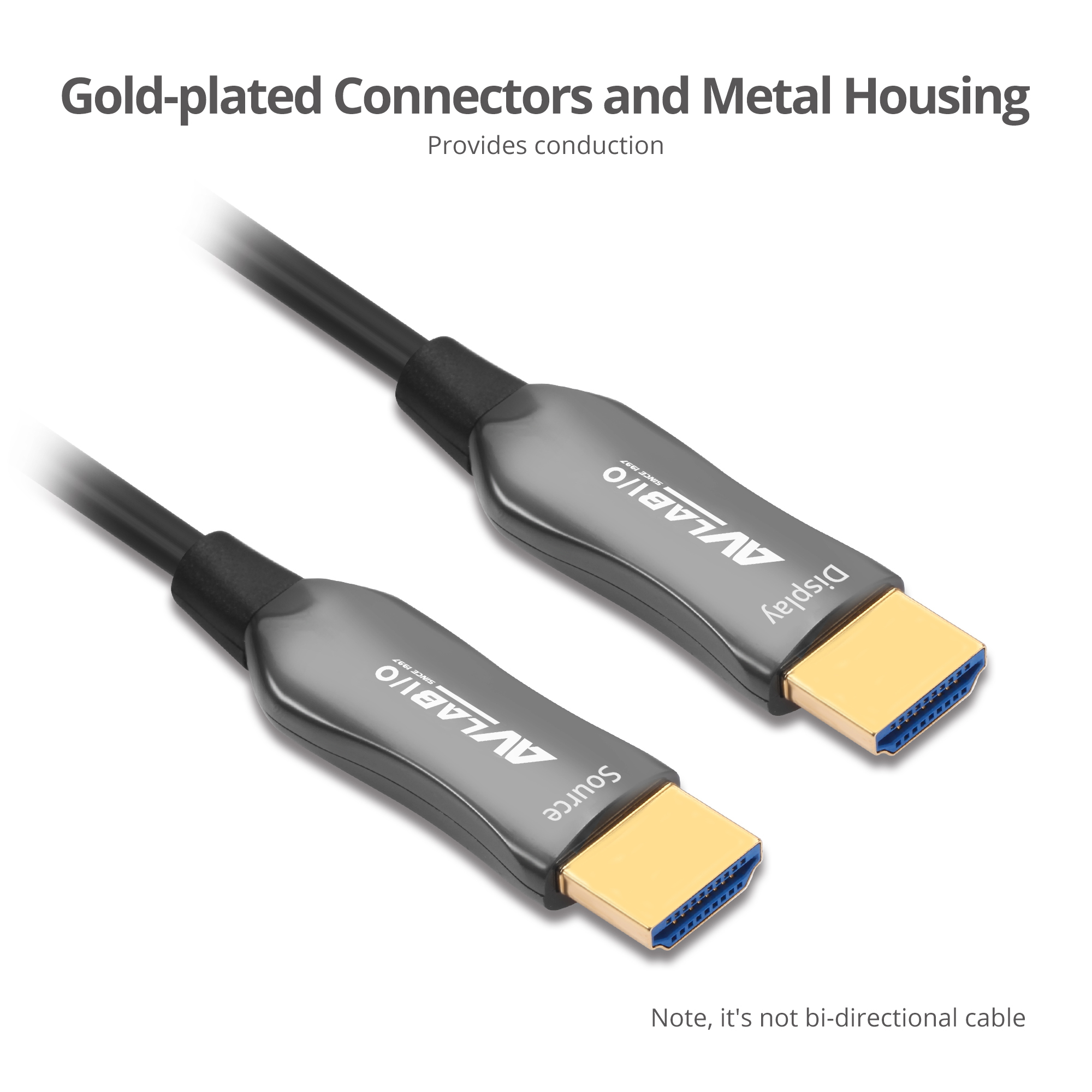

And gold-plated connectors provide maximum video clarity
Very low Electro-Magnetic Interference (EMI)
And Radio Frequency Interference (RFI) profile allows installing the cable into sensitive environments
Features unidirectional connection requiring the cable to be installed in a specific direction
The end marked Source plugs into a DisplayPort source and the end marked Display plugs into a DisplayPort TV, monitor, projector, and other display devices
Premium quality latching DisplayPort connector prevents accidental disconnection
Plug and Play and hot-swappable
Specification
Compatible with DisplayPort 1.2 specification
Complies with HDCP 2.2 and 1.4 content protection
Resolution: Up to 4Kx2K 60Hz YUV 4:4:4
Bandwidth: Up to 21.6Gbps (5.4Gbps per channel)
Active Optical Cable Technology:4x Discrete Optical Channels, 10GHz, 850nm
Cable outside diameter:4.5mm OD
Wire gauge:26AWG
Cable jacket:
■ PVC
■ Flame retardance: UL VW-1
Product:
■ Cable length: 60m (197ft)
■ Cable weight: 3.92 lbs
■ DP connector housing material: Zinc alloy
■ Color: Black
Connectors:
■ 1 x 20-Pin, DisplayPort, Latching, Male, Source
■ 1 x 20-Pin, DisplayPort, Latching, Male, Display
■ Gold plated
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: -10 to 158 degrees F
■ Humidity: < 5% to 85% (non-condensing)
Certifications/Standards:FCC, CE, RoHS
Warranty:1 year limited
Country of origin: Engineered in the USA / Manufactured in China
Note: This cable features unidirectional design, which requires the cable to be installed in a specific direction. Each DisplayPort connector is labeled for easy cable orientation to ensure proper device connection.
Package Contents
■ 4K DP 1.2 AOC Cable - 60M
