• AVLAB-CB75-1
  • AVLAB-I/O USB 3.0 Type-A Optical Active Male to Female Cable 30M

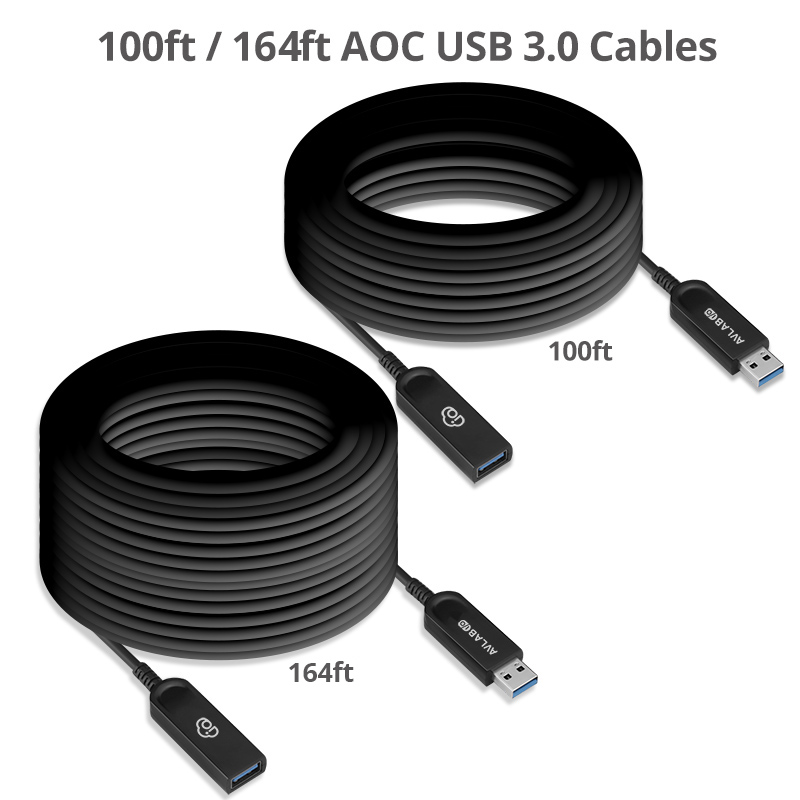

Active optical cable easily extends USB 3.0 signals up to 30 meters (100 feet)

  • $0 $0

Highlights

  • Easily extends USB 3.0 (3.2 Gen 1) signals up to 100ft (30 meters)

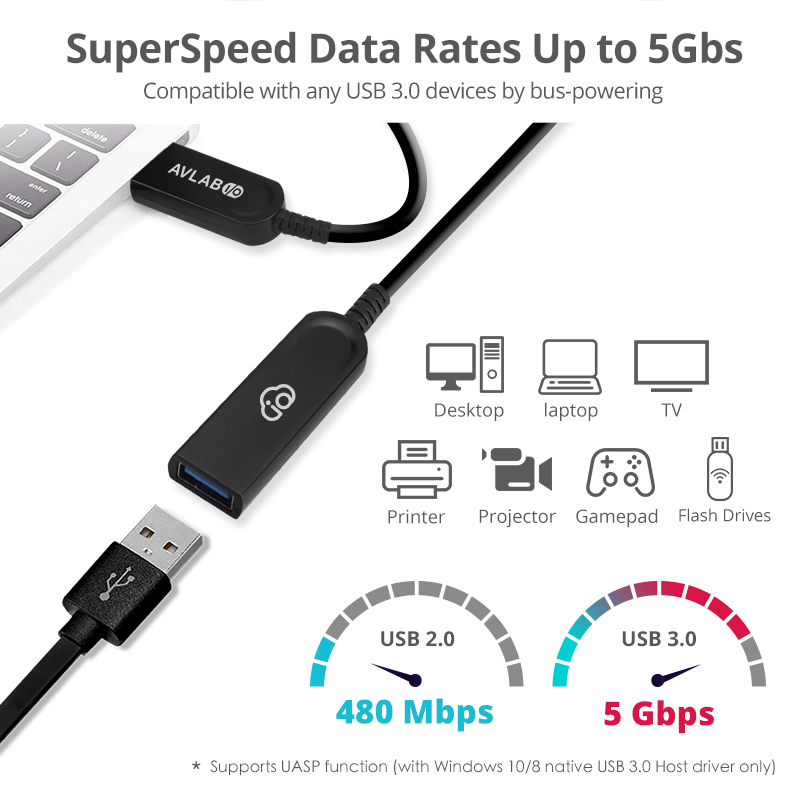

  • Delivers SuperSpeed USB data rates of up to 5Gbps
  • Supports transparent extension of USB 3.2 Gen1 and compatible with virtually all USB 3.0 devices including 4K USB 3.0 cameras and USB 3.0 memory devices
  • Perfect solution for anyone who needs to send high definition video long distance through USB 3.0
  • Offers fiber-optic noise immunity
  • Supports UASP function (with Windows 10/8 native USB 3.0 Host driver only)
  • Plug-n-play, no driver installation required
  • Notes:
  • Not backwards compatible with USB 2.0 and USB 1.1 devices
  • For high power consuming USB devices, use the device's included power adapter for reliable power

Specification

  • Compliant with USB 3.0 specification
    • Note: Not compatible with USB 2.0 or USB 1.1 devices
  • Chipset: Silicon line 86051
  • Bandwidth: USB 3.0 up to 5Gbps
  • Power: Bus power and require no external power supply
    • Note: For high power consuming USB devices, use the device's included power adapter for reliable power
  • Cable shielding: Triple shielded (Fiber / Copper Hybrid)
    • Shielding 1: Twisted-pair copper: polyethylene
    • Shielding 2: Kevlar
    • Shielding 3: Aluminum Mylar
  • Cable conductors: Copper: AGW 28 / Fiber: OM3
  • Outer material: PVC Jacket
  • Outer diameter: 4.5mm
  • Housing material: Die Cast Zinc Alloy
  • Data transfer rate: Up to 5Gbps
  • Power output: 5V/800mA
  • Power consumption: 50mA (Max)
  • Product:
    • Length: 30m (100ft)
    • Weight: 2.86 Lbs
    • Connectors:
      • 1x 9-pin USB 3.0 Type-A, Male
      • 1x 9-pin USB 3.0 Type-A, Female
    • Connector dimensions:
      • Type-A (Male): 40mm (L) x 9mm (H) x 18mm (D)
      • Type-A (Female): 52.5mm (L) x 9mm (H) x 18mm (D)
  • Environmental conditions:
    • Operating temperature: 32 to 149 degrees F
    • Storage temperature: 14 to 158 degrees F
    • Humidity: < 10% to 85% (non-condensing)
  • Certifications/Standards: CE, FCC, RoHS, REACH
  • Country of origin: Engineered in the USA / Manufactured in China
