  • AVLAB-CB15-1

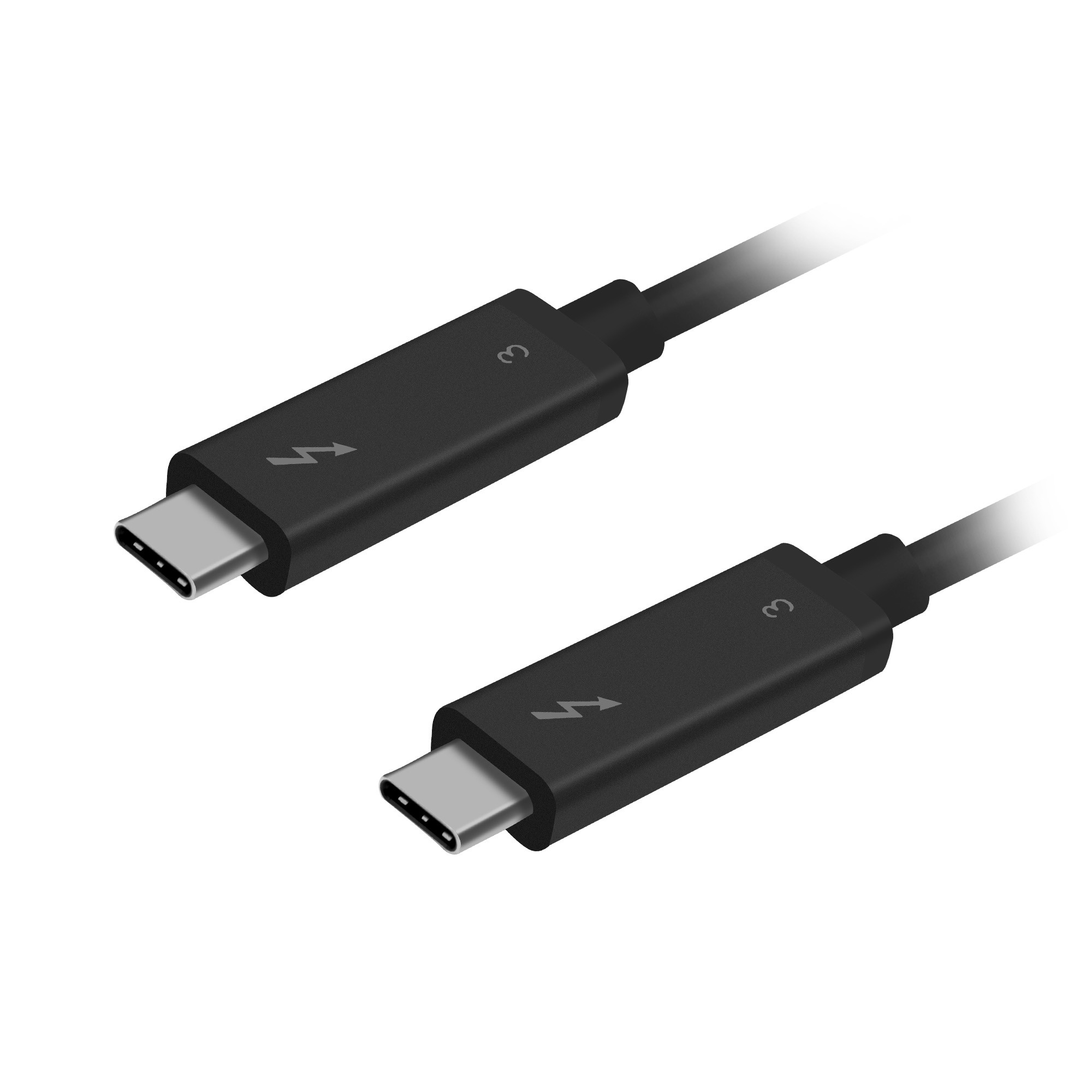

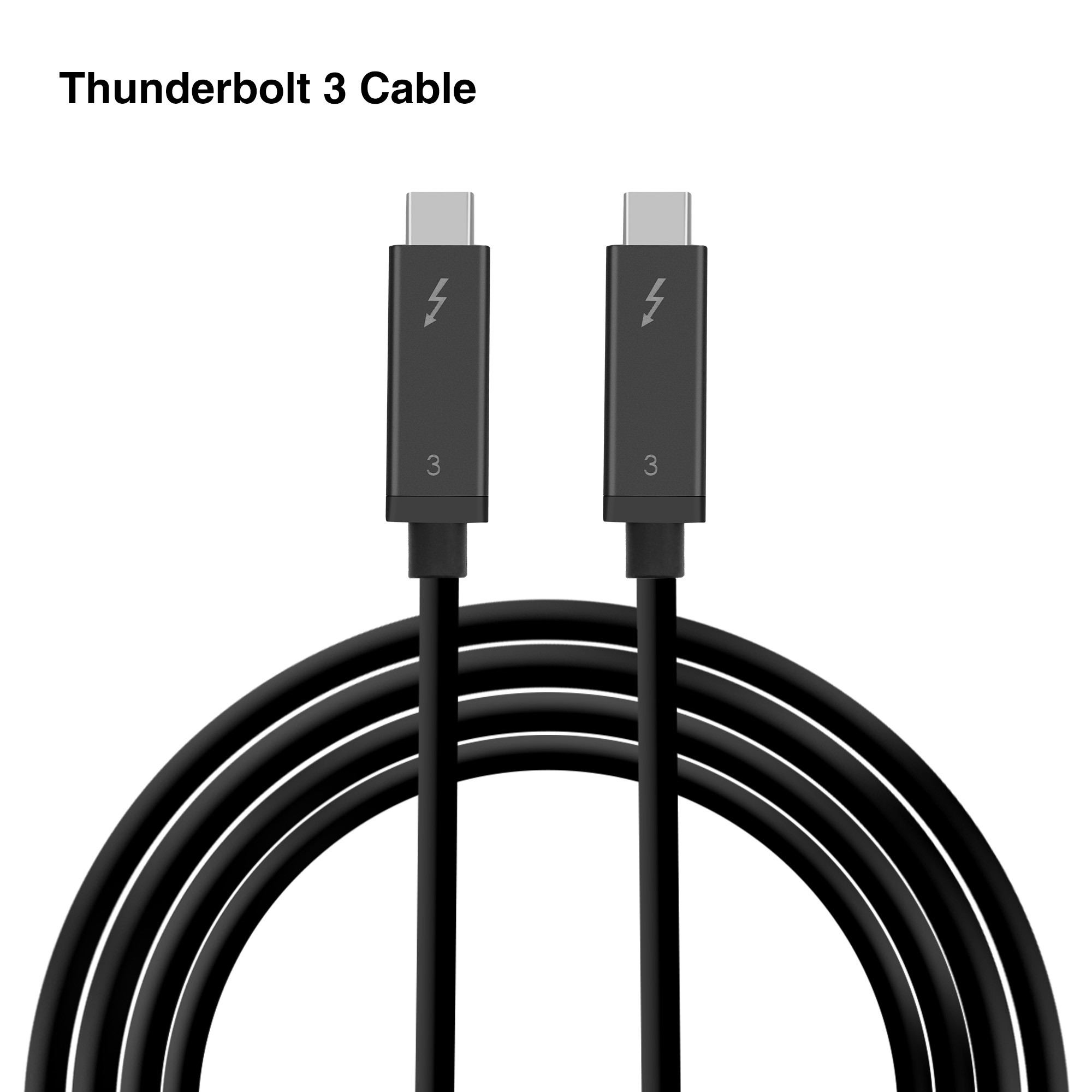

  • AVLAB Thunderbolt 3 40Gbps Active Cable - 2M

■ Advanced active ThunderboltTM 3 cable with transceivers and electronics regulates the data transfer through the cable for reliable connection and performance
■ ThunderboltTM 3 active cables provide the best performance from today's small reversible USB-C interface
■ Provides fast reliable ThunderboltTM 3 performance - data transfer speeds up to 40Gbps up to 4 times the speed of previous Thunderbolt generations, Ultra high resolution video to connect up to 2 4K monitors or one 5K monitor, and USB 2.0 speed up to 480Mbps*
■ Compliant with USB Power Delivery 2.0, supports up to 100W (20V/5A) power charging your notebook/laptop
■ USB-C ThunderboltTM 3 active cable is ideal for single cable Thunderbolt 3 docking station solution, one cable with reversible connectivity is all you need
*Note: Active ThunderboltTM 3 cables are limited to USB 2.0 speed by design

  • $0 $0

Highlights

Advanced active ThunderboltTM 3 cable
with transceivers and electronics regulates the data transfer through the cable for reliable connection and performance

ThunderboltTM 3 active cables provide the best performance
from today's small reversible USB-C interface

Provides fast reliable ThunderboltTM 3 performance
- data transfer speeds up to 40Gbps up to 4 times the speed of previous ThunderboltTM generations, Ultra high resolution video to connect up to 2 4K monitors or one 5K monitor, and USB 2.0 speed up to 480Mbps*

Compliant with USB Power Delivery 2.0
, supports up to 100W (20V/5A) power charging your notebook/laptop

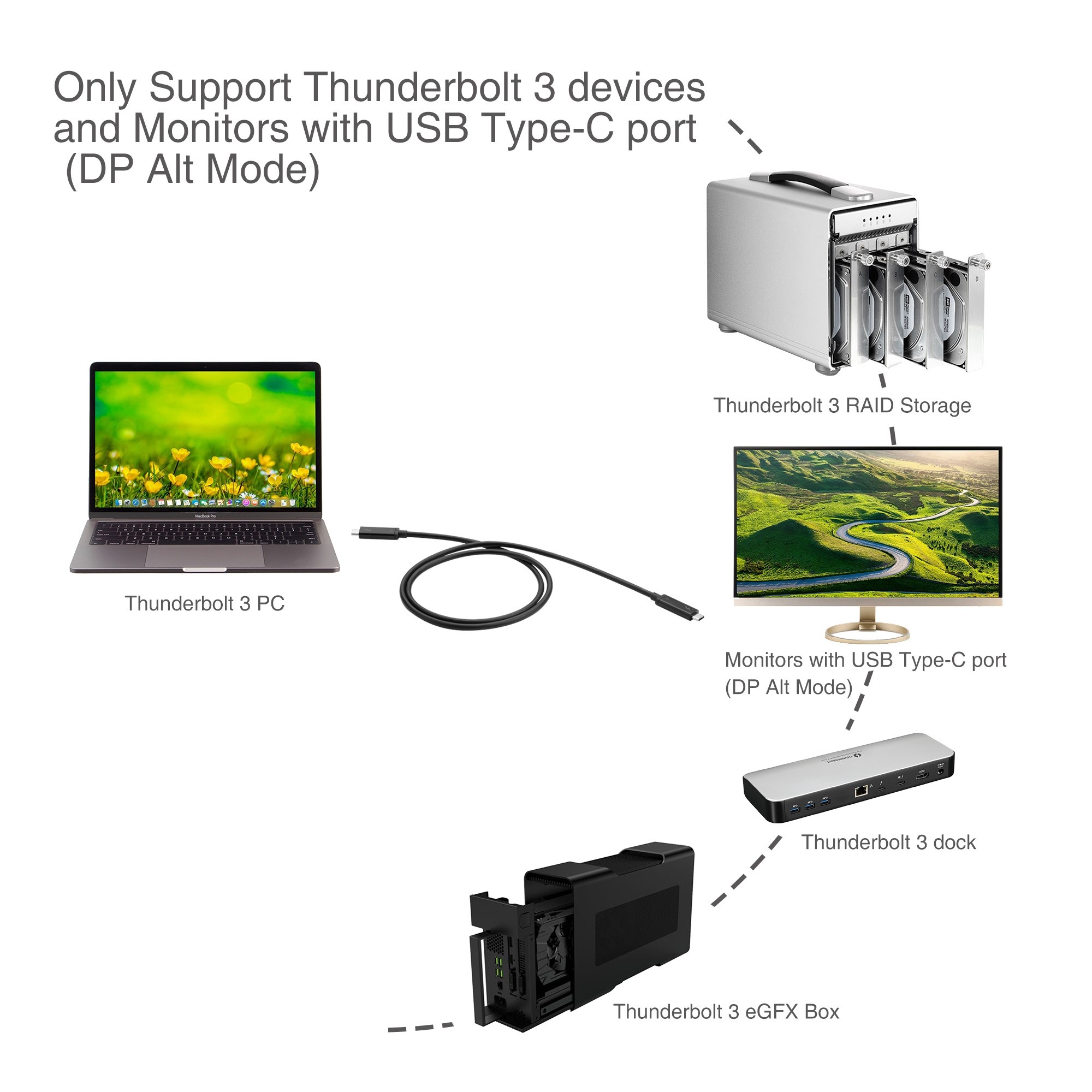

USB-C ThunderboltTM 3 active cable is ideal for single cable ThunderboltTM 3 docking station solution
, one cable with reversible connectivity is all you need

*Note: Active ThunderboltTM 3 cables are limited to USB 2.0 speed by design



Specification

Length: 2 meters


Connector: USB Type-C, male to male


Data transfer rate:
■ 40Gbps, Thunderbolt
■ 480Mbps, USB 2.0
 Note: Active Thunderbolt 3 cables are limited to USB 2.0 speed by design


Power delivery capacity: 100W (20V/5A)


DisplayPort v1.2


Color: Black


Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Humidity: 10% to 90% RH (non-condensing)


Certifications/Standards: RoHS, ThunderboltTM 3


Warranty: 1 year limited


Country of origin: Taiwan


Requirements
■ Windows and Mac computers with an available Thunderbolt 3 port


Package Contents
■ ThunderboltTM 3 40Gbps Active Cable - 2M

Download

FAQ

  • Q: What is USB Type-C?
  • USB-C is a type of USB connector that is capable of supporting the following:
    ■ Data transfer speeds up to 10Gbps, if you use USB 3.1.
    ■ Bi-directional power delivery up to 100W, if both the USB host connection and the device support it.
    ■ Alternate modes, which deliver different types of data at different speeds. For example, DisplayPort Alternate Mode (DP Alt Mode).

    If using Thunderbolt 3 over USB-C, the connection is capable of additional features. For example, Thunderbolt 3 is capable of 40Gbps of total bandwidth.

    Not all USB-C ports or devices are capable of supporting all of the features listed above, or all of the features at the maximum capabilities. If you require a specific USB-C feature, your USB host connection, cables, and device must all support the feature that you require. For more information about whether your components support specific USB-C features, refer to the information provided by the manufacturers.
  • Q: Does this cable/adapter require me to install drivers. Or perform any other setup tasks?
  • This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
  • Q: The monitor is not getting a signal and the monitor says “Out of Range.” What do I do?
  • The error “Out of Range” normally means that the resolution being output by the computer is not compatible with the display. Try lowering the resolution to see if that helps resolve the issue.

    You may need to connect another monitor or restart the computer or source to accomplish this.
  • Q: What is Thunderbolt 3?
  • Thunderbolt™ 3 is the latest version of the Thunderbolt standard for connecting computers and electronic devices. It is capable of the following:
    ■ Total bandwidth up to 40Gbps. Data transfer speeds are dependent on the other features that you are using in your setup.
    ■ USB 3.1 Gen 2 support.
    ■ 4K 60Hz video on one or two separate displays.
    ■ 5K 60Hz video on a single display.
    ■ A 10 GbE network connection between two Thunderbolt 3 compatible computers.
    ■ Up to six devices daisy-chained from a single Thunderbolt 3 port.
    ■ Alternate modes, such as DisplayPort Alternate Mode (DP Alt Mode).
    ■ Bi-directional power delivery up to 100W (not all Thunderbolt 3 devices support power delivery).

    USB-C and Thunderbolt 3

    Thunderbolt 3 uses the USB-C connector, but not all host connections, cables, and devices with a USB-C connector support Thunderbolt 3. This means that a USB-C device is compatible with a Thunderbolt 3 host connection, but a Thunderbolt 3 device is not compatible with a USB-C host connection. Therefore, it is important to know whether you have a USB-C or a Thunderbolt 3 host, cable, or device.
