- AcePro-CE11-1
- AcePro Dual Antenna Wireless Multi-Channel Expandable HDMI Extender - Transmitter, 5GHz, 165ft, 10CH adjustment, IR, Remote control
■ Wirelessly transmits HDMI signals with stereo audio to a remote display (requires either HDMI Extender Kit part# AcePro-CE10-1 sold separately or receiver unit part# AcePro-CE12-1 sold separately) up to 165ft (line of sight). Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum. ■ Broadcast video content to up to two remotely located displays simultaneously, requires part# AcePro-CE12-1 sold separately ■ Supports video resolutions up to 1080p Full HD to deliver stunning and crystal clear images ■ 5GHz Dual Antenna wireless technology with 10 selectable wireless channels prevent signal interference and provide optimal reception quality ■ Supports up to 2 transmitter units (part# AcePro-CE11-1 sold separately) and 2 receiver units (part# CE-H23911-S1 sold separately) allowing you to choose and broadcast any of the 2 sources to any of the 2 displays simultaneously ■ With built-in switch button and included palm size remote control to select the wireless channels of both RX and TX units to retrieve different video content or set for channel pairing ■ Included IR extension modules allow remote controlling the HDMI source device at the display unit ■ Supports local HDMI signal output and facilitates the screen monitoring of the HDMI source ■ Premium and durable aluminum housing improves heat dissipation and ensures system stability during long hours of operation ■ Slim and low profile design easily adopts into versatile application environment, mounting brackets included for different installation requirements
Highlights
Wirelessly transmits HDMI signals
with stereo audio to a remote display (requires either HDMI Extender Kit part# AcePro-CE10-1 sold separately or receiver unit part# AcePro-CE12-1 sold separately) up to 165ft (line of sight).
Note:The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum.

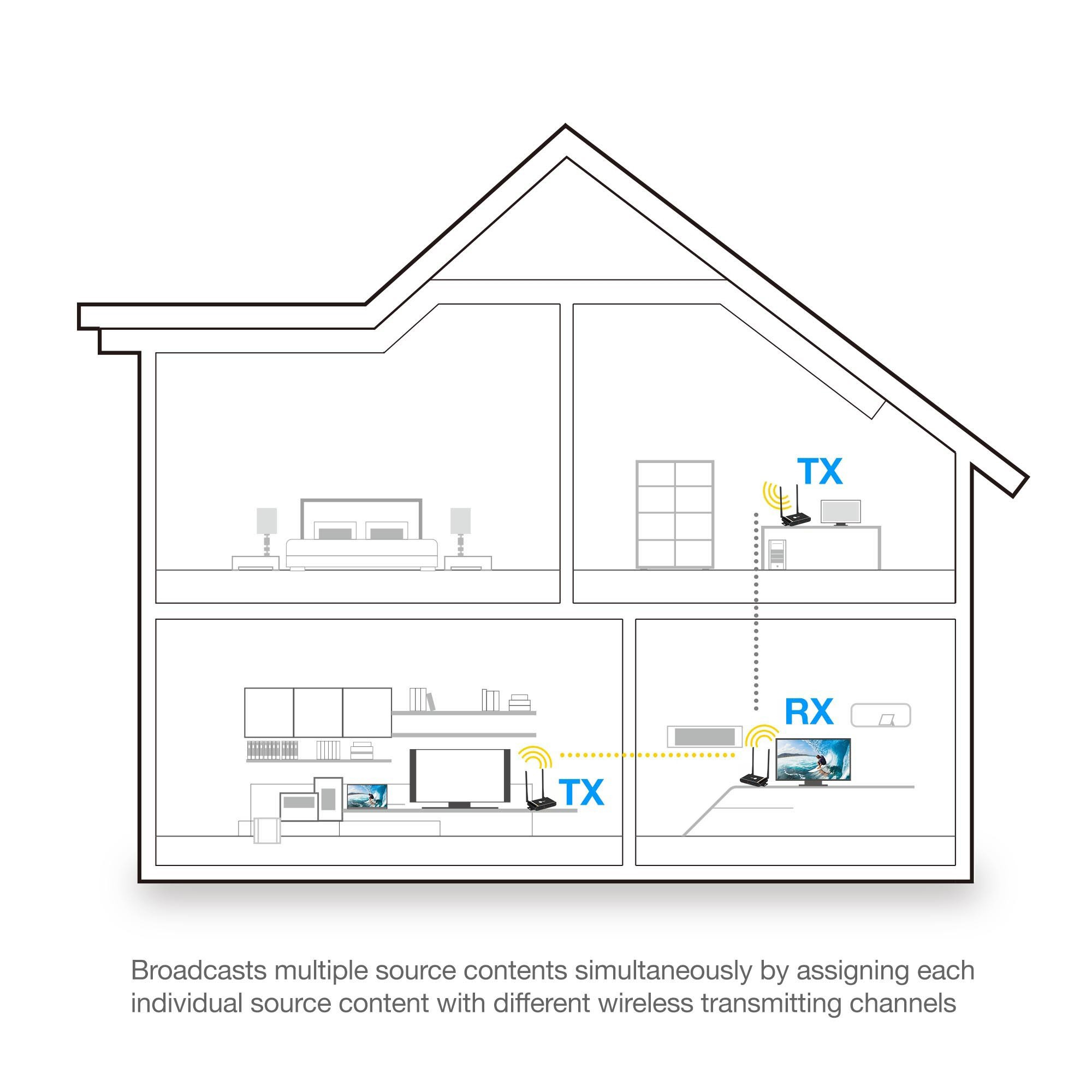

Broadcast video content to up to two remotely located displays simultaneously, requires part# AcePro-CE12-1 sold separately
Supports video resolutions up to 1080p Full HD
to deliver stunning and crystal clear images
5GHz Dual Antenna wireless technology
with 10 selectable wireless channels prevent signal interference and provide optimal reception quality

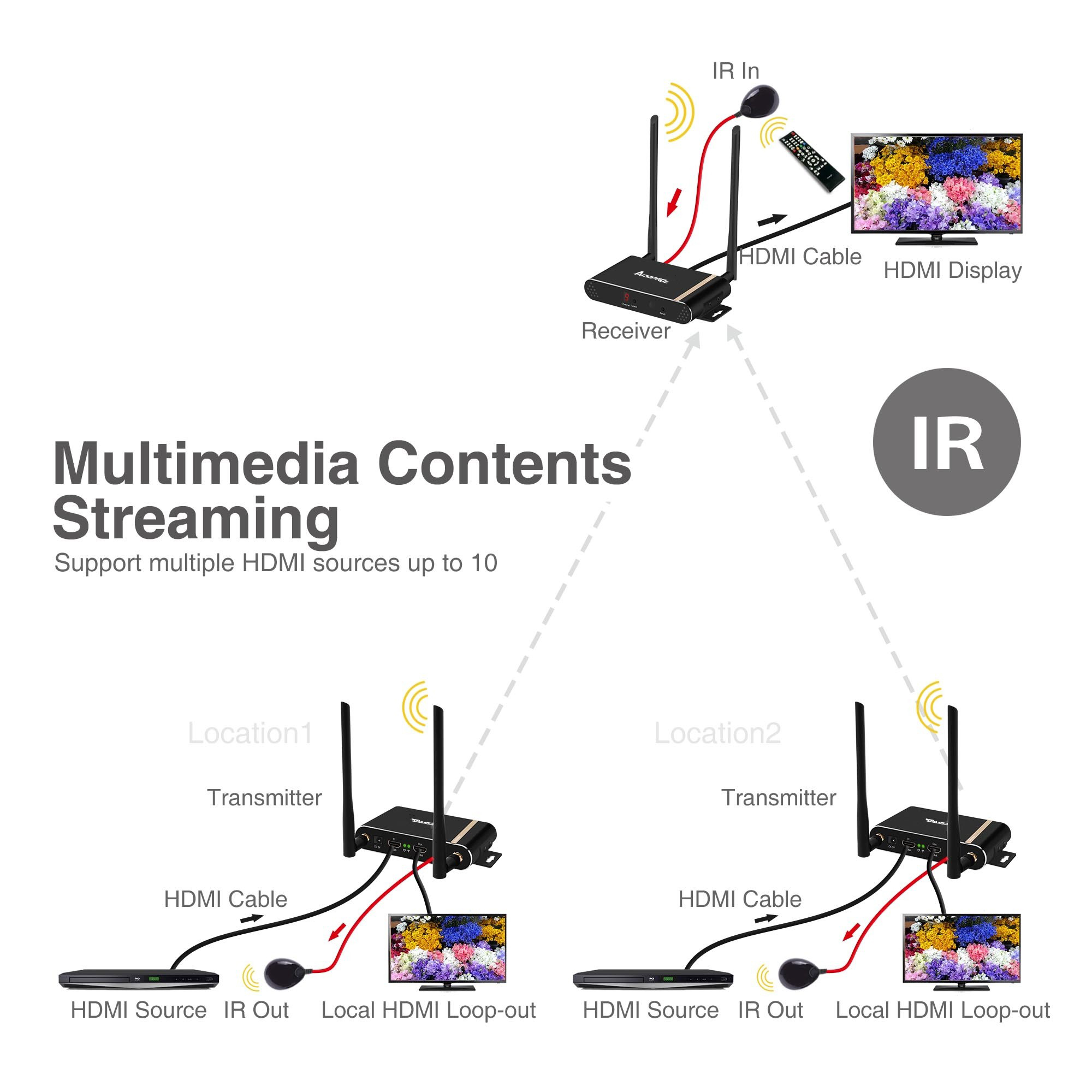

Supports up to 2 transmitter units (part# AcePro-CE11-1 sold separately) and 2 receiver units (part# CE-H23911-S1 sold separately)
allowing you to choose and broadcast any of the 2 sources to any of the 2 displays simultaneously
With built-in switch button and included palm size remote control
to select the wireless channels of both RX and TX units to retrieve different video content or set for channel pairing
Included IR extension modules allow remote controlling the HDMI source device at the display unit
Supports local HDMI signal output
and facilitates the screen monitoring of the HDMI source

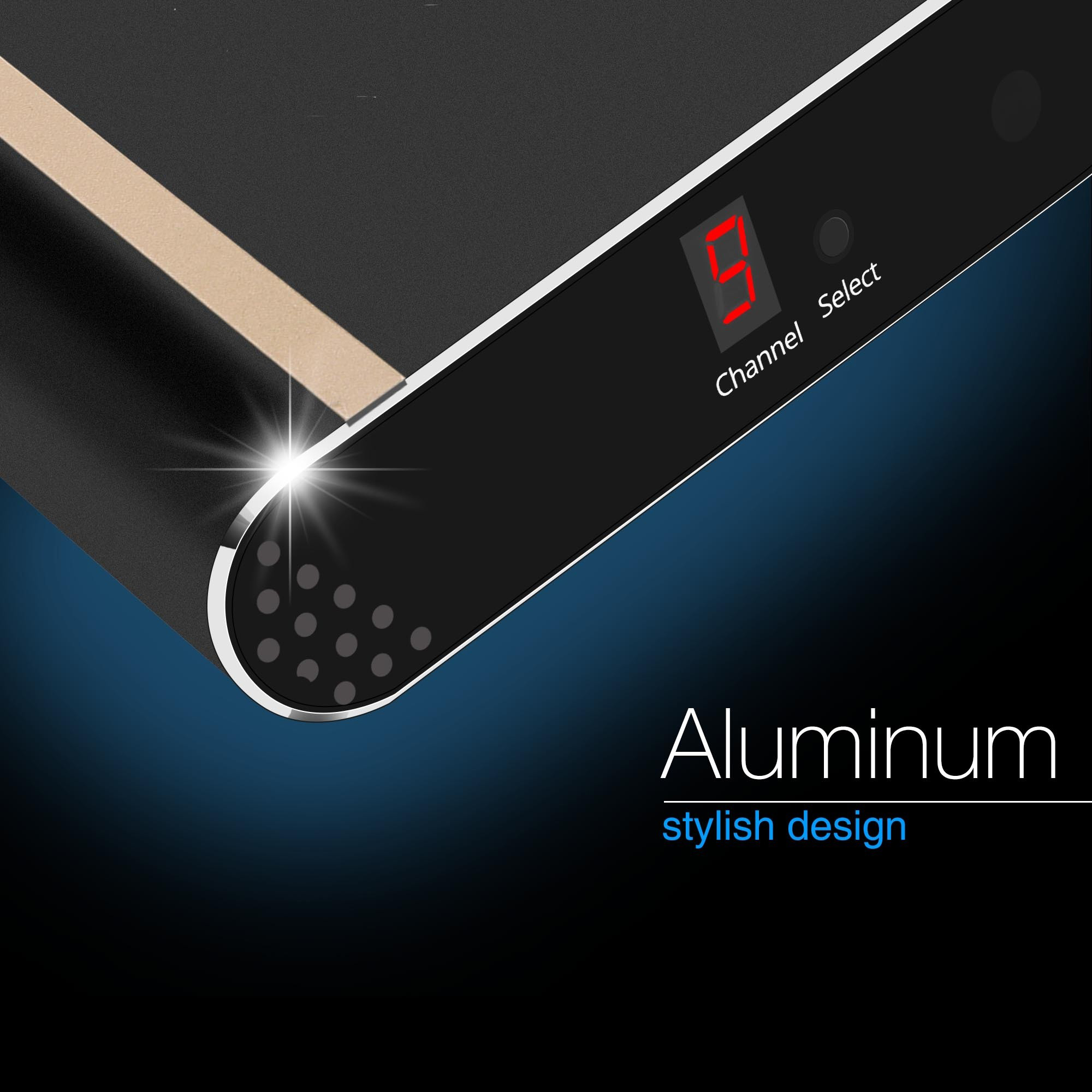

Premium and durable aluminum housing
improves heat dissipation and ensures system stability during long hours of operation
Slim and low profile design
easily adopts into versatile application environment, mounting brackets included for different installation requirements
Requirements
HDMI source device, such as computer PCs, Blu-ray players, and media players
HDMI displays, monitors, and HDTVs
HDMI cable
Package Contents
Dual Antenna Wireless Multi-Channel Expandable HDMI Extender - Transmitter
Power adapter
2x Antennas
IR Blaster extension cable
Mounting ears (2) & Screw kit (4)
Remote Control
User Reference Guide
Specification
Compliant with HDMI 1.3 & HDCP 1.2
Wireless Technology: 5GHz
10 Channels:
■ Channel 0: 5.180 GHz (20MHz)
■ Channel 1: 5.220 GHz (20MHz)
■ Channel 2: 5.240 GHz (20MHz)
■ Channel 3: 5.240 GHz (40MHz)
■ Channel 4: 5.745 GHz (20MHz)
■ Channel 5: 5.765 GHz (20MHz)
■ Channel 6: 5.745 GHz (40MHz)
■ Channel 7: 5.765 GHz (40MHz)
■ Channel 8: 5.825 GHz (20MHz)
■ Channel 9: 5.805 GHz (20MHz)
Supported Topology: Additional transmitter (part# CE-H23811-S1) and receiver (part# CE-H23911-S1) purchase separately
■ Extender: 1 Transmitter (TX) to 1 Receiver (RX)
■ Splitter: 1 Transmitter (TX) to 2 Receivers (RX)
■ Switch: 2 Transmitters (TX) to 1 Receiver (RX) & 2 Transmitters (TX) to 2 Receivers (RX)
Video Compression Technology: H.264
Wireless latency: <200ms
Resolution: 480p / 720p / 1080i / 1080p @60Hz
Distance: Up to 165ft (line of sight)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum
HDMI cable length: Up to 5m (Input & Output)
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
Housing material:Aluminum
Housing color: Black
Product:
■ Dimensions: 5.51" (L) x 1.06" (H) x 3.10" (W)
■ Weight: 0.61 lbs

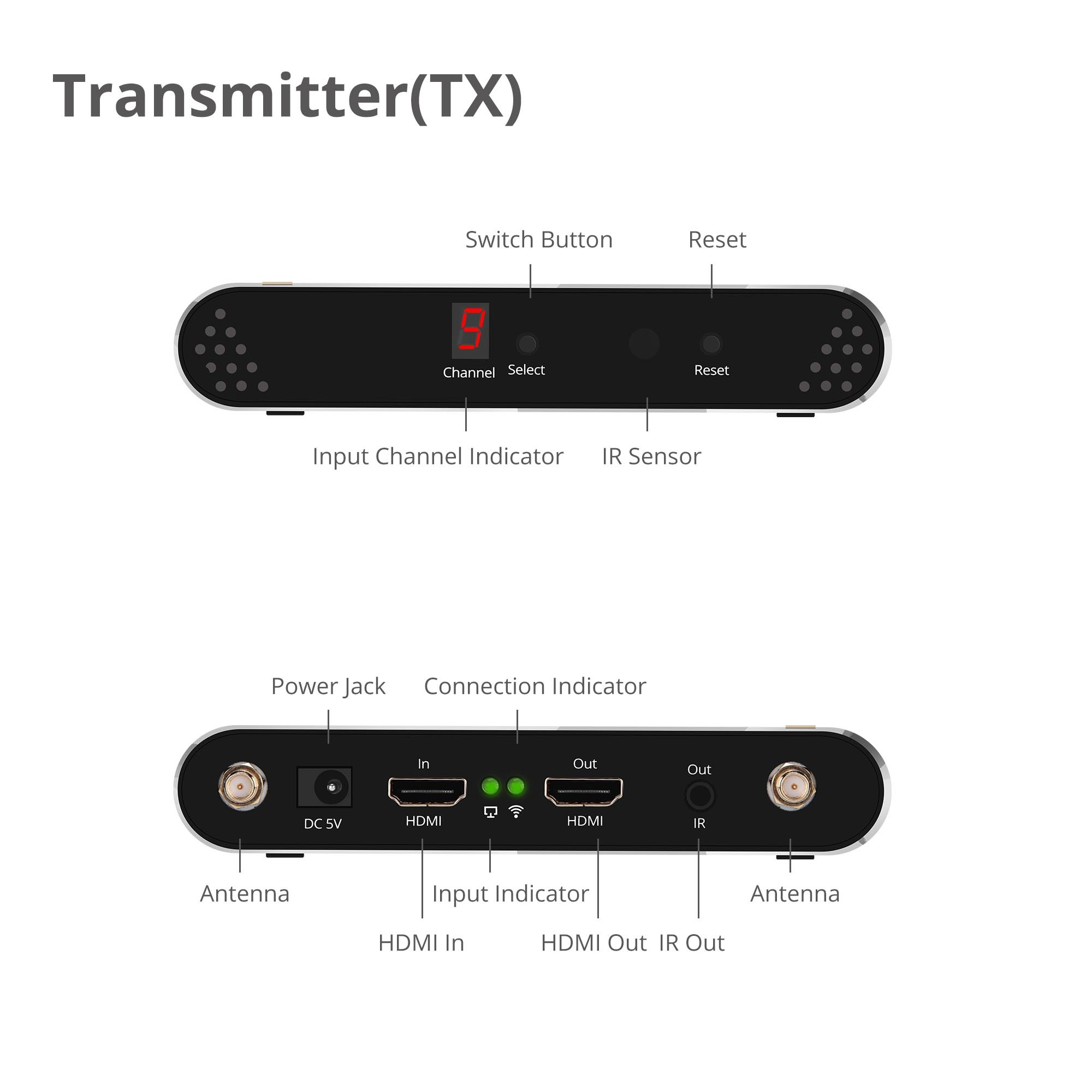

Connectors:
■ 1x 19-pin HDMI, Type A, Female, Input
■ 1x 19-pin HDMI, Type A, Female, Output
■ 1x 3.5mm jack, IR Blaster
■ 2x Antenna
■ 1x Power jack
■ 1x Switch button
■ 1x Reset button
Power adapter:
■ Input: AC 100-240V / 50-60Hz
■ Output: DC 5V/2A
■ UL Listed: E335801 / Class VI
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 0% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: China
Download
FAQ
- What is “HDCP”?
- HDCP stands for High-Bandwidth Digital Content Protection, a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the source to the display. The format designed by Intel and licensed by Digital Content Protection, LLC using an authentication and key exchange procedure before video and audio is presented. Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display, the process often described as the handshake. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that any HDTV you purchase is compatible. Although most video devices support high-definition video over component output, analog connections are scheduled to phase out in the future or possibly forced to limited resolutions output.
- What different between HDMI 2.0 & HDMI 1.4 when use 4K resolution?
- HDMI 1.4 introduced the kind of bandwidth required to deliver 4K video, but HDMI 2.0 can dole out 4K video without compromise, at 50 and 60 frames per second. In HDMI 1.4, the rate of 4K was limited to 24 frames per second. 4K logo 24p and 30p are perfect for watching films, but there are times when the extra speed of 50p and 60p come in handy. Gaming could make great use of 60p content, while more films are being shot at higher frame rates, giving quite a different look from that of slow old traditional cinema.
- What is “EDID”?
- Extended Display Identification Data is a VESA standard data format that contains basic information about a monitor and its capabilities, including vendor information, maximum image size, color characteristics, factory pre-set timings, frequency range limits, and character strings for the monitor name and serial number. The information is stored in the display and is used to communicate with the system through a Display Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The system uses this information for configuration purposes, so the monitor and system can work together.
