- AcePro-CE13-1
- AcePro Full HD Multi-Channel Expandable Wireless HDMI Extender Kit – Mid Range, 5GHz, 50m, 3-Port Switch, Loop out, 10CH adjustment, IR, Remote control
■ Wirelessly transmits HDMI signals with stereo audio up to 165ft (line of sight) Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum ■ Broadcast video content to up to two remotely located displays simultaneously when adding a 2nd receiver unit (part # AcePro CE-14-1 sold separately) Note: The transmitter acts as an extender/splitter, showing the same content on both displays, when a 2nd receiver unit is added ■ Connects up to 3 HDMI sources and enables you to easily switch between them ■ Supports video resolutions up to 1080p Full HD to deliver stunning and crystal clear images ■ 5GHz wireless technology with 10 selectable wireless channels prevent signal interference and provide optimal reception quality ■ Built-in switch button and included palm size remote control allow you to select the wireless channels of both RX and TX units to retrieve video content or set for channel pairing ■ Included IR extension modules allow remote controlling the HDMI source device at the display unit ■ Premium and durable aluminum housing improves heat dissipation and ensures system stability during long hours of operation ■ Wall mountable, modern cube-style design creates a sleek and stylish presence that integrates well with other A/V equipment
Highlights
Wirelessly transmits HDMI signals with stereo audio up to 165ft (line of sight)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum

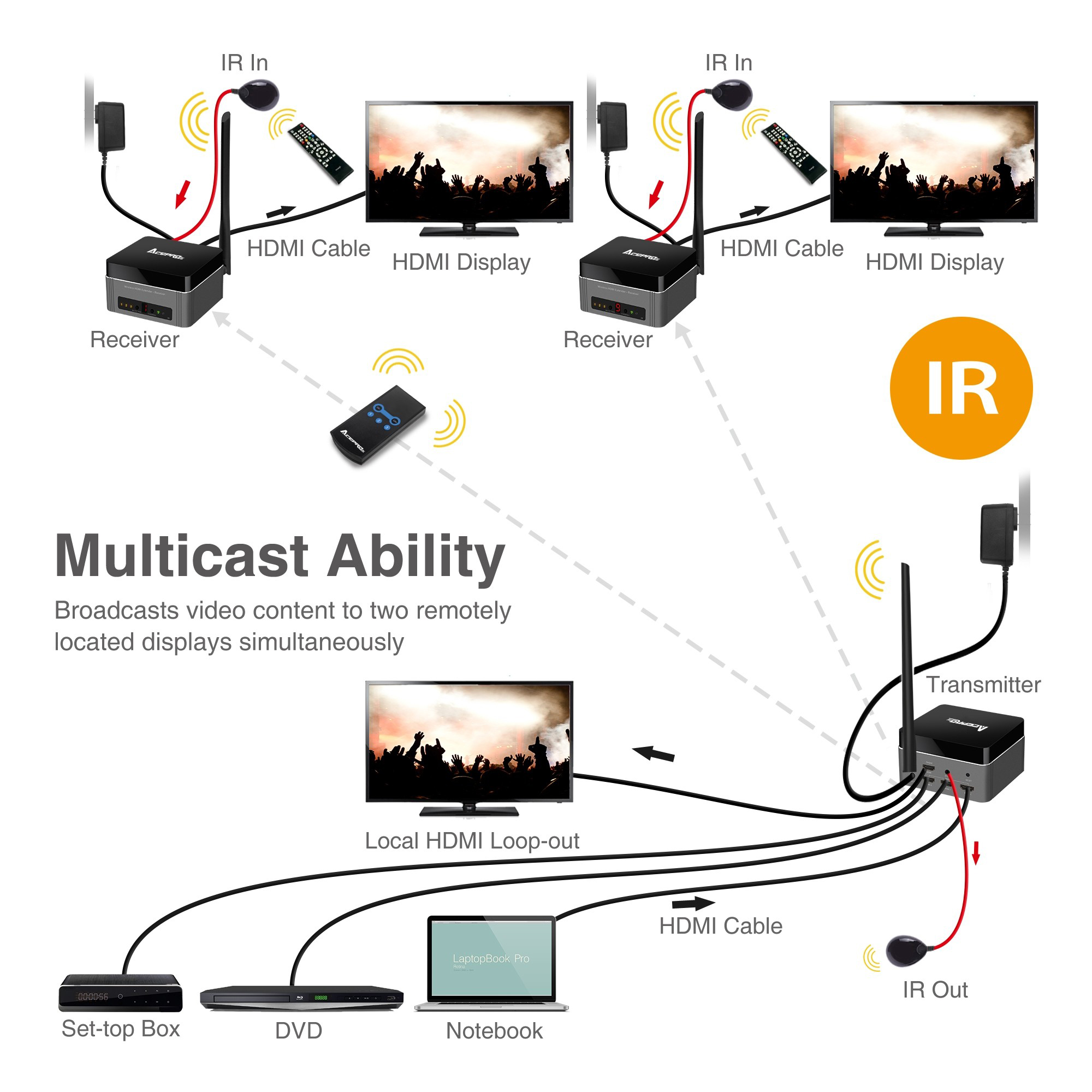

Broadcast video content to up to two remotely located displays simultaneously
when adding a 2nd receiver unit (part # AcePro CE-14-1 sold separately) Note: The transmitter acts as an extender/splitter, showing the same content on both displays, when a 2nd receiver unit is added

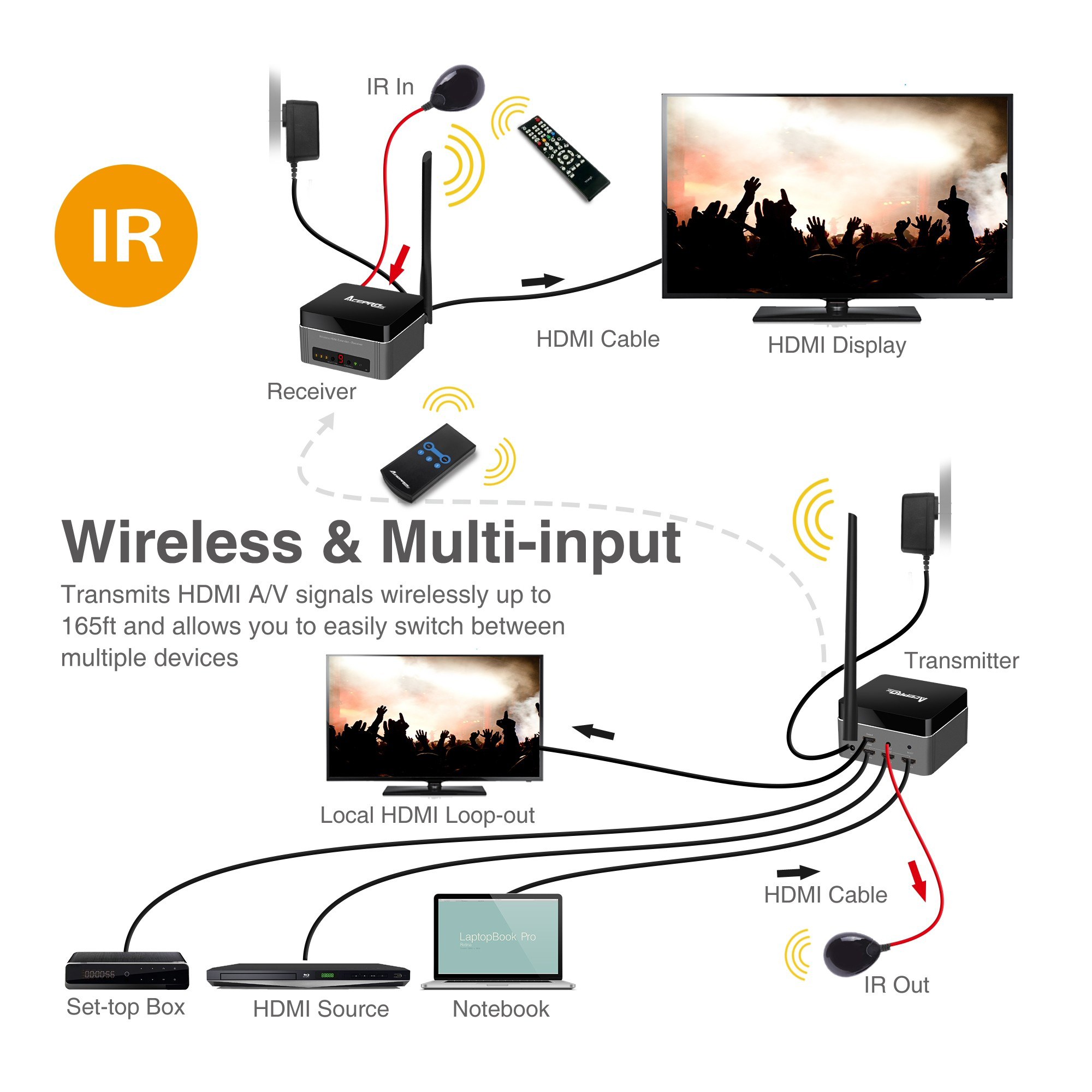

Connects up to 3 HDMI sources
and enables you to easily switch between them
Supports video resolutions up to 1080p Full HD
to deliver stunning and crystal clear images
5GHz wireless technology with 10 selectable wireless channels
prevent signal interference and provide optimal reception quality
Built-in switch button and included palm size remote control
allow you to select the wireless channels of both RX and TX units to retrieve video content or set for channel pairing
Included IR extension modules
allow remote controlling the HDMI source device at the display unit
Premium and durable aluminum housing
improves heat dissipation and ensures system stability during long hours of operation

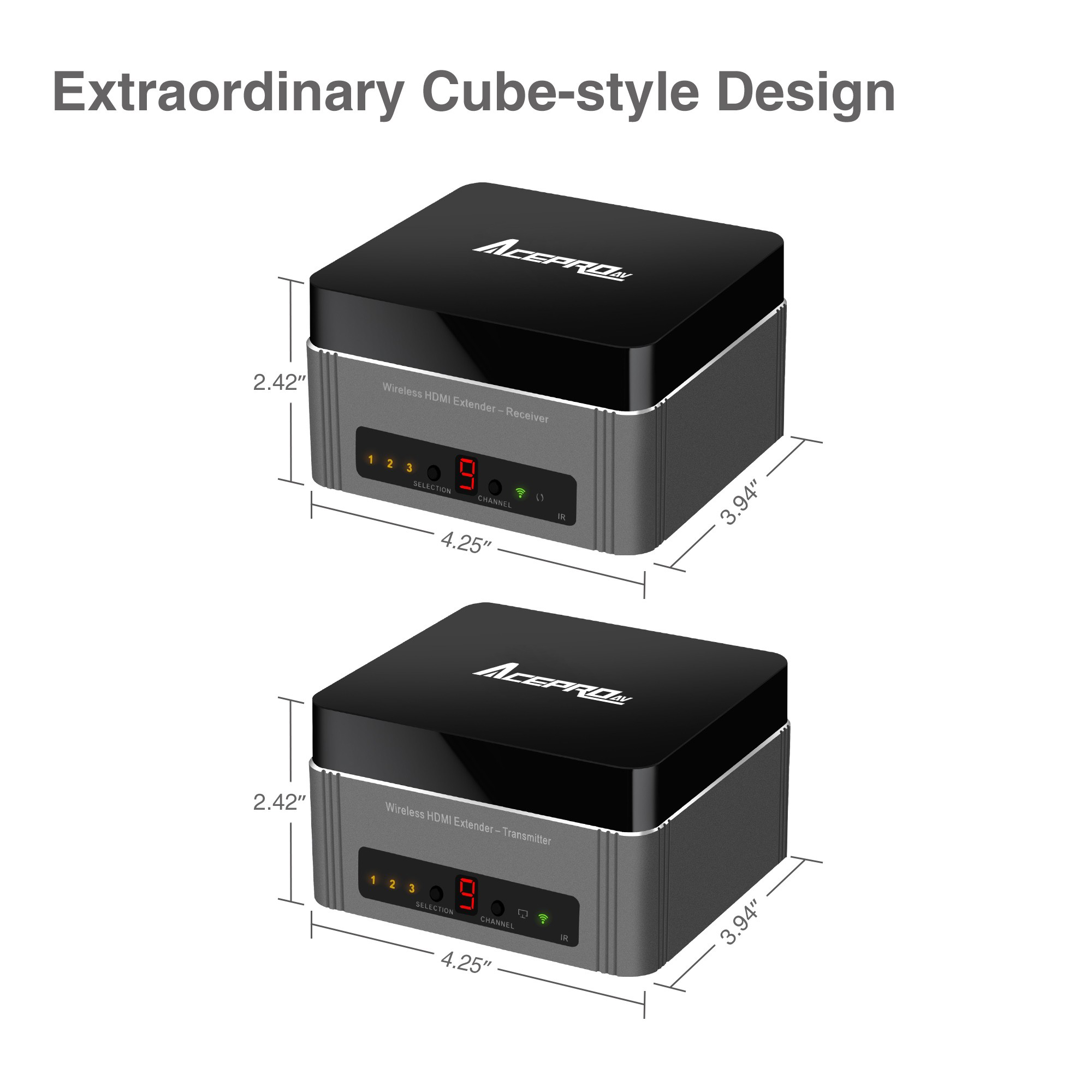

Wall mountable, modern cube-style design
creates a sleek and stylish presence that integrates well with other A/V equipment
Package Contents
Full HD Multi-Channel Expandable Wireless HDMI Extender Kit – Mid Range
Power adapter (2)
IR Blaster extension cable & IR Receiver extension cable
Remote Control
User Reference Guide
Specification
Wireless Technology: 5GHz
Compatible with HDMI 1.3 and HDCP 1.2
Resolution: 480p / 720p / 1080i / 1080p @60Hz
Wireless Transmission Distance: Up to 165ft (line of sight)
Note: The transmission distance will vary depending on building layout, electronic interference, walls and partitions, other environmental conditions, and may be much less than the maximum.
HDMI Cable Length: Up to 5 meters (Input & Output)
Supports 2-Ch PCM stereo audio
Supports full frequency IR signal from 20KHz to 60KHz
Color: Black & Deep Grey
Housing: Aluminum
Wireless Channels:
■ Channel 0: 5.180 (Frequency), 20MHz
■ Channel 1: 5.220 (Frequency), 20MHz
■ Channel 2: 5.230 (Frequency), 20MHz
■ Channel 3: 5.230 (Frequency), 40MHz
■ Channel 4: 5.745 (Frequency), 20MHz
■ Channel 5: 5.765 (Frequency), 20MHz
■ Channel 6: 5.785 (Frequency), 20MHz
■ Channel 7: 5.805 (Frequency), 20MHz
■ Channel 8: 5.825 (Frequency), 20MHz
■ Channel 9: 5.805 (Frequency), 40MHz
Supported Topology:
■ 1 Transmitter (TX) to 1 Receiver (RX)
■ 1 Transmitter (TX) to 2 Receivers (RX)
Video Compression Technology: H.264
Wireless Delay: < 200ms

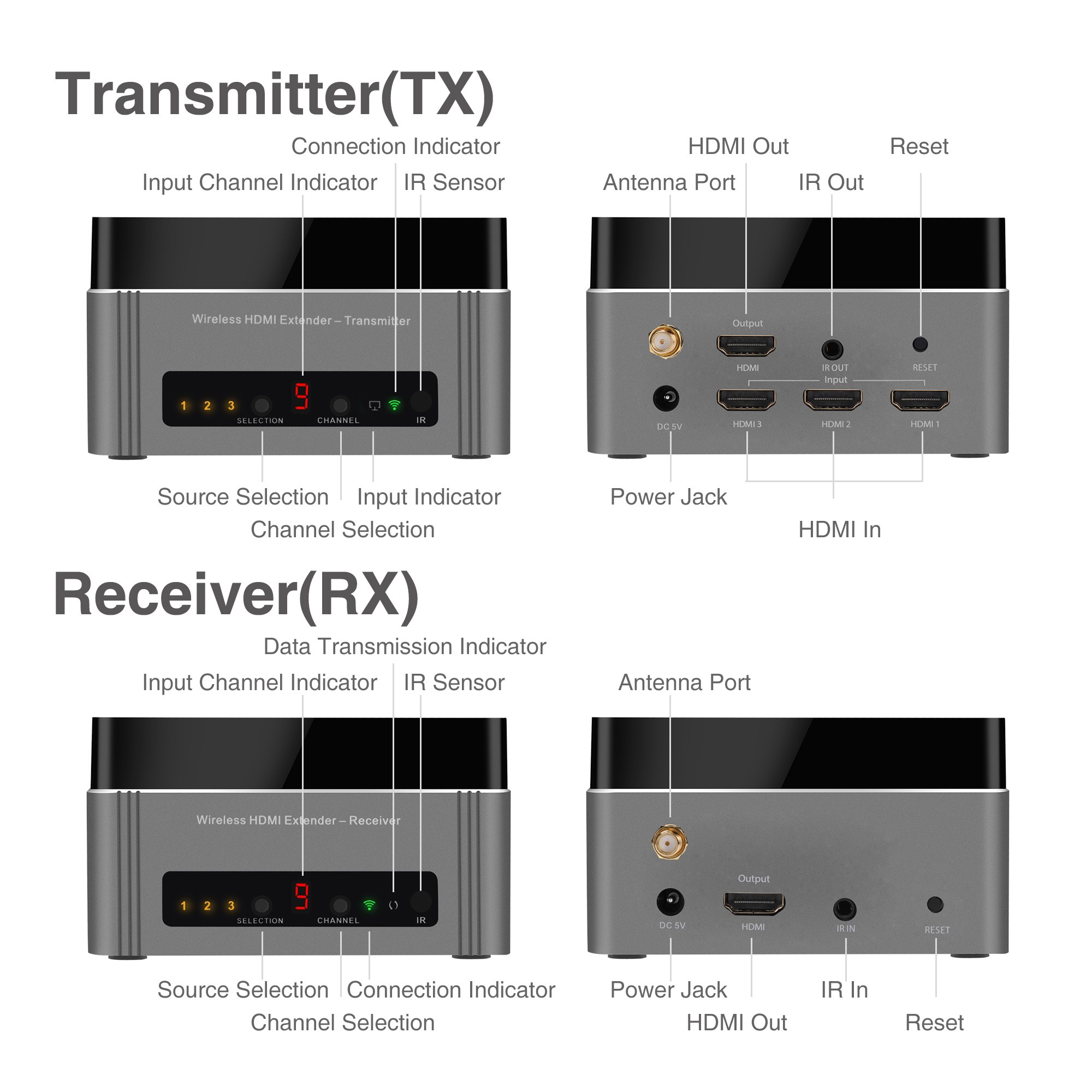

Transmitter (TX):
■ Dimensions: 4.25" (L) x 3.94" (W) x 2.42" (H)
■ Weight: 0.51 lbs
Connector:
■ 3x 19-pin, HDMI, Female, Input
■ 1x 19-pin, HDMI, Female, Output
■ 1x 3.5mm Jack, IR Blaster
■ 1x Power Jack
■ 2x Switch Buttons (Channel & Source)
■ 1x Antenna
Receiver (RX):
■ Dimensions: 4.25" (L) x 3.94" (W) x 2.42" (H)
■ Weight: 0.51 lbs
Connector:
■ 1x 19-pin, HDMI, Female, Output
■ 1x 3.5mm Jack, IR Receiver
■ 1x Power Jack
■ 2x Switch Buttons (Channel & Source)
■ 1x Antenna
Power Adapter:
■ Input: 100-240V AC / 50-60Hz
■ Output: 5V DC / 2A
Environmental Conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of Origin: China
Download
FAQ
- What is “HDCP”?
- HDCP stands for High-Bandwidth Digital Content Protection, a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the source to the display. The format designed by Intel and licensed by Digital Content Protection, LLC using an authentication and key exchange procedure before video and audio is presented. Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display, the process often described as the handshake. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that any HDTV you purchase is compatible. Although most video devices support high-definition video over component output, analog connections are scheduled to phase out in the future or possibly forced to limited resolutions output.
- What different between HDMI 2.0 & HDMI 1.4 when use 4K resolution?
- HDMI 1.4 introduced the kind of bandwidth required to deliver 4K video, but HDMI 2.0 can dole out 4K video without compromise, at 50 and 60 frames per second. In HDMI 1.4, the rate of 4K was limited to 24 frames per second. 4K logo 24p and 30p are perfect for watching films, but there are times when the extra speed of 50p and 60p come in handy. Gaming could make great use of 60p content, while more films are being shot at higher frame rates, giving quite a different look from that of slow old traditional cinema.
- What is “EDID”?
- Extended Display Identification Data is a VESA standard data format that contains basic information about a monitor and its capabilities, including vendor information, maximum image size, color characteristics, factory pre-set timings, frequency range limits, and character strings for the monitor name and serial number. The information is stored in the display and is used to communicate with the system through a Display Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The system uses this information for configuration purposes, so the monitor and system can work together.
