- AcePro 4-Port HDMI 2.0 Splitter with EDID Management - 4Kx2K 60Hz (YUV 4:4:4 8-bit), auto down Scaling, HDR, 18Gbps, 3DTV, FW update
■ Distributes HDMI video and audio from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality ■ Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth ■ Supports up to 4K@60Hz (YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color ■ Supports Dolby Digital, DTS-HD and Dolby TrueHD audio ■ Auto video scaling feature detects and configures the video resolution automatically according to the capabilities of each connected monitor. ■ Allows simultaneous 4K and 1080P output. Supports simultaneous mixed 4K and 1080p display outputs. *See Notes below for limitations ■ EDID and firmware management feature for maximum compatibility now and into the future, offers widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. ■ Firmware upgradeable (via Mini USB port) for expanded compatibility ■ Low heat generation with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance ■ Easy to cascade multiple splitters for more displays. Supports up to 10 layers *Notes: Below are limitations associated with 4K content down scaling: - Down scaling to 720p and 480p is not supported - YUV 4:2:2 down scaling is not supported - Frame rate conversion (e.g., 60Hz to 24Hz) is not supported - 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz - The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
Highlights

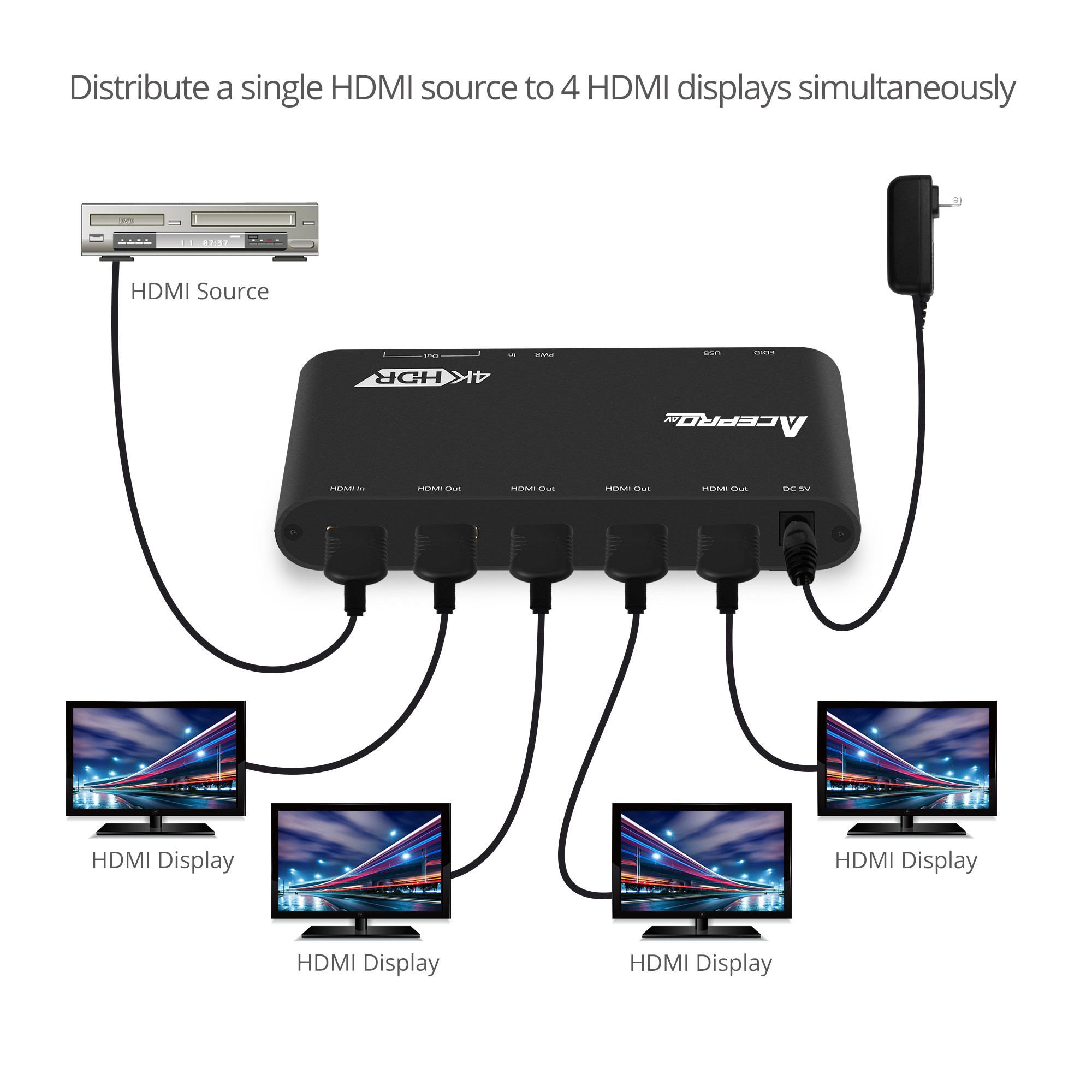

Distributes HDMI video and audio
from a single source to up to 4 HDMI displays simultaneously while maintaining signal quality
Compliant with HDMI 2.0a, HDCP 2.2/1.4 with 18Gbps bandwidth
Supports up to 4K@60Hz
(YUV 4:4:4 8-bit), HDR 4K@60Hz (YUV 4:2:0 10-bit), 3D, xvYCC, x.v.Color & Deep Color
Supports Dolby Digital, DTS-HD and Dolby TrueHD audio
Auto video scaling feature detects
and configures the video resolution automatically according to the capabilities of each connected monitor. Allows simultaneous 4K and 1080P output.
Supports simultaneous mixed 4K and 1080p display outputs *See Notes below for limitations
EDID and firmware management feature
for maximum compatibility now and into the future, offers the widest range of monitor/display/TV support from either pre-programmed EDID or EDID learning from the connected displays. Firmware upgradeable (via Mini USB port) for expanded compatibility
Low heat generation

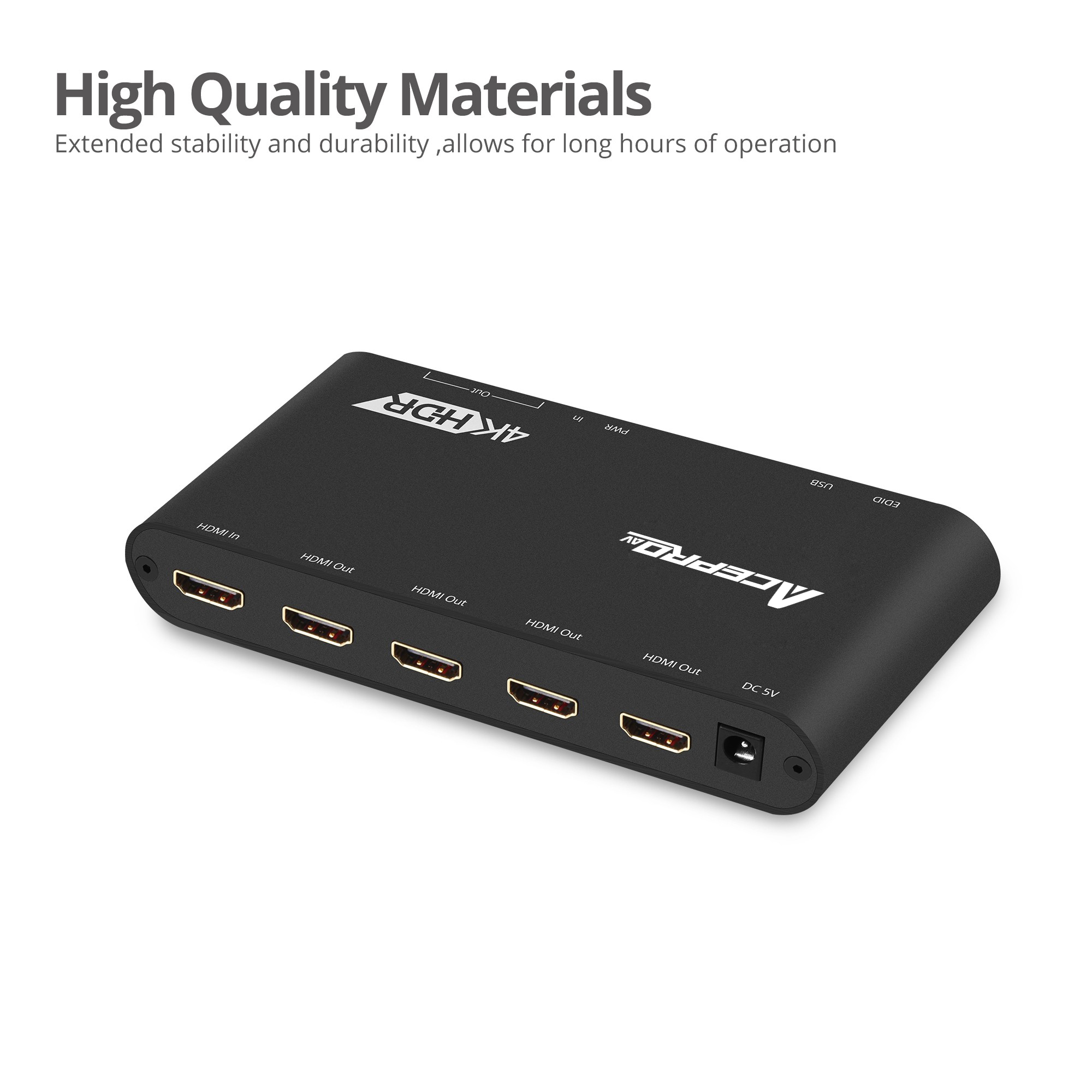

with sturdy metal housing provides excellent heat dissipation, durability, and minimizes EMI/RFI noise interference. Low heat generation and ESD protection to guarantee stability and reliable performance
Easy to cascade multiple splitters for more displays
Supports up to 10 layers
Requirements
HDMI source device such as computers, game consoles, Blu-ray/DVDplayers, and media players
HDMI displays, monitors, and HD TVs
Package Contents
1x4 HDMI 2.0 HDR Distribution Amplifier with EDID Management - 4Kx2K 60Hz
Power Adapter
User Reference Guide
*Notes:
Below are limitations associated with 4K content down scaling :
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
- The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
Specification
Chipset: ITE-IT6664
HDMI 2.0a compliant
HDCP 2.2 compliant
Supports 4Kx2K@60Hz (YUV 4:4:4 8bit)
Supports HDR 4Kx2K@60Hz (YUV 4:2:0 10bit)
Supports xvYCC, x.v.Color and Deep Color
Video Bandwidth: 18Gbps (single-link 600MHz)
Frequency Range: 25MHz - 600MHz
Supports resolution down scaling from 4K to 1080p. *See Notes below for limitations
Maximum Resolution:
■ 3840x2160@60Hz (YUV 4:4:4)
■ HDR 3840x2160@60Hz (YUV 4:2:0)
Display Mode: Mirror
Supports embedded EDID and EDID learning via DIP switch
Audio Support: DTS-HD Master Audio, Dolby TrueHD Dolby Digital, DTS, DVD-Audio, LPCM, SACD, MPCM
ESD Protection: ±15kV Air / ±8kV Contact
Supports cascading of multiple splitters for adding more displays, supports up to 10 layers
Built-in firmware update mechanism (via Mini USB port) for expanding compatibility
Sturdy metal housing provides durability and reduces EMI/RFI noise interference
Product:

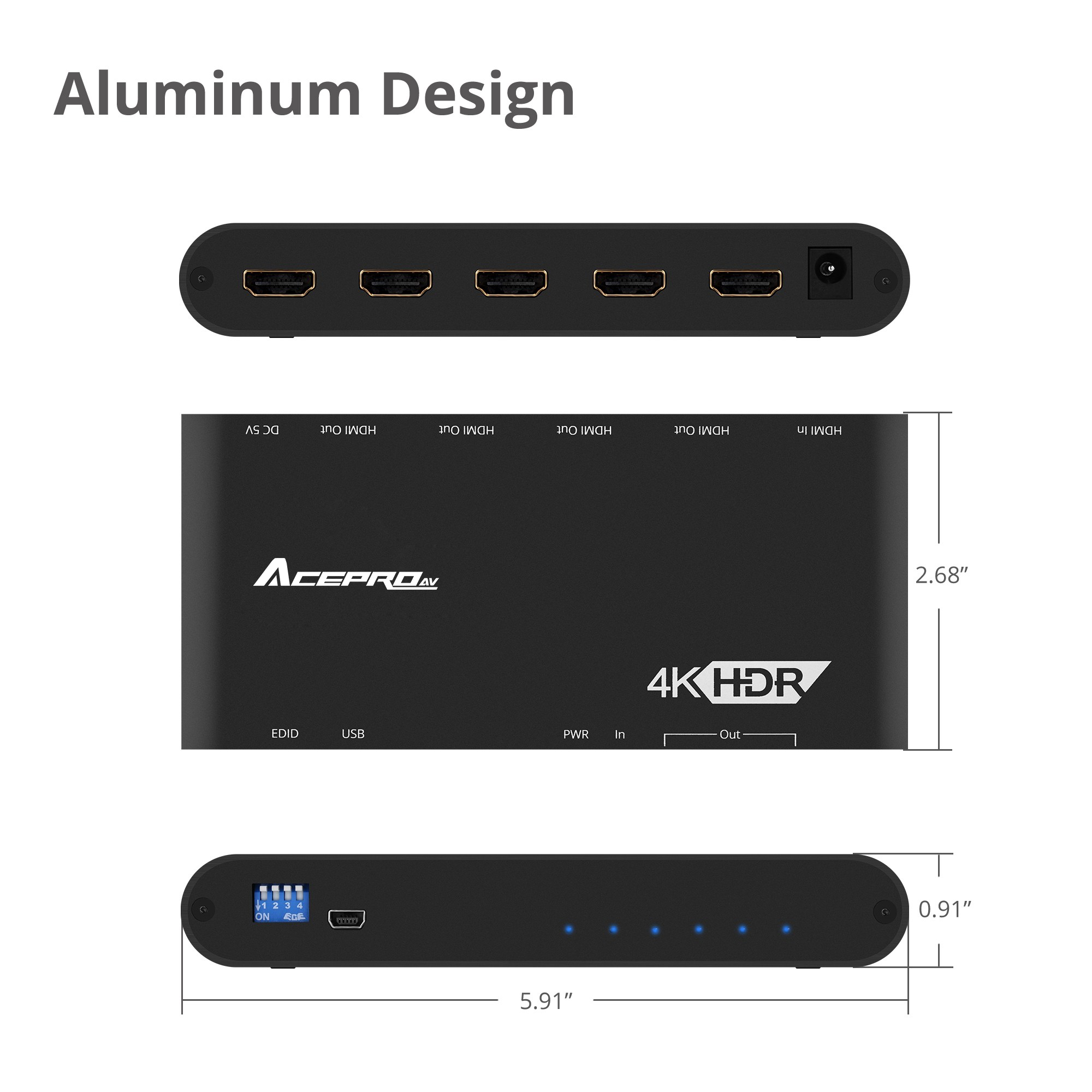

■ Dimensions: 5.91" (L) x 0.91" (H) x 2.64" (W)
■ Weight: 0.44 lbs
■ Color: Black
■ Housing Material: Aluminum
Transmission Distance (HDMI cable)
■ 4K@60Hz: Up to 10m (5m/In; 5m/Out)
■ 1080p@60Hz & 4K@30Hz: Up to 15m (5m/In; 10m/Out)
Connector:
■ 1x 19-Pin, HDMI, Type A, Female, Input
■ 4x 19-Pin, HDMI, Type A, Female, Output

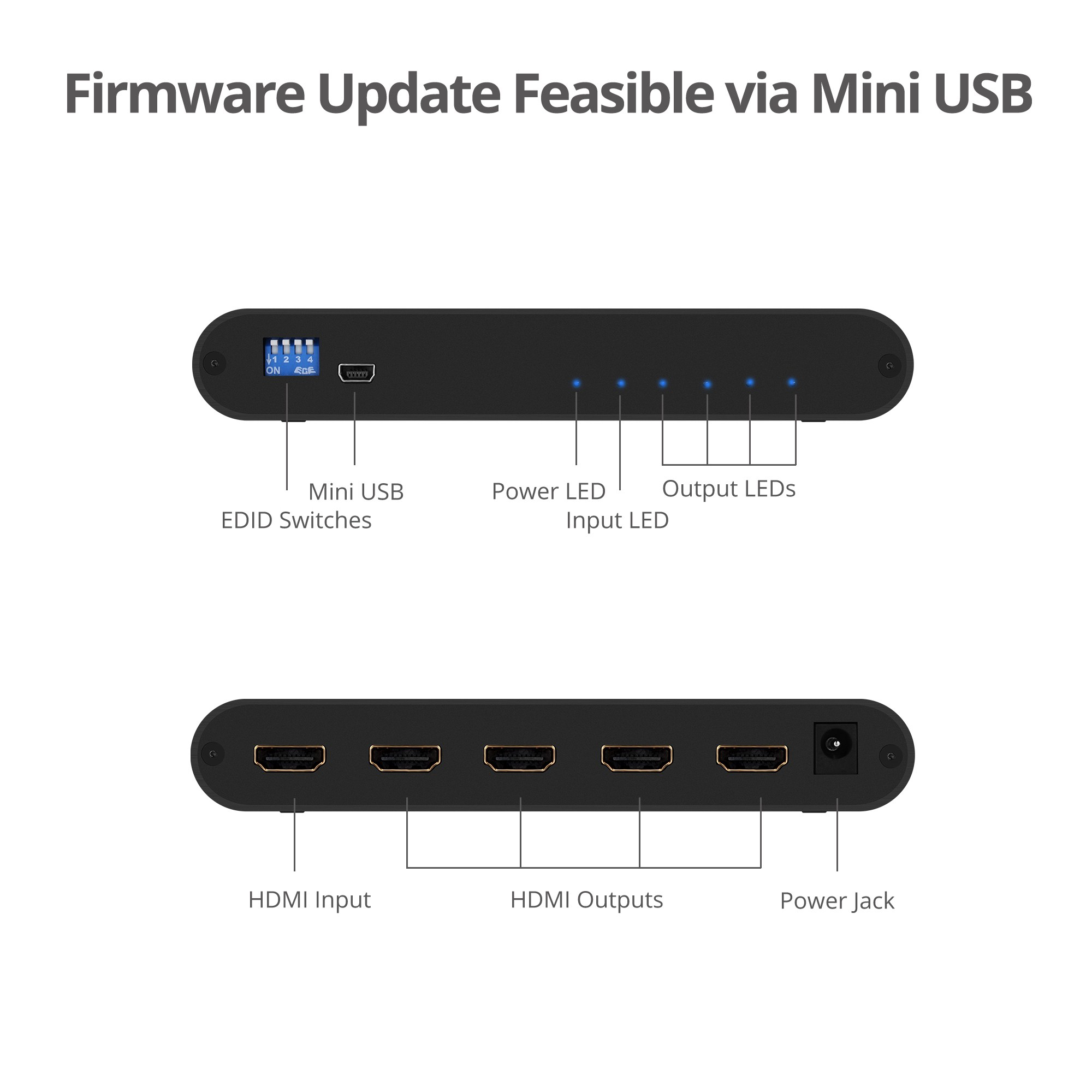

■ 1x 5-Pin, Mini USB, Female, Firmware update
■ 1x 4-Pin, DIP switch, EDID management
Power Adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: 5VDC, 2A
Environmental Conditions:
■ Operating Temperature: 32 to 104 degrees F
■ Storage Temperature: -4 to 140 degrees F
■ Relative Humidity: 20 to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of Origin: Taiwan
*Notes:
Below are limitations associated with 4K content down scaling:
- Down scaling to 720p and 480p is not supported
- YUV 4:2:2 down scaling is not supported
- Frame rate conversion (e.g., 60Hz to 24Hz) is not supported
- 4K@30Hz monitors will display in 1080p@60Hz when the source content is 4K@60Hz
- The Distribution Amplifier can bypass 4K HDR data content but cannot process it to make 4K HDR content fit 1080p proportionally
Download
FAQ
- Q: What is “HDCP”?
- HDCP stands for High-Bandwidth Digital Content Protection, a copy protection scheme to eliminate the possibility of intercepting digital data midstream between the source to the display. The format designed by Intel and licensed by Digital Content Protection, LLC using an authentication and key exchange procedure before video and audio is presented. Products compatible with the HDCP scheme such as DVD players, satellite and cable HDTV set-top-boxes, as well as few entertainment PCs requires a secure connection to a compliant display, the process often described as the handshake. Due to the increase in manufacturers employing HDCP in their equipment, it is highly recommended that any HDTV you purchase is compatible. Although most video devices support high-definition video over component output, analog connections are scheduled to phase out in the future or possibly forced to limited resolutions output.
- Q: What different between HDMI 2.0 & HDMI 1.4 when use 4K resolution?
- HDMI 1.4 introduced the kind of bandwidth required to deliver 4K video, but HDMI 2.0 can dole out 4K video without compromise, at 50 and 60 frames per second. In HDMI 1.4, the rate of 4K was limited to 24 frames per second. 4K logo 24p and 30p are perfect for watching films, but there are times when the extra speed of 50p and 60p come in handy. Gaming could make great use of 60p content, while more films are being shot at higher frame rates, giving quite a different look from that of slow old traditional cinema.
- Q: What is “EDID”?
- Extended Display Identification Data is a VESA standard data format that contains basic information about a monitor and its capabilities, including vendor information, maximum image size, color characteristics, factory pre-set timings, frequency range limits, and character strings for the monitor name and serial number. The information is stored in the display and is used to communicate with the system through a Display Data Channel (DDC), which sites between the monitor and the PC graphics adapter. The system uses this information for configuration purposes, so the monitor and system can work together.
