- AVLAB DisplayPort 1.2 to 4-Port DisplayPort MST Splitter, 4K 30Hz, Aluminum, woven braided cable, Multiple Display
■ Boost your productivity by connecting three DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technology ■ Provides multiple display modes for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter ■ Supports UHD video resolutions up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio ■ Compatible with DisplayPort 1.2 with MST graphics cards with AMD Eyefinity or NVIDIA Surround technology ■ Plug-n-play, hassle-free set up without complicated hardware or driver installation ■ Premium aluminum housing decreases surrounding interference and provides optimal video quality. Built-in woven braided cable for enhanced durability ■ Embedded woven braided DisplayPort cable for enhanced durability
Highlights
Boost your productivity
by connecting three DisplayPort displays to single DisplayPort output with Multi-Stream Transport (MST) technology
Provides multiple display modes
for various applications such as Mirror mode* same content on each display, Extended mode with individual content on each display, and Panoramic Video Wall mode** which combines multiple monitors to use as one large display
Note: *Mirror mode using a NVIDIA Surround technology graphics adapter is limited to 2 displays. **Video Wall mode requires either a AMD Eyefinity, Intel, or NVIDIA Surround technology graphics adapter
Supports UHD video resolutions
up to 3840x2160 @30Hz (4Kx2K) and 7.1-ch surround audio
Compatible with DisplayPort 1.2 with MST graphics cards
with AMD Eyefinity or NVIDIA Surround technology
Plug-n-play
hassle-free set up without complicated hardware or driver installation
Premium aluminum housing
decreases surrounding interference and provides optimal video quality. Built-in woven braided cable for enhanced durability
Embedded woven braided DisplayPort cable for enhanced durability
Requirements
Desktop computer or laptop with an available DisplayPort 1.2 Dual mode output
AMD Eyefinity, NVIDIA Surround or Intel Multiple collage technology graphics adapter is required to support Panoramic Video Wall mode
Package Contents
Displayport 1.2 to 4-Port DisplayPort MST Splitter
Micro-USB power cable
User Reference Guide
Specification
Chipset: STDP4320
Maximum resolution up to 3840x2160 @ 30Hz
Compliant with DisplayPort 1.2a specifications

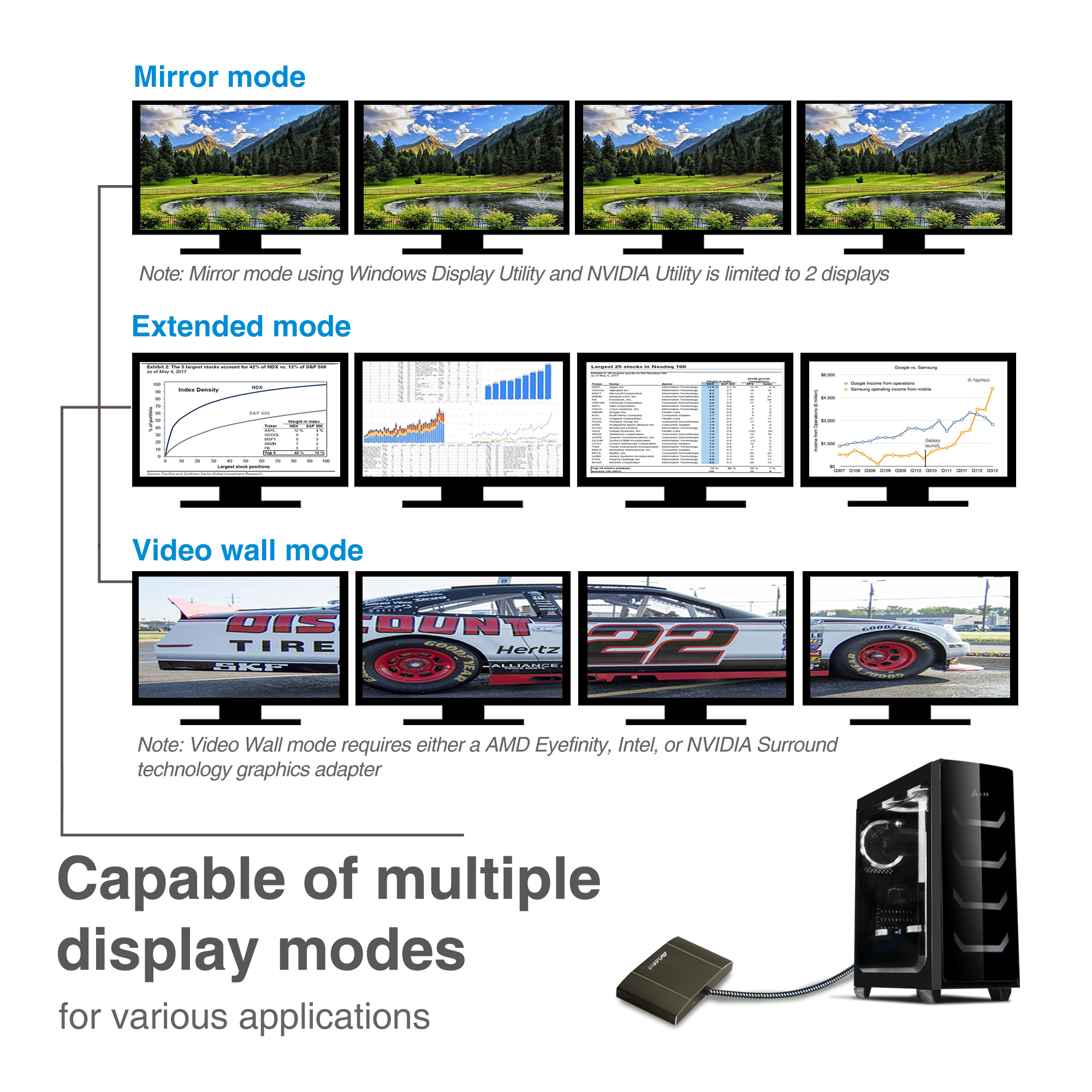

Display Modes: Mirror*, Extend, Panoramic video wall**
Note: *Mirror mode limited to 2 displays; **AMD Eyefinity, NVIDIA Surround or Intel Multiple collage technology graphics adapter is required to support Panoramic Video Wall mode
Total Bandwidth 21.6Gbps (100%): 3840x2160 @30Hz(40%); 2560x1600 @60Hz (38%); 2560x1440 @60Hz (35%); 1920x1200 @60Hz (30%); 1920x1080 @60Hz (22%)
Note: The total combined bandwidth among all connected displays must NOT be exceeded
Product:
■ Dimensions: 4.14"(L) x 0.67"(H) x 2.60"(W)
■ Weight: 0.27 lbs
■ Color: Deep brown
■ Housing: Aluminum
Connector:
■ 1x 20-pin, DisplayPort, Male, Input

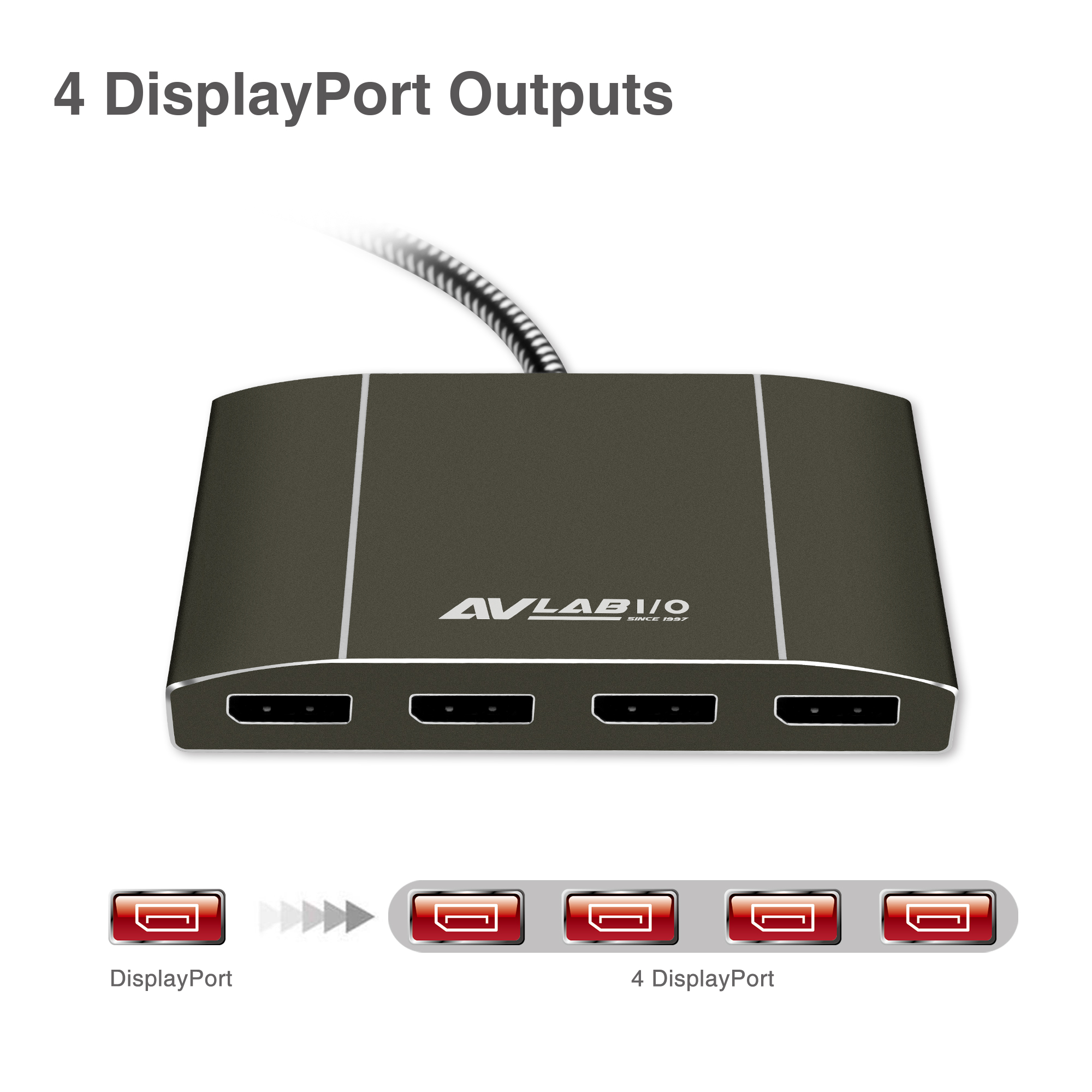

■ 4x 20-pin, DisplayPort, Female, Output

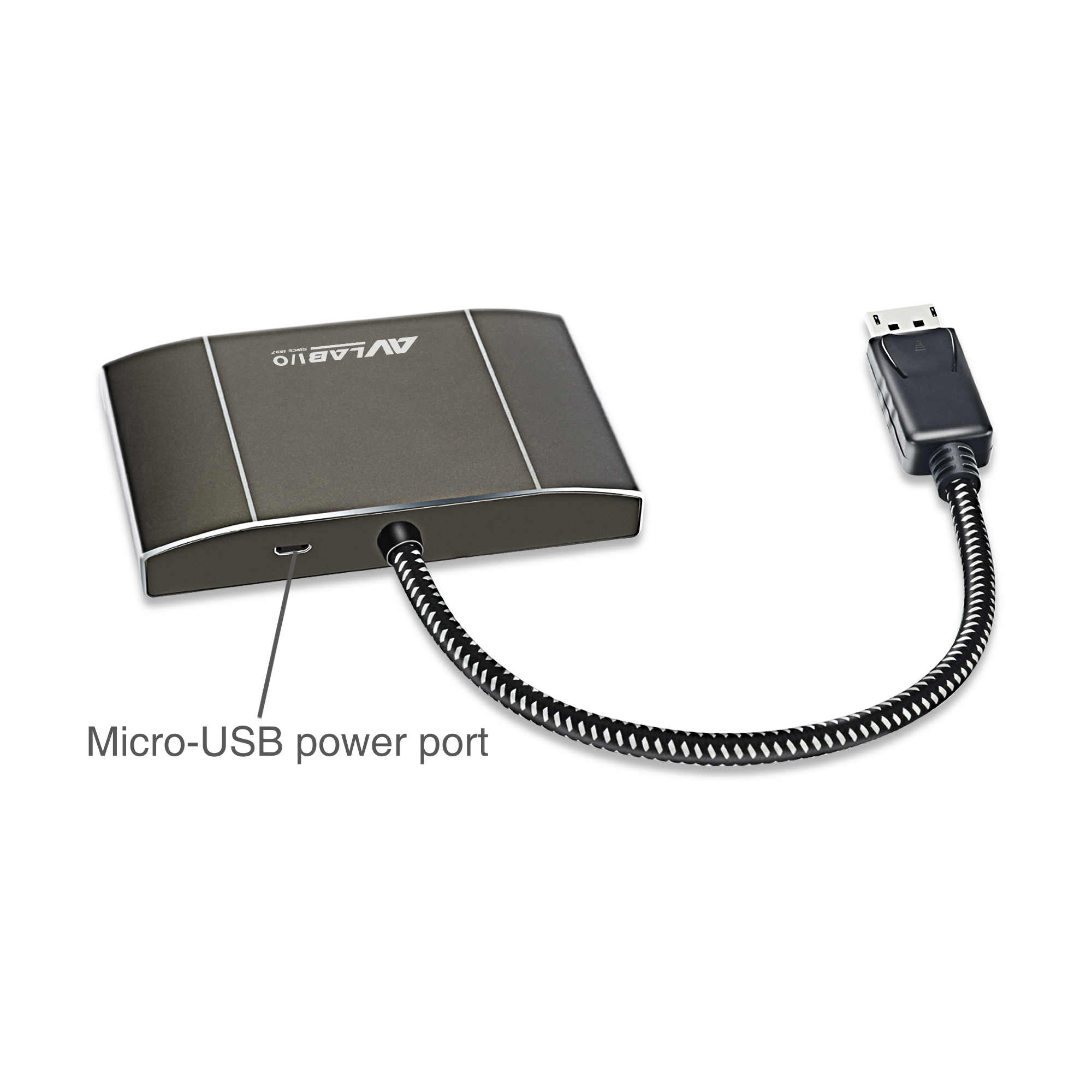

■ 1x 5-pin, Micro USB, Female, USB power Input
Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 158 degrees F
■ Relative humidity: 5% to 90% RH (non-condensing)
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 years limited
Country of origin: China
Download
FAQ
- Active or passive converter and what is the difference?
- A passive video signal converter changes the type of connection that is being used but does not change the signal that passes through the converter. Because the video signal is not modified, passive converters tend to be smaller, simpler, and less expensive than active video signal converters. Examples of passive converters include DVI-I to VGA, HDMI to DVI, and DisplayPort to Mini-DisplayPort converters. An active video signal converter modifies both the type of connection that is being used and the signal that passes through the converter. Because this type of conversion can be complex, active converters tend to be larger than passive video signal converters and sometimes require additional power. Examples of active converters include DVI-D to VGA, HDMI to DisplayPort, and VGA to HDMI converters.
- My DisplayPort display is not working when I try to output 4K at 30Hz with this device. How do I resolve this issue?
- To output 4K to a DisplayPort display at 30Hz, your monitor must support the resolution and refresh rate. If your monitor also supports 4K at 60Hz (DP 1.2 or higher), you may also need to set the monitor to work at 30Hz. To resolve this issue, use the buttons on your monitor to change the DisplayPort settings to DP1.1. For more information about how to change your monitor settings, refer to the website of the manufacturer of your monitor.
- Does this device require me to install drivers. Or perform any other setup tasks?
- This cable/adapter is plug and play. It does not use any drivers, and does not require any setup tasks other than plugging in the source (for example, a computer) and the destination (for example, a monitor).
