• AcePro-CE34-1
  • AcePro HDMI 2.0 Audio Extractor/Embedder, HDR, ARC, S/PDIF, Stereo Audio, 4Kx2K 60Hz (YUV 4:4:4 8-bit), HDCP 2.2, EDID mode

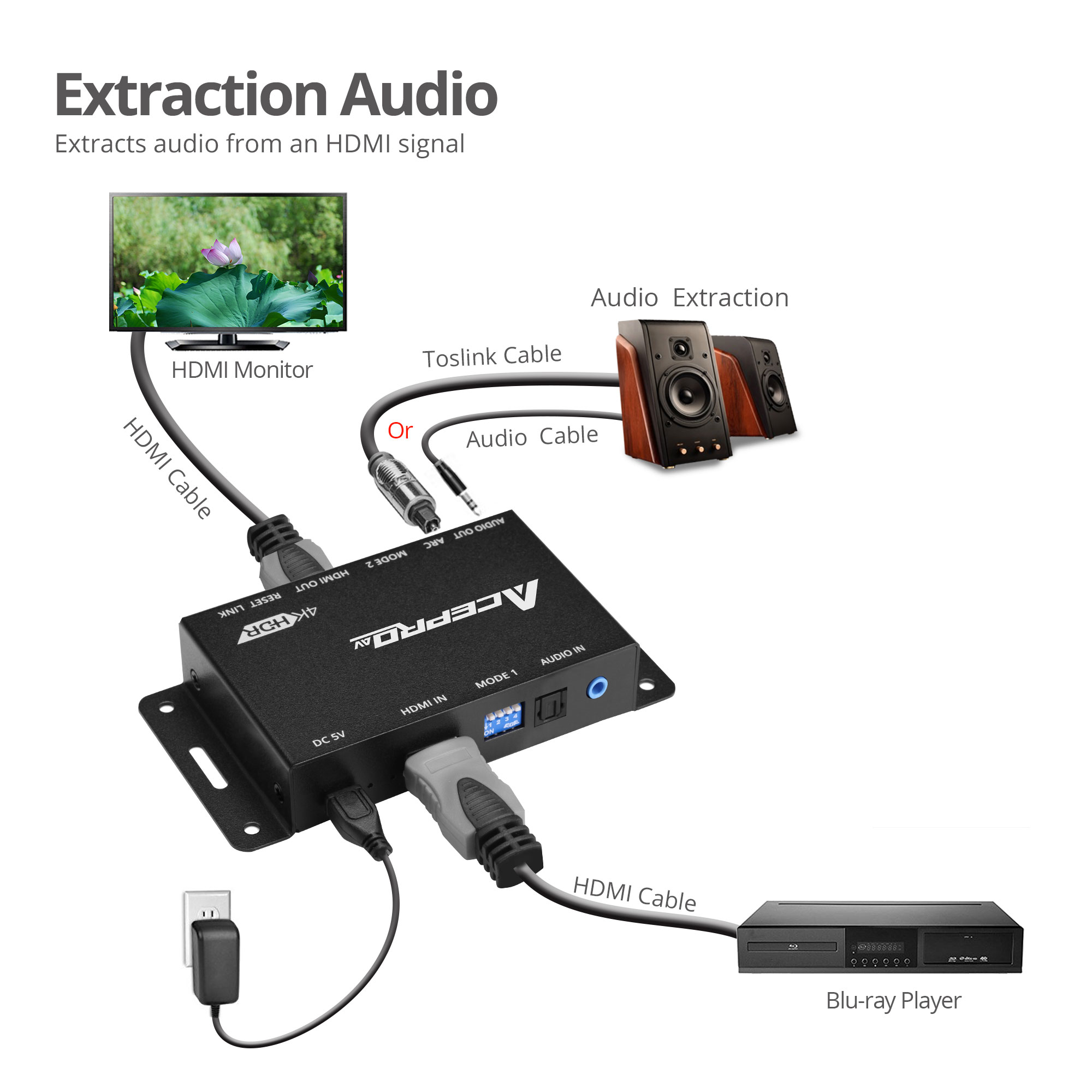

■ Extracts high quality Stereo Analog audio and Digital Toslink S/PDIF audio from the incoming HDMI signal without losing any active audio channels

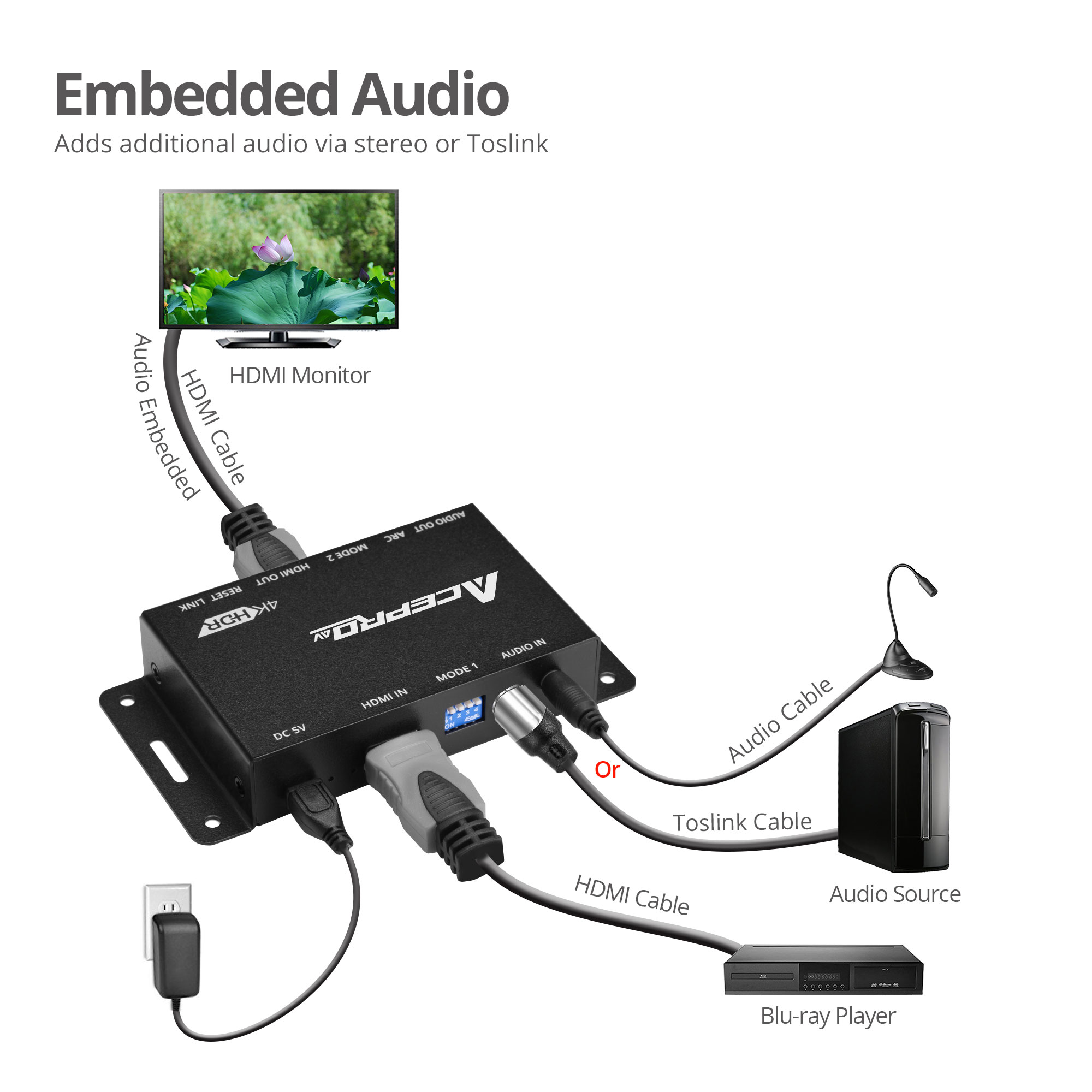

■ Embeds external Stereo Analog audio or Digital S/PDIF (Toslink) audio to the outgoing HDMI signal
■ Supports HDMI Input and Output up to 4K @60Hz (YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit)
■ Compatible with HDMI 2.0a and HDCP 2.2
■ Video bandwidth up to 18Gbps

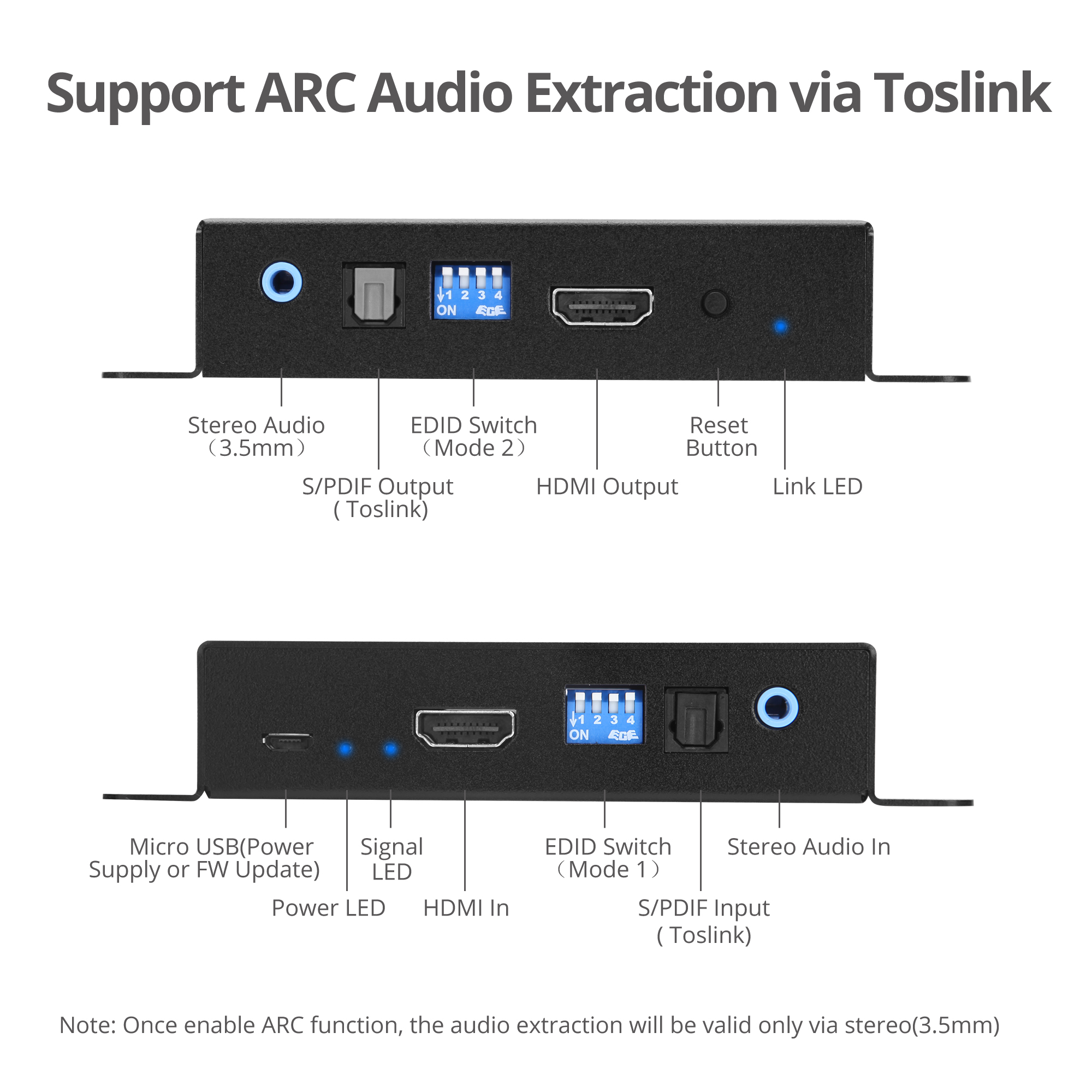

■ Supports CEC bypass and Audio Return Channel (ARC) audio extraction via Toslink

  • $0 $0

Highlights

Extracts high quality Stereo Analog audio
and Digital Toslink S/PDIF audio from the incoming HDMI signal without losing any active audio channels

Embeds external Stereo Analog audio
or Digital S/PDIF (Toslink) audio to the outgoing HDMI signal

Supports HDMI Input and Output up to 4K @60Hz
(YUV 4:4:4 8-bit), HDR 4K @60Hz (YUV 4:2:0 10-bit)

Compatible with HDMI 2.0a and HDCP 2.2

Video bandwidth up to 18Gbps

Supports CEC bypass and Audio Return Channel
(ARC) audio extraction via Toslink


Specification

Compliant with HDMI 2.0a and HDCP 2.2 specification



Support CEC pass through



Supports 4Kx2K@60Hz YUV 4:4:4 8bit



Supports HDR 4K@60Hz YUV 4:2:0 10bit



Video bandwidth up to 18Gbps (600MHz per channel)



Resolution:480p / 720p / 1080i / 1080p / 4Kx2K @60Hz



Supports Supports audio embedded via stereo and S/PDIF (Toslink)



Supports ARC audio extraction via S/PDIF (Toslink)



Supported audio formats:
■ HDMI: PCM 2/5.1/7.1, Dolby 5.1/7.1, DTS 5.1/7.1
■ Optical (Toslink): PCM 2, Dolby 5.1



ESD protection:±15kV Air & ±8kV Contact



Metal housing wall mount design



Product
■ Dimensions: 4.00" (L) x 0.90" (H) x 2.60" (W)
■ Weight: 0.49 lbs
■ Color: Black

■ Housing material: Metal

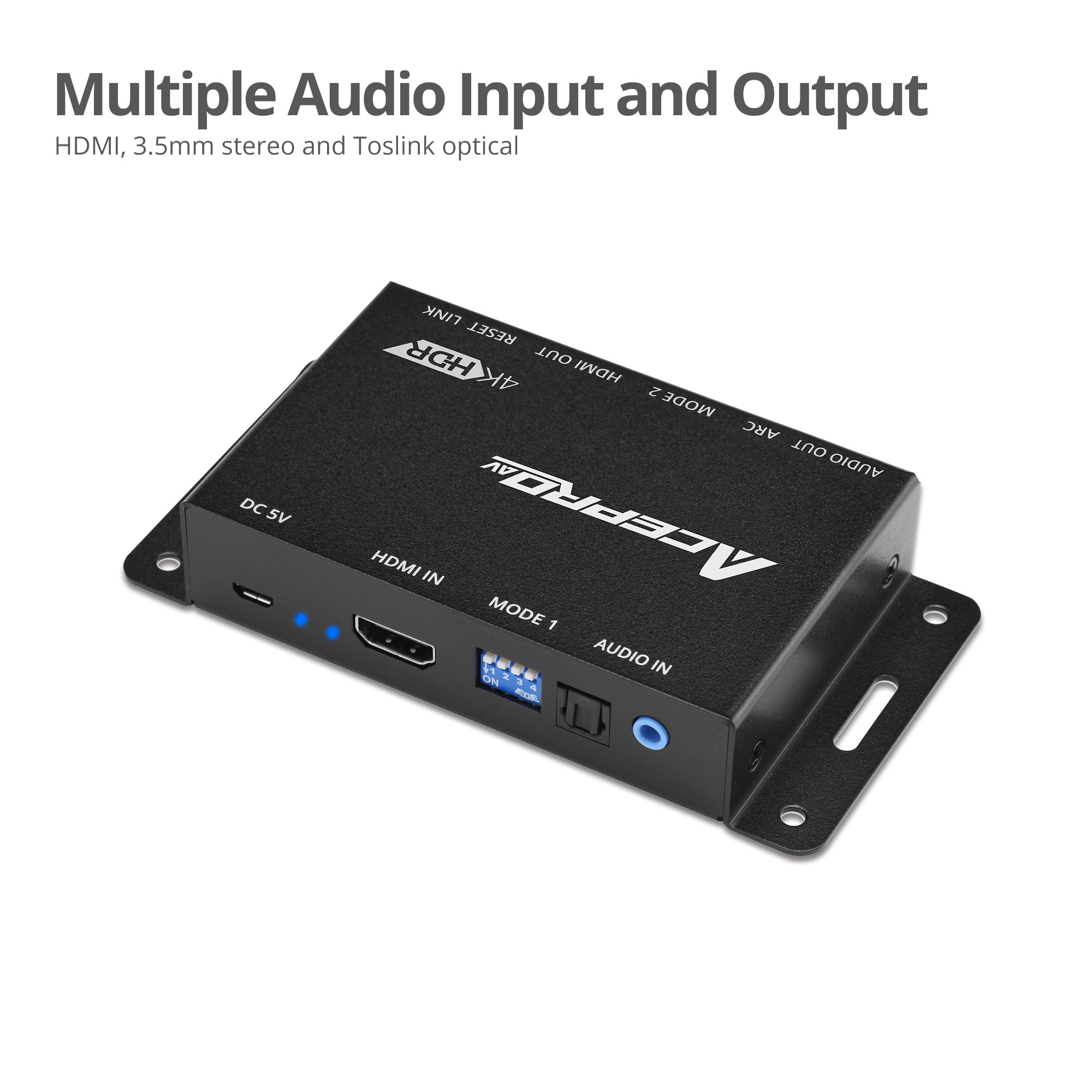

■ Connector:
1x 19-Pin HDMI, Type A, Female, Input
1x 19-Pin HDMI, Type A, Female, Output
1x 5-Pin Micro USB, Power Input (included power adapter)
3.5mm, Stereo audio, Input
1x S/PDIF, Toslink audio, Input
1x 4-Pin Mode-1 Switch
1x 3.5mm, Stereo audio, Output
1x S/PDIF, Toslink audio, Output
1x 4-Pin Mode-2 Switch



Power adapter:
■ Input: 100-240VAC, 50/60 Hz
■ Output: DC 5V/1A
■ UL Listed: E135856/Level:VI



Environmental conditions:
■ Operating temperature: 32 to 104 degrees F
■ Storage temperature: -4 to 140 degrees F
■ Relative humidity: 20 to 90% RH (non-condensing)



Certifications/Standards:FCC, CE, RoHS



TAA compliant



Warranty: 1 years limited



Requirements
■ HDMI source device, such as computer PCs, Blu-ray players, media players, etc.
■ HDMI displays, monitors, and HDTVs



Package Contents
■ HDMI 2.0 Audio Extractor/Embedder
■ Power adapter 5V/2A
■ Quick start guide
