- AcePro-CE42-1
- AcePro 3x1 S/PDIF Toslink Switch
■ Handy tool to select and switch between 3 Toslink S/PDIF inputs and transmit to 1 Toslink S/PDIF output ■ Built-in digital signal amplifier maintains signal integrity without signal loss ■ Easy S/PDIF source device selection via embedded DIP switches ■ Supports LPCM, AC3, DTS audio, 24-bit audio depth, with sample rate up to 192KHz ■ Sturdy metal enclosure provides durability and minimizes EMI/RF noise interference for long life and dependable performance ■ Plug and play, no software installation required
Highlights
3x1 S/PDIF Toslink Switch

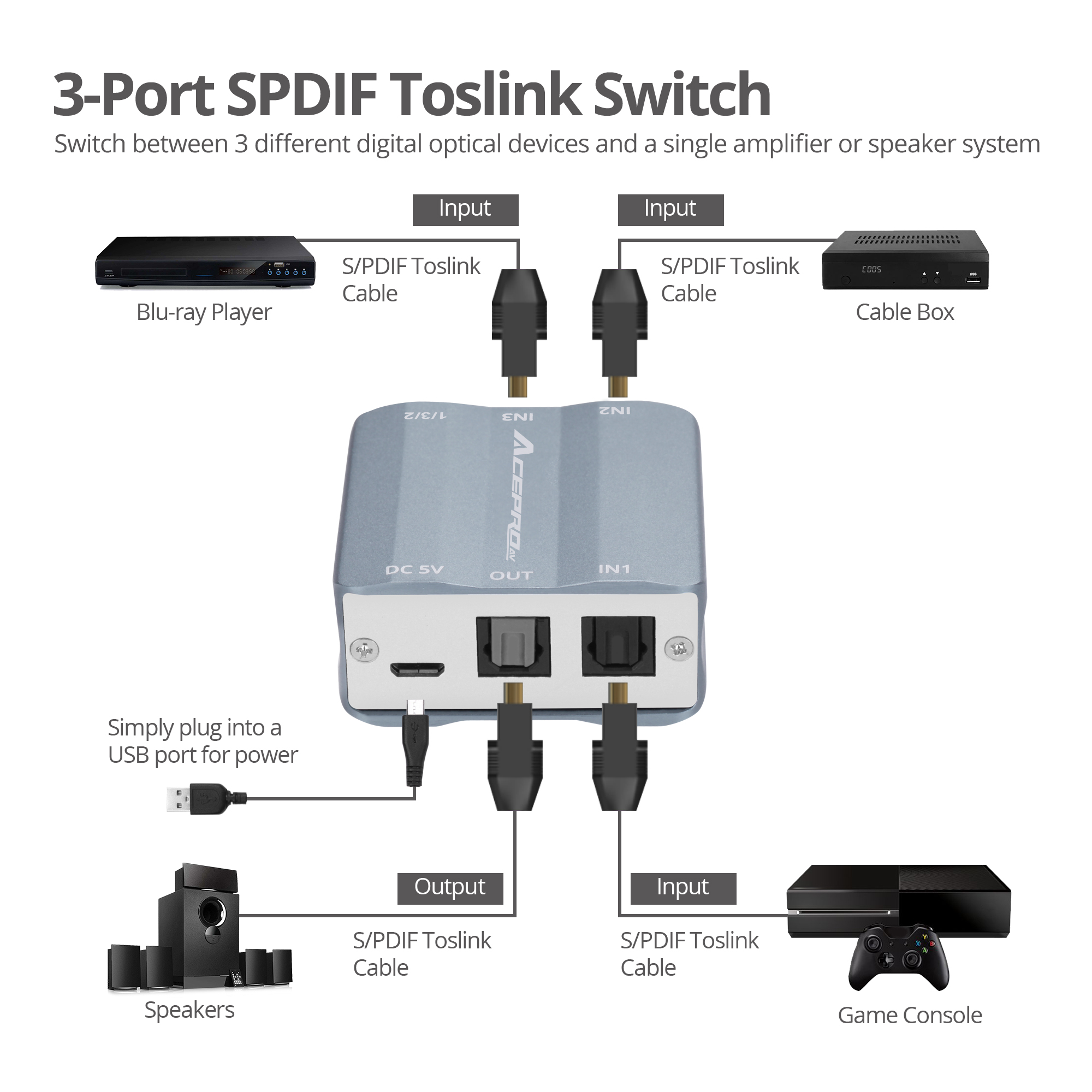

Handy tool to select and switch between 3 Toslink S/PDIF inputs and transmit to 1 Toslink S/PDIF output
HIGH QUALITY SIGNAL
Built-in digital signal amplifier maintains signal integrity without signal loss

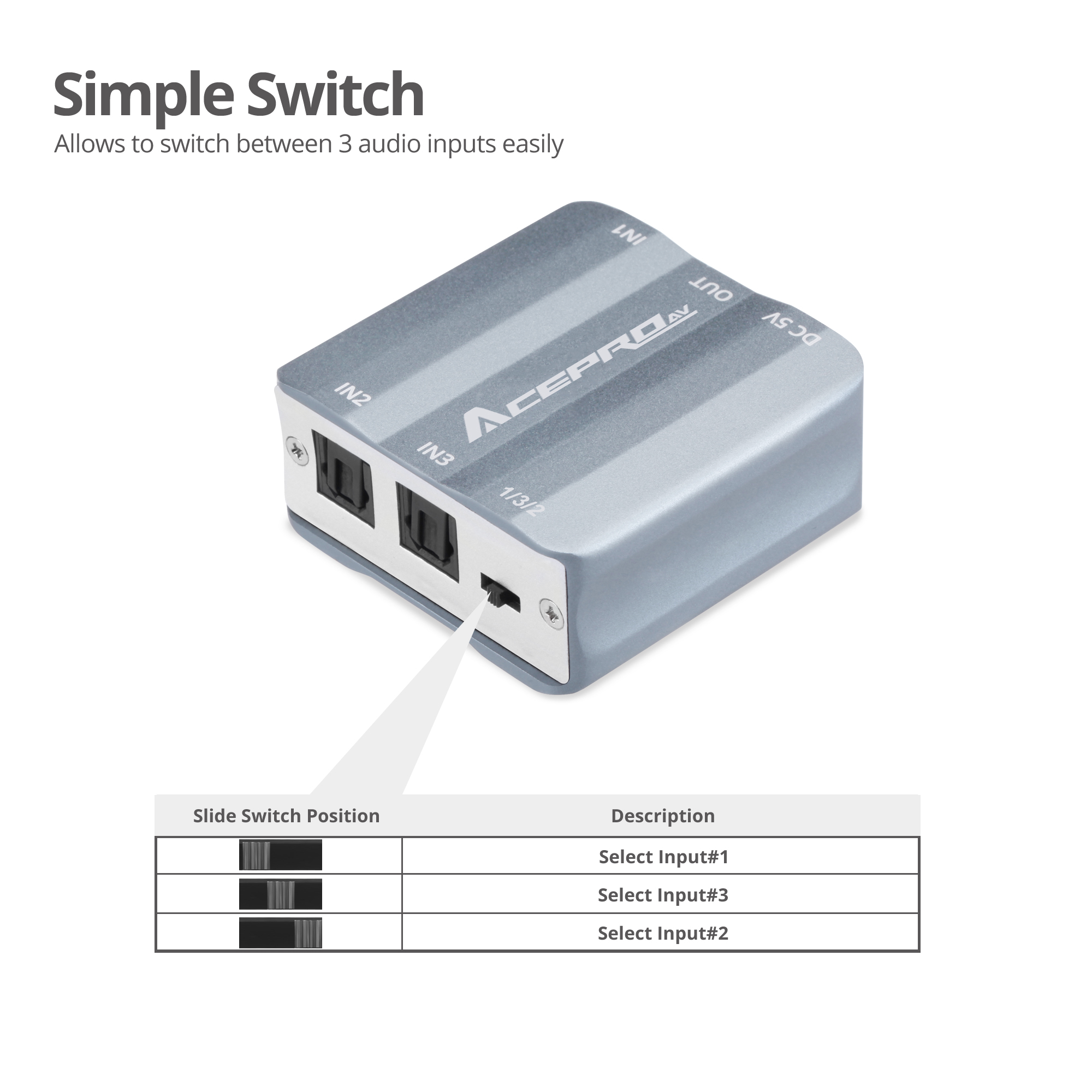

EASY SWITCH
Easy S/PDIF source device selection via embedded DIP switches

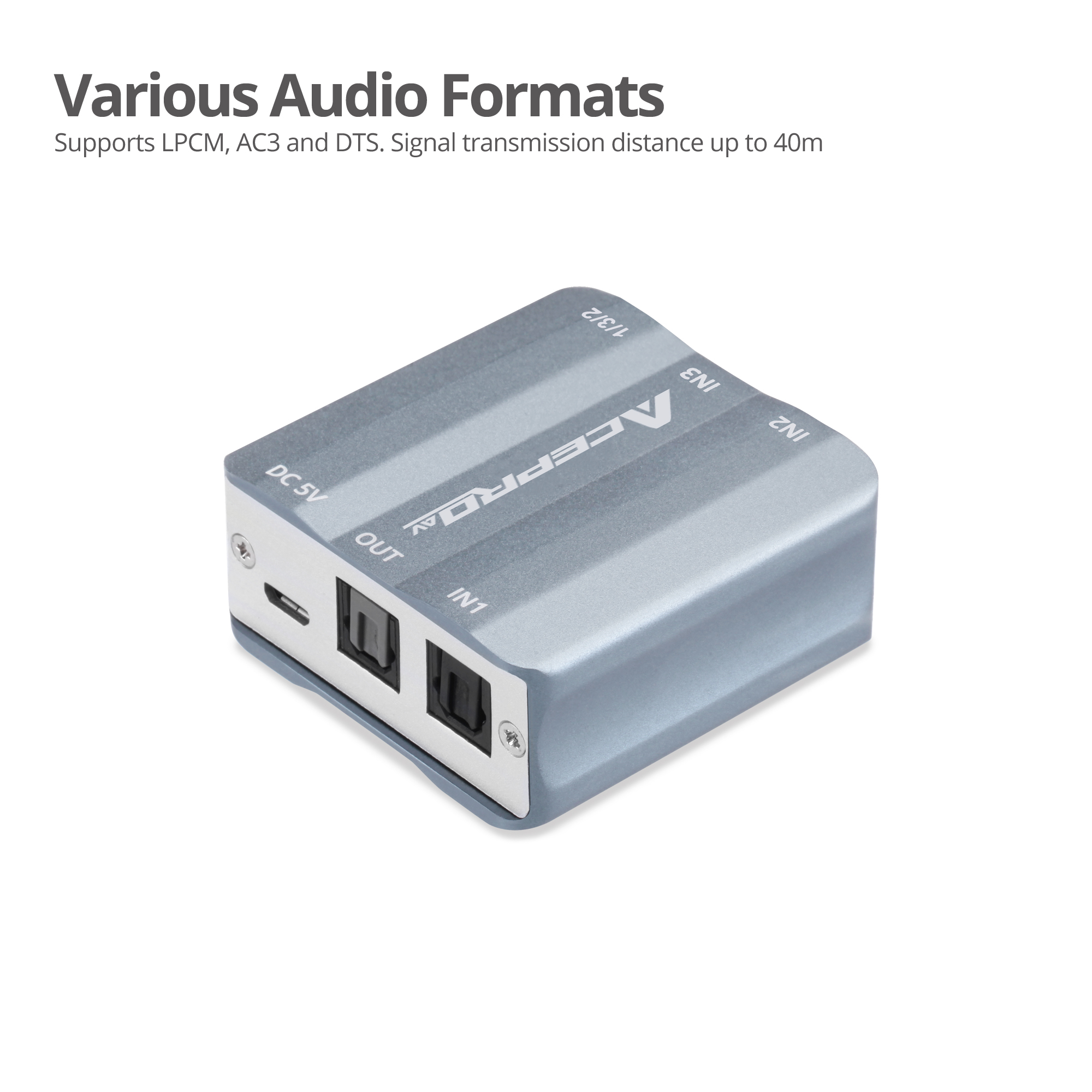

VARIOUS AUDIO FORMATS
Supports LPCM, AC3, DTS audio, 24-bit audio depth, with sample rate up to 192KHz
STURDY METAL ENCLOSURE
Provides durability and minimizes EMI/RF noise interference for long life and dependable performance
PLUG-N-PLAY
No software installation required
Specification
Audio sample rate: up to 192KHz
S/PDIF audio formats: LPCM, AC3 and DTS
ESD protection: ±12kV Air / ±8kV Contact
Color: Black
Housing: Metal
Product
■ Dimensions: 1.98" (L) x 0.91" (H) x 1.97" (W)
■ Weight: lbs

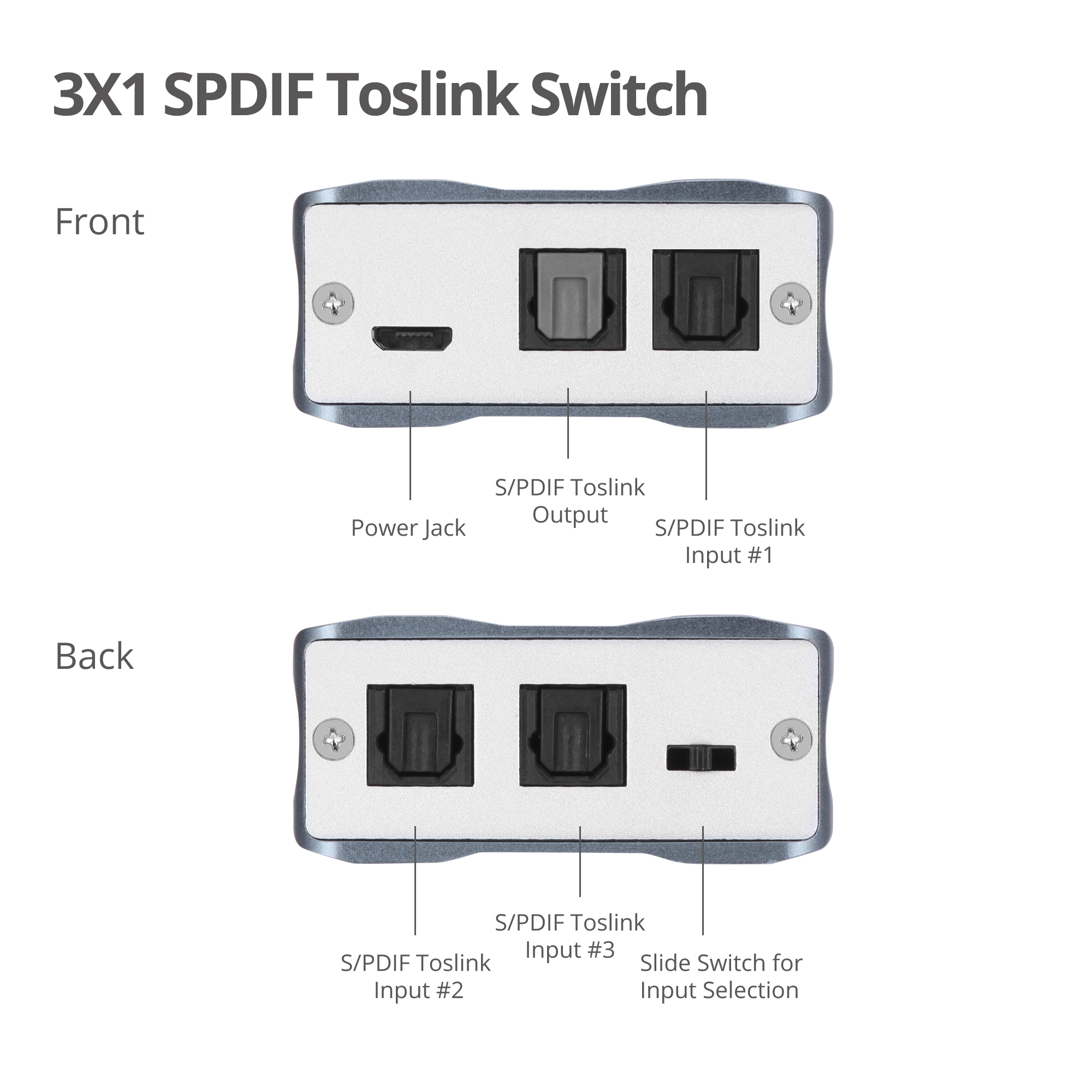

■ Connector:
1x Toslink, S/PDIF, Female, Output
3x Toslink, S/PDIF, Female, Input
1x 5-pin, Micro USB, Power Input
1x DIP Switch
Power supply
■ Input: 100-240VAC, 50/60Hz
■ Output: DC 5V/1A
UL Listed: /Level:VI
Environmental conditions:
■ Operating temperature: 32 to 122 degrees F
■ Storage temperature: 14 to 140 degrees F
■ Relative humidity: 20% to 90% RH (non-condensing)
TAA Compliant
Certifications/Standards: FCC, CE, RoHS
Warranty: 1 year limited
Country of origin: Taiwan
